 Stainless Steel Hygienic Tube Fittings

( 3-A TRI-CLAMP UNION FITTINGS )

● TRI-CLAMP FERRULE

● WELDING FERRULE

● ROLL-ON EXPANDING FERRULE

● TANK SPUD

● RUBBER HOSE ADAPTER

● TYGON HOSE ADAPTER

● BLANK END CAP

● FERRULE SEAL / GASKET

3-A / IDF / Tri-Clamp / Butt Weld / Roll-On Expanding / I-Line / Q-Line

 (3-A)

● 3A-14WMP  WELDING Ferrule SHORT

● 3A-14AMP  WELDING Ferrule LONG

● 3A-14WLMP  WELDING Ferrule TANK SPUD LIGHT

● 3A-14MPW  WELDING Ferrule TANK SPUD HEAVY WALL

● 3A-14RMP  ROLL-ON EXPANDING Ferrule

● 3A-14MPHT  TYGON HOSE Adapter

● 3A-14MPHR  RUBBER HOSE Adapter

● 3A-16AMP  Solid END CAP

● 3A-16W  Solid END CAP (for Welding)

● 3A40A  Ferrule GASKET without LIP

● 3A40B  Ferrule GASKET with LIP

 (IDF)

● IDF-IDFA  MEDIUM WELD Ferrule

● IDF-IDFR  Recessless Ferrule / ROLL-ON EXPANDING Ferrule

 (I-LINE)

● 14WI-CB  WELD Ferrule MALE

● 14WI  WELD Ferrule MALE, SHORT

● 15WI-CB  WELD Ferrule FEMALE

● 15WI  WELD Ferrule FEMALE, SHORT

● 14WLI  WELD Ferrule MALE LONG / Tank Spud Light

● 15WLI  WELD Ferrule FEMALE LONG / Tank Spud Light

● 14WHI  WELD Ferrule MALE / Tank Spud HEAVY WALL

● 15WHI  WELD Ferrule FEMALE / Tank Spud HEAVY WALL

● 14RI  ROLL-ON EXPANDING Ferrule MALE

● 15RI  ROLL-ON EXPANDING Ferrule FEMALE

● 14WI-5  (SCH5) WELD Ferrule MALE SCH5

● 15WI-5  (SCH5) WELD Ferrule FEMALE SCH5

 (Q-LINE)

● 14WQ  WELD Ferrule SHORT SHANK

● 14WLQ  WELD Ferrule LONG / Tank Spud LIGHT WALL

● 14RQ  ROLL-ON EXPANDING Ferrule

 (ADAPTERS)

● B19W   Weld End X Male NPT

● 21-1   Weld End X Male NPT (with Hex Nut)

● 21MP   Tri-Clamp End X Male NPT

● 22MP   Tri-Clamp End X Female NPT

●  Tri-Clamp End X Male PT

●  Tri-Clamp End X PS

... and various Gaskets for Food-Grade Hygienic Piping in Compliance with FDA Requirements (Silicone, EPDM, Teflon, Viton, Buna-N)

The TRI-CLAMP, I-LINE, and Q-LINE fitting assemblies consist of two matching ferrules, a gasket, and a clamp. Designed specifically for COP ( Clean-Out-of-Place ) and CIP ( Clean-In-Place ) applications, these fittings utilize a wing nut for tightening and loosening, allowing pipeline equipment, on-site construction, and production line personnel to easily and quickly assemble, disassemble, clean, and replace components. Once assembled, the joints are seamless and leak-proof. Due to their compact design, piping configurations can be more tightly integrated, leading to more efficient use of production space.

The I-Line fitting design consists of interlocking flat ferrules, a flat gasket, and a clamp. This interlocking metal-to-metal design eliminates over-compression of the clamp and prevents the gasket from being extruded into product-contact areas.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

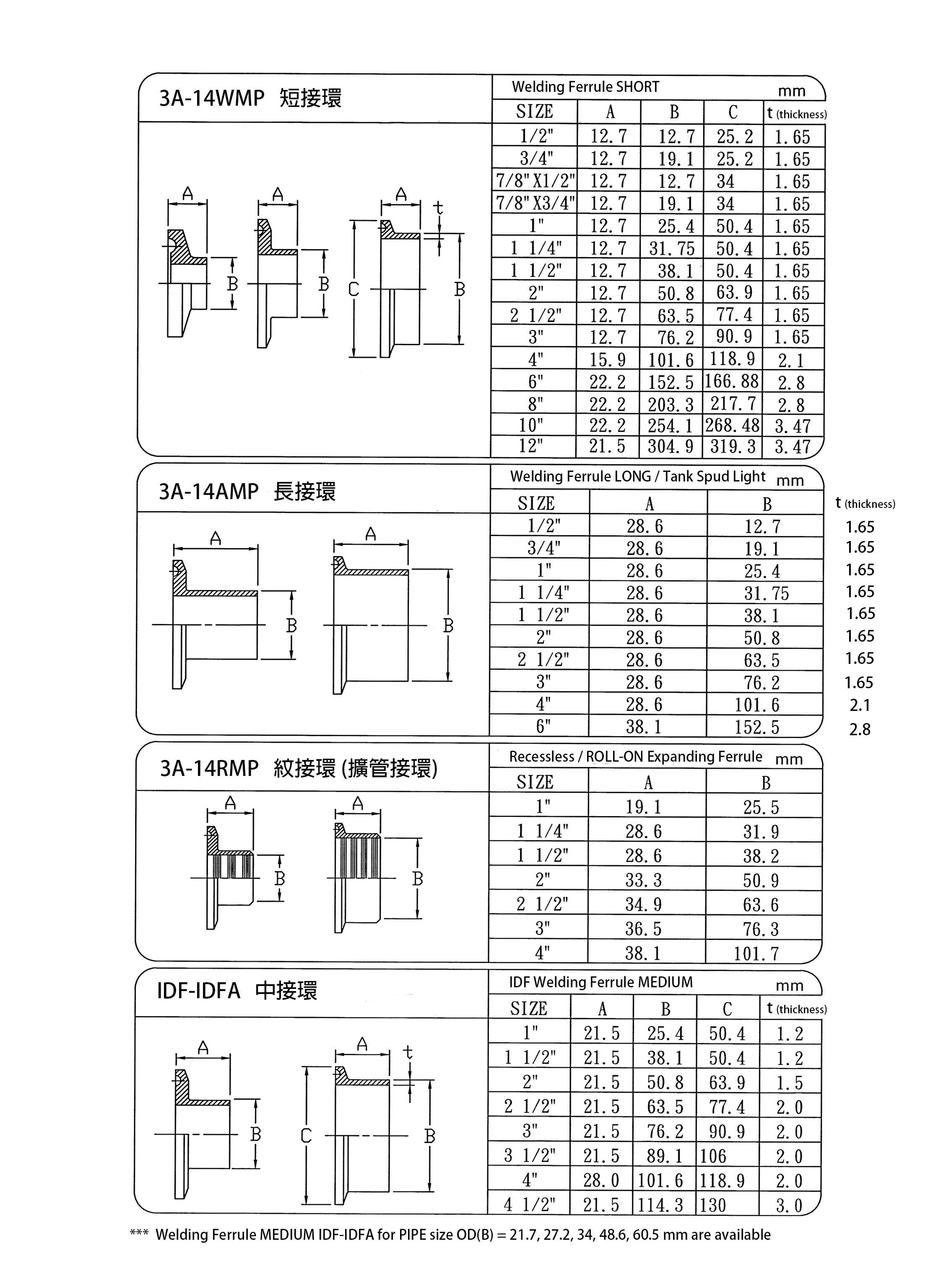

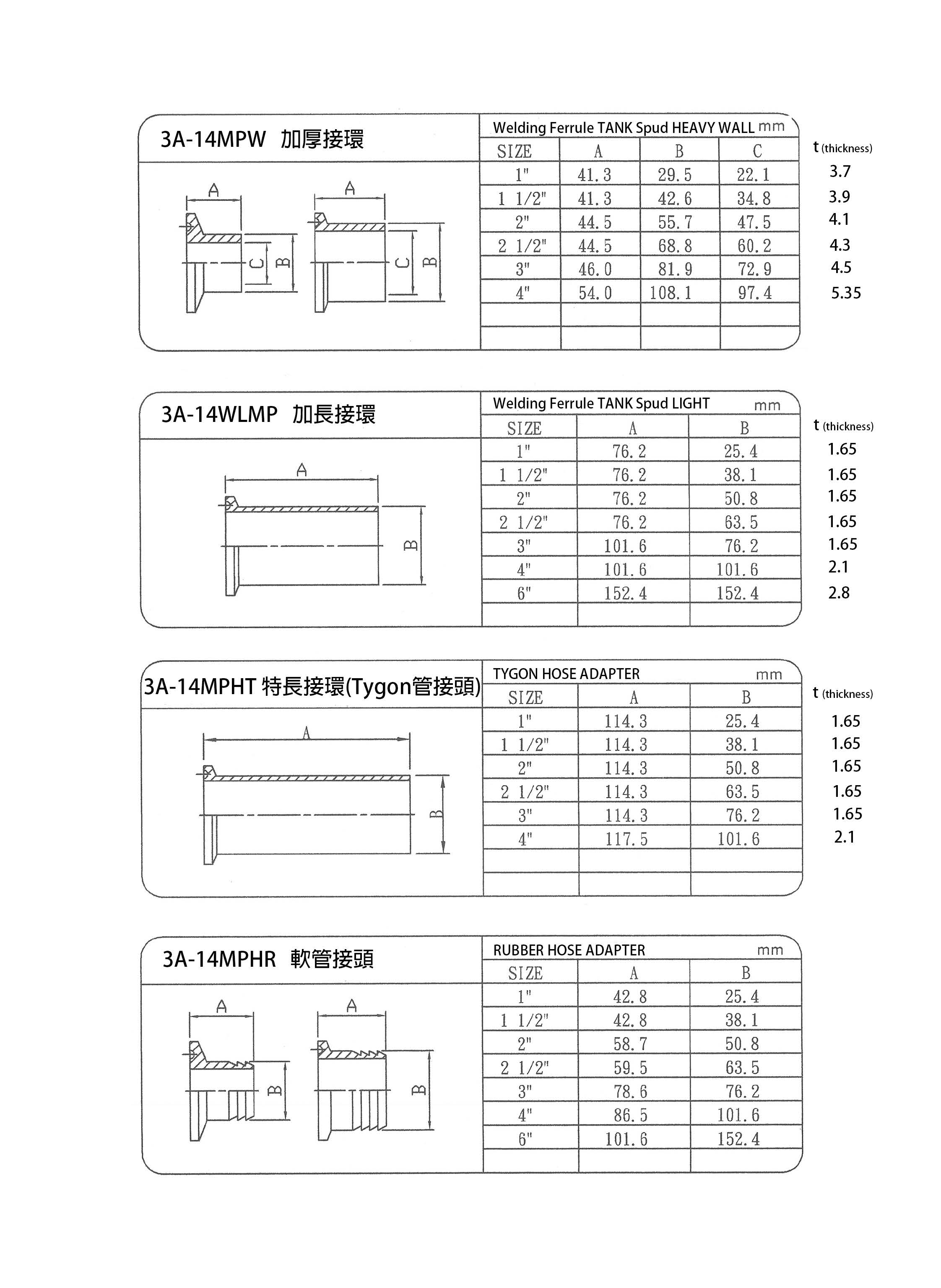

(3-A Ferrules)    14WMP Welding Ferrule Short   14AMP Welding Ferrule Long   14RMP Roll-On Expanding Ferrule 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" t=1.65mm 4" t=2.1mm 6" 8" t=2.8mm 10" 12" t=3.47mm    (IDF Ferrules)    IDFA Welding Ferrule Medium 1" 1.5" t=1.2mm 2" t=1.5mm 2.5" 3" 3.5" 4" t=2.0mm 4.5" t=3.0mm	(3-A Ferrules)    14MPW Welding Ferrule Tank Spud Heavy Wall 1" t=3.7mm 1.5" t=3.9mm 2" t=4.1mm 2.5" t=4.3mm 3" t=4.5mm 4" t=5.35mm   14WLMP Welding Ferrule Tank Spud Light   14MPHT Tygon Hose Adapter 1" 1.5" 2" 2.5" 3" t=1.65mm 4" t=2.1mm     14MPHR   Rubber Hose Adapter

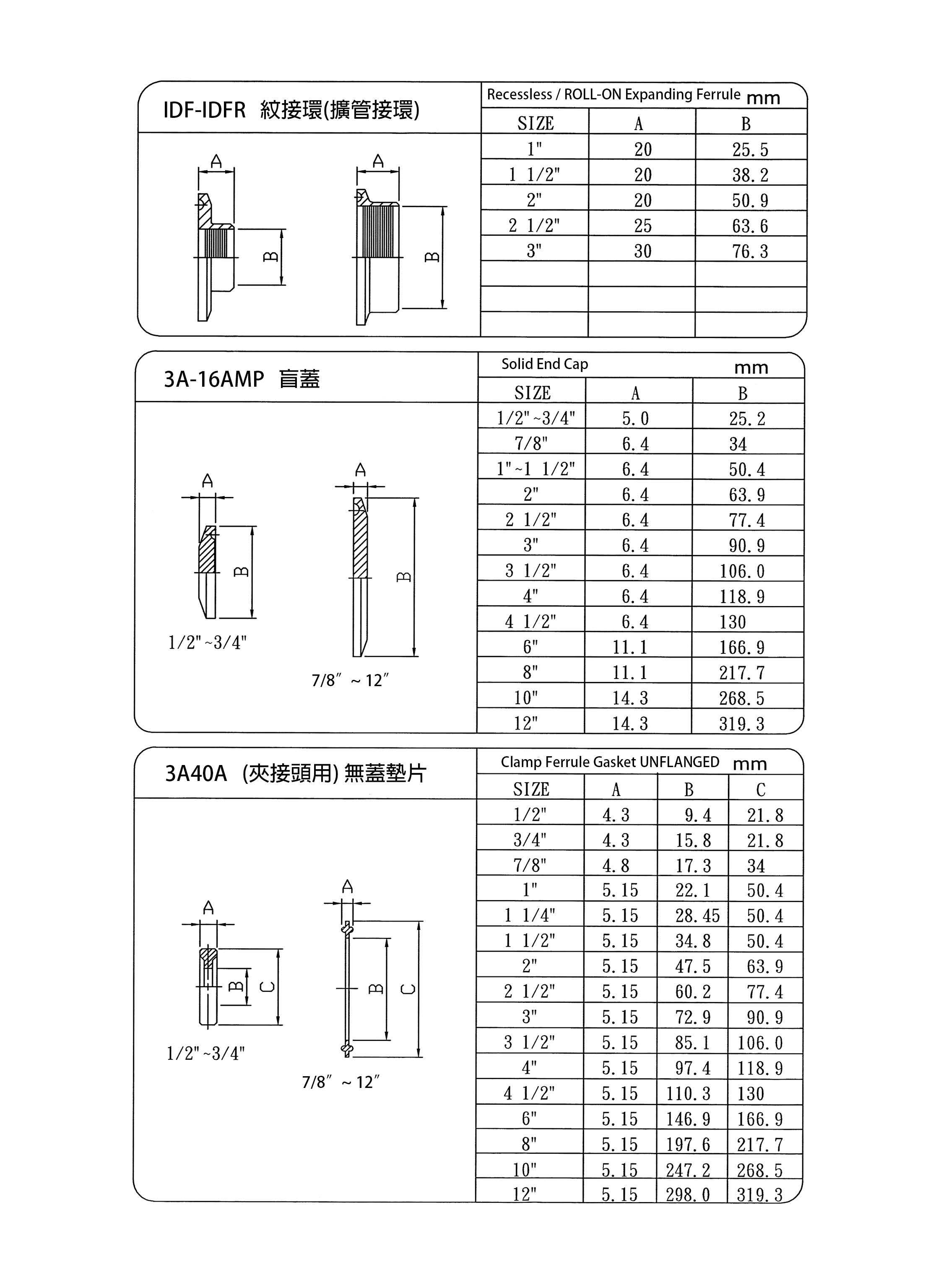

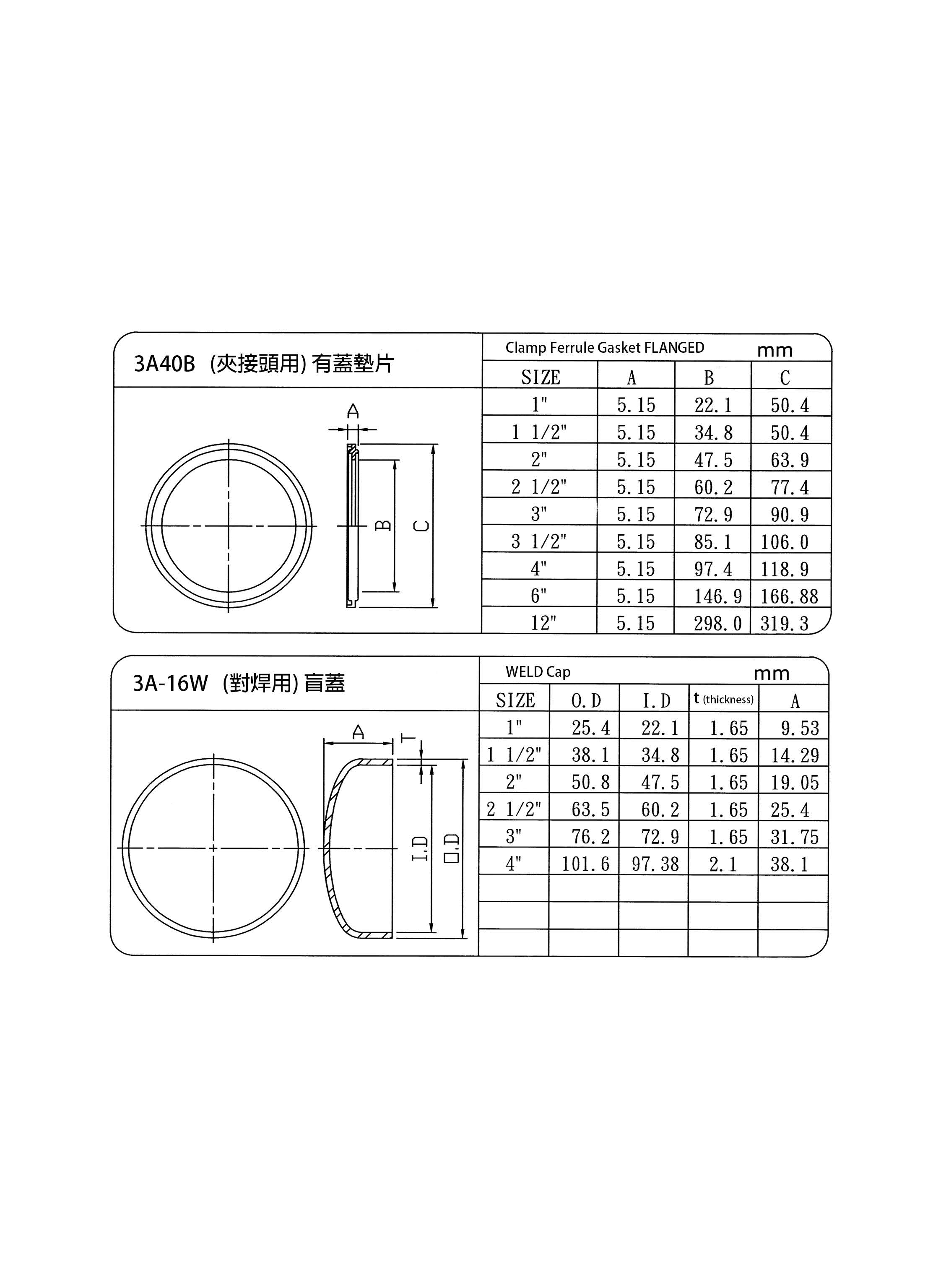

(IDF Ferrules)    IDFR Recessless / Roll-On Expanding Ferrule    (3-A Ferrules)    16AMP Solid End Cap   3A40A Ferrule Gasket without Lip	(3-A Ferrules)    3A40B Ferrule Gasket with Lip   16W Solid End Cap for Welding

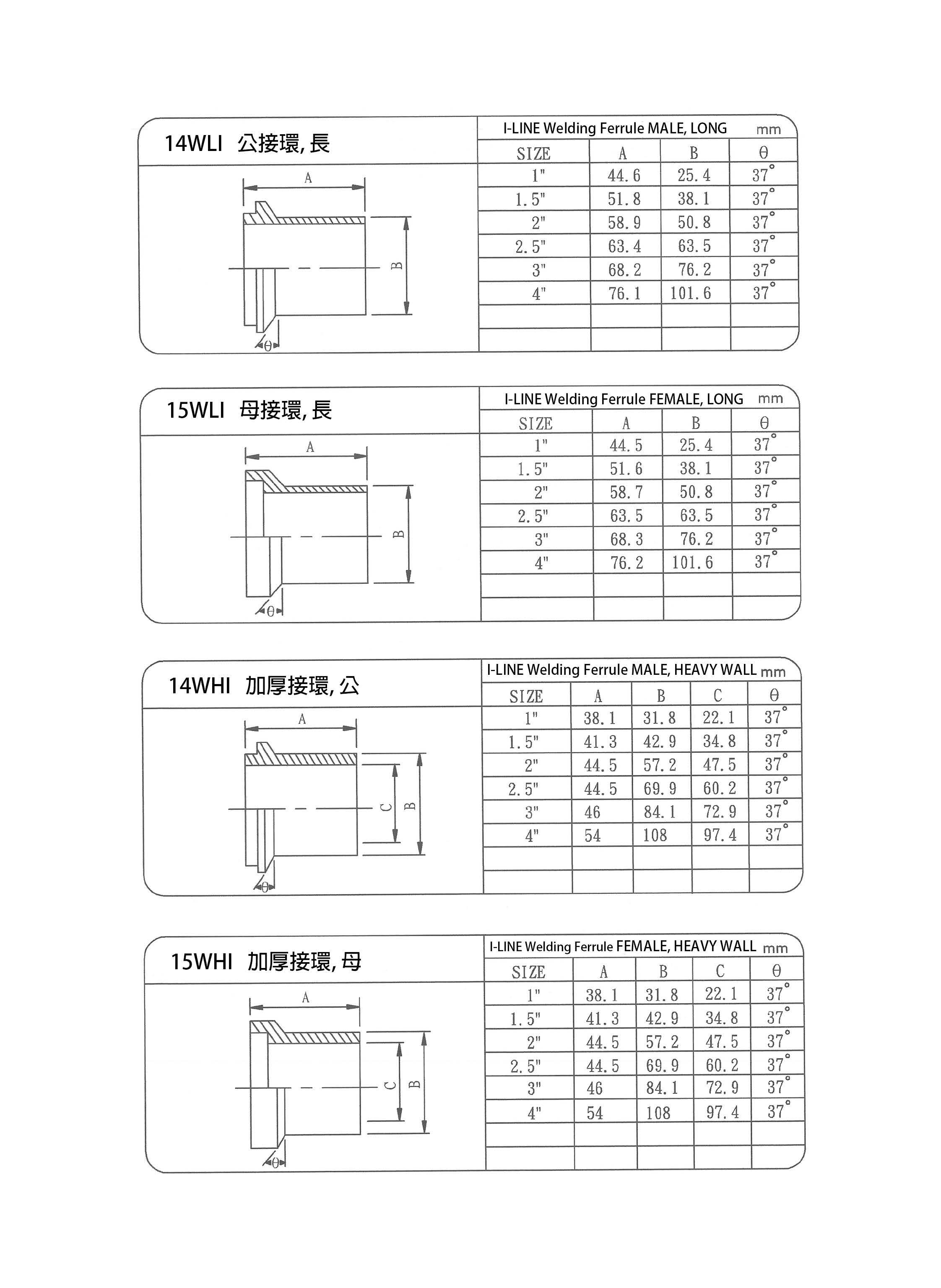

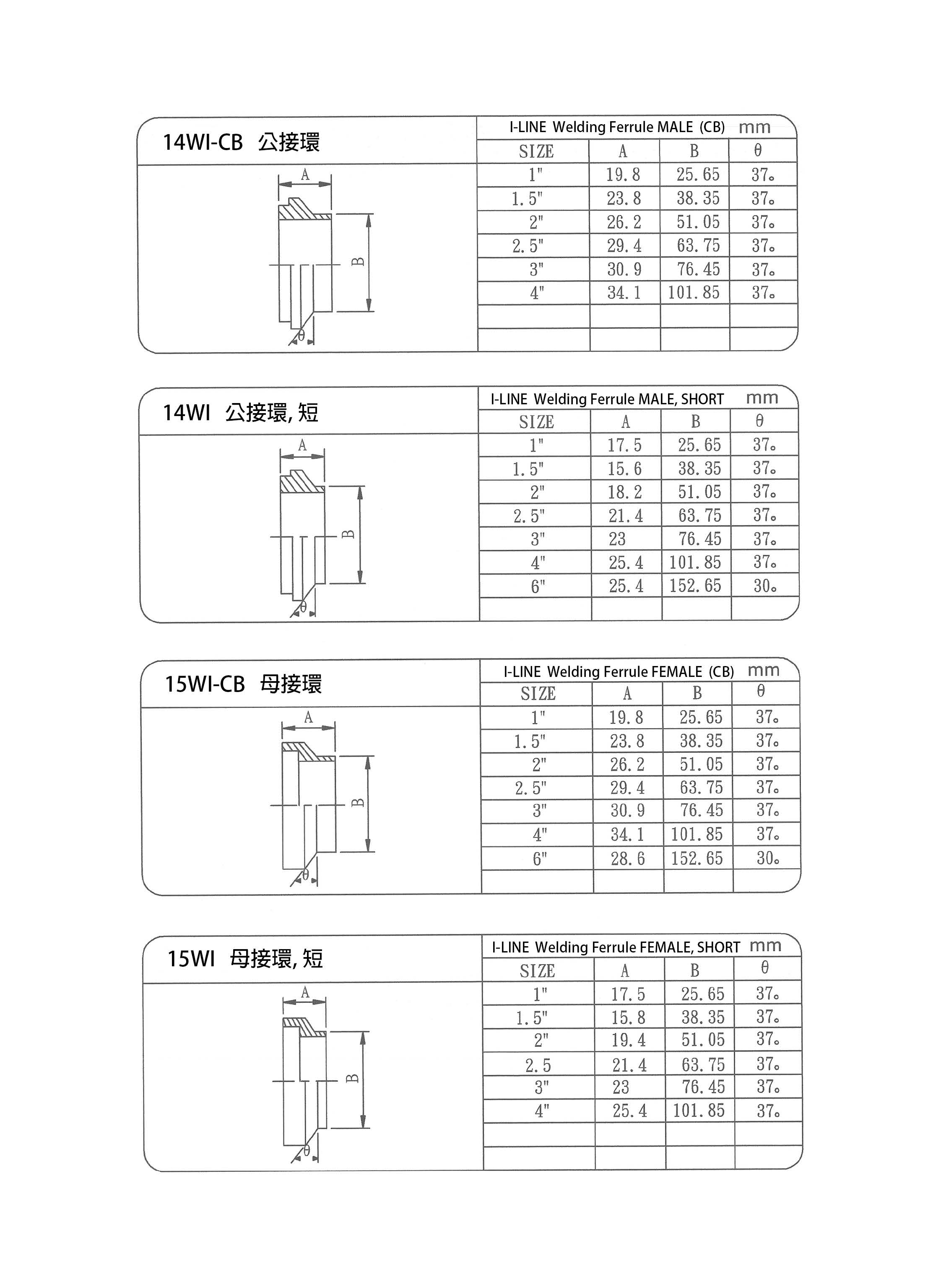

(I-Line Ferrules)    14WI-CB Weld Ferrule Male   14WI Weld Ferrule Male, Short   15WI-CB Weld Ferrule Female   15WI Weld Ferrule Female, Short	(I-Line Ferrules)    14WLI Weld Ferrule Male Long   15WLI Weld Ferrule Female Long   14WHI Weld Ferrule MALE / Tank Spud Heavy Wall   15WHI Weld Ferrule Female / Tank Spud Heavy Wall

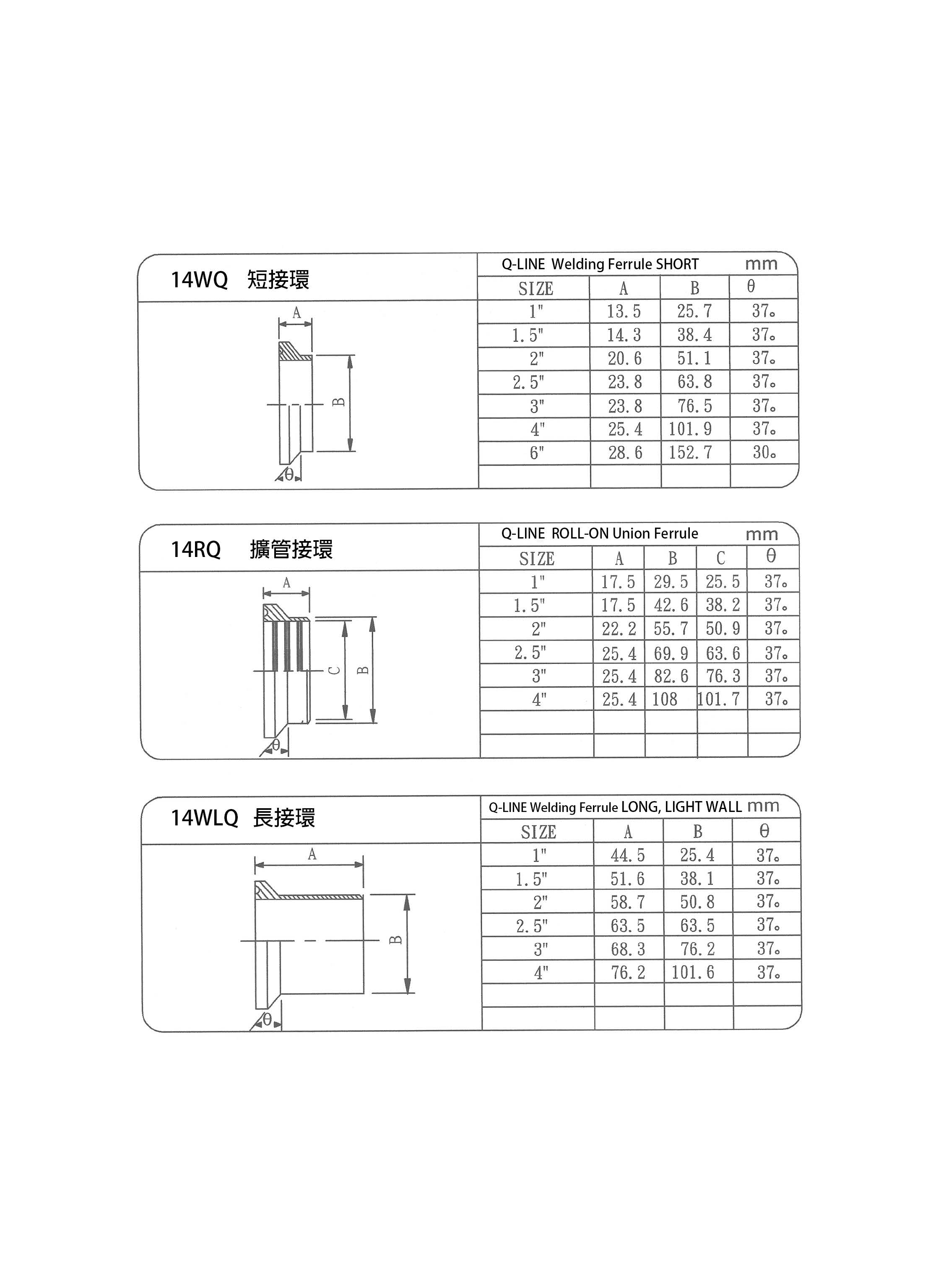

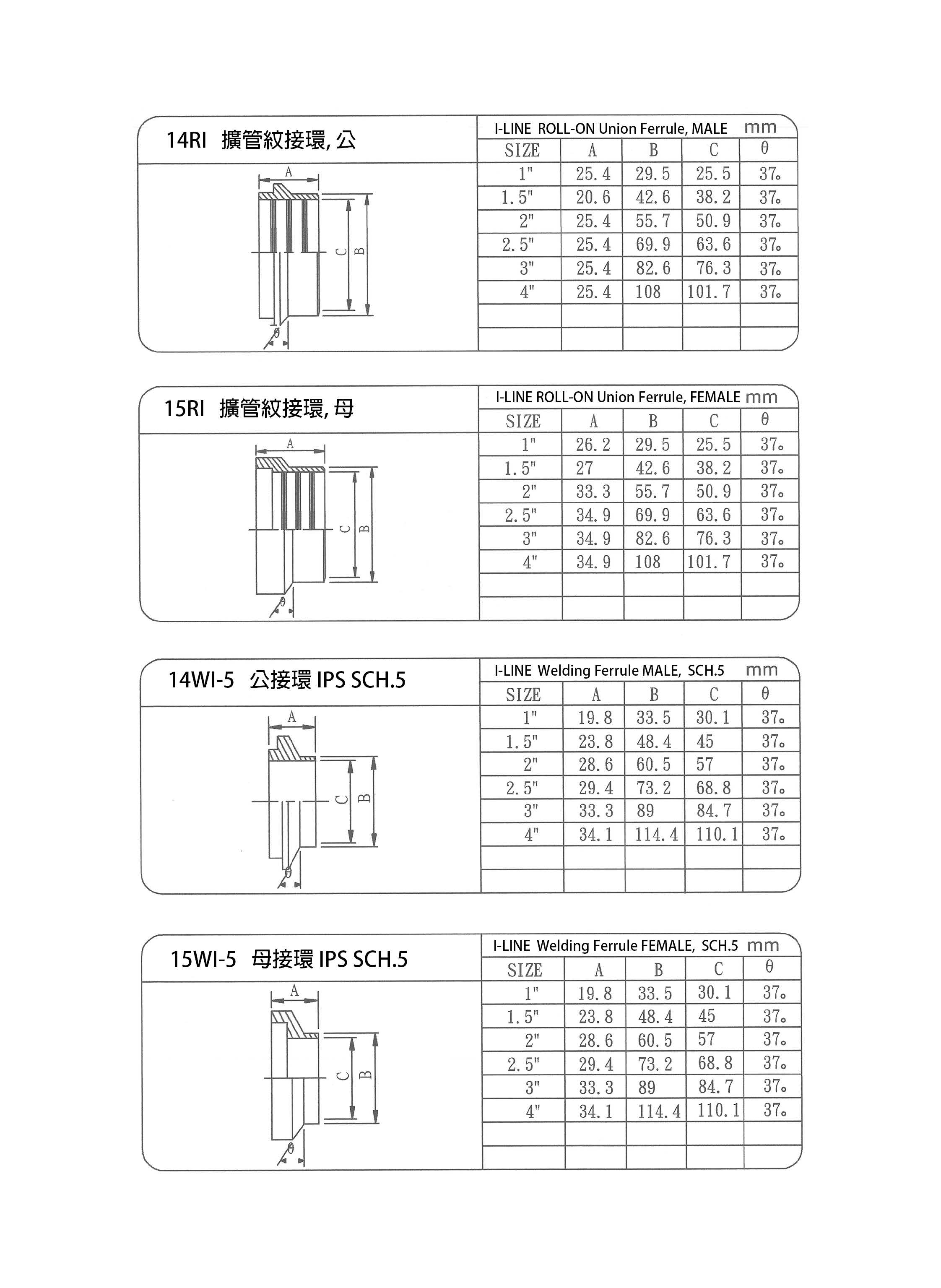

(Q-Line Ferrules)    14WQ Weld Ferrule Short Shank   14RQ Roll-On Expanding Ferrule   14WLQ Weld Ferrule Long / Tank Spud Light Wall	(I-Line Ferrules)    14RI  Roll-On Union Ferrule, Male   15RI Roll-On Union Ferrule, Female   14WI-5 Welding Ferrule Male, SCH5   15WI-5 Welding Ferrule Female, SCH5

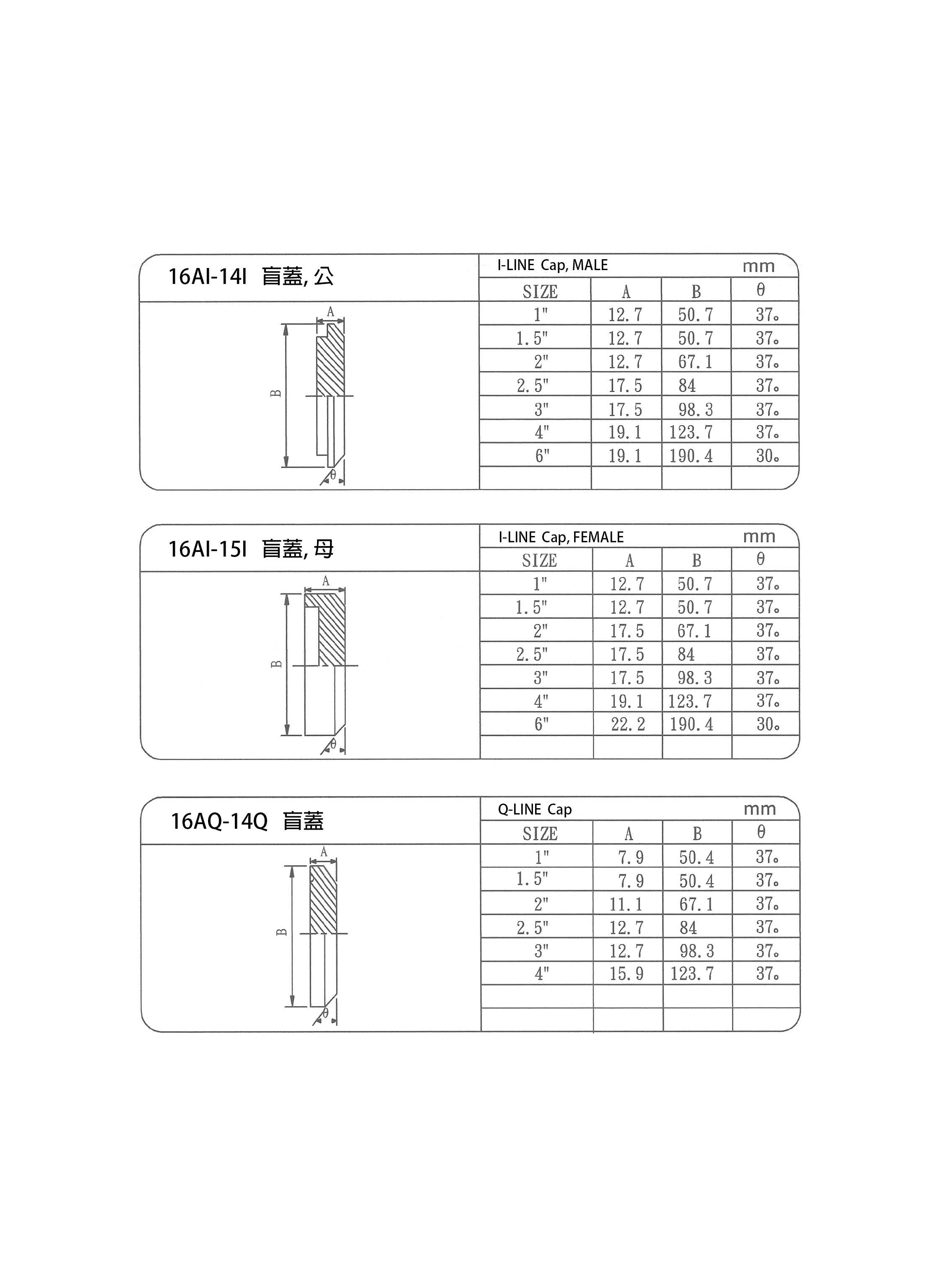

(I-Line)    16AI-14I Cap, Male   16AI-15I Cap Female     (Q-Line)     16AQ-14Q Cap	(3-A Adapters)     B19W   Adapter   Weld X MNPT     21-1   Adapter   Weld X MNPT   with HEX Nut     21MP   Adapter   Tri-Clamp X MNPT     22MP   Adapter   Tri-Clamp X FNPT

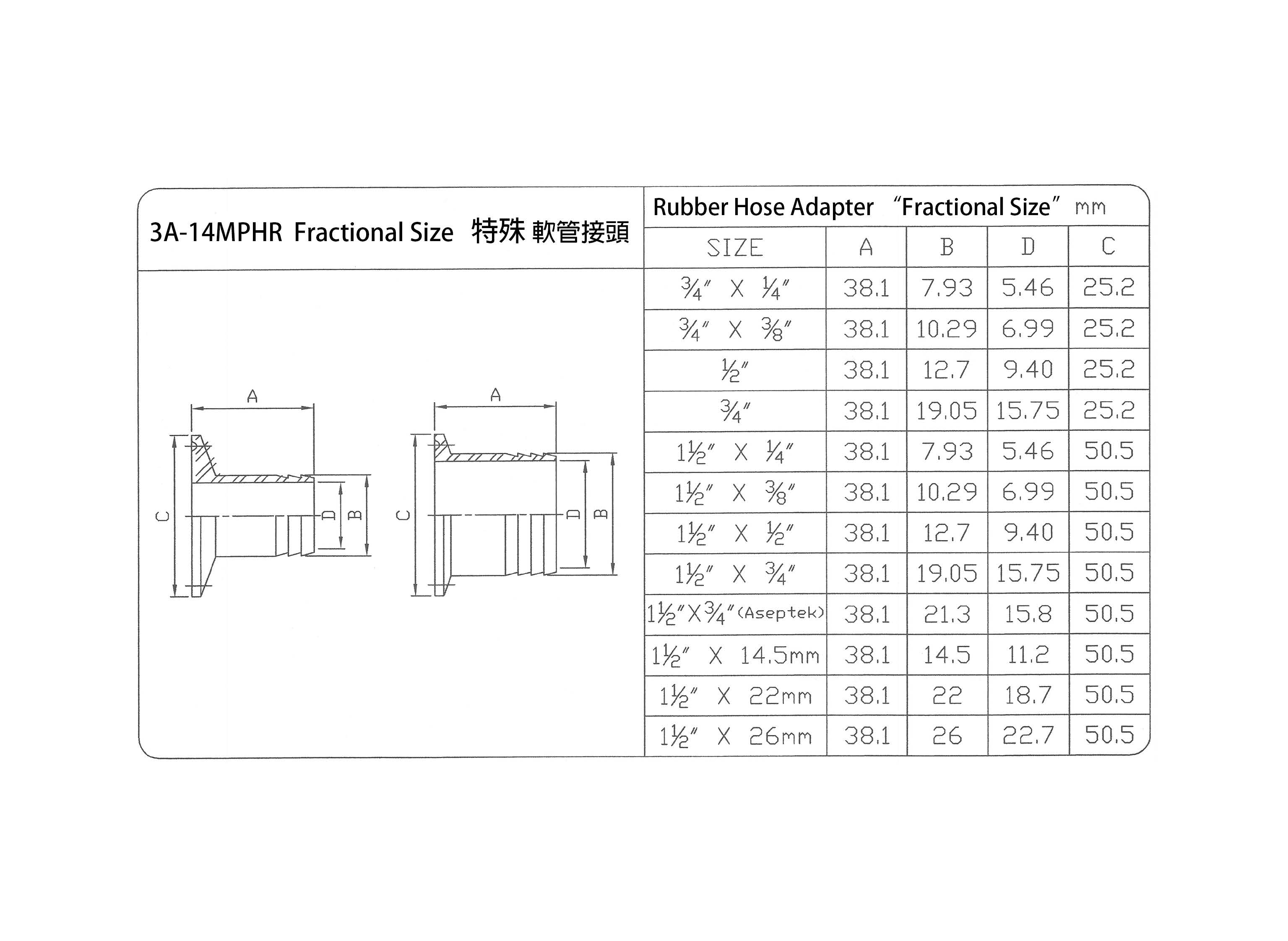

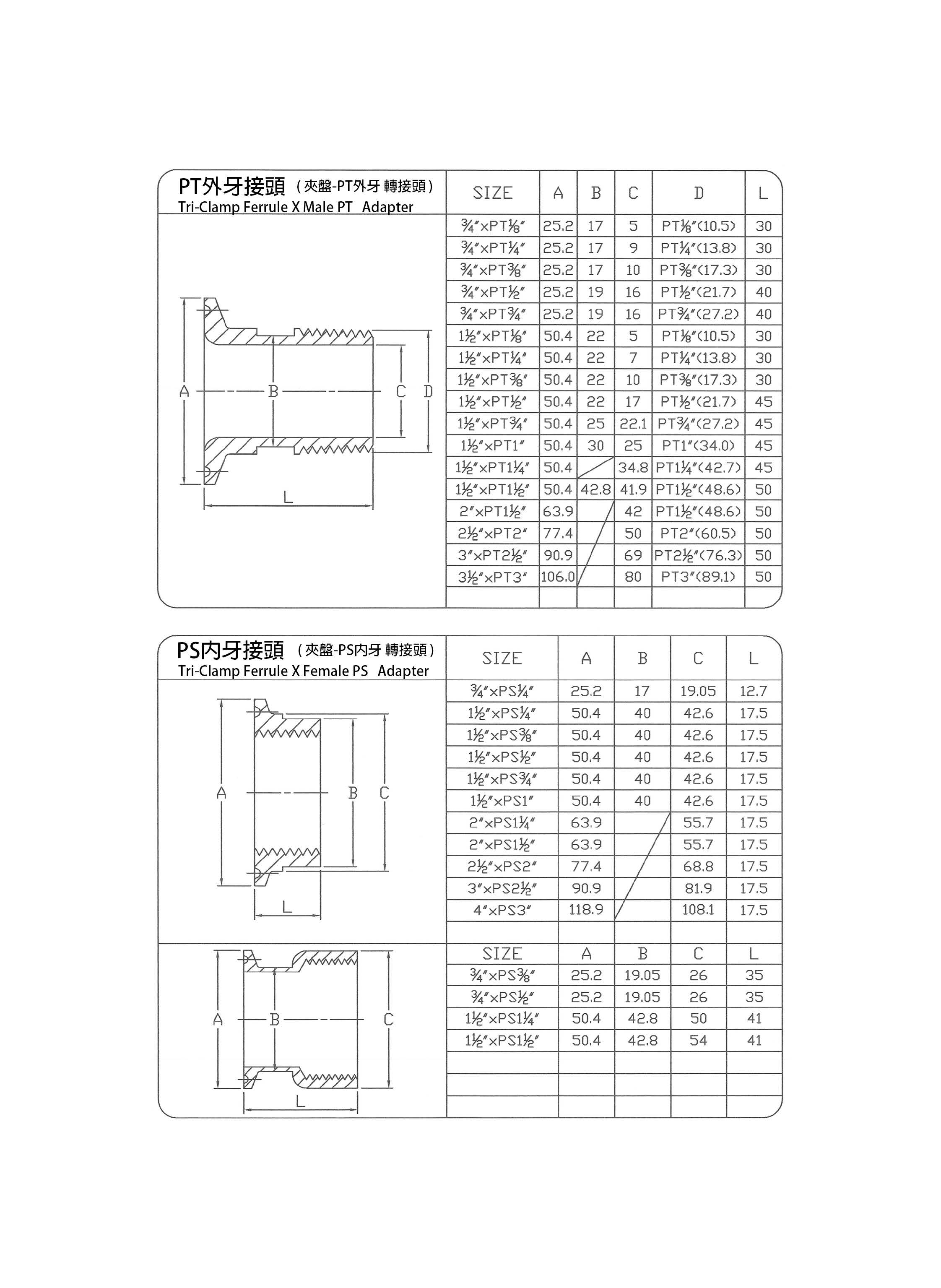

(3-A Adapters)     Adapter   Tri-Clamp X MPT     Adapter   Tri-Clamp X PS	(3-A)     14MPHR   Rubber Hose Adapter   Fractional
