SANITARY HYGIENIC PNEUMATIC CONTROL VALVE - SEAT VALVE, DIVERT VALVE, SHUT-OFF VALVE with Tri Clamp Ferrule / Weld / 3A / IDF / RJT / BSM / CIP FLAT FACE / DIN 11851 / SMS 1145 threaded male connections, Inox/Stainless Steel - Pneumatic ... 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/純水系統/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用閥件 食品衛生級 手動 氣動 控制閥, 防混閥, 座閥, 換向閥, 截止閥 Tri Clamp Ferrule / Weld / 3A / IDF / RJT / BSM / CIP FLAT FACE / DIN 11851 / SMS 1145 外牙接口

Inox/Stainless Steel Sanitary HYGIENIC PNEUMATIC CONTROL VALVE : Hygienic SEAT Valve , hygienic DIVERT Valve , Hygienic SHUT-OFF Valve with Tri clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS connections/ends - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

More Details



Product ID: 13

●  2-Port  AV-L  Shut Off Valve

●  3-Port  AV-T  Shut Off Valve

●  3-Port  AV-F  Divert Valve

●  4-Port  AV-E  Divert Valve

The name "SEAT VALVE" originates from its structural design and operating principle. This valve features a central stem integrated with a seat seal (plug tip) to ensure tight shut-off, utilizing the linear movement of the stem to open or close the fluid flow path.

Seat Valves are ideal for large-volume liquid handling applications. Thanks to their flexible modular body design, they can be adapted to various production line needs. For instance, the valve bodies can be configured as a SHUT OFF VALVE with two or three ports, or as a DIVERT VALVE with three to five ports. They are widely used in processes such as dairy processing, cream, beverages, fruit juice, and pharmaceuticals.

 Note : These Seat Valves are not suitable for fluids containing large suspended solids !!!

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.

 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

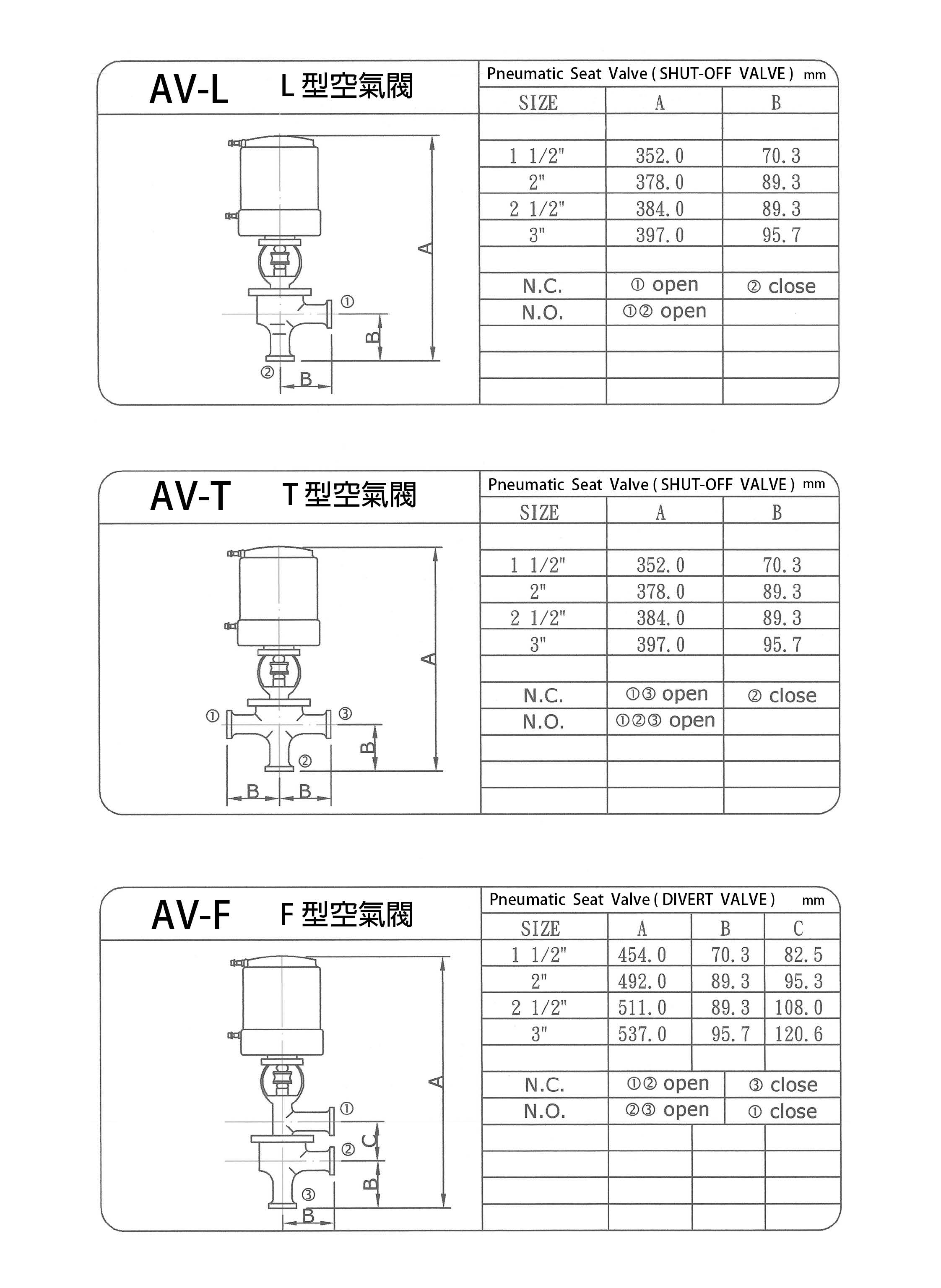

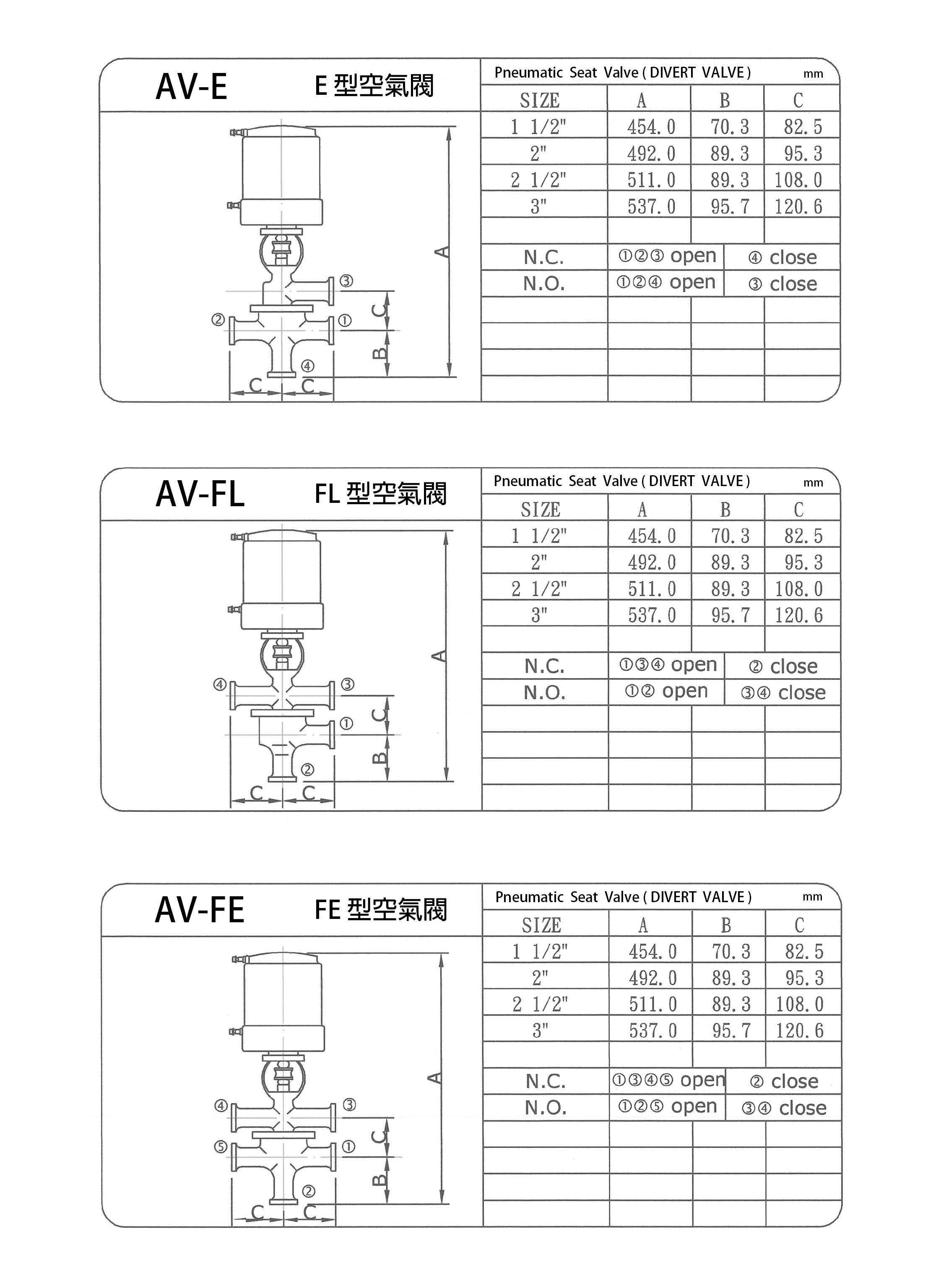

AV-L Pneumatic Shut-Off Valve L Type with Clamp Ends 氣動截止閥 L型 夾式   AV-T Pneumatic Shut-Off Valve T Type with Clamp Ends 氣動截止閥 T型 夾式   AV-F Pneumatic DIVERT Valve F Type with Clamp Ends 氣動換向閥 F型 夾式	AV-E Pneumatic DIVERT Valve E Type with Clamp Ends 氣動換向閥 E型 夾式   AV-FL Pneumatic DIVERT Valve FL Type with Clamp Ends 氣動換向閥 FL型 夾式   AV-FE Pneumatic DIVERT Valve FE Type with Clamp Ends 氣動換向閥 FE型 夾式

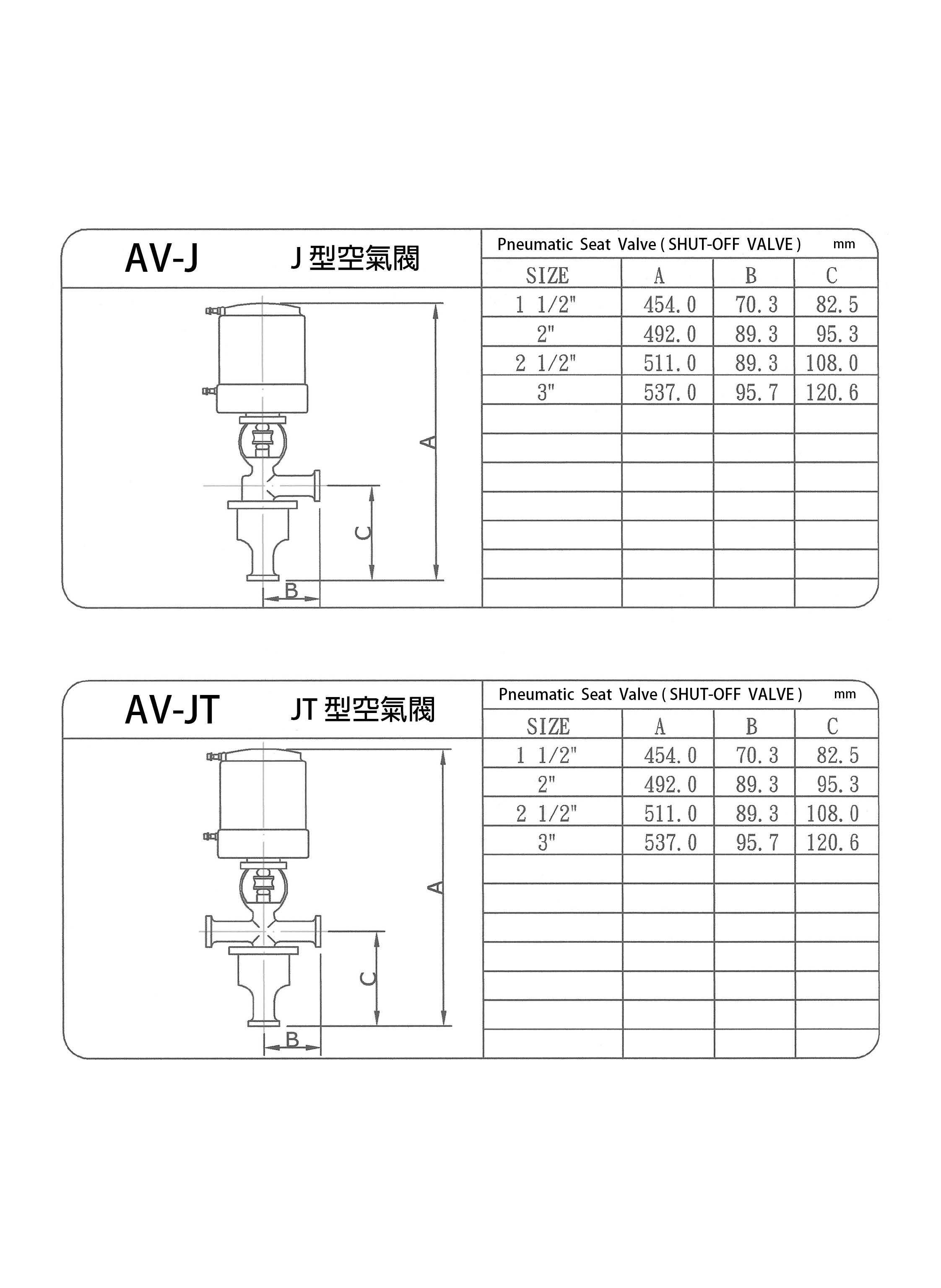

AV-J Pneumatic Shut-Off Valve J Type with Clamp Ends 氣動截止閥 J型 夾式   AV-JT Pneumatic Shut-Off Valve JT Type with Clamp Ends 氣動截止閥 JT型 夾式

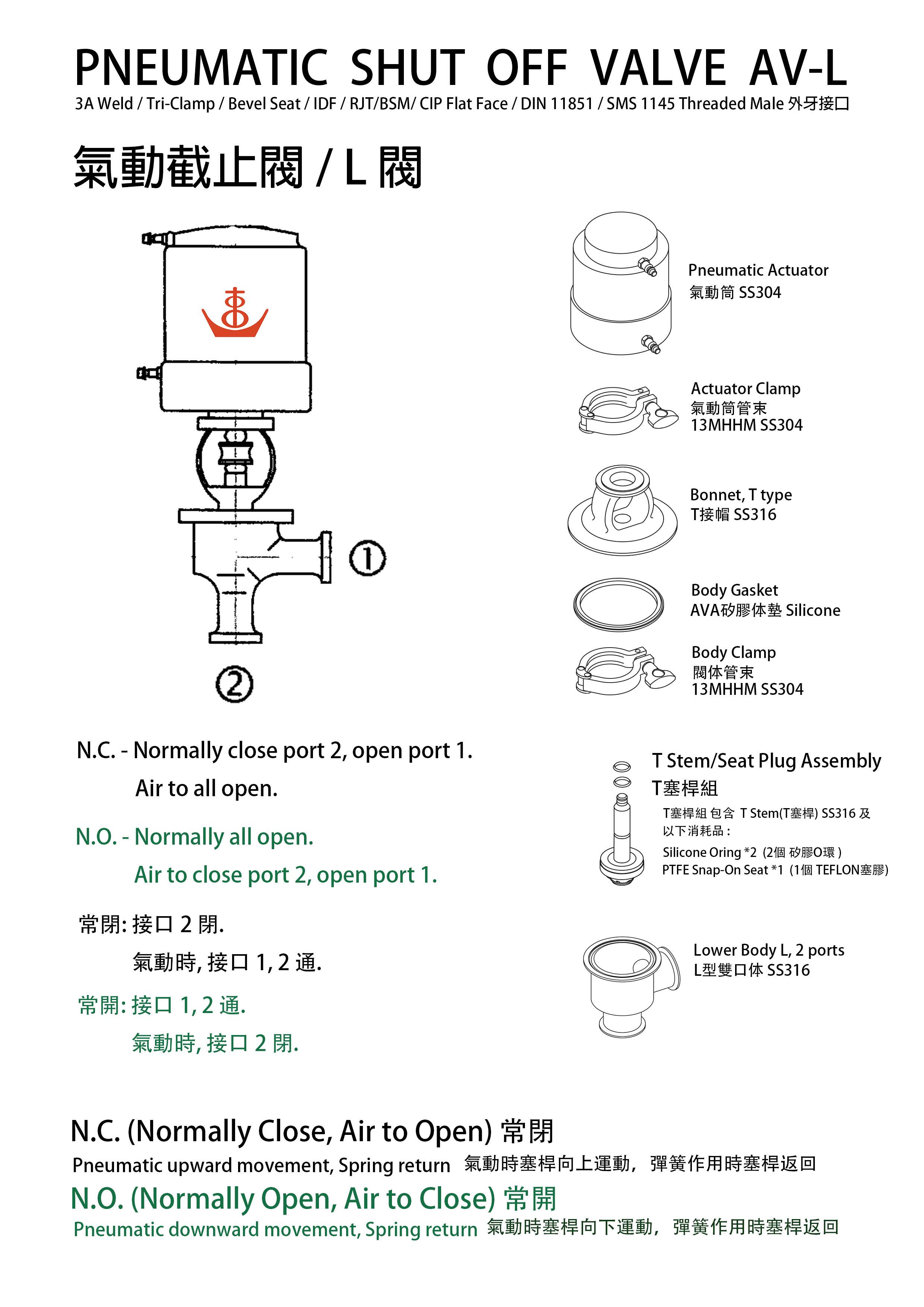

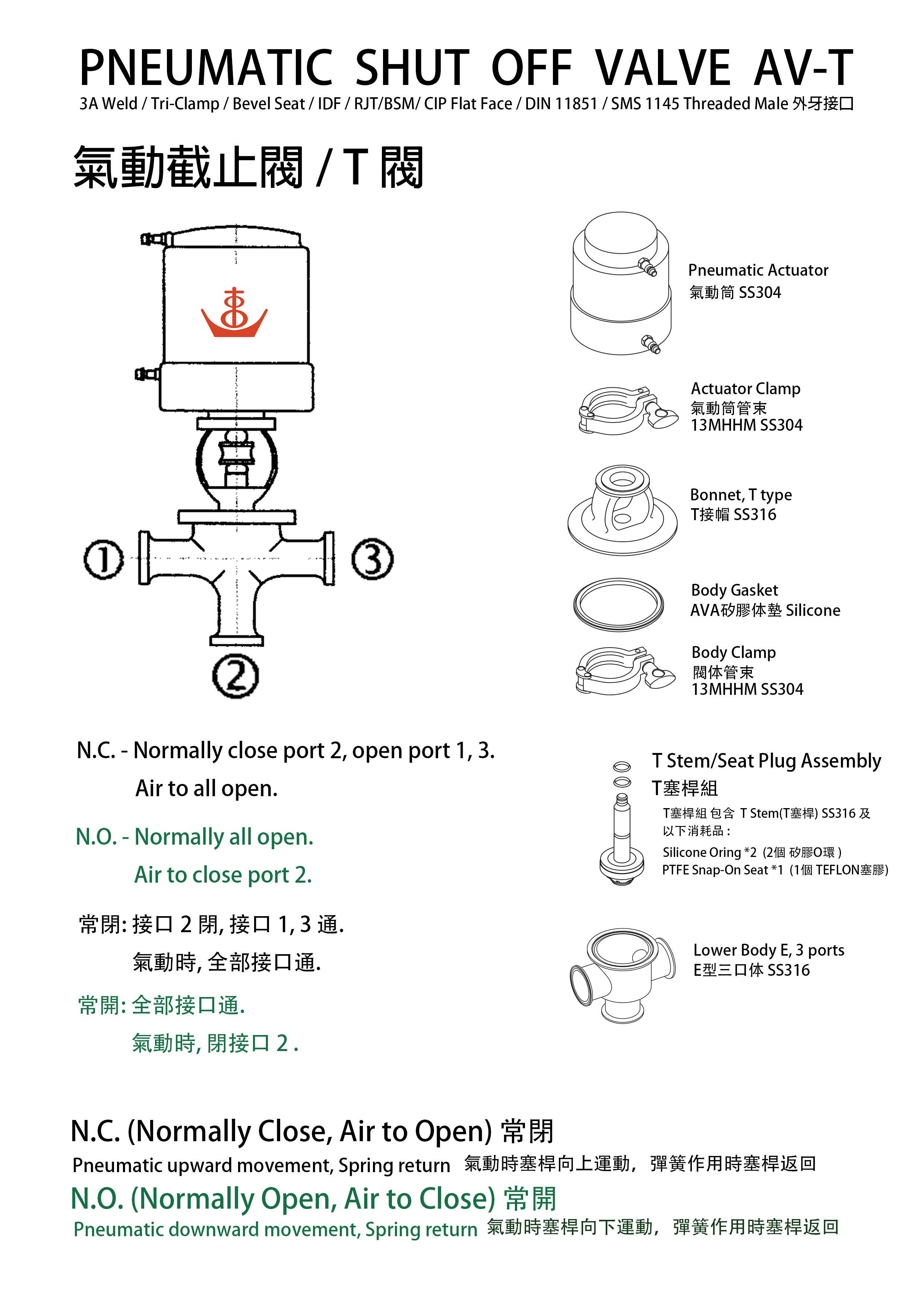

Actions of AV-L Pneumatic Shut-Off Valve  L型 氣動截止閥 作動說明	Actions of AV-T Pneumatic Shut-Off Valve  T型 氣動截止閥 作動說明

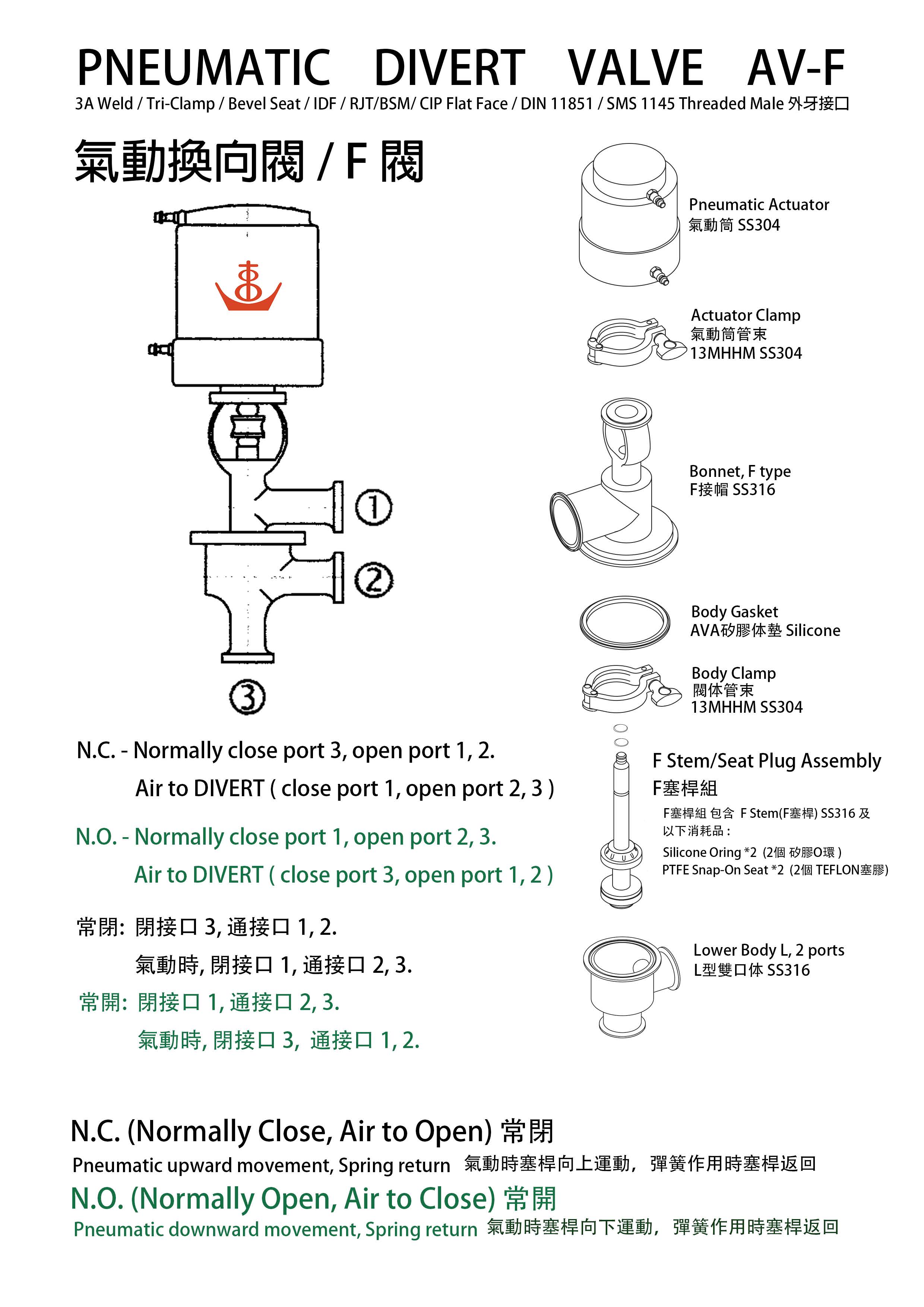

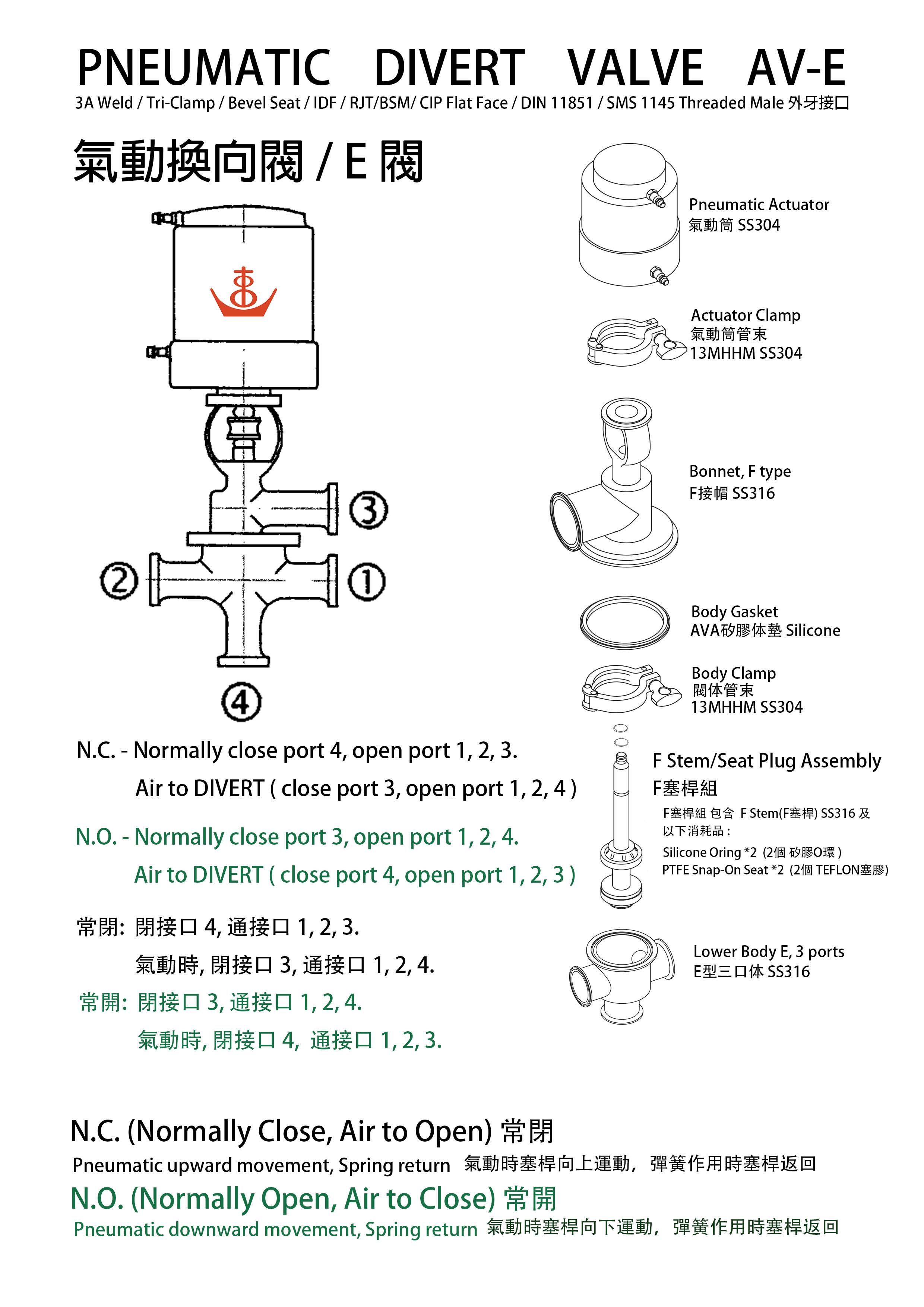

Actions of AV-F Pneumatic Divert Valve  F型 氣動換向閥 作動說明	Actions of AV-E Pneumatic Divert Valve  E型 氣動換向閥 作動說明
