Home> Products>05 CIP 3A IDF Sanitary HYGIENIC TUBES & PIPES ( INOX STAINLESS STEEL ) : SEAMLESS tubes & pipes, BEAD-REMOVED tubes & pipes, POLISHED tubes & pipes ASTM A270

Product

3A/IDF Stainless Steel SANITARY HYGIENIC TUBE ASTM A270, TUBINGS, inox stainless steel sanitary hygienic tube fittings - 3A, IDF, 4M, 6M, Seamless, Bead Removed ... 食品/飲料/啤酒/釀造/牛乳/製藥/生技/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 食品衛生級 不鏽鋼管, 無縫管, 除焊道管, 內拋光, 外拋光, 內外拋光...

3A/IDF Stainless Steel SANITARY HYGIENIC TUBE ASTM A270, TUBINGS, inox stainless steel sanitary hygienic tube fittings - 3A, IDF, 4M, 6M, Seamless, Bead Removed ... 食品/飲料/啤酒/釀造/牛乳/製藥/生技/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 食品衛生級 不鏽鋼管, 無縫管, 除焊道管, 內拋光, 外拋光, 內外拋光...

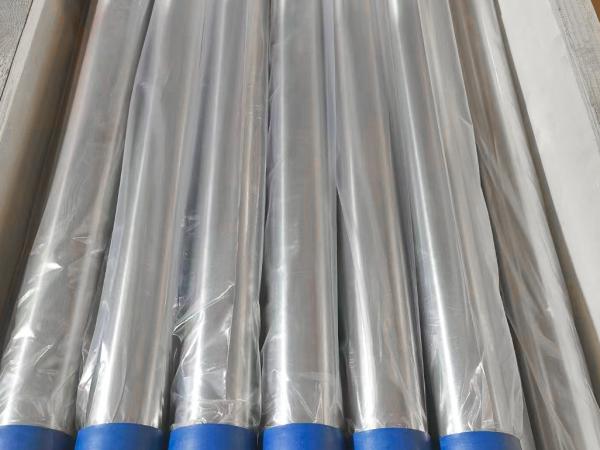

Stainless Steel Sanitary Hygienic Tube

More Details

Product ID: 17


The hygienic-grade stainless steel tubes manufactured by TECH CONTROL ENTERPRISE CO., LTD. feature uniform wall thickness from end to end with strict dimensional tolerances. All materials are rigorously inspected using the Olympus Innov-X Delta XRF Metal Analyzer to ensure safety, hygiene, and reliability. High-quality welding and smooth surface finishing help end users accelerate pipeline cleaning and increase production uptime—thereby enhancing productivity and controlling costs.

These tubes are suitable for a wide range of applications, including food, beverage, mineral water, beer, brewing, soy sauce, liquor, dairy (milk processing, dairy farming), biotechnology, pharmaceuticals, cosmetics, chemicals, water purification, personal care, automotive, painting/coating, electronics, optoelectronics, and semiconductors, as well as food and beverage machinery, turnkey plant projects, facility equipment, plant engineering, and sanitary piping systems.

We also provide stainless steel tube polishing service. Feel free to contact us for further inquiries!



由此下載本產品最新型錄 !!!

Download LATEST  PRODUCT CATALOG Here !!!


TUBES SIZE CHART Download Now !
Specifications:

  • Specification:

3A ( Outer Diameter OD,  Thickness t, Unit : mm), Standard Length 6M

1/2" (OD=12.7, t=1.65)

3/4" (OD=19.05, t=1.65)

1" (OD=25.4, t=1.65)

1.5" (OD=38.1, t=1.65)

2" (OD=50.8, t=1.65)

2.5" (OD=63.5, t=1.65)

3" (OD=76.2, t=1.65)

4" (OD=101.6, t=2.1)

6" (OD=152.4, t=2.8)

IDF ( Outer Diameter OD,  Thickness t, Unit : mm), Standard Length 6M

1" (OD=25.4, t=1.2)

1.5" (OD=38.1, t=1.2)

2" (OD=50.8, t=1.5)

2.5" (OD=63.5, t=2.0)

3" (OD=76.2, t=2.0)

3.5" (OD=89.1, t=2.0)

4" (OD=101.6, t=2.0)



  • Material (optional):  SS304, SS316, SS316L



  • Surface:

    3A:  Inner 300grit, Outer 300grit, Sanitary Food Standard

    IDF: Inner 300grit, Outer 300grit, Sanitary Food Standard



  • 詢價或下單範例 :

    品名, 材質, 尺寸, 數量

    3A食品衛生級不鏽鋼管(6M長)   316   2"  5支

    (其餘長度及表面處理, 請來電洽詢)

Features:
  • Precesion engineered to ensure wall thickness the same from end to end and to be easy welded.
  • Quality controlled and fine polished ensure high corrosion resistant and sanitary requirements.
  • Totally inspected and well packaged before delivery.
  • Different polish/finish combinations and samples are available upon request.
See more complete detail
Tube Specfication Size(inch) OD(mm) Thickness(mm)
3A 1/2" 12.7 1.65
3A 3/4" 19.1 1.65
3A 7/8"X1/2" 12.7 1.65
3A 7/8"X3/4" 19.1 1.65
3A 1" 25.4 1.65
3A 1 1/4" 31.75 1.65
3A 1.5" 38.1 1.65
3A 2" 50.8 1.65
3A 2.5" 63.5 1.65
3A 3" 76.2 1.65
3A 4" 101.6 2.1
3A 6" 152.5 2.8
3A 8" 203.3 2.8
3A 10" 254.1 3.47
3A 12" 304.9 3.47

IDF 1" 25.4 1.2
IDF 1.5" 38.1 1.2
IDF 2" 50.8 1.5
IDF 2.5" 63.5 2.0
IDF 3" 76.2 2.0
IDF 3.5" 89.1 2.0
IDF 4" 101.6 2.0
Certificate:
  • ISO-9001
  • 3A
Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Buyer's Label Offered
  • FOB: TAIWAN
Contact Detail
CEO:Mr. Chung, Chin-Ying
Contact:Manager Ms. Vickey Chung or Assistant Mr. Vincent Chen
Address:No.24, Tsang Hou St., BanQiao Dist., New Taipei City 22055, TAIWAN (Headquarter & Sales)
TEL:886-2-29685577 / 29675553
FAX:886-2-29675545 / 29689740
Email:techcontrol@seed.net.tw
URL:http://www.tech-control-tw.com
ZIP:22055
