SANITARY HYGIENIC BALL VALVE with Tri Clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS connections/ends, Inox/Stainless Steel - Manual, Pneumatic ... 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/淨水處理/個人照護/車輛/電子/半導體/食品飲料機械整廠規劃整廠設備衛生配管工程用管件 食品衛生級 球閥 手動, 氣動, Tri Clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS接口

SANITARY HYGIENIC BALL VALVE with Tri Clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS connections/ends, Inox/Stainless Steel - Manual, Pneumatic ... 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/淨水處理/個人照護/車輛/電子/半導體/食品飲料機械整廠規劃整廠設備衛生配管工程用管件 食品衛生級 球閥 手動, 氣動, Tri Clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS接口

Inox/Stainless Steel Sanitary HYGIENIC BALL VALVE with Tri clamp Ferrule/Weld/3A/IDF/RJT/BSM/DIN/SMS connections/ends - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

More Details

Product ID: 12

Economical and practical design, ideal used to stop/pass the liquid flow.

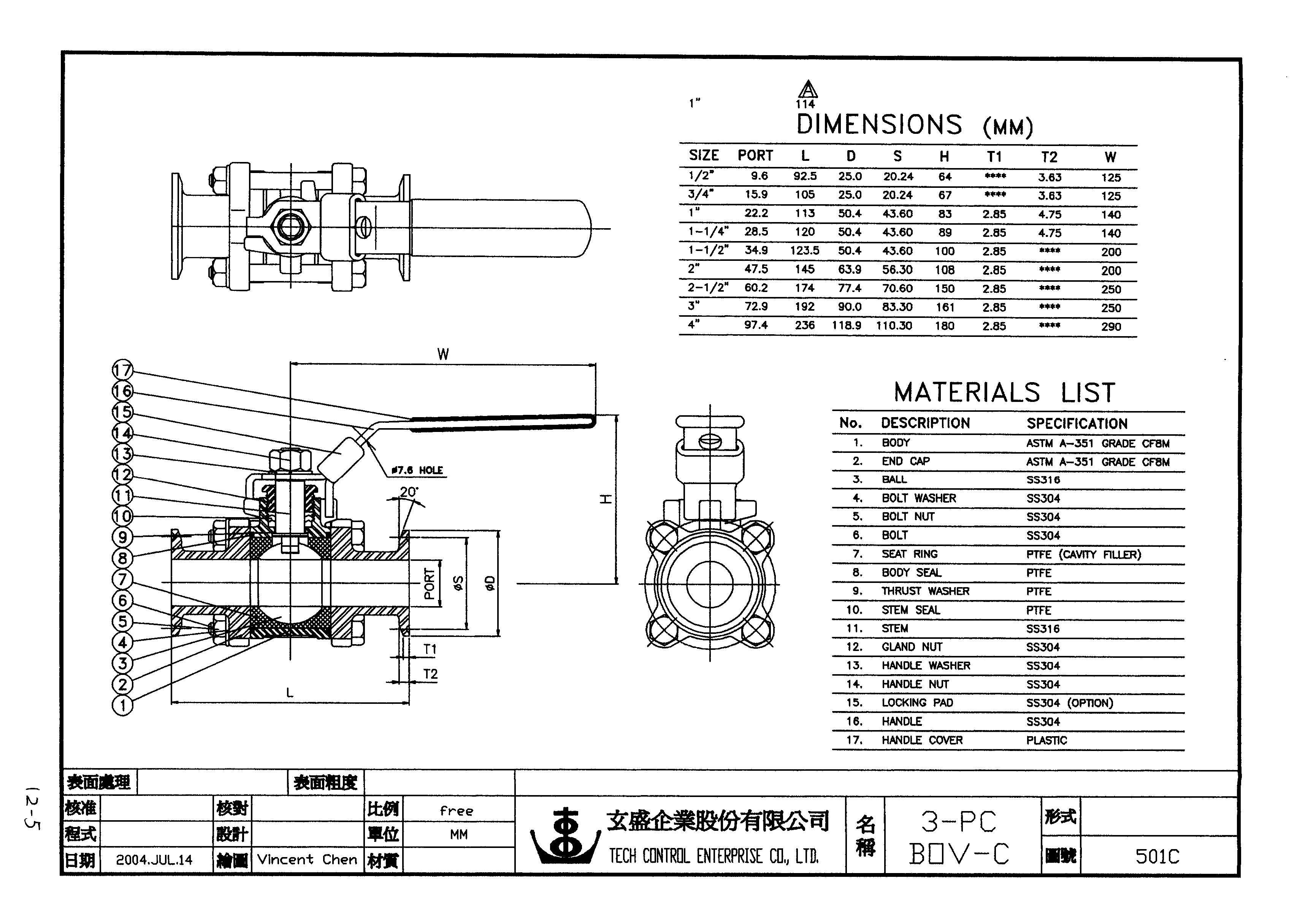

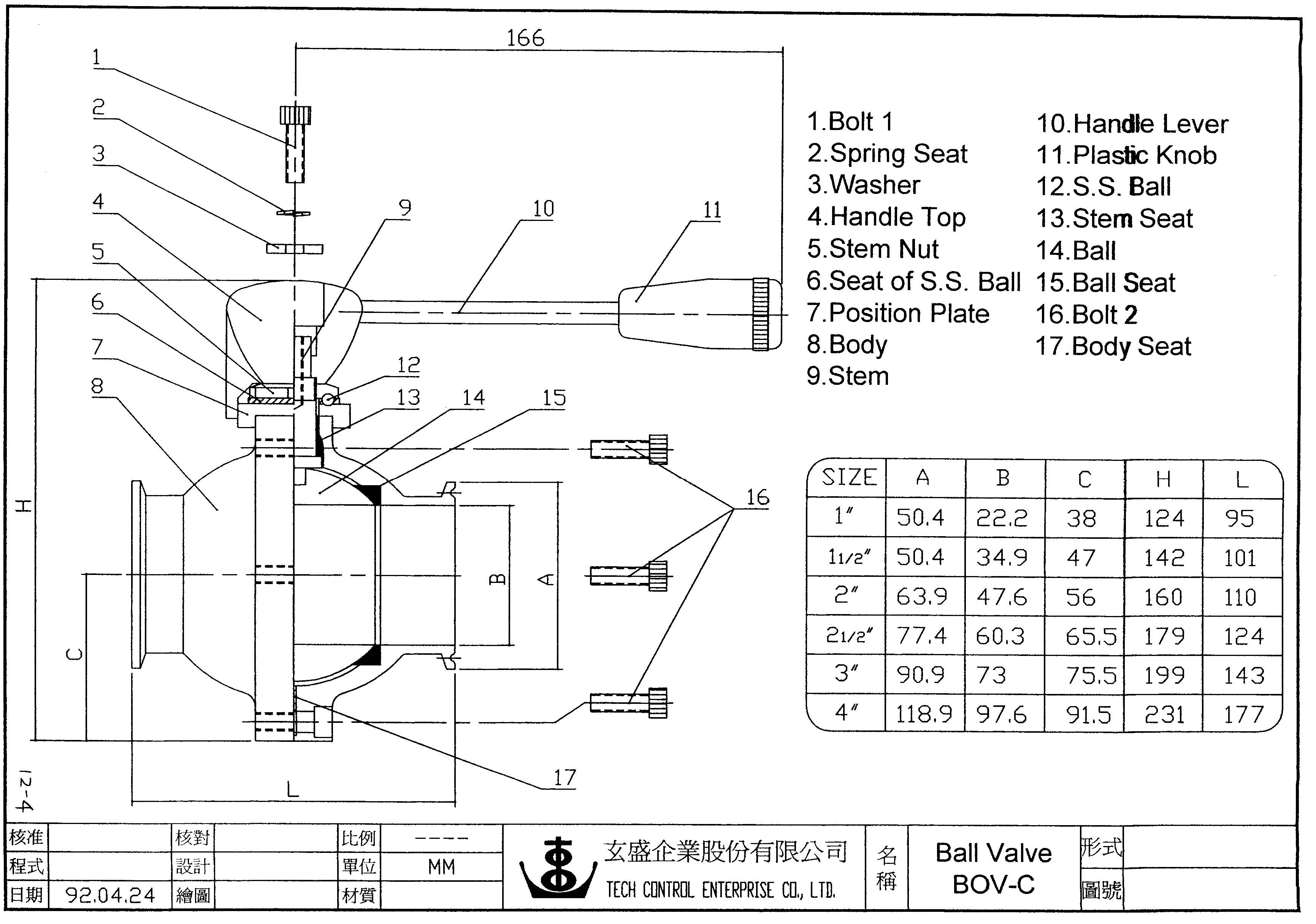

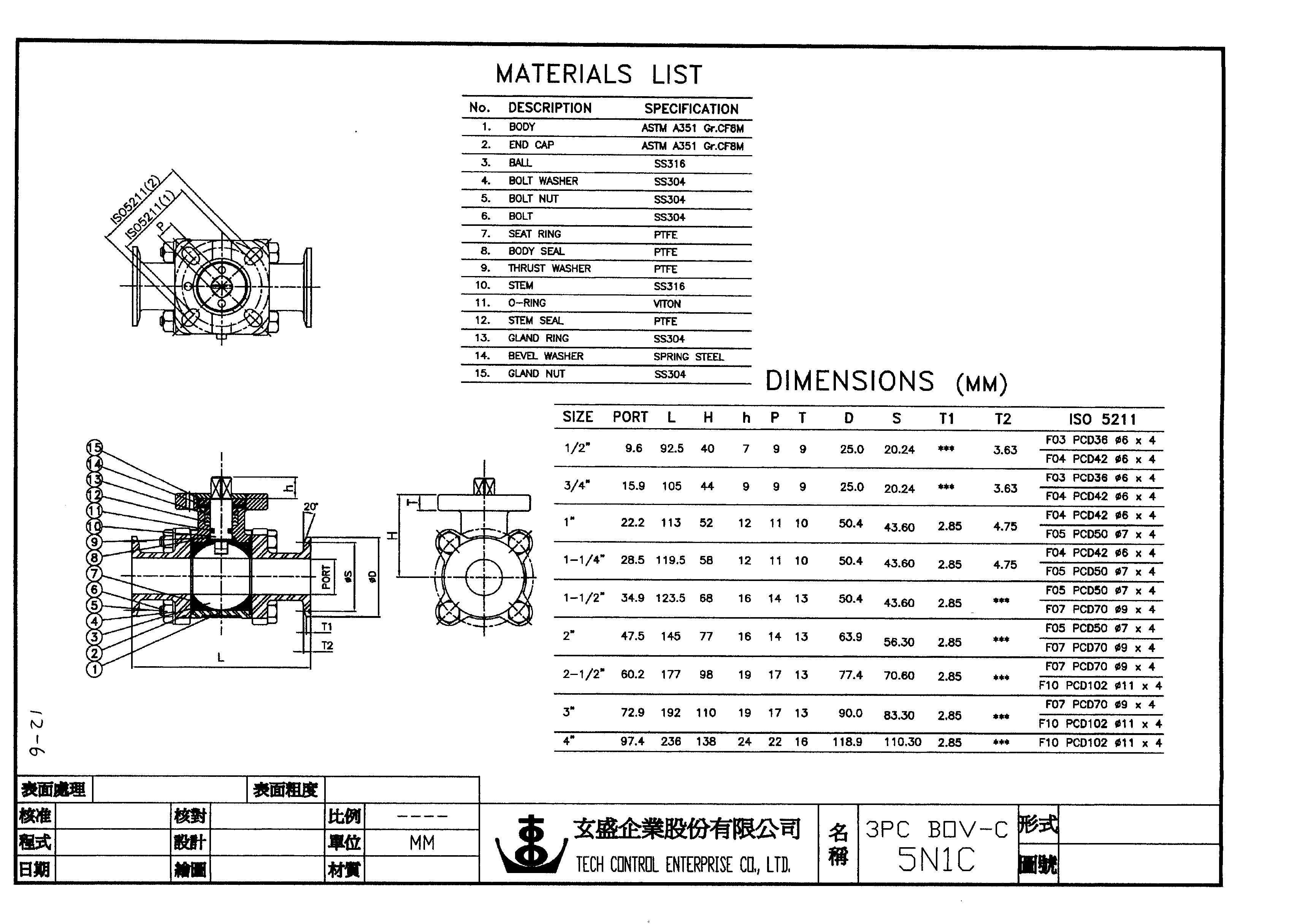

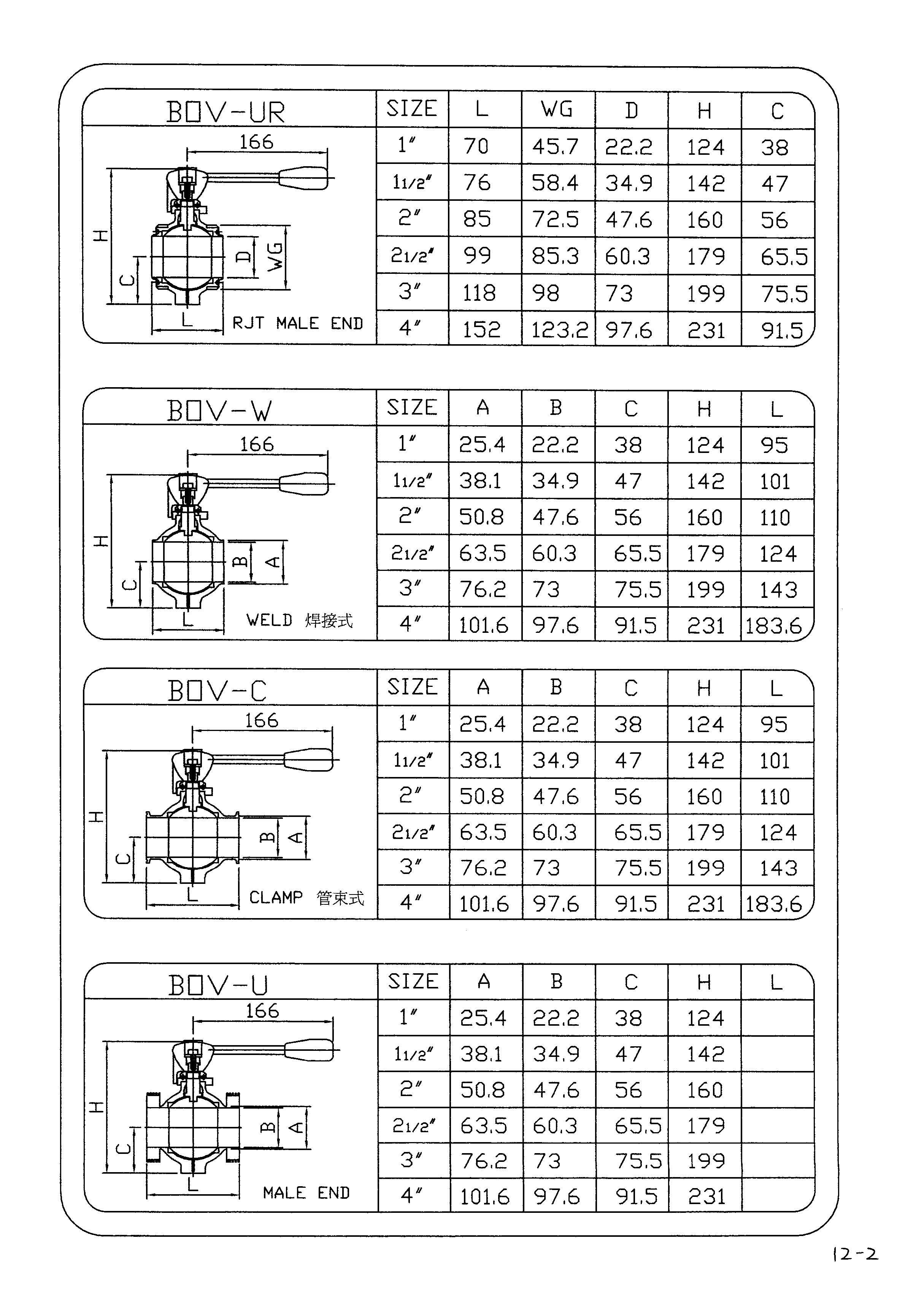

* Catalogs and drawings are available upon request.



Specifications:
  • Size: 1/2"~ 4"
  • Material:
    • Body: SS316 only
    • Center ball seal: TEFLON
    • Body Seal: Silicon
    • Stem Seal: Teflon
  • Finish: 3A sanitary standard
  • Connection: Clamp, Butt Weld, and other connections available.

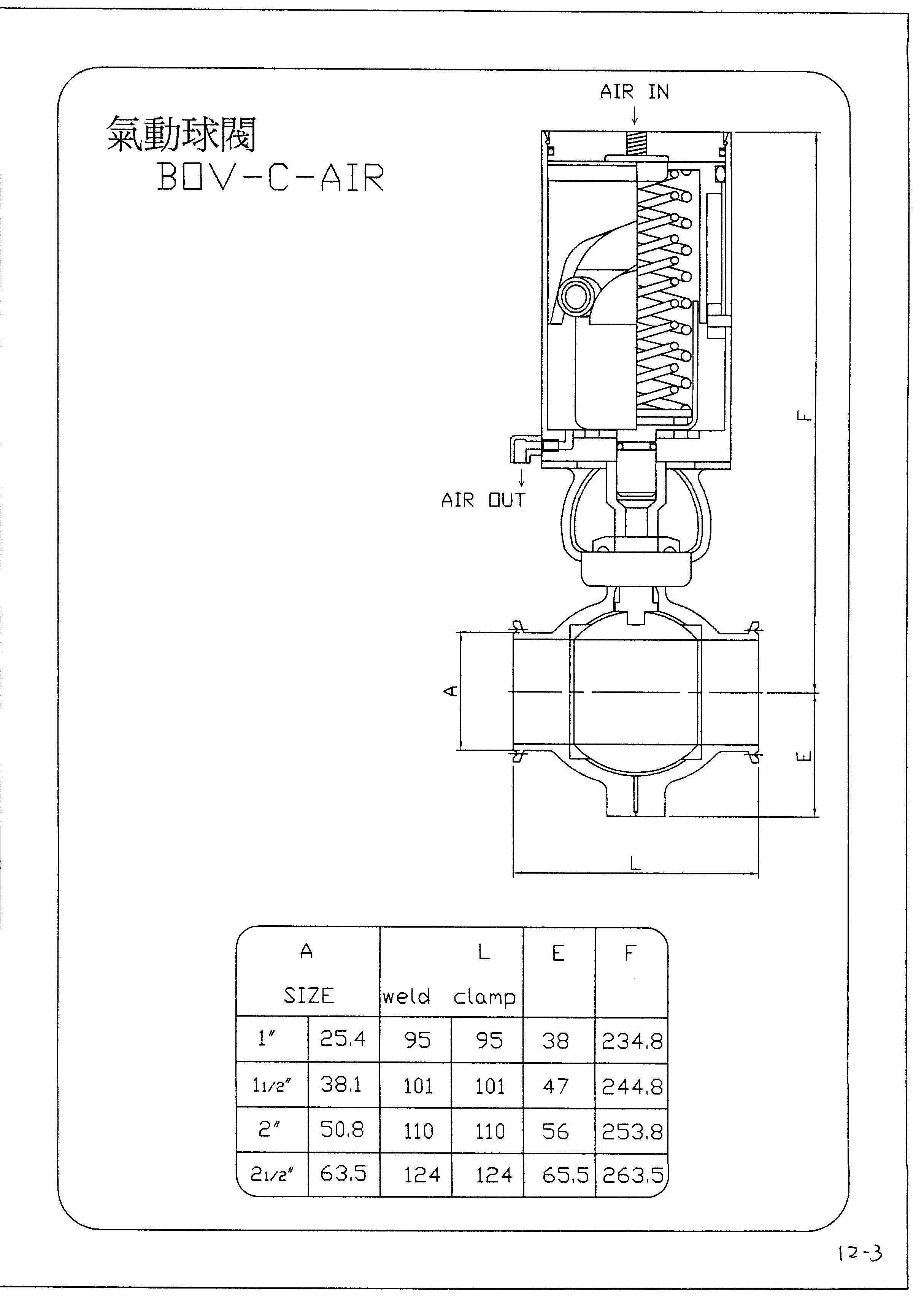

  • Type: Handle or Air-Actuated are available
    • Micro Switch assembles are available for the Air-Actuated style to indicate the valve stem seat or disc position.
  • Pressure:
    • up to 140 PSI at 203'F. (95'C)
    • We test it for security up to 200 PSI.
Features:
  • Material Controlled & Machined Precisely.
    • High corrosion resistant
    • Long service life
  • Safety Stock System.
    • Complete tested
    • Well packaged
    • Fast delivered
  • Repair service.
Certificate:
  • ISO-9001
Order Information:
  • Minimum Order: 5 pcs
  • Buyer's Label Offered
  • FOB: TAIWAN
