3-A BEVEL SEAT SANITARY HYGIENIC UNION, Inox/Stainless Steel, including Liner, Male and Nut - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

More Details



Product ID: 04

Stainless Steel Sanitary Hygienic

 3-A BEVEL SEAT UNION FITTINGS

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● BLANK CAP

● 3A-14A  Long Weld Liner Plain

● 3A-15A  Long Weld Male Threaded

● 3A-14PRF  Short Weld Liner Plain

● 3A-15TRF  Short Weld Male

● 3A-14R  Recessless Liner Plain

● 3A-15R  Recessless Male Threaded

● 3A-13H  Hex Nut

● 3A-16A  Blank Cap

The BEVEL SEAT UNION is a precision-engineered and machined piping connection, consisting of a plain bevel ferrule, a threaded bevel ferrule, and a threaded hex nut. This union design eliminates the need for gaskets, making it ideal for COP (Clean-Out-of-Place) applications and capable of withstanding daily disassembly and reassembly.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

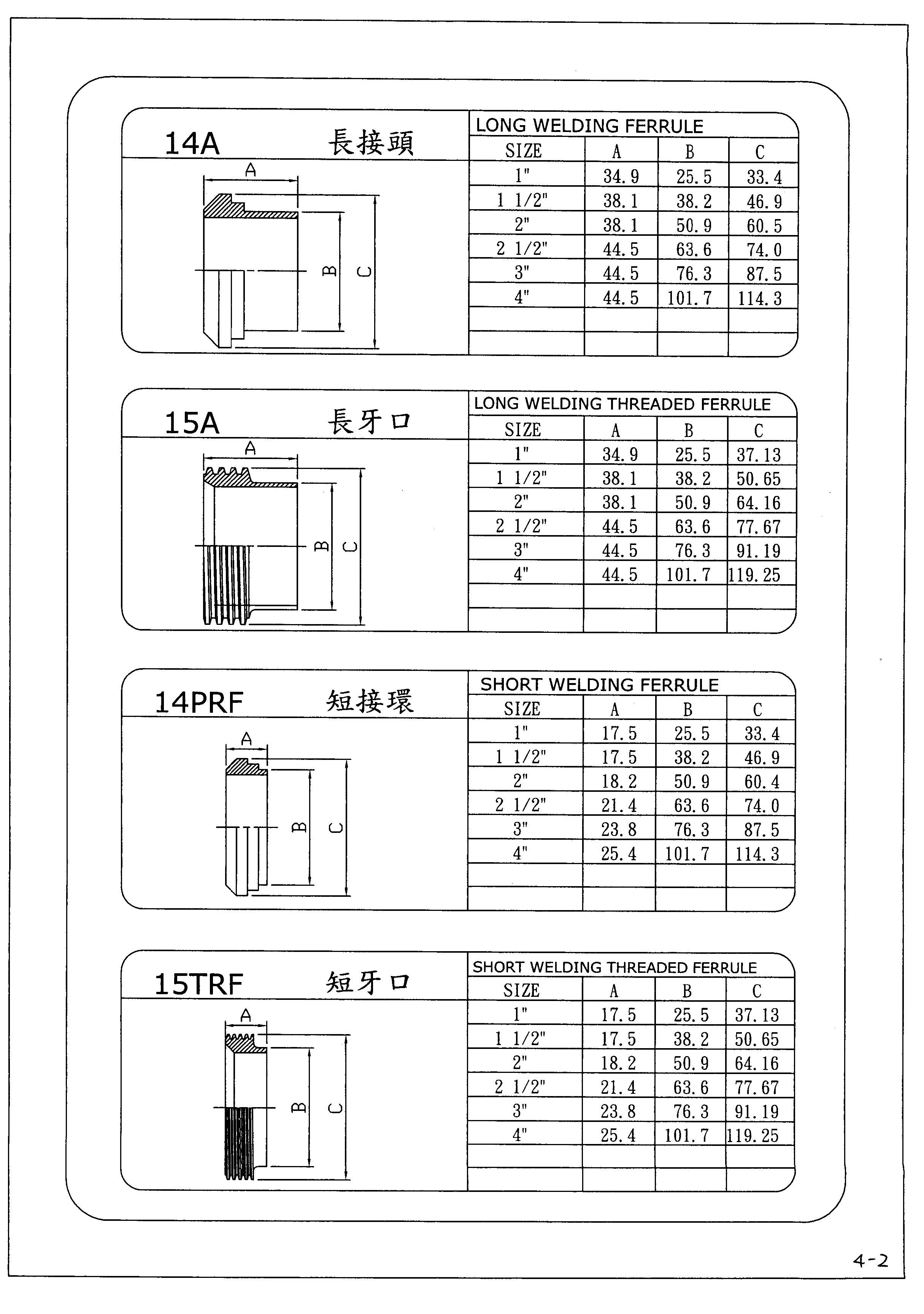

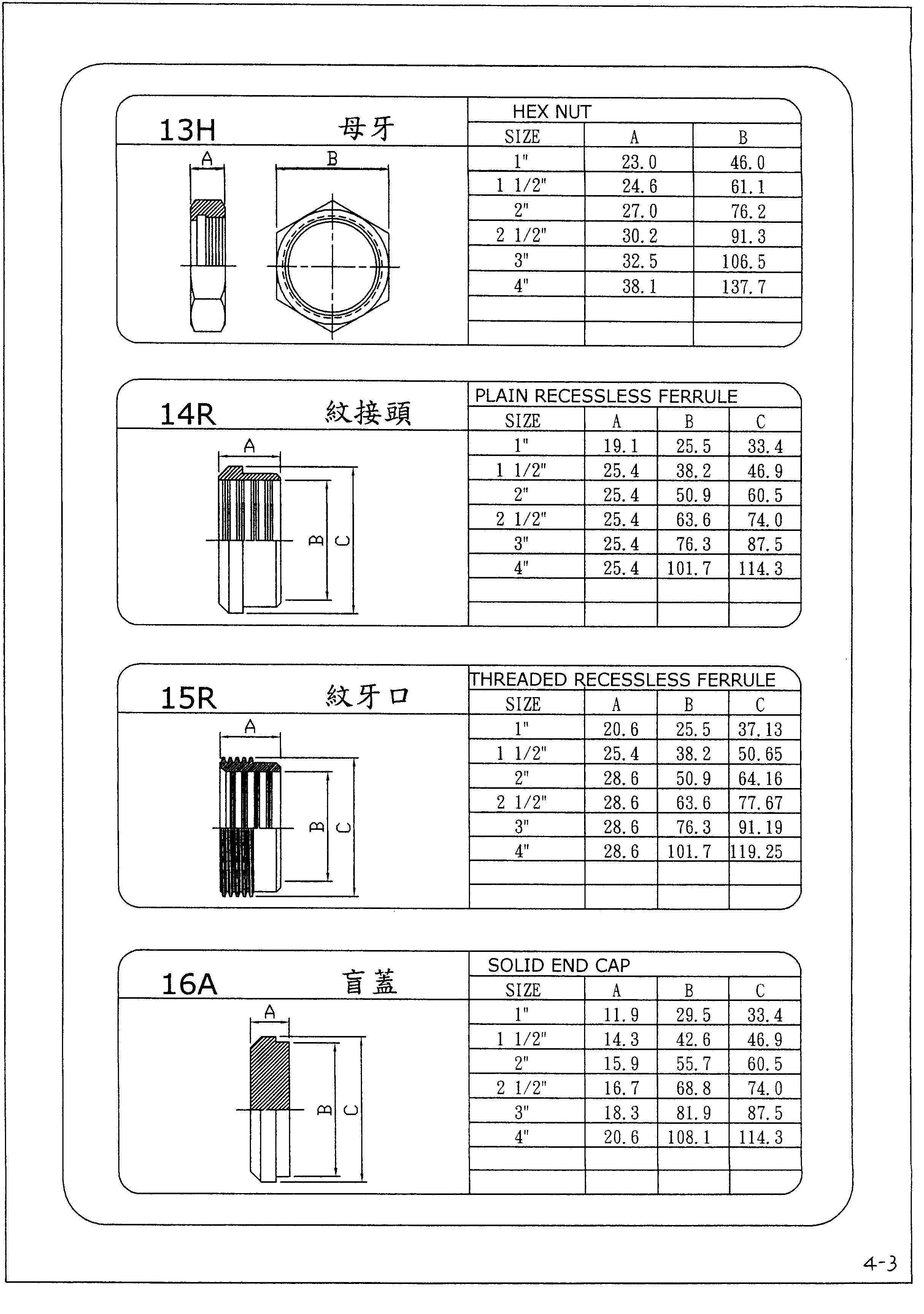

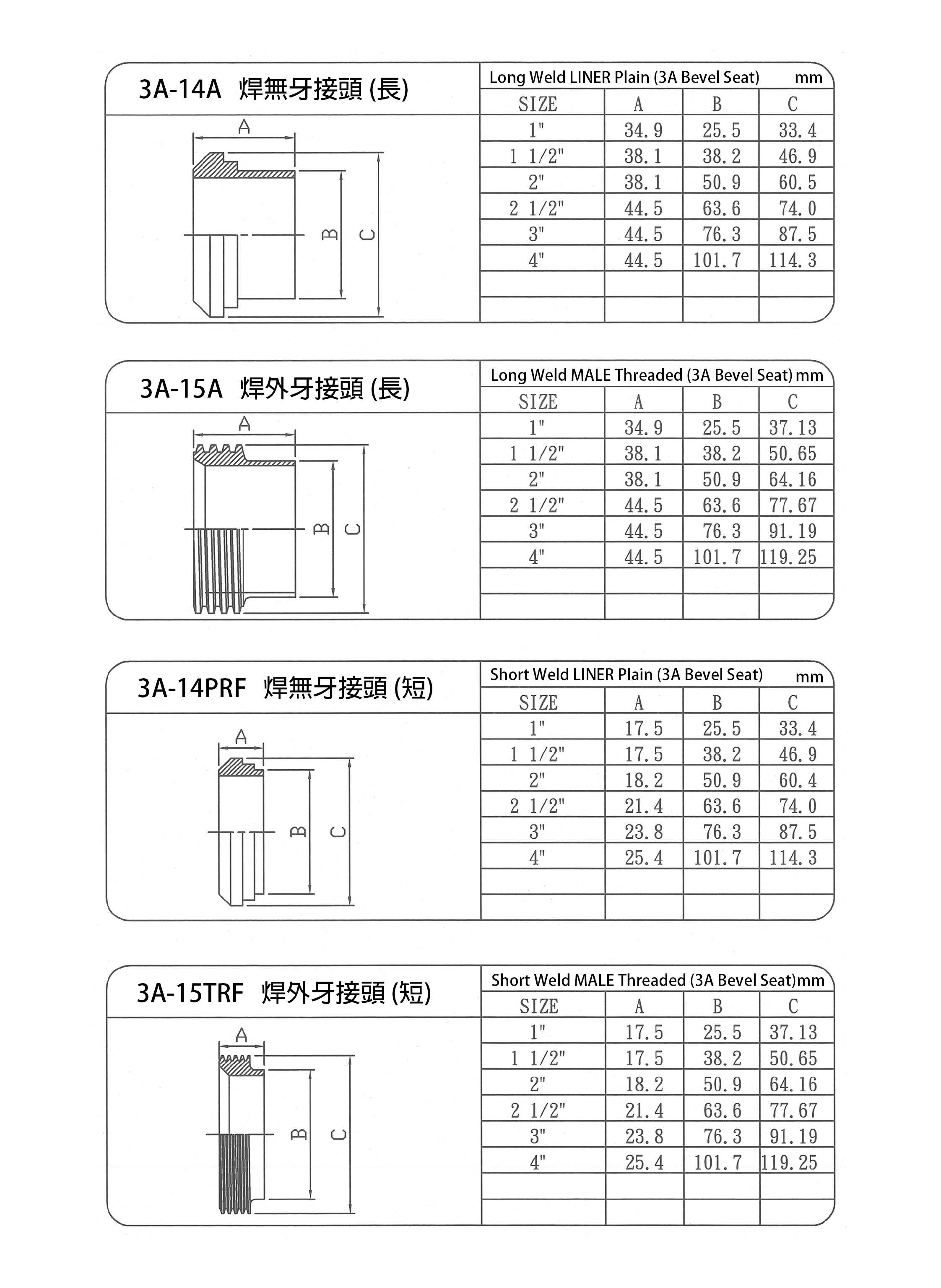

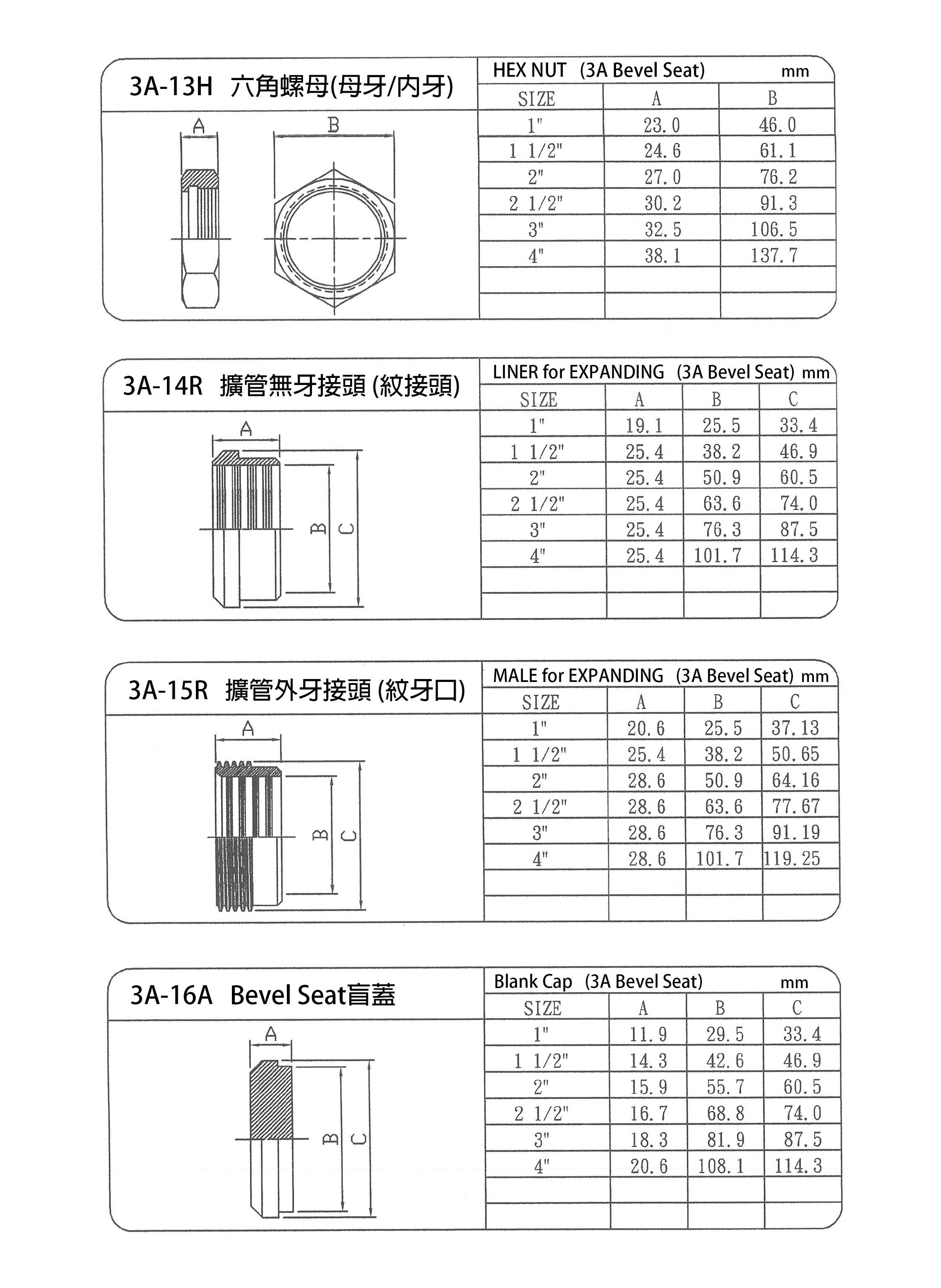

(3-A規格)    3A-14A 焊無牙接頭(長) Long Weld Liner Plain (3A Bevel Seat)   3A-15A 焊外牙接頭(長) Long Weld Male Threaded (3A Bevel Seat)   3A-14PRF 焊無牙接頭(短) Short Weld Liner Plain (3A Bevel Seat)   3A-15TRF 焊外牙接頭(短) Short Weld Male Threaded (3A Bevel Seat)	(3-A規格)     3A-13H 六角螺母(母牙/內牙) Hex Nut (3A Bevel Seat)   3A-14R 擴管無牙接頭 Recessless Liner Plain (3A Bevel Seat)   3A-15R 擴管外牙接頭 Recessless Male Threaded (3A Bevel Seat)     3A-16A Bevel Seat盲蓋  Blank Cap (3A Bevel Seat)

3A BEVEL SEAT UNIONS
