DIN Union ( DIN 11851 ) Fittings, INOX Stainless Steel Hygienic Union Fittings, Dairy Fittings DIN 11851 - 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/純水系統/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 DIN 11851 食品衛生級由任(接頭、牙口、螺母、墊片)
DIN 11851 SANITARY HYGIENIC UNION, Inox/Stainless Steel, including Liner, Male, Gasket and Nut - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN
Product ID: 07
Stainless Steel Sanitary Hygienic
DIN UNION FITTINGS (DIN 11851)
● WELD MALE
● WELD LINER
● EXPANDING MALE
● EXPANDING LINER
● ROUND SLOTTED NUT
● ROUND BLANK NUT
● BLANK LINER
● SEAL / GASKET
● DIN14 DIN Weld Liner
● DIN15 DIN Weld Male
● DIN13R DIN Round Slotted Nut
● DIN40 DIN GASKET
● DIN13AH DIN Round Blank Nut
● DIN16A DIN Blank Liner
● DIN14EB DIN IMPERIAL Weld Liner (DIN 11851 X 3A Tube Weld)
● DIN15EB DIN IMPERIAL Threaded Weld Male (DIN 11851 X 3A Tube Weld)
● DIN14R Liner for expanding
● DIN15R Threaded Male for expanding
The DIN UNION is a piping connection established by the German Institute for Standardization (Deutsches Institut für Normung). The assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a threaded hex nut. Originally designed to meet dairy processing and sanitary standards, it is now widely utilized across various food processing equipment.
The DIN Union features the following characteristics:
🟦 Sanitary Design :
The smooth internal bore minimizes the buildup of bacteria, dirt, and other contaminants, meeting strict food safety and hygiene requirements.
🟦 Superior Sealing Performance :
Achieves a reliable seal through the combination of a seal ring, threaded ferrule, and nut, effectively preventing leaks and contamination.
🟦 Easy Disassembly :
Designed for quick teardown to facilitate efficient cleaning, maintenance, and replacement.
🟦 CIP Compatible :
Suitable for Clean-In-Place (CIP) systems.
In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:
📌 Safety and Hygiene :
The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.
📌 Material Selection :
Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.
📌 Sealing Performance :
To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.
📌 Ease of Disassembly and Installation :
Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.
📌 Reliability and Durability :
Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.
👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.
👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.
👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.
👉 Each item undergoes 100% inspection before shipment.
👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.
(以下產品尺寸圖, 點擊後可放大) !!!
Click the DIMENSION DRAWINGS below to Enlarge !!!
|

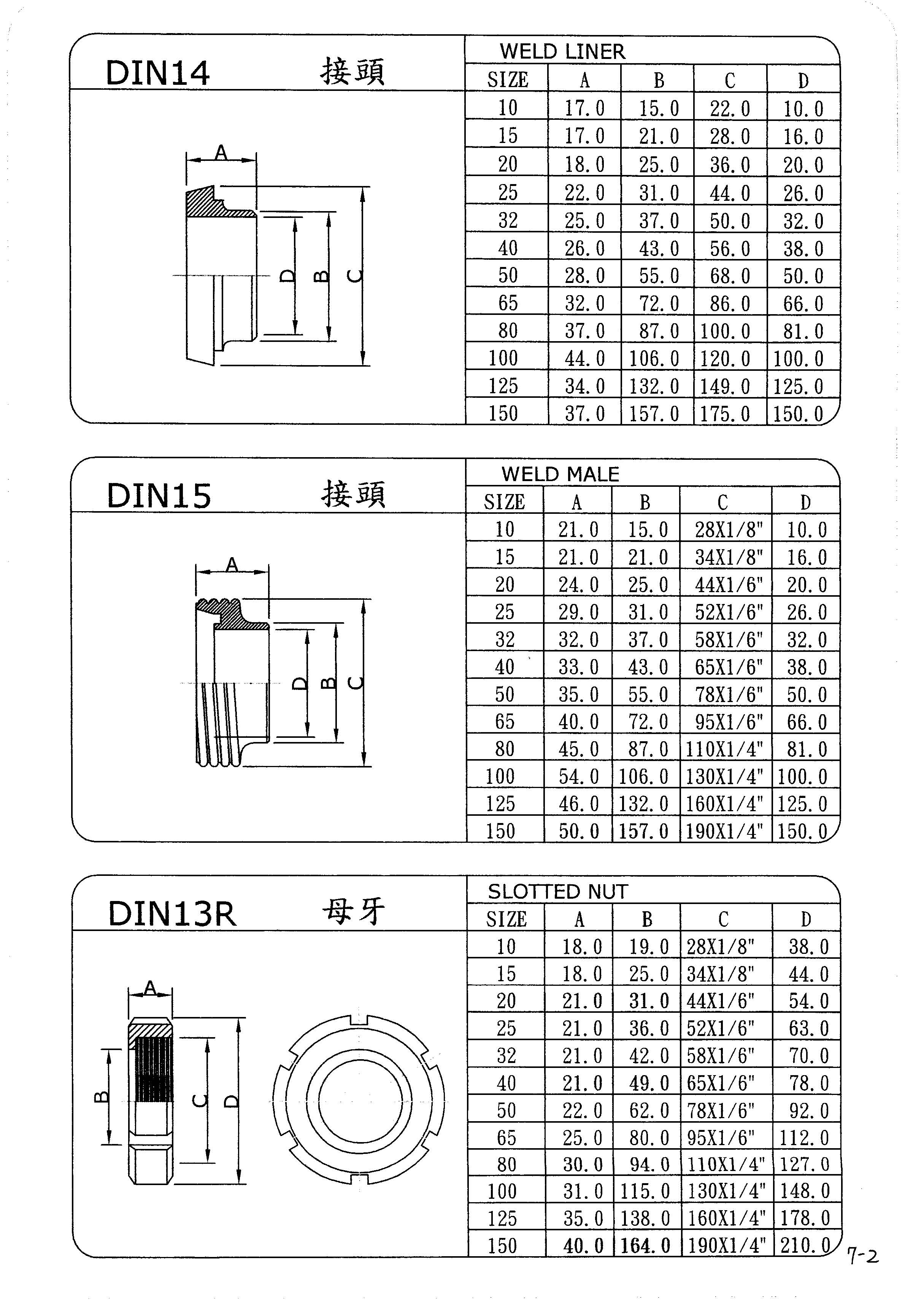

DIN14
焊無牙接頭
Weld Liner
(DIN 11851)
DIN15
焊外牙接頭
Weld Male
(DIN 11851)
DIN13R
圓螺母(母牙/內牙)
Round Slotted Nut
(DIN 11851)
|

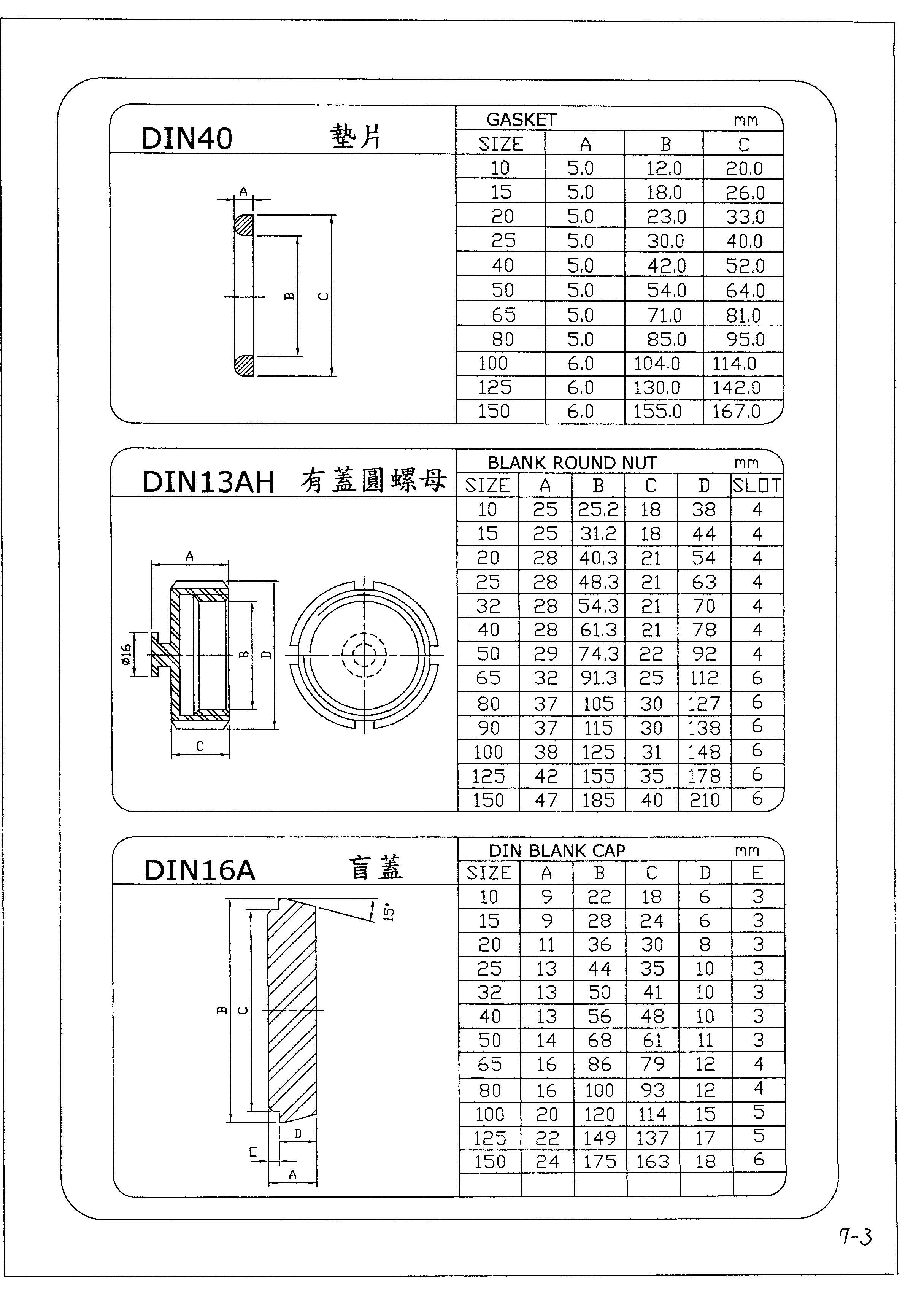

DIN40
DIN墊片
DIN Gasket
(DIN 11851)
DIN13AH
盲螺帽 (母牙/內牙)
Round Blank Nut
(DIN 11851)
DIN16A
DIN盲蓋
Blank Liner
(DIN 11851)
|
 |
 |
|

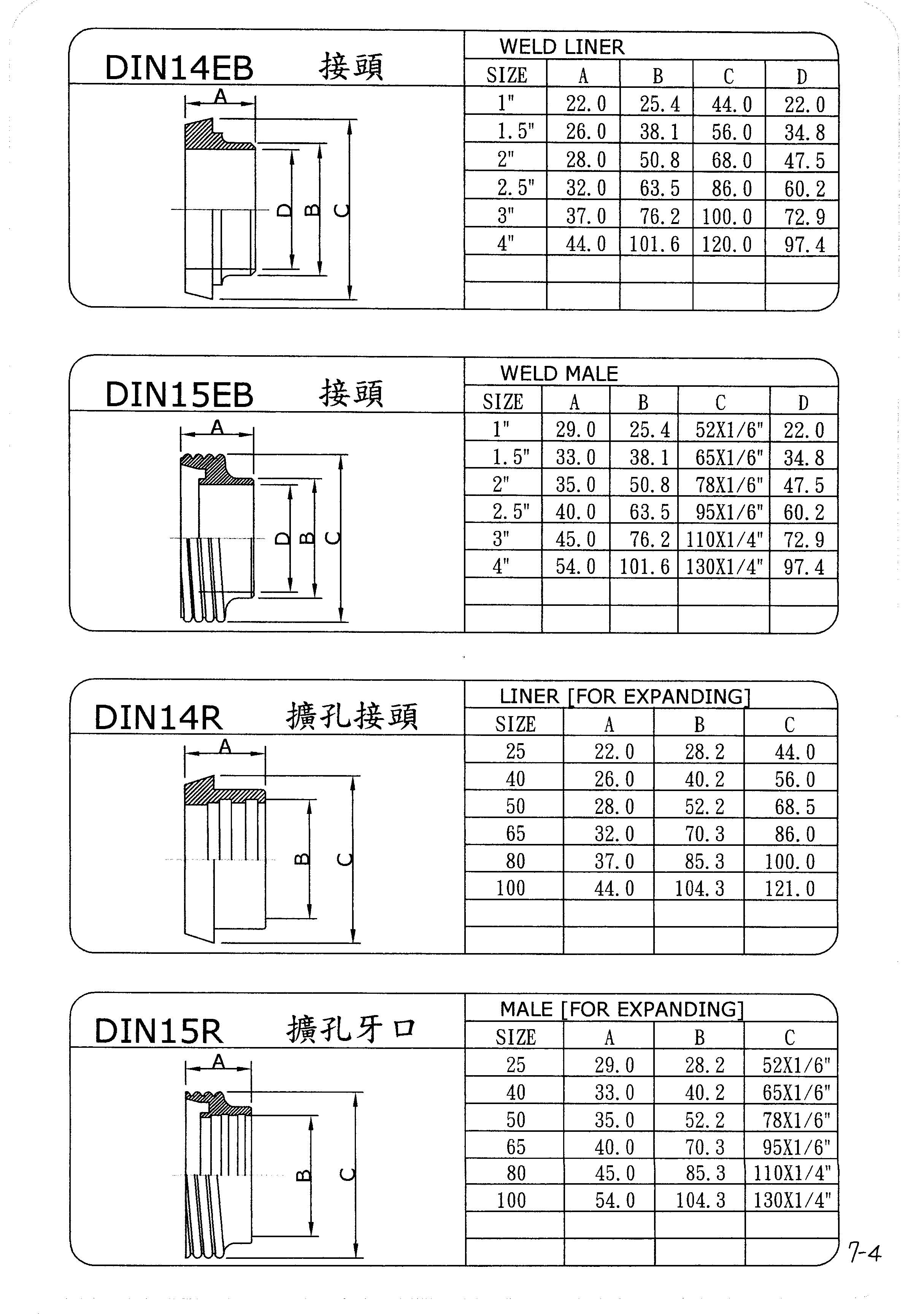

DIN14EB
英制 DIN無牙接頭
(DIN 11851)
X
3A焊接端
Imperial Weld Liner (DIN 11851)
X
3A Tube Weld
DIN15EB
英制 DIN外牙接頭
(DIN 11851)
X
3A焊接端
Imperial Weld Male (DIN 11851)
X
3A Tube Weld
DIN14R
擴管無牙接頭
Expanding Liner (DIN 11851)
DIN15R
擴管外牙接頭
Expanding Male (DIN 11851)
|
|
 |
DIN UNIONS DIN 11851
Specifications:
Size: DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150
DIN 11851 (Unit : mm)
DN10 (OD=15.0, t=2.5)
DN15 (OD=21.0, t=2.5)
DN20 (OD=25.0, t=2.5)
DN25 (OD=31.0, t=2.5)
DN32 (OD=37.0, t=2.5)
DN40 (OD=43.0, t=2.5)
DN50 (OD=55.0, t=2.5)
DN65 (OD=72.0, t=3.0)
DN80 (OD=87.0, t=3.0)
DN100 (OD=106.0, t=3.0)
DN125 (OD=132.0, t=3.5)
DN150 (OD=157.0, t=3.5)
Check the dimension drawings for detail...
Material :
Stainless Steel Parts are available in SS316 or SS304, Nuts are in SS304 only.
( Material Test Reports EN10204-3.1 are available upon request )
Surface Finish meet the requirements of 3-A Sanitary Standards - This refers to the surfaces that come into contact with liquid raw materials, products, or cleaning solutions in food, beverage, biotech, and pharmaceutical processes.
Gaskets are available in Silicone, EPDM or Viton(FKM) complies with the requirements of FDA 21 CFR 177.260
Gasket Material Characteristics Reference (Recommended Continuously-Operating-Temperature):
Silicone : -30°C to 120°C, high-temperature resistance, white translucent
EPDM : -30°C to 100°C, ozone resistance, black
Viton: -15°C to 120°C, alcohol resistance, black
Inquiry or Ordering Example :
Item Name / Material / Size / Quantity
DIN14 / 316 / 2" / 5PCS
Features:
-
Materials rigorously inspected and verified using the Olympus Innov-X Delta XRF Metal Analyzer.
-
Uniform wall thickness and tight tolerances facilitate seamless piping engineering, assembly, and welding.
-
Stringent quality control and high-grade polishing ensure superior strength and corrosion resistance meeting the strictest hygienic standards.
-
Burrs and sharp edges are removed and corners polished to ensure safe handling during assembly and maintenance.
-
100% inspection and secure packaging guaranteed before delivery.
|
Certificate:
- ISO-9001
Order Information:
- Minimum Order: Negotiable
- Buyer's Label Offered
- FOB: TAIWAN
Contact Detail
| CEO: | Mr. Chung, Chin-Ying |
| Contact: | Manager Ms. Vickey Chung or Assistant Mr. Vincent Chen |
| Address: | No.24, Tsang Hou St., BanQiao Dist., New Taipei City 22055, TAIWAN (Sales & Office) |
| TEL: | 886-2-29685577 / 29675553 |
| FAX: | 886-2-29675545 / 29689740 |
| Email: | techcontrol@seed.net.tw |
| URL: | http://www.tech-control-tw.com |
| ZIP: | 22055 |
