Home> Products>03 SANITARY HYGIENIC TRI CLAMPS, TUBE SUPPORTS HANGERS ( INOX STAINLESS STEEL ) : Tri Clamps, Single Hinge Clamps, Double Hinge Clamps, Heavy Duty Clamps, Light Clamp, 3-pieces Clamp, High Pressure Clamp, I-Line Clamp, Q-Line Clamp, Tube Support, Tube Hanger

Product

TUBE HANGER, TUBE SUPPORT, PIPE HAGER, PIPE SUPPORT, inox stainless steel sanitary hygienic tube fittings 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/淨水處理/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 食品衛生級 管夾, 管支架 ...

TUBE HANGER, TUBE SUPPORT, PIPE HAGER, PIPE SUPPORT, inox stainless steel sanitary hygienic tube fittings 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/淨水處理/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 食品衛生級 管夾, 管支架 ...

Inox/Stainless Steel SANITARY HYGIENIC TUBE HANGER, TUBE SUPPORT, PIPE HAGER, PIPE SUPPORT- manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

More Details

Product ID: 03

Stainless Steel Hygienic Tube Fittings

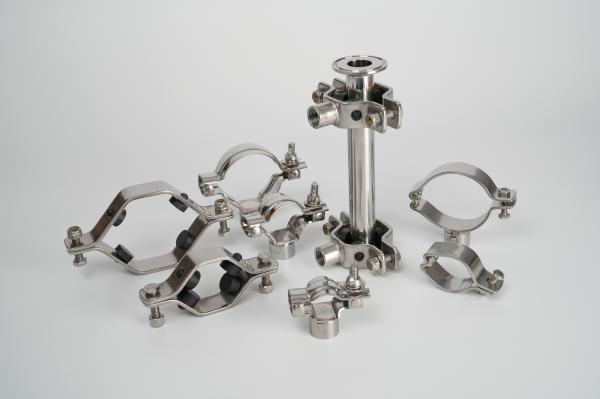

● TUBE SUPPORT

● TUBE HANGER

Hex / Hinged / Quick-Release / Take Down Style / Saddle / with Coupling / without Coupling / with Rubber Grommets / without Rubber Grommets



● B24W Hex Tube Hanger Rubber Grommets

● C24T Hex Tuber Hanger 3/8 NPT Coupling Rubber Grommets

● A24FCF Hinged Tube Hanger 3/8 NPT Coupling  Rubber Grommets

● 26CB Take Down Style Hanger Rubber Sleeve

● LB24W Saddle Pipe Clamp Boss (bolt M6X12L)

● LC24T Saddle Pipe Clamp Boss (bolt M6X12L) 3/8 NPT Coupling

● 13MAT Wingnut Tightened Clamping Tube Hanger 1/2 PT Coupling





固定用管束 (管夾) 以及 管架 (管吊架、管吊夾) 可用於 固定 和 支撐管道系統。



配有橡膠緩衝內襯的設計可以減少管道的震動。



玄盛企業股份有限公司生產的所有不鏽鋼食品衛生級管件, 材料皆經過 Olympus Innov-X Delta XRF Metal Analyzer 金屬材質檢驗機 嚴格把關，表面處理 Ra ≤ 0.8μm, 符合 食品衛生級 標準，精密加工，易於焊接、組裝和維護，銳利邊角 經過打磨，組裝 維護 清潔 不傷手，出貨前 100% 檢驗。



The Supports and Hangers can be used for securing and supporting Tubing / Piping Systems.



Designs which equipped with Rubber Grommets can reduce pipe vibration.



All Tube Supports & Hangers manufactured by TECH CONTROL ENTERPRISE CO., LTD. are precisely engineered with accurate dimensions to ensure coupling with the fittings and gaskets tightly to prevent from leakage, product catalogs are available upon request.



(以下產品尺寸圖, 點擊後可放大)

Click the DIMENSION DRAWINGS below to Enlarge

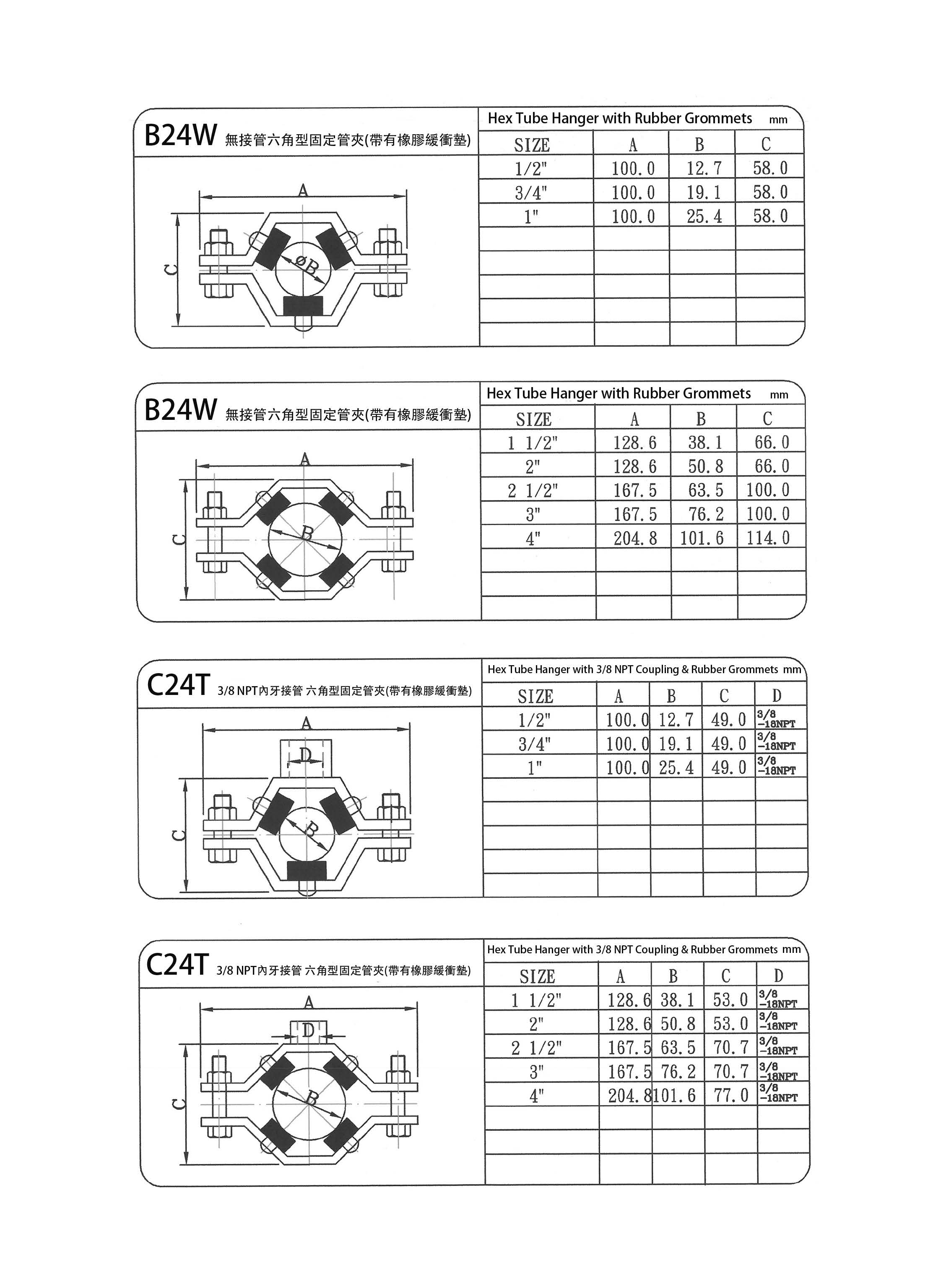

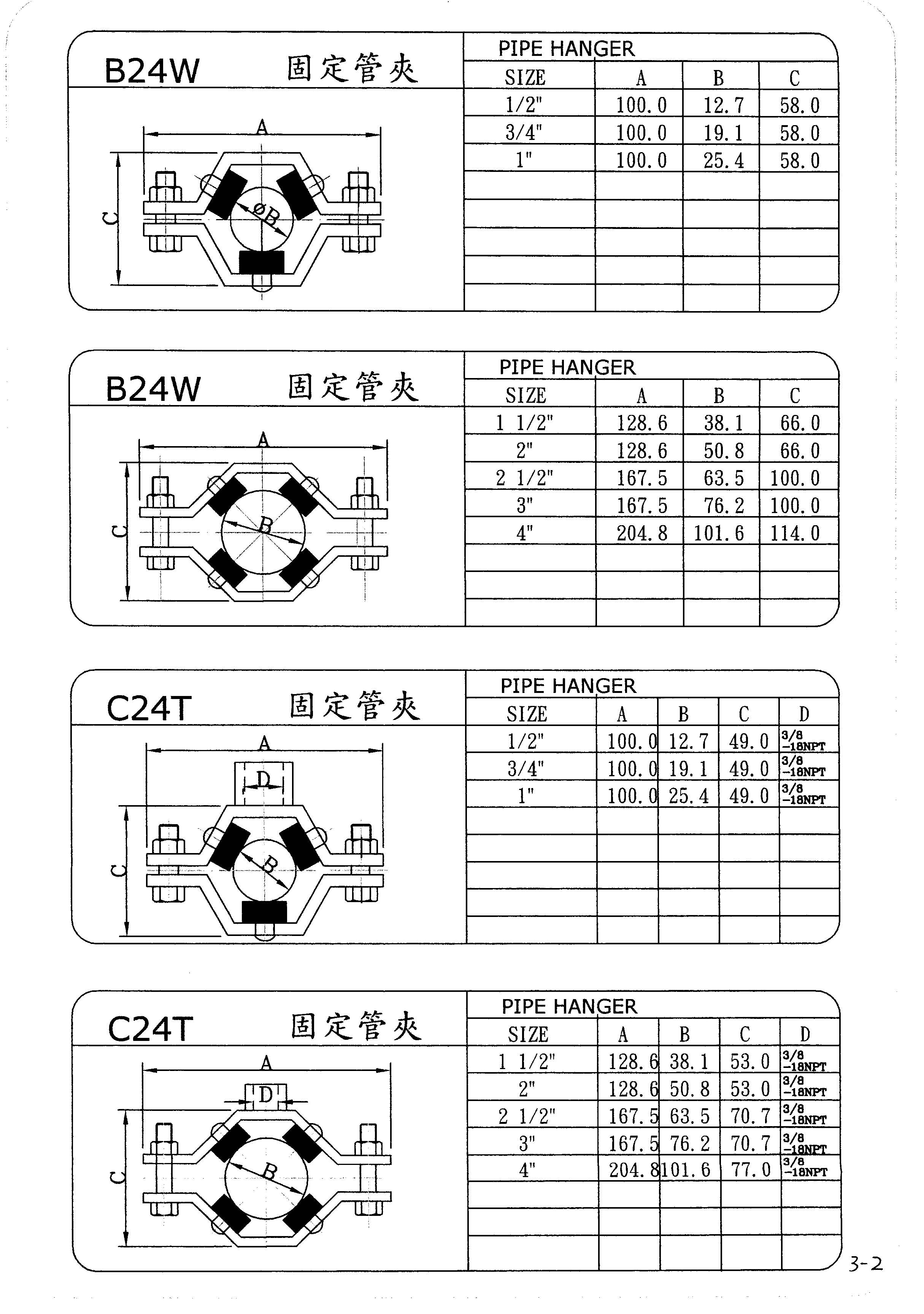

B24W
Hex Tube Hanger
with Rubber Grommets
 無接管六角型固定管夾
(帶有橡膠緩衝墊)

B24W
Hex Tube Hanger
with Rubber Grommets
 無接管六角型固定管夾
(帶有橡膠緩衝墊)

C24T
Hex Tube Hanger
with 3/8 NPT Coupling
& Rubber Grommets
 3/8 NPT內牙接管
六角型固定管夾
(帶有橡膠緩衝墊)

C24T
Hex Tube Hanger
with 3/8 NPT Coupling
& Rubber Grommets
 3/8 NPT內牙接管
六角型固定管夾
(帶有橡膠緩衝墊)

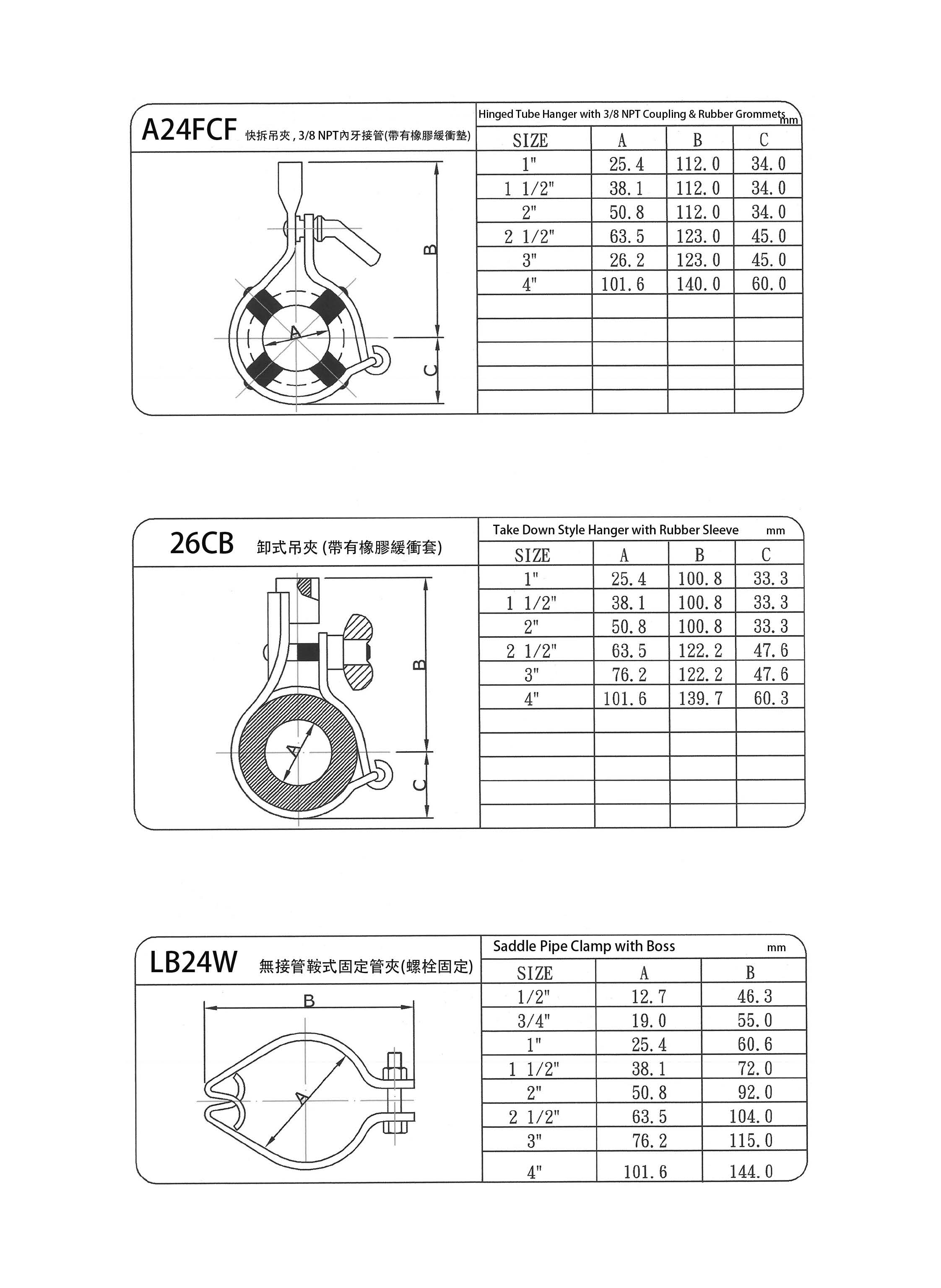

A24FCF
Hinged Tube Hanger
with 3/8 NPT Coupling
& Rubber Grommets
 快拆吊夾 , 3/8 NPT內牙接管
(帶有橡膠緩衝墊)

26CB
Take Down Style Hanger
with Rubber Sleeve
 卸式吊夾
(帶有橡膠緩衝套)

LB24W
Saddle Pipe Clamp with Boss
 無接管鞍式固定管夾
(M6X12L螺栓固定)

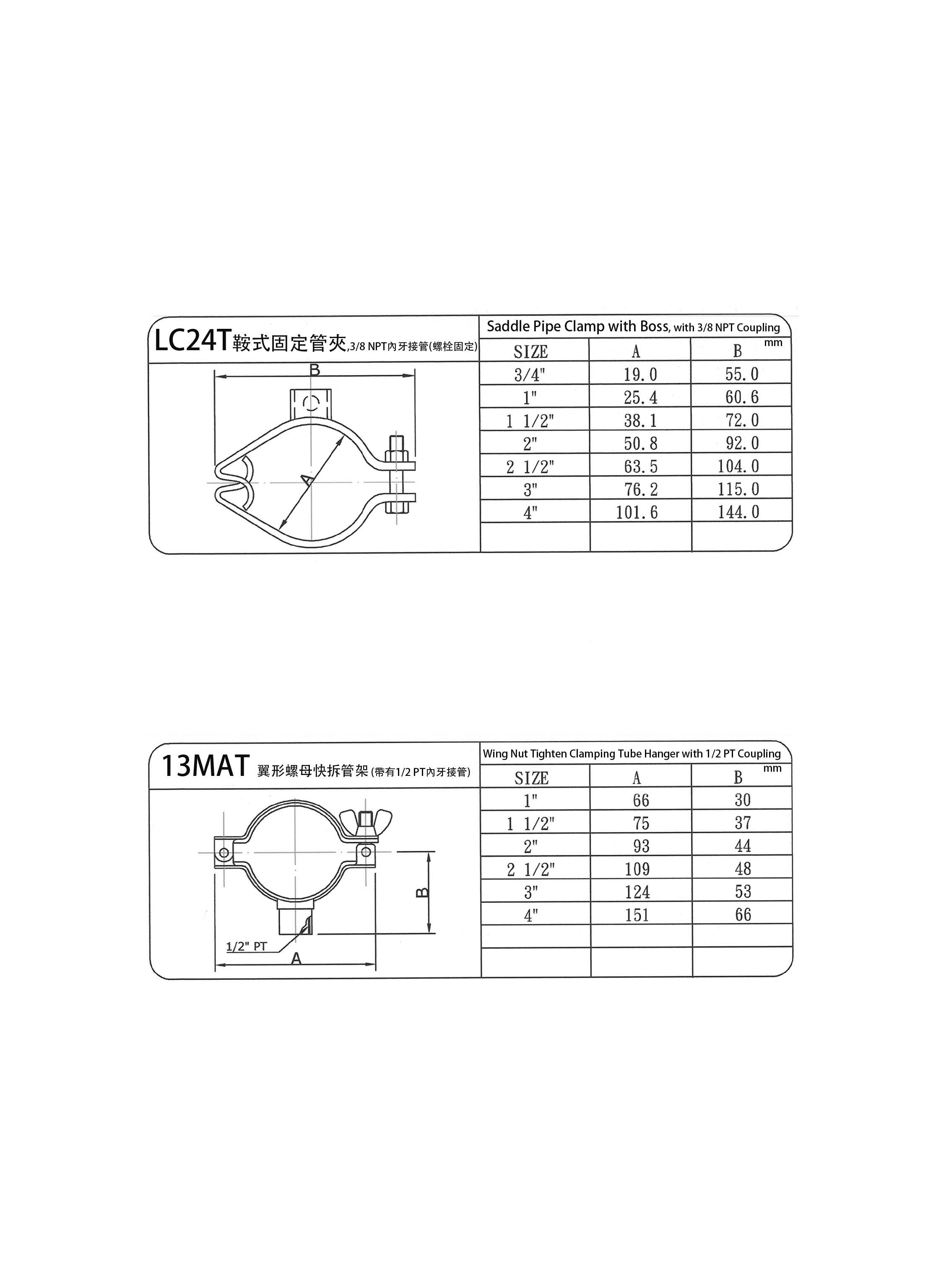

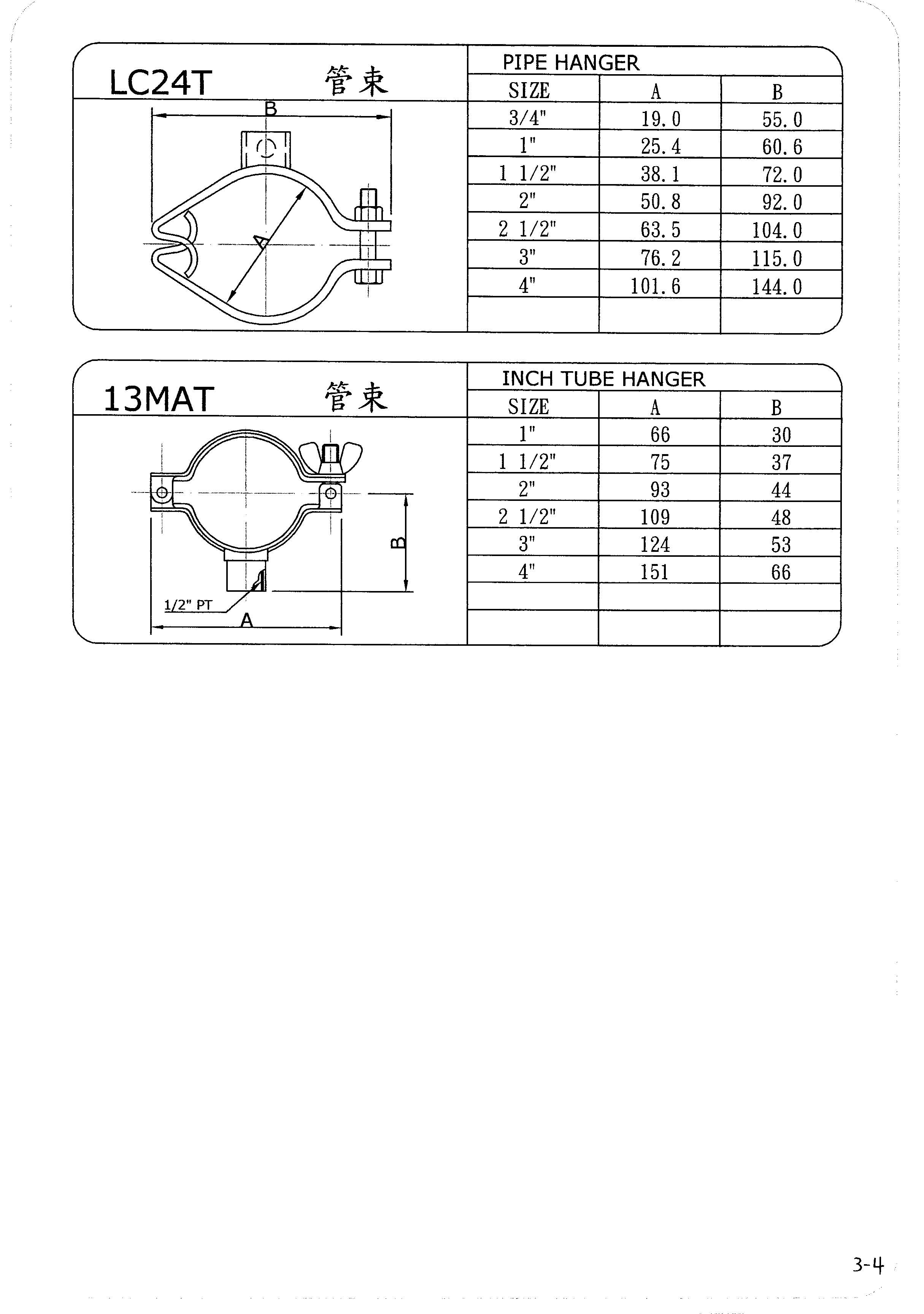

LC24T
Saddle Pipe Clamp with Boss
with 3/8 NPT Coupling
3/8 NPT內牙接管
鞍式固定管夾
(M6X12L螺栓固定)

13MAT
Wing Nut Tighten
Clamping Tube Hanger
with 1/2 PT Coupling
翼形螺母快拆管架
(帶有1/2 PT內牙接管, 平面型)






由此下載本產品最新型錄 !!!

Download LATEST  PRODUCT CATALOG Here !!!


SUPPORTS & HANGERS Download Now !
Specifications:

  • Size: 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 4"

    Check the dimension drawings for detail...

  • Material: SS304

Features:

  • Material Strictly Inspected and Selected by using Olympus Innov-X Delta XRF Metal Analyzer

  • Uniform Thickness and Tight Tolerence making the Piping engineering such as Assembling and Welding Easy

  • Quality Control and Fine Polish ensure High Strength and Superior Corrosion-Resistant Performance meeting the Strict Hygienic Requirements.

  • Burrs, Sharp Edges Removed & Corners Polished. They are assembled and maintained without causing harm to the hands.

  • Fully Inspected and Well Packed before delivery

Certificate:
  • ISO-9001
Order Information:
  • Minimum Order: Negotiable
  • Buyer's Label Offered
  • FOB: TAIWAN
