Product ID: 02

 Stainless Steel Hygienic Tube Fittings

( for 3-A TRI-CLAMP Fitting Assemblies )

● HEAVY DUTY CLAMP

● HIGH PRESSURE CLAMP

● LIGHT WEIGHT CLAMP

 (3-A Tri-Clamp)

●  13LAH   HEAVY DUTY CLAMP   SINGLE PIN (Wingnut Tightened)

●  13MHHM   HEAVY DUTY CLAMP   DOUBLE PIN (Wingnut Tightened)

●  13MHHS   3-SEGMENT CLAMP   (Wingnut Tightened)

●  13MHP   HIGH PRESSURE BOLTED CLAMP

●  13MAH   QUICK -RELEASE CLAMP   (DOUBLE PIN, Wingnut Tightened)

●  13HLA   LIGHT DUTY TOGGLE CLAMP

●  13JO   HEAVY DUTY CLAMP   (Single Pin, Wingnut Tightened)

●  13U  HEAVY DUTY CLAMP  (Single Pin, Bolt Tightened)

 (I-Line)

●  13IS   I-Line / Q-Line Clamp   (Single Pin, Wingnut Tightened)

●  13I   I-Line Clamp   (Single Pin, Bolt Tightened)

 (Q-Line)

●  13QT   Q-Line Light Weight Clamp

The TRI-CLAMP, I-LINE, and Q-LINE fitting assemblies consist of 2 matching Ferrules, 1 Gasket, and 1 Clamp. Designed specifically for COP ( Clean-Out-of-Place ) and CIP ( Clean-In-Place ) applications, these fittings utilize a Wing Nut for tightening and loosening, allowing pipeline equipment, on-site construction, and production line personnel to Easily and Quickly Assemble, Disassemble, Clean, and Replace Components. Once assembled, the joints are seamless and leak-proof. Due to their compact design, piping configurations can be more tightly integrated, leading to more efficient use of production space.

The I-Line fitting design consists of interlocking flat ferrules, a flat gasket, and a clamp. This interlocking metal-to-metal design eliminates over-compression of the clamp and prevents the gasket from being extruded into product-contact areas.

Tri-Clamp clamps offer flexibility with options for Single-Pin, Double-Pin, or Three-Segment designs to meet specific installation requirements.

For applications requiring higher line pressures, Bolted High-Pressure Clamps are also available as an alternative.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

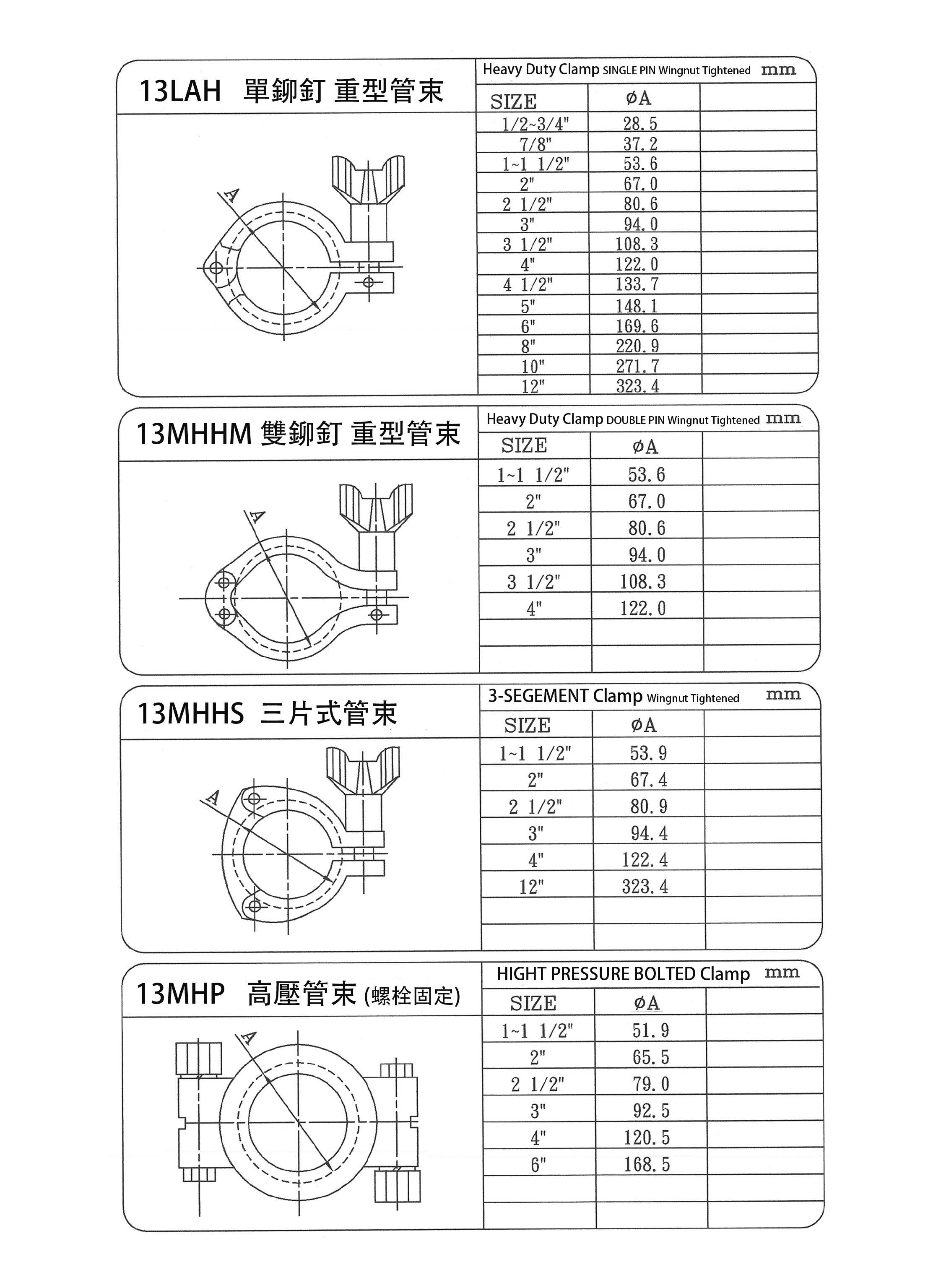

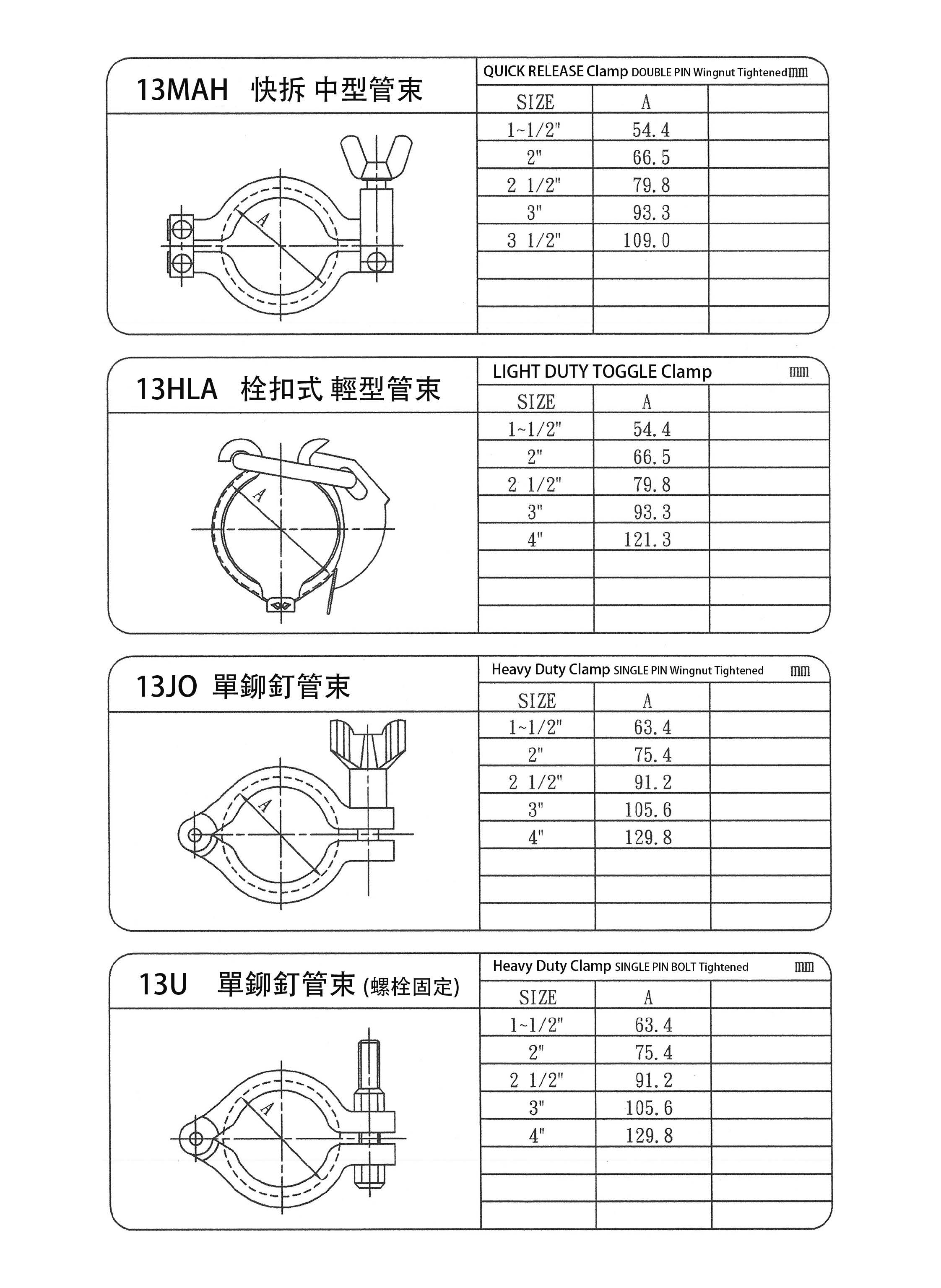

(3-A Tri-Clamp)    13LAH   HEAVY DUTY CLAMP   SINGLE PIN   (Wingnut Tightened)     13MHHM   HEAVY DUTY CLAMP   DOUBLE PIN   (Wingnut Tightened)     13MHHS   3-SEGMENT CLAMP   (Wingnut Tightened)     13MHP   HIGH PRESSURE   BOLTED CLAMP	(3-A Tri-Clamp)    13MAH   QUICK -RELEASE CLAMP   Double Pin   (Wingnut Tightened)     13HLA  LIGHT DUTY TOGGLE CLAMP    13JO   HEAVY DUTY CLAMP   Single Pin   (Wingnut Tightened)     13U   HEAVY DUTY CLAMP   Single Pin   (Bolt Tightened)

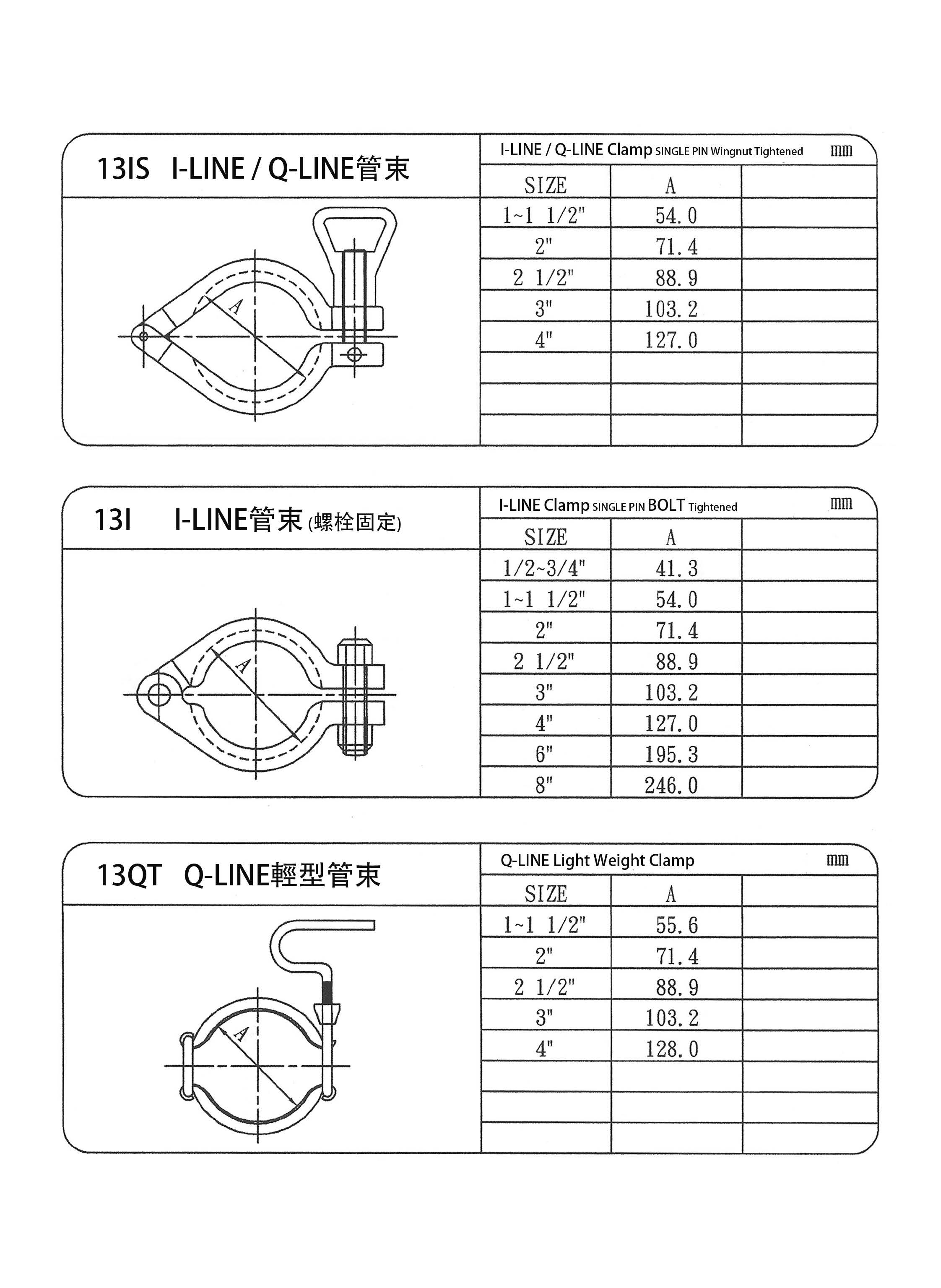

(I-Line)    13IS   I-Line / Q-Line Clamp   (Single Pin,  Wingnut Tightened)     13I   I-Line Clamp   (Single Pin,   Bolt Tightened)    (Q-Line)    13QT   Q-Line Light Weight Clamp

FERRULE CLAMPS
