Product ID: 05

Stainless Steel Sanitary Hygienic

 IDF UNION FITTINGS

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● BLANK LINER

● SEAL / GASKET

● IDF14  Weld Liner

● IDF15  Weld Male

● IDF14R  Liner for Expanding / Roll-On Expanding Liner

● IDF15R  Male for Expanding / Roll-On Expanding Male

● IDF13H  Hex Nut

● IDF16A  Blank Liner

● IDF40  IDF Gasket

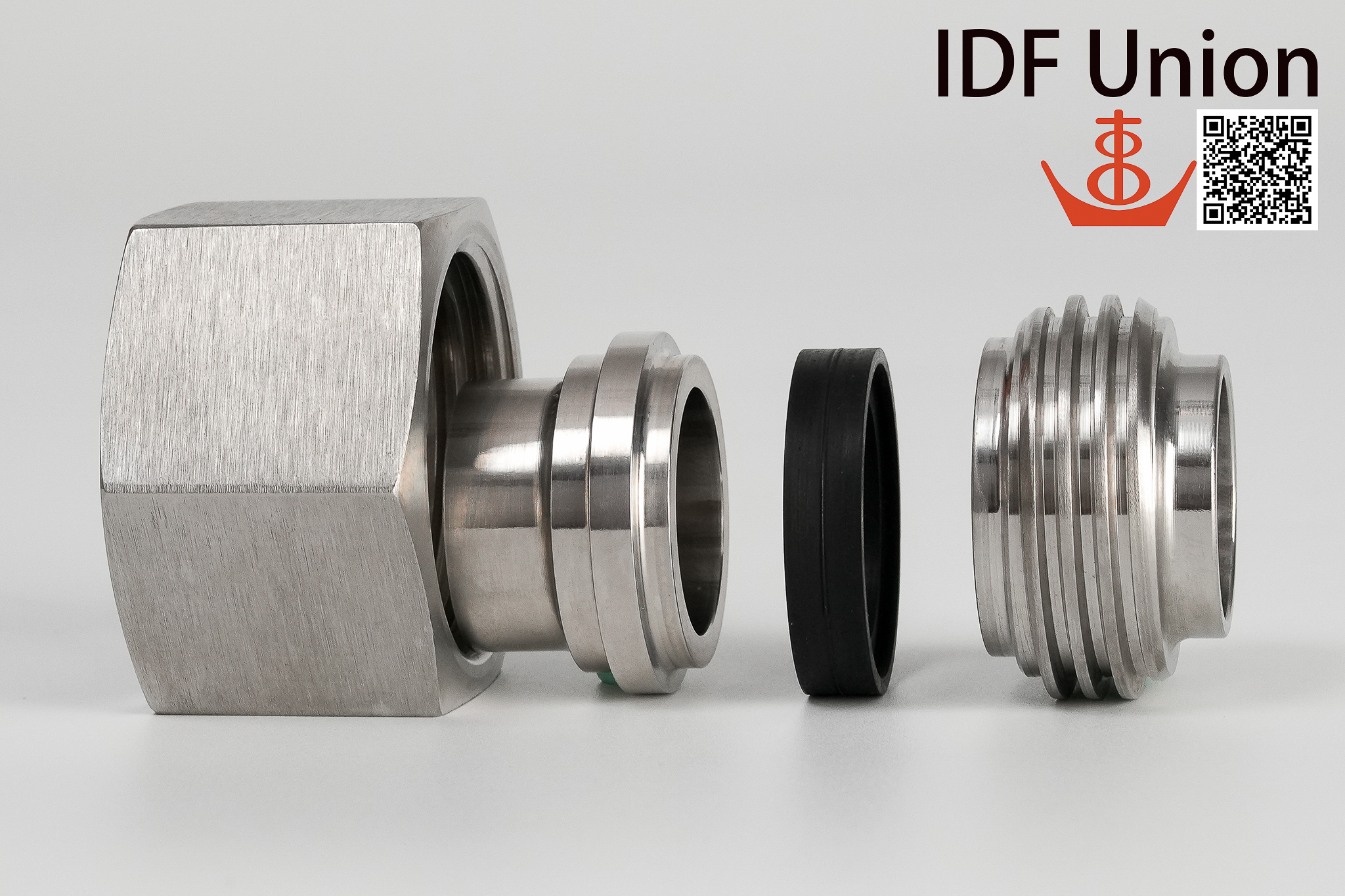

The IDF UNION is a piping connection specifically designed for sanitary food applications. This assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a threaded hex nut. It originates from the standards set by the International Dairy Federation (IDF), an organization focused on establishing production and hygiene standards for the dairy industry.

The IDF Union features the following characteristics:

🟦 Sanitary Design :

Features a smooth, clean bore that minimizes the buildup of bacteria, dirt, and other contaminants, ensuring food safety and hygiene.

🟦 Superior Sealing Performance :

Utilizes a combination of a seal ring, threaded ferrule, and nut to achieve a reliable seal, preventing leaks and contamination.

🟦 Easy Disassembly :

Designed for quick teardown, facilitating easy cleaning, maintenance, and replacement.

🟦 CIP Compatible :

Suitable for Clean-In-Place (CIP) systems.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

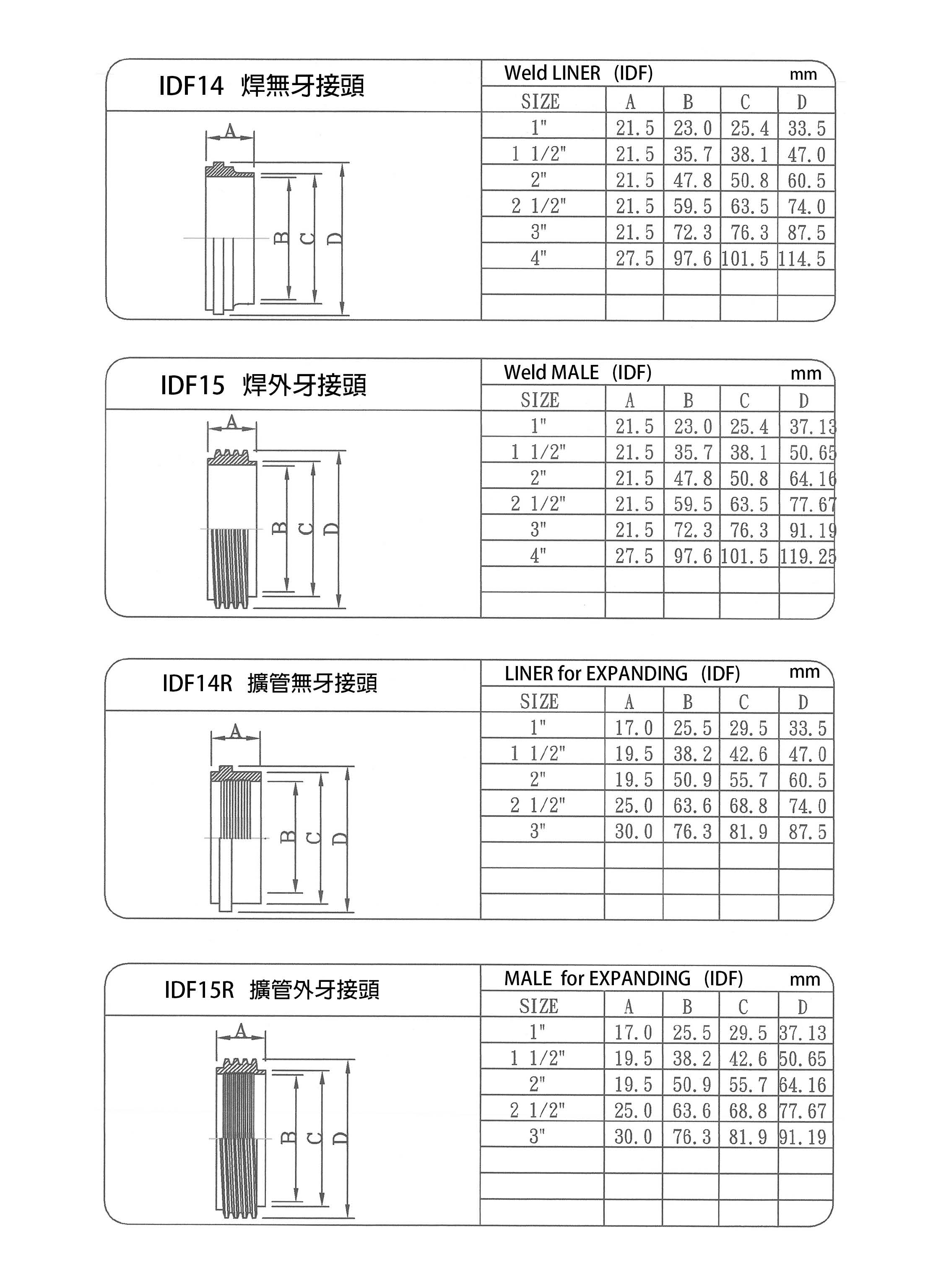

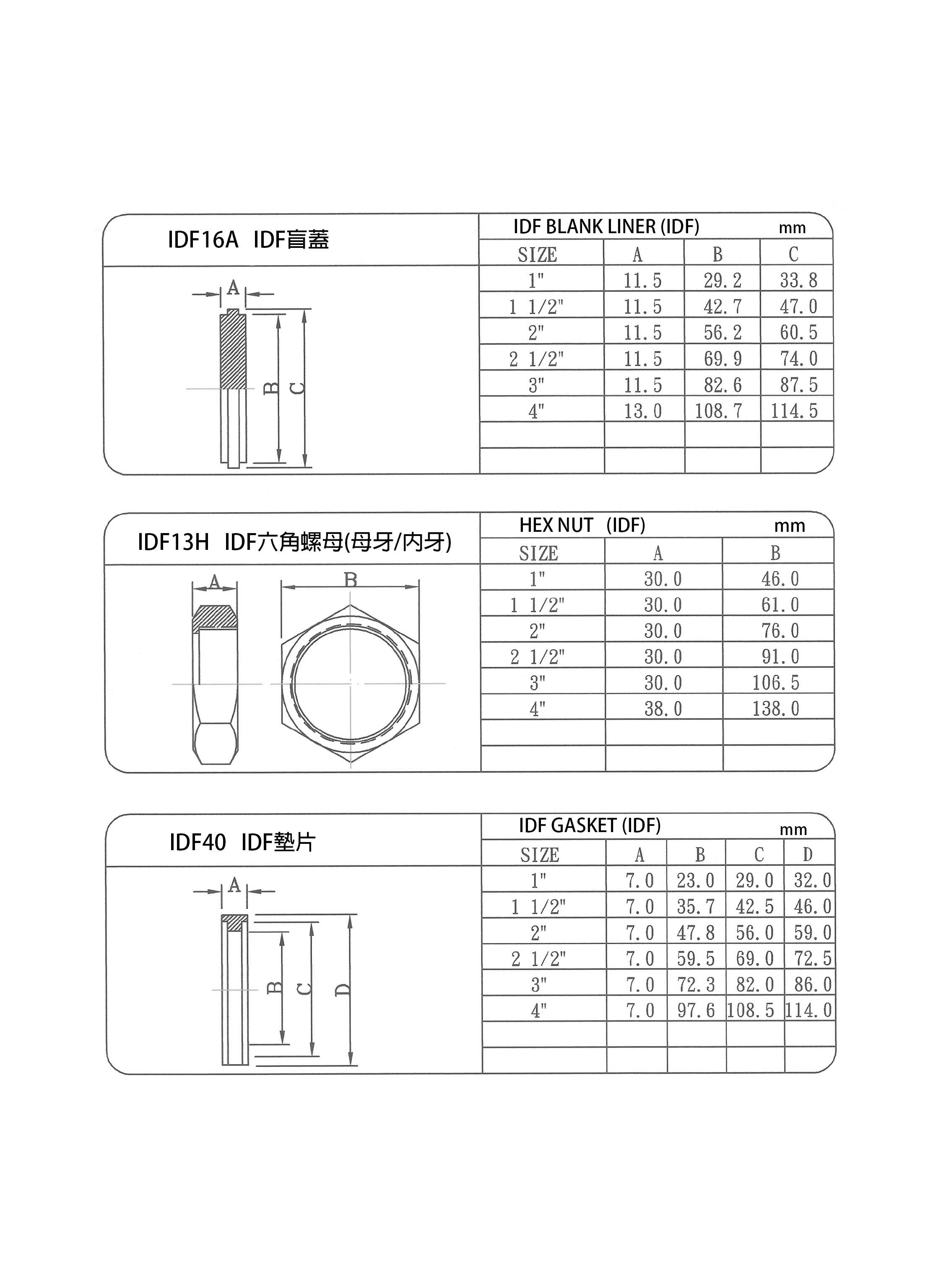

IDF14 焊無牙接頭 Weld Liner (IDF)   IDF15 焊外牙接頭 Weld Male (IDF)   IDF14R 擴管無牙接頭 Expanding Liner (IDF)     IDF15R 擴管外牙接頭 Expanding Male (IDF)	IDF16A IDF盲蓋 Blank Liner (IDF)     IDF13H 六角螺母(母牙/內牙) Hex Nut (IDF)     IDF40 IDF H型墊片 IDF Gasket
