3A/IDF/Tri-Clamp/Butt Weld ELBOW, BEND, TEE, CROSS, Concentric REDUCER, Eccentric REDUCER, inox stainless steel sanitary hygienic tube fittings - 3A, IDF, Tri Clamp End, Butt Weld End, Long, Short, 45° elbow bend, 90° elbow bend ... 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/純水系統/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件食品衛生級彎頭, 彎管, 三通, 十字通, 大小頭, 漸縮管 ...

Inox/Stainless Steel Sanitary HYGIENIC TUBE FITTINGS 3-A / IDF ELBOW BEND TEE CROSS REDUCER with TRI CLAMP/WELD Connections - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

More Details

Product ID: 14

Stainless Steel Hygienic Tube Fittings

( with TRI-CLAMP FERRULE / WELDING CONNECTIONS )

● 90° ELBOW

● 45° ELBOW

● LONG RADIUS ELBOW

● SHORT RADIUS ELBOW

● LONG TEE

● SHORT TEE

● EQUAL TEE

● REDUCING TEE

● PULLED TEE

● CROSS

● CONCENTRIC REDUCER

● ECCENTRIC REDUCER

3-A / IDF / Tri-Clamp / Butt Weld

(3-A)

● 3A-2WCL 90° ELBOW Weld

● 3A-L2S 90° ELBOW Weld Long Radius

● 3A-2WK7 45° ELBOW Weld

● 3A-L2KS 45° ELBOW Weld Long Radius

● 3A-7WWW EQUAL TEE Weld Short

● 3A-7W EQUAL TEE Weld Long

● 3A-9WWW CROSS Weld Short

● 3A-9W CROSS Weld Long

● 3A-L317 CONCENTRIC REDUCER Weld

● 3A-L327 ECCENTRIC REDUCER Weld

● 3A-7WMS PULLED TEE Weld Equal

● 3A-7RWWW REDUCING TEE Weld

● 3A-7RW REDUCING TEE Weld Long

● 3A-7YW LATERAL 45° Weld

● 3A-2CMP 90° ELBOW Tri-Clamp Ferrule Ends

● 3A-2KMP 45° ELBOW Tri-Clamp Ferrule Ends

● 3A-7MP EQUAL TEE Tri-Clamp Ferrule Ends

● 3A-7RMP REDUCING TEE Tri-Clamp Ferrule Ends

● 3A-9MP CROSS Tri-Clamp Ferrule Ends

● 3A-31-14MP CONCENTRIC REDUCER Tri-Clamp Ferrule Ends

● 3A-32-14MP ECCENTRIC REDUCER Tri-Clamp Ferrule Ends

● 3A-7YMP LATERAL 45° Tri-Clamp Ferrule Ends

● 3A40A Ferrule Gasket without Lip

● 3A40B Ferrule Gasket with Lip

(IDF)

● T-5 IDF 45° ELBOW Weld

● D-1 IDF 90° ELBOW Weld

● D-8 IDF TEE Weld

● IDF CROSS Weld

● T-13 IDF CONCENTRIC REDUCER Weld

● D-8(R) IDF REDUCING TEE Weld

● IDF 45° ELBOW Tri-Clamp Ferrule Ends

● IDF 90° ELBOW Tri-Clamp Ferrule Ends

● IDF EQUAL TEE Tri-Clamp Ferrule Ends

● IDF CROSS Tri-Clamp Ferrule Ends

● IDF CONCENTRIC REDUCER Tri-Clamp Ferrule Ends

● IDF 45° ELBOW (Tri-Clamp Ferrule X Weld)

● IDF 90° ELBOW (Tri-Clamp Ferrule X Weld)

● IDF REDUCING TEE Tri-Clamp Ferrule Ends

" We understand the challenges of on-site piping engineering and believe that all pipes, elbows, tees, crosses, and reducers should be connected efficiently and seamlessly.

Therefore, our company is committed to producing high-quality fittings — including ELBOWs, TEEs, CROSSes, and REDUCERs — characterized by precise angles, strict tolerances, uniform wall thickness, ease of welding, and long-lasting durability. "

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, Bevel Seat, IDF, RJT/BSM/CIP Flat Face, DIN 11851, SMS 1145, printed product catalogs are available upon request.

(以下產品尺寸圖, 點擊後可放大)
Click the DIMENSION DRAWINGS below to Enlarge

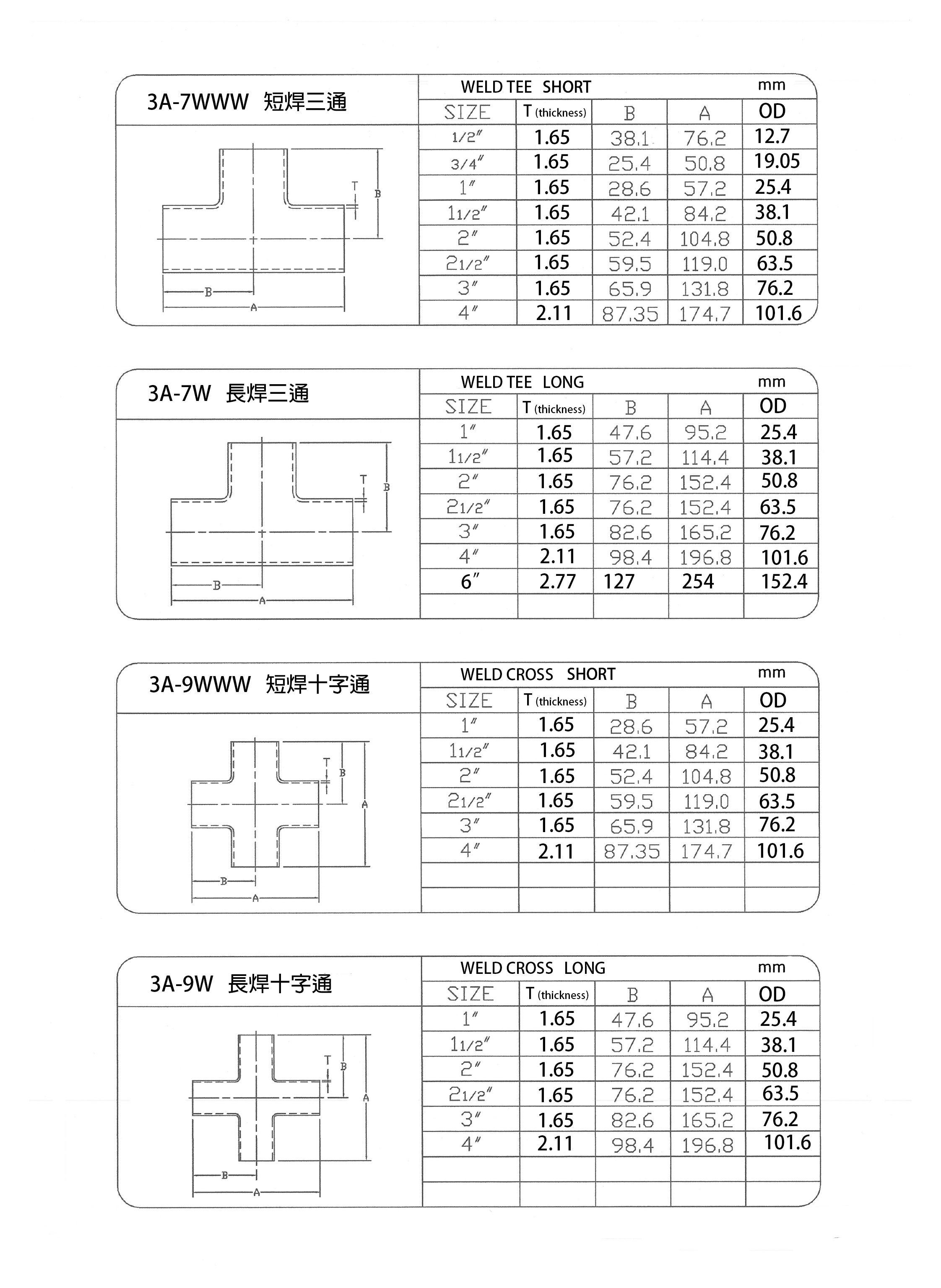

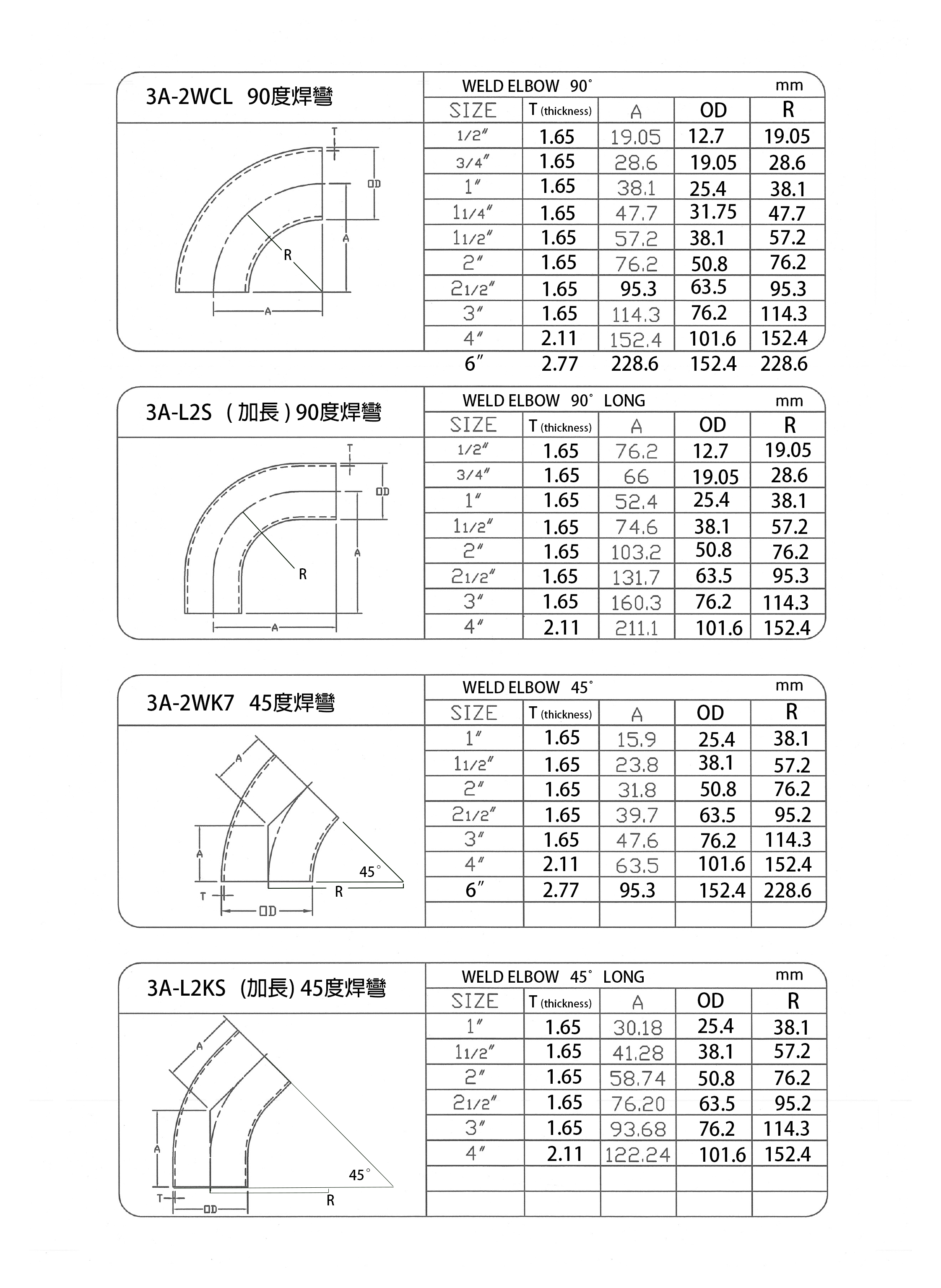

(3A) 3A-2WCL 90° ELBOW Weld 3A-L2S 90° ELBOW Weld Long Radius 3A-2WK7 45° ELBOW Weld 3A-L2KS 45° ELBOW Weld Long Radius 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A) 3A-7WWW EQUAL TEE Weld Short 3A-7W EQUAL TEE Weld Long 3A-9WWW CROSS Weld Short 3A-9W CROSS Weld Long 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

(3A) 3A-L317 CONCENTRIC REDUCER Weld 3A-L327 ECCENTRIC REDUCER Weld 3A-7WMS PULLED TEE Weld Equal 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A) 3A-7RWWW REDUCING TEE Weld 3A-7RW REDUCING TEE Weld Long 3A-7YW LATERAL 45° Weld 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

(3A) 3A-2CMP 90° ELBOW Tri-Clamp Ferrule Ends 3A-2KMP 45° ELBOW Tri-Clamp Ferrule Ends 3A-7MP EQUAL TEE Tri-Clamp Ferrule Ends 3A-7RMP REDUCING TEE Tri-Clamp Ferrule Ends 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A) 3A-9MP CROSS Tri-Clamp Ferrule Ends 3A-31-14MP CONCENTRIC REDUCER Tri-Clamp Ferrule Ends 3A-32-14MP ECCENTRIC REDUCER Tri-Clamp Ferrule Ends 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

(3A) 3A-7YMP LATERAL 45° Tri-Clamp Ferrule Ends 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm 4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(IDF) T-5 45° ELBOW Weld D-1 90° ELBOW Weld D-8 TEE Weld IDF Weld Cross 1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

(IDF) T-13 CONCENTRIC REDUCER Weld D-8(R) REDUCING TEE Weld 1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm	(IDF) IDF 45° Elbow Clamp Ends IDF 90° Elbow Clamp Ends IDF Tee Clamp Ends IDF Cross Clamp Ends 1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

(IDF) IDF Concentric Reducer Clamp Ends IDF 45° Elbow Clamp X Weld IDF 90° Elbow Clamp X Weld IDF Reducing Tee Clamp Ends 1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

由此下載本產品最新型錄 !!!

Download LATEST PRODUCT CATALOG Here !!!

BendTeeCrossReducer Download Now !

Specifications:

Size :

3-A (Unit : mm)

1/2" (OD=12.7, t=1.65)

3/4" (OD=19.05, t=1.65)

1" (OD=25.4, t=1.65)

1.5" (OD=38.1, t=1.65)

2" (OD=50.8, t=1.65)

2.5" (OD=63.5, t=1.65)

3" (OD=76.2, t=1.65)

4" (OD=101.6, t=2.1)

6" (OD=152.4, t=2.8)

...etc.

Check the dimension drawings for detail...

IDF (Unit : mm)

1" (OD=25.4, t=1.2)

1.5" (OD=38.1, t=1.2)

2" (OD=50.8, t=1.5)

2.5" (OD=63.5, t=2.0)

3" (OD=76.2, t=2.0)

3.5" (OD=89.1, t=2.0)

4" (OD=101.6, t=2.0)

...etc.

Check the dimension drawings for detail...

( Refer to individual part drawings for additional dimension details )

Material :

Stainless Steel Parts are available in SS304, SS316, SS316L

( Material Test Reports EN10204-3.1 are available upon request )

Surface Finish Ra ≤ 0.8μm meet the requirements of 3-A Sanitary Standards - This refers to the surfaces that come into contact with liquid raw materials, products, or cleaning solutions in food, beverage, biotech, and pharmaceutical processes.

Example of Request for Quotation/Order :

Part Number / Material / Size / Quantity

3A-2WCL / 316 / 2" / 5PCS

Features:

Materials rigorously inspected and verified using the Olympus Innov-X Delta XRF Metal Analyzer.
Uniform wall thickness and tight tolerances facilitate seamless piping engineering, assembly, and welding.
Stringent quality control and high-grade polishing ensure superior strength and corrosion resistance, meeting the strictest hygienic standards.
Burrs and sharp edges are removed and corners polished to ensure safe handling during assembly and maintenance.
100% inspection and secure packaging guaranteed before delivery.

See more complete detail

Tube Specfication	Size(inch)	OD(mm)	Thickness(mm)
3-A	1/2"	12.7	1.65
3-A	3/4"	19.1	1.65
3-A	7/8"X1/2"	12.7	1.65
3-A	7/8"X3/4"	19.1	1.65
3-A	1"	25.4	1.65
3-A	1 1/4"	31.75	1.65
3-A	1.5"	38.1	1.65
3-A	2"	50.8	1.65
3-A	2.5"	63.5	1.65
3-A	3"	76.2	1.65
3-A	4"	101.6	2.1
3-A	6"	152.5	2.8
3-A	8"	203.3	2.8
3-A	10"	254.1	3.47
3-A	12"	304.9	3.47

IDF	1"	25.4	1.2
IDF	1.5"	38.1	1.2
IDF	2"	50.8	1.5
IDF	2.5"	63.5	2.0
IDF	3"	76.2	2.0
IDF	3.5"	89.1	2.0
IDF	4"	101.6	2.0

Certificate:

ISO-9001
