( 3-A TRI-CLAMP UNION FITTINGS )

● TRI-CLAMP FERRULE

● WELDING FERRULE

● ROLL-ON EXPANDING FERRULE

● TANK SPUD

● RUBBER HOSE ADAPTER

● TYGON HOSE ADAPTER

● BLANK END CAP

● FERRULE SEAL / GASKET

3-A / IDF / Tri-Clamp / Butt Weld / Roll-On Expanding / I-Line / Q-Line

 (3-A)

● 3A-14WMP  WELDING Ferrule SHORT

● 3A-14AMP  WELDING Ferrule LONG

● 3A-14WLMP  WELDING Ferrule TANK SPUD LIGHT

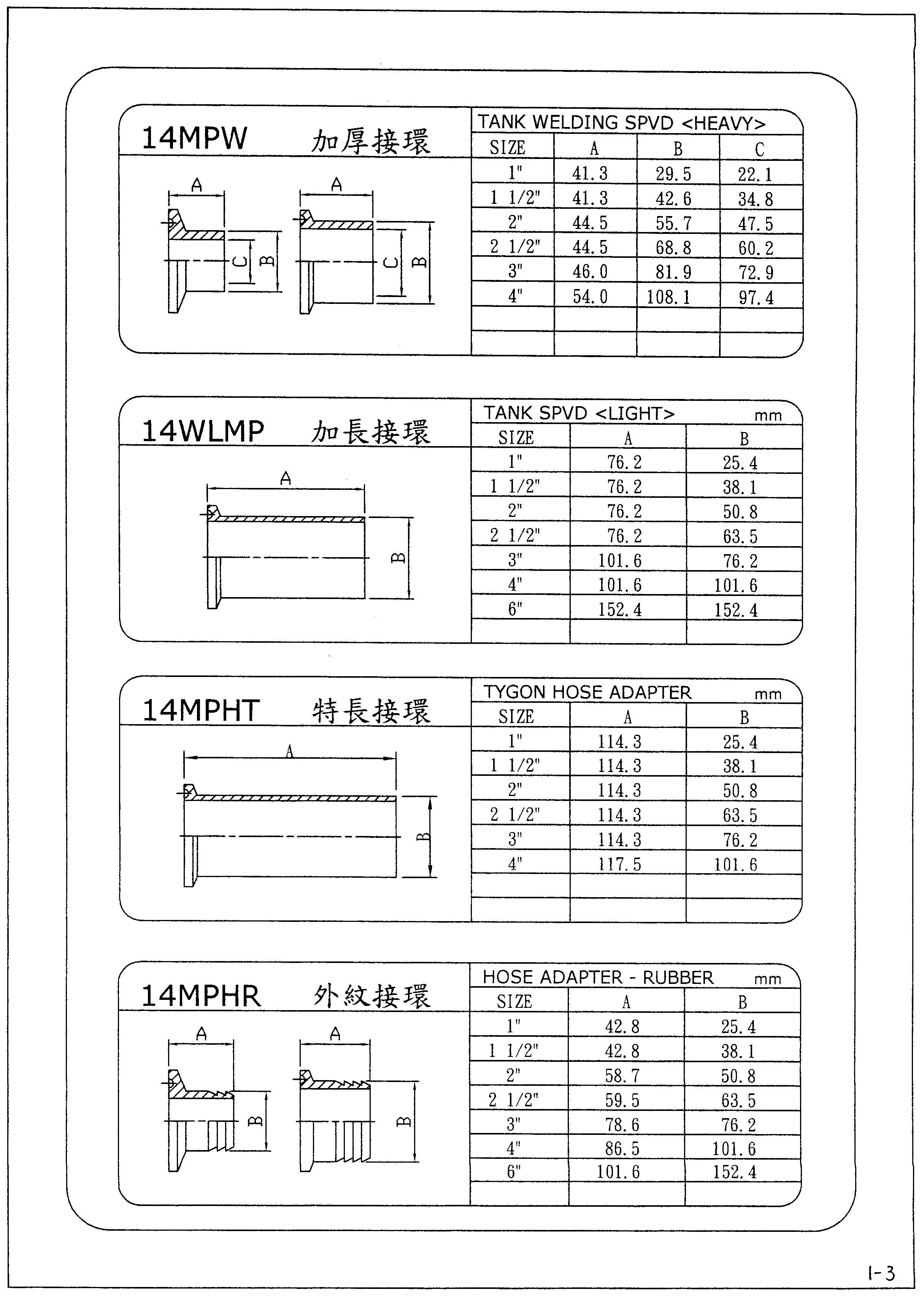

● 3A-14MPW  WELDING Ferrule TANK SPUD HEAVY WALL

● 3A-14RMP  ROLL-ON EXPANDING Ferrule

● 3A-14MPHT  TYGON HOSE Adapter

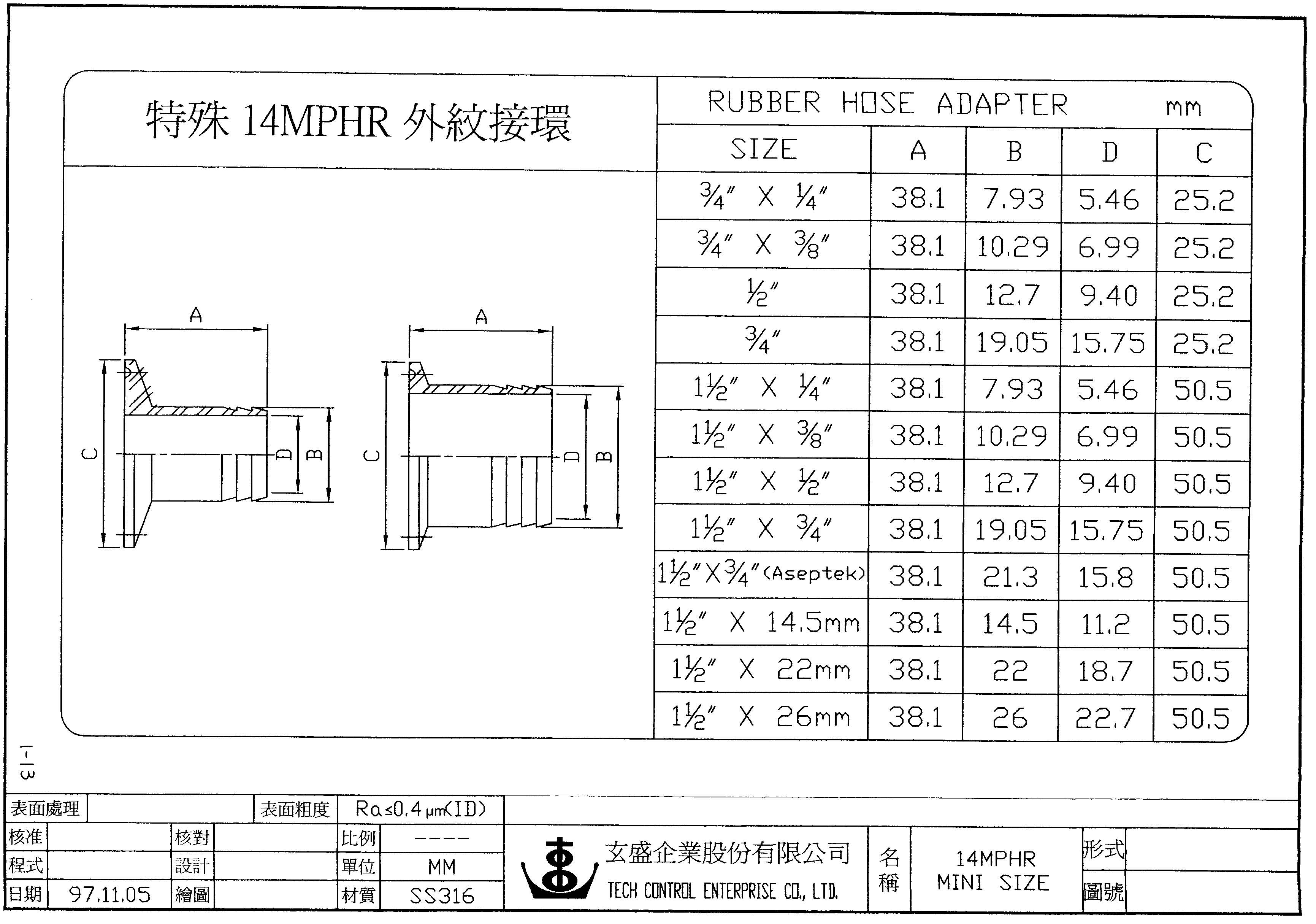

● 3A-14MPHR  RUBBER HOSE Adapter

● 3A-16AMP  Solid END CAP

● 3A-16W  Solid END CAP (for Welding)

● 3A40A  Ferrule GASKET without LIP

● 3A40B  Ferrule GASKET with LIP

 (IDF)

● IDF-IDFA  MEDIUM WELD Ferrule

● IDF-IDFR  Recessless Ferrule / ROLL-ON EXPANDING Ferrule

 (I-LINE)

● 14WI-CB  WELD Ferrule MALE

● 14WI  WELD Ferrule MALE, SHORT

● 15WI-CB  WELD Ferrule FEMALE

● 15WI  WELD Ferrule FEMALE, SHORT

● 14WLI  WELD Ferrule MALE LONG / Tank Spud Light

● 15WLI  WELD Ferrule FEMALE LONG / Tank Spud Light

● 14WHI  WELD Ferrule MALE / Tank Spud HEAVY WALL

● 15WHI  WELD Ferrule FEMALE / Tank Spud HEAVY WALL

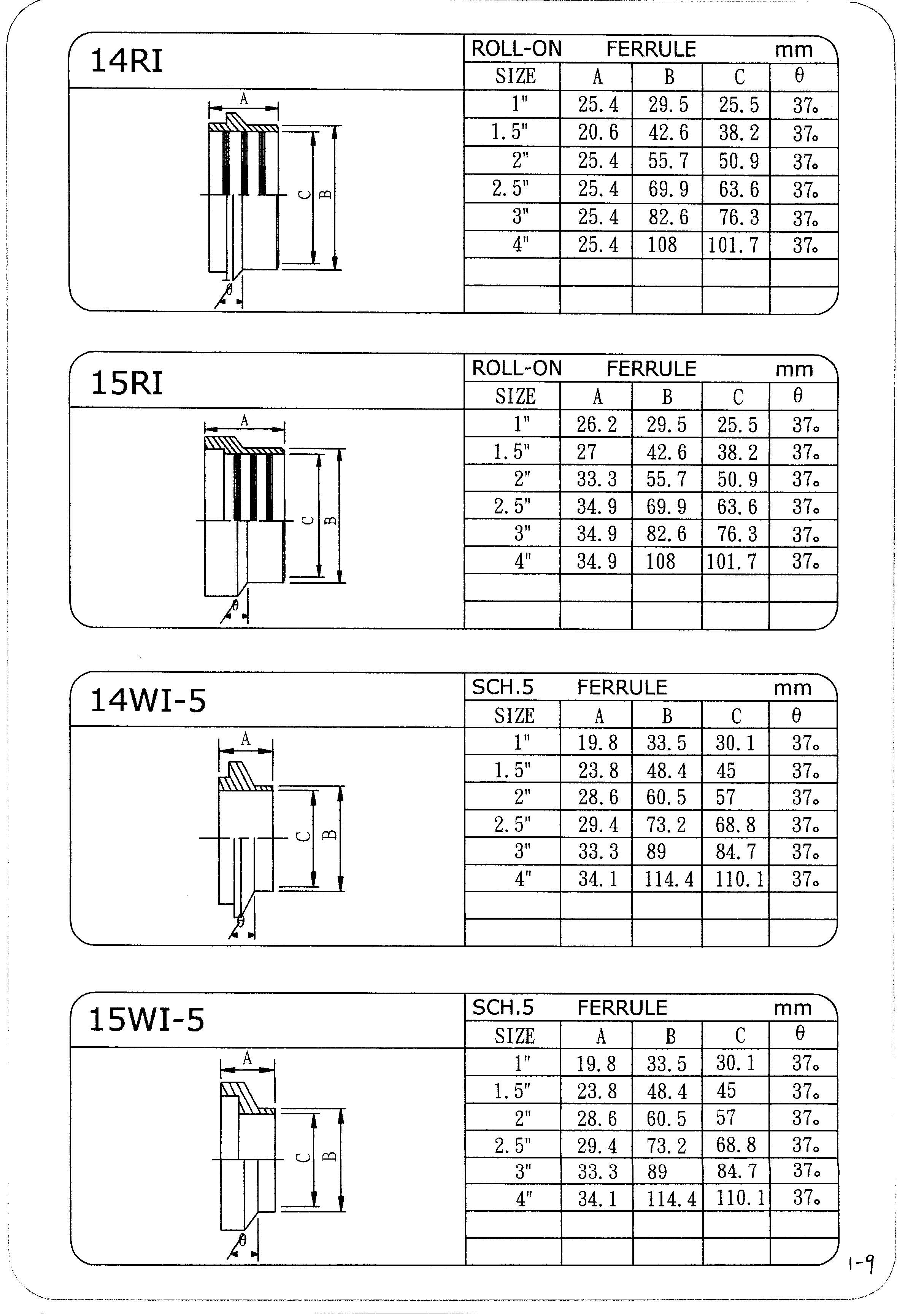

● 14RI  ROLL-ON EXPANDING Ferrule MALE

● 15RI  ROLL-ON EXPANDING Ferrule FEMALE

● 14WI-5  (SCH5) WELD Ferrule MALE SCH5

● 15WI-5  (SCH5) WELD Ferrule FEMALE SCH5

 (Q-LINE)

● 14WQ  WELD Ferrule SHORT SHANK

● 14WLQ  WELD Ferrule LONG / Tank Spud LIGHT WALL

● 14RQ  ROLL-ON EXPANDING Ferrule

 (ADAPTERS)

● B19W   Weld End X Male NPT

● 21-1   Weld End X Male NPT (with Hex Nut)

● 21MP   Tri-Clamp End X Male NPT

● 22MP   Tri-Clamp End X Female NPT

●  Tri-Clamp End X Male PT

●  Tri-Clamp End X PS

... and various Gaskets for Food-Grade Hygienic Piping in Compliance with FDA Requirements (Silicone, EPDM, Teflon, Viton, Buna-N)

The TRI-CLAMP, I-LINE, and Q-LINE fitting assemblies consist of two matching ferrules, a gasket, and a clamp. Designed specifically for COP ( Clean-Out-of-Place ) and CIP ( Clean-In-Place ) applications, these fittings utilize a wing nut for tightening and loosening, allowing pipeline equipment, on-site construction, and production line personnel to easily and quickly assemble, disassemble, clean, and replace components. Once assembled, the joints are seamless and leak-proof. Due to their compact design, piping configurations can be more tightly integrated, leading to more efficient use of production space.

The I-Line fitting design consists of interlocking flat ferrules, a flat gasket, and a clamp. This interlocking metal-to-metal design eliminates over-compression of the clamp and prevents the gasket from being extruded into product-contact areas.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

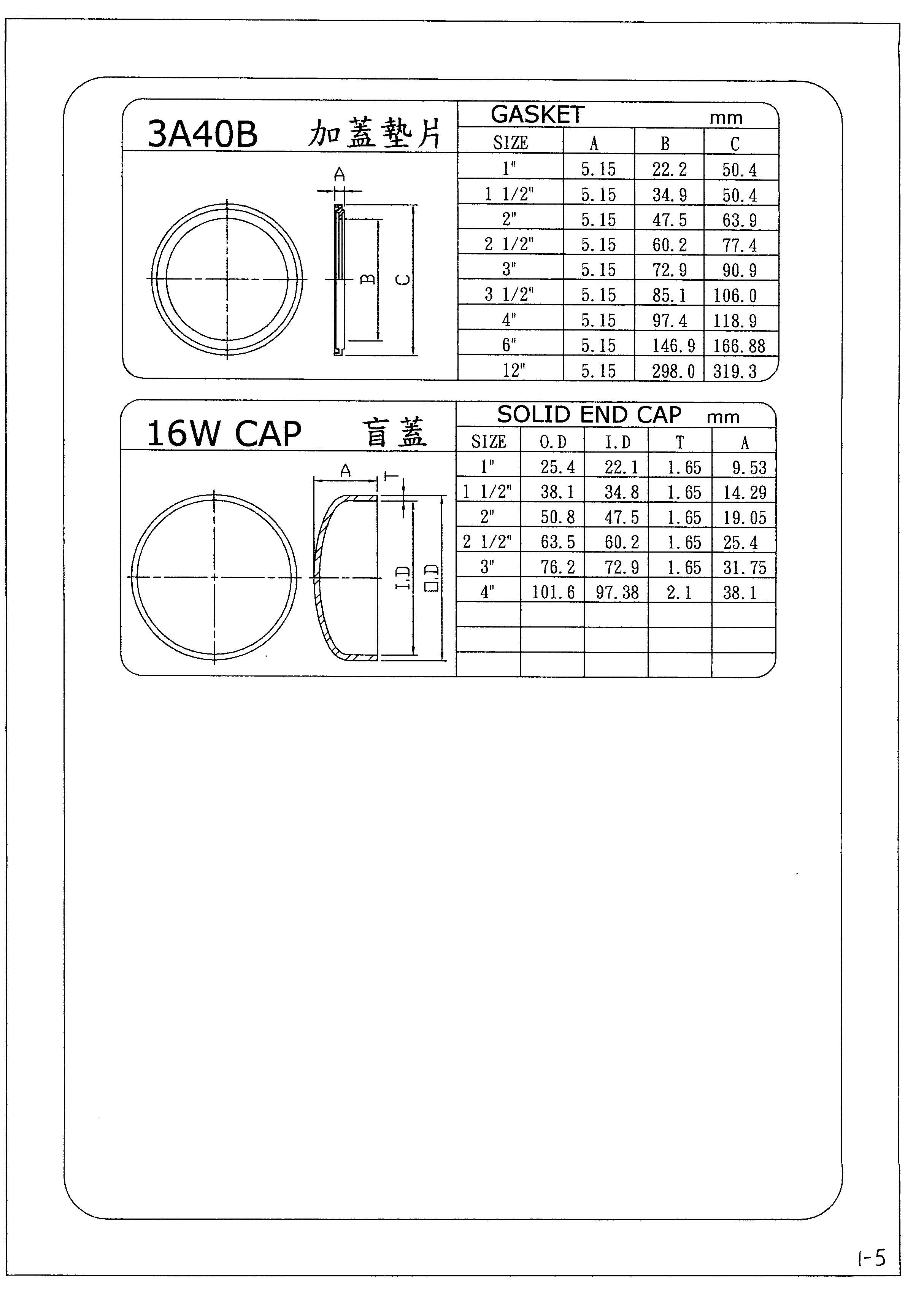

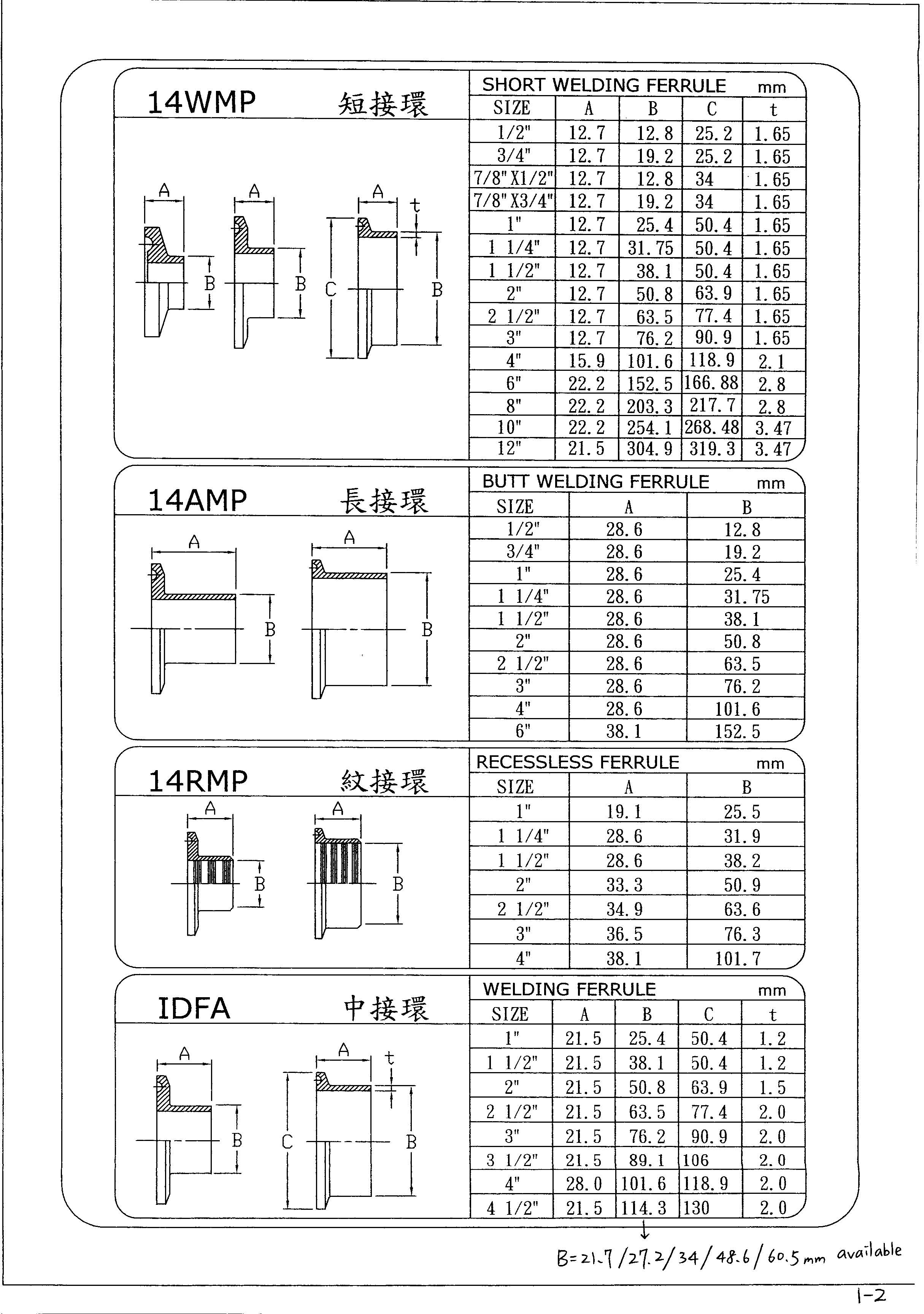

(3-A Ferrules)    14WMP Welding Ferrule Short   14AMP Welding Ferrule Long   14RMP Roll-On Expanding Ferrule 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" t=1.65mm 4" t=2.1mm 6" 8" t=2.8mm 10" 12" t=3.47mm    (IDF Ferrules)    IDFA Welding Ferrule Medium 1" 1.5" t=1.2mm 2" t=1.5mm 2.5" 3" 3.5" 4" t=2.0mm 4.5" t=3.0mm	(3-A Ferrules)    14MPW Welding Ferrule Tank Spud Heavy Wall 1" t=3.7mm 1.5" t=3.9mm 2" t=4.1mm 2.5" t=4.3mm 3" t=4.5mm 4" t=5.35mm   14WLMP Welding Ferrule Tank Spud Light   14MPHT Tygon Hose Adapter 1" 1.5" 2" 2.5" 3" t=1.65mm 4" t=2.1mm     14MPHR   Rubber Hose Adapter
(IDF Ferrules)    IDFR Recessless / Roll-On Expanding Ferrule    (3-A Ferrules)    16AMP Solid End Cap   3A40A Ferrule Gasket without Lip	(3-A Ferrules)    3A40B Ferrule Gasket with Lip   16W Solid End Cap for Welding

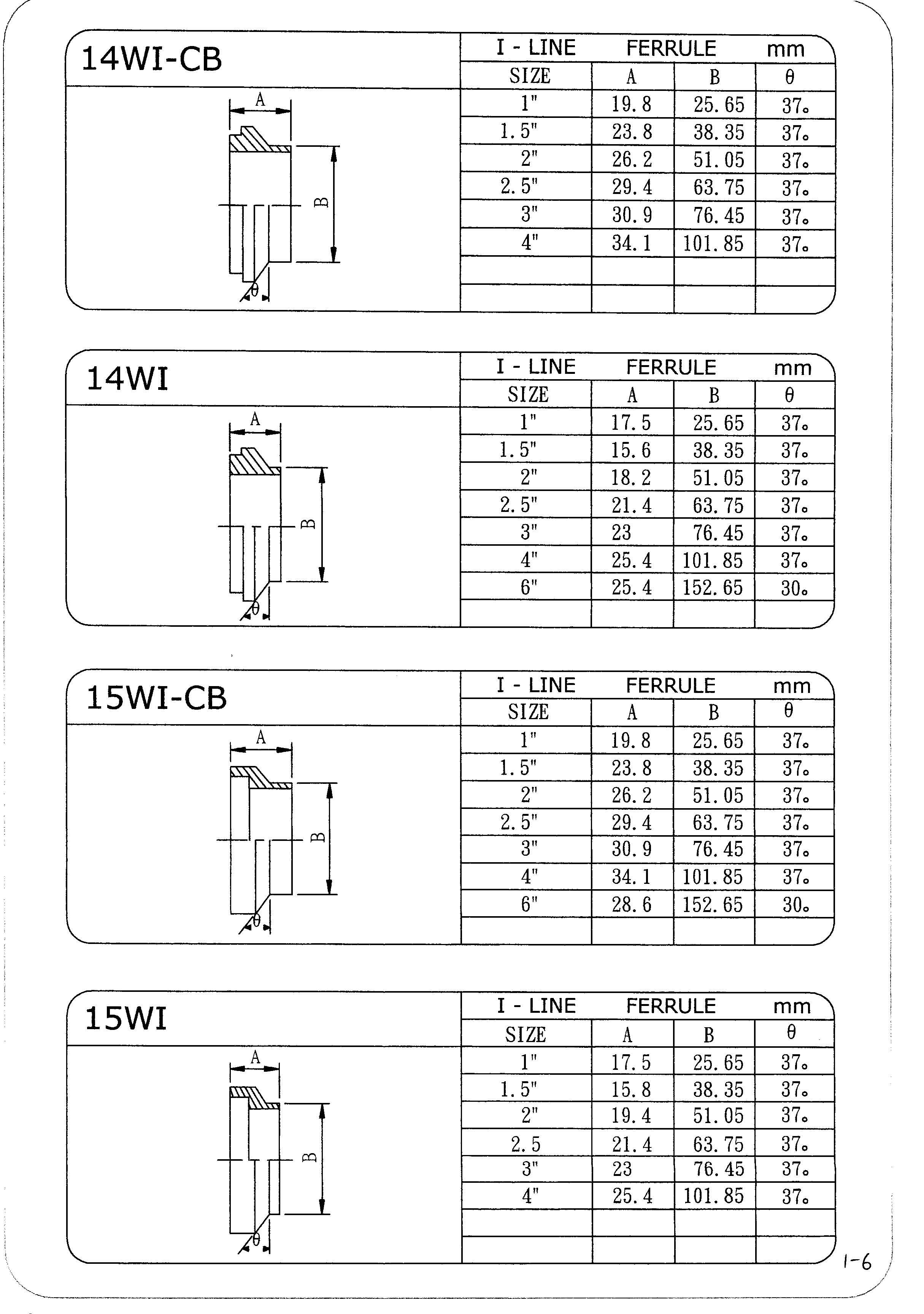

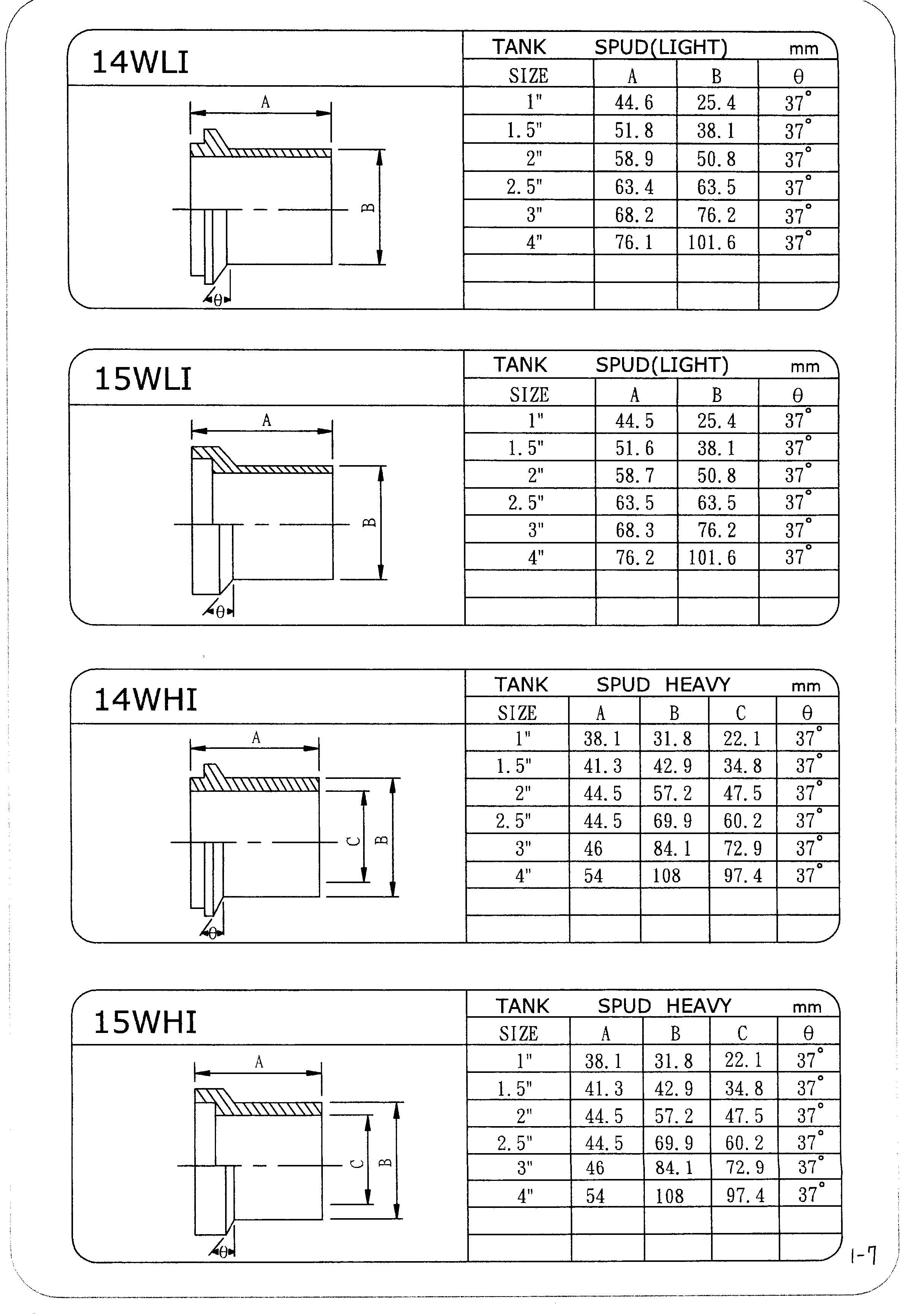

(I-Line Ferrules)    14WI-CB Weld Ferrule Male   14WI Weld Ferrule Male, Short   15WI-CB Weld Ferrule Female   15WI Weld Ferrule Female, Short	(I-Line Ferrules)    14WLI Weld Ferrule Male Long   15WLI Weld Ferrule Female Long   14WHI Weld Ferrule MALE / Tank Spud Heavy Wall   15WHI Weld Ferrule Female / Tank Spud Heavy Wall

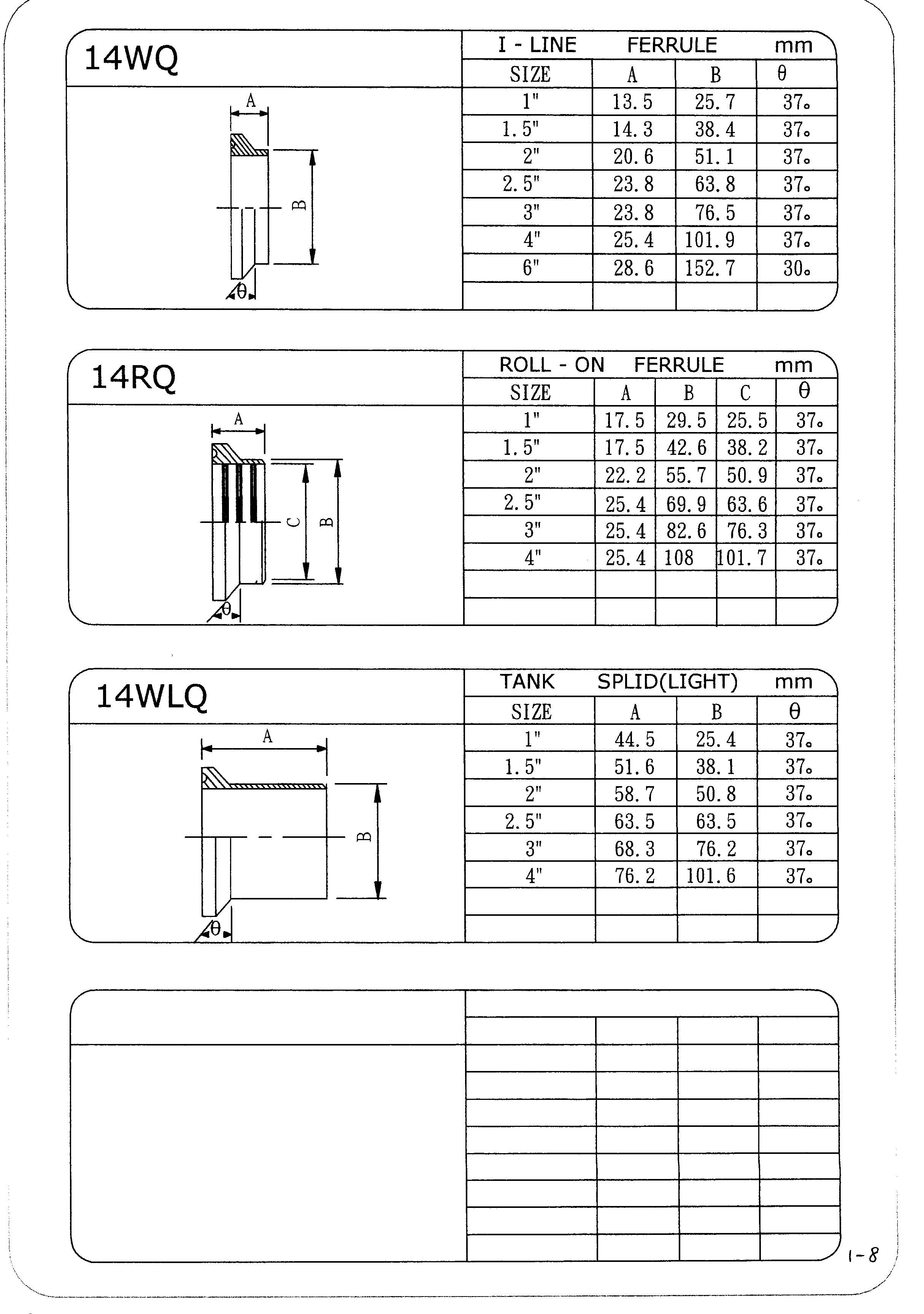

(Q-Line Ferrules)    14WQ Weld Ferrule Short Shank   14RQ Roll-On Expanding Ferrule   14WLQ Weld Ferrule Long / Tank Spud Light Wall	(I-Line Ferrules)    14RI  Roll-On Union Ferrule, Male   15RI Roll-On Union Ferrule, Female   14WI-5 Welding Ferrule Male, SCH5   15WI-5 Welding Ferrule Female, SCH5

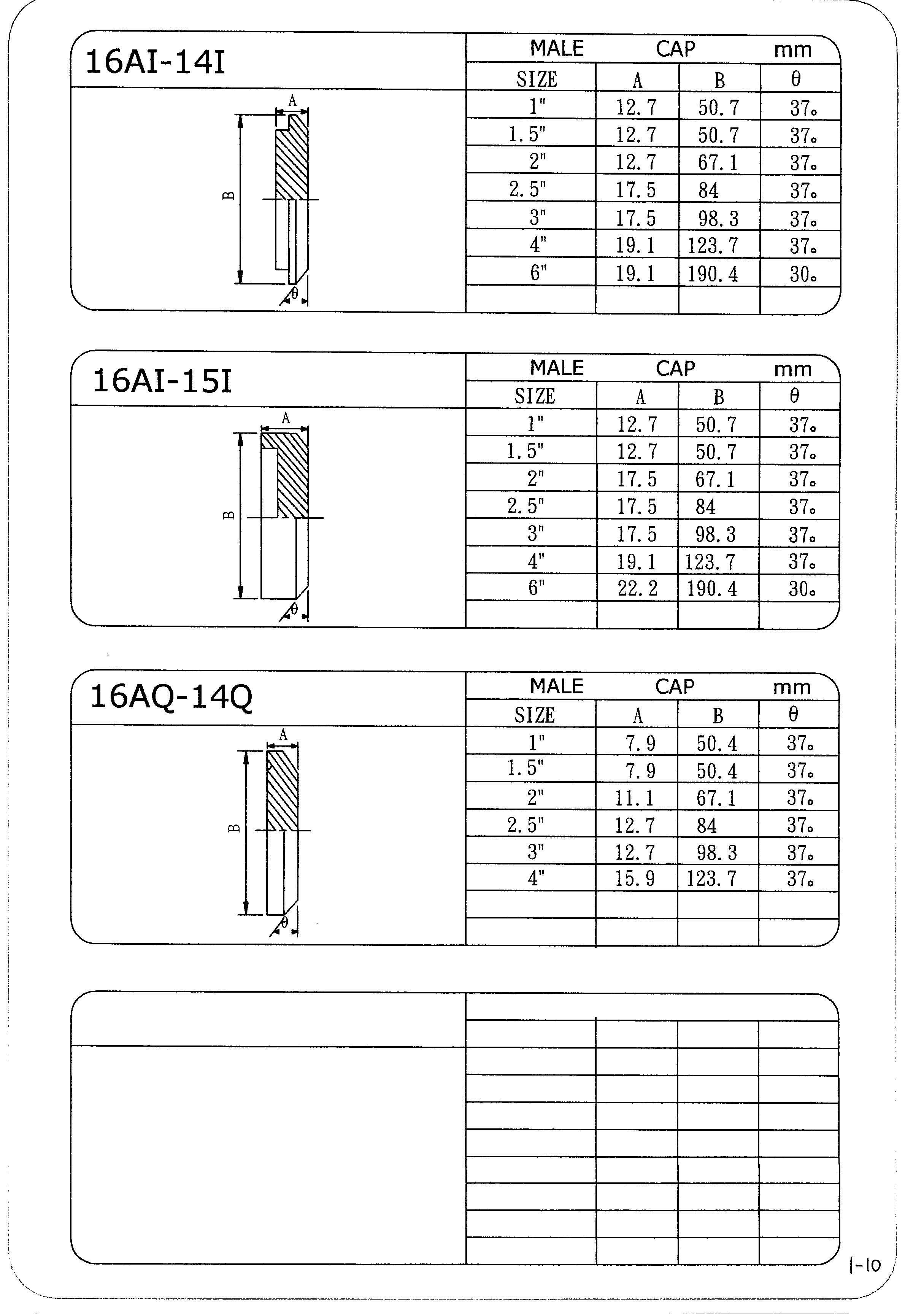

(I-Line)    16AI-14I Cap, Male   16AI-15I Cap Female     (Q-Line)     16AQ-14Q Cap	(3-A Adapters)     B19W   Adapter   Weld X MNPT     21-1   Adapter   Weld X MNPT   with HEX Nut     21MP   Adapter   Tri-Clamp X MNPT     22MP   Adapter   Tri-Clamp X FNPT

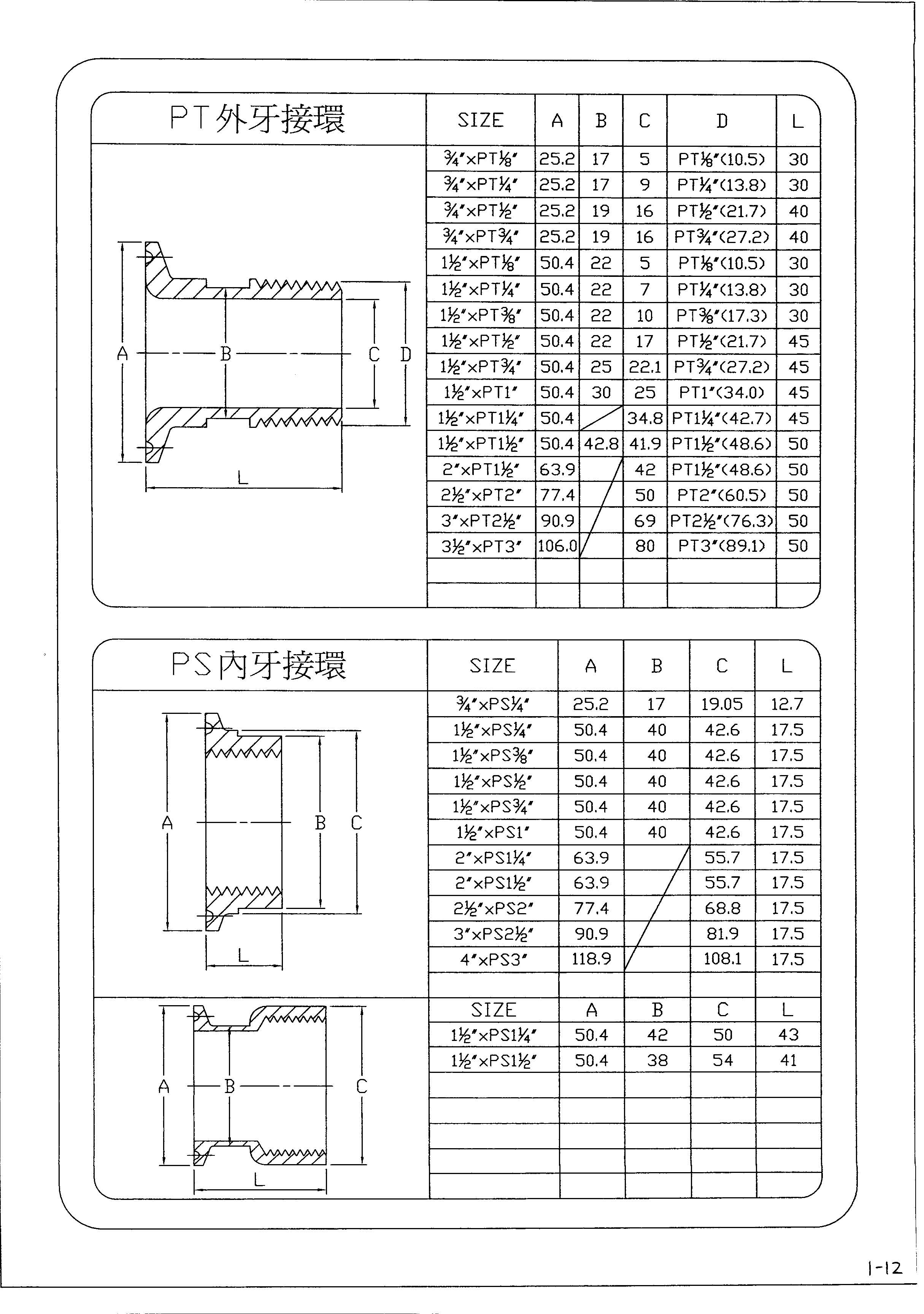

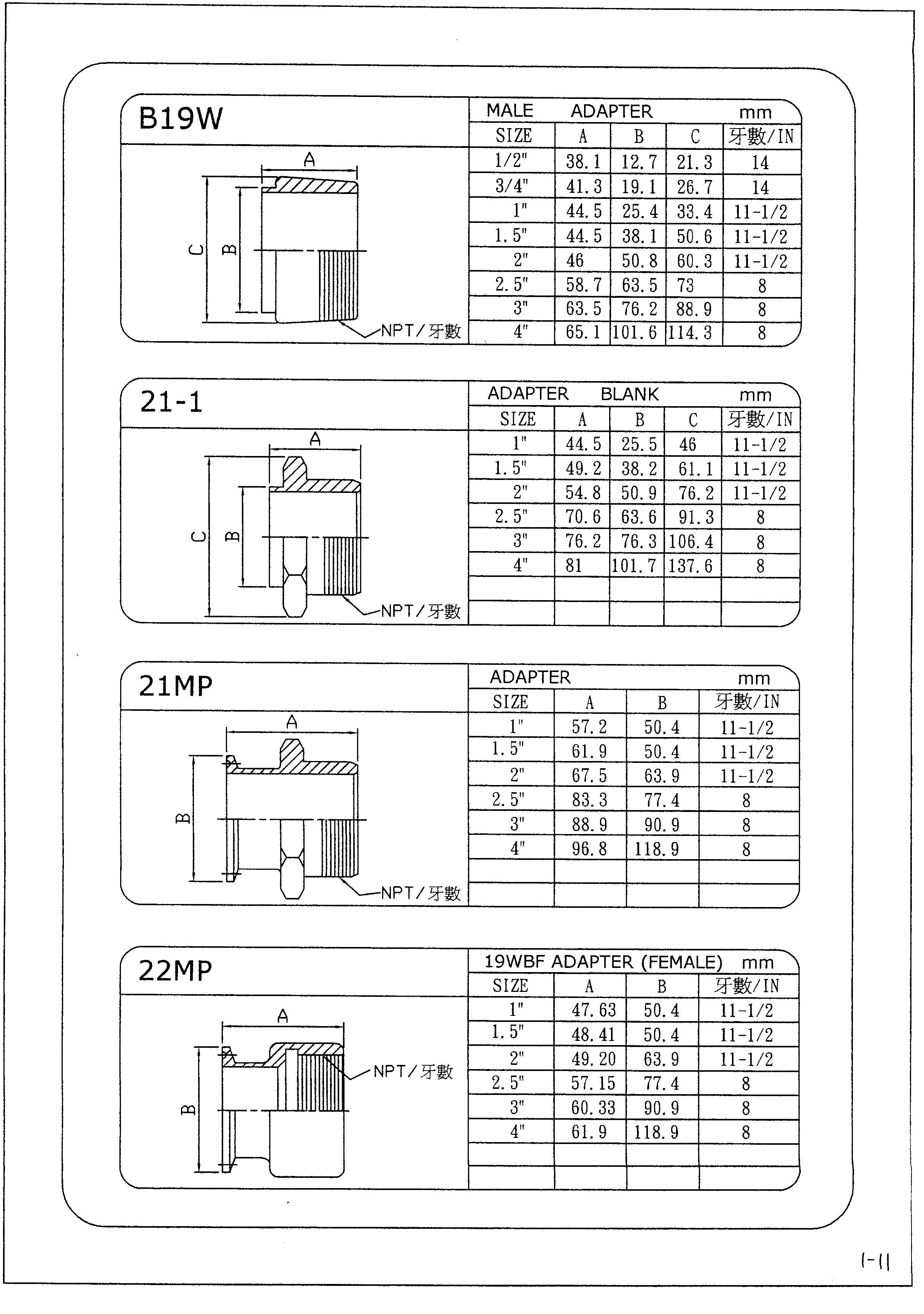

(3-A Adapters)     Adapter   Tri-Clamp X MPT     Adapter   Tri-Clamp X PS	(3-A)     14MPHR   Rubber Hose Adapter   Fractional

( with TRI-CLAMP FERRULE / WELDING  CONNECTIONS )

● 90° ELBOW

● 45° ELBOW

● LONG RADIUS ELBOW

● SHORT RADIUS ELBOW

● LONG TEE

● SHORT TEE

● EQUAL TEE

● REDUCING TEE

● PULLED TEE

● CROSS

● CONCENTRIC REDUCER

● ECCENTRIC REDUCER

3-A / IDF / Tri-Clamp / Butt Weld

 (3-A)

● 3A-2WCL 90° ELBOW Weld

● 3A-L2S 90° ELBOW Weld Long Radius

● 3A-2WK7 45° ELBOW Weld

● 3A-L2KS 45° ELBOW Weld Long Radius

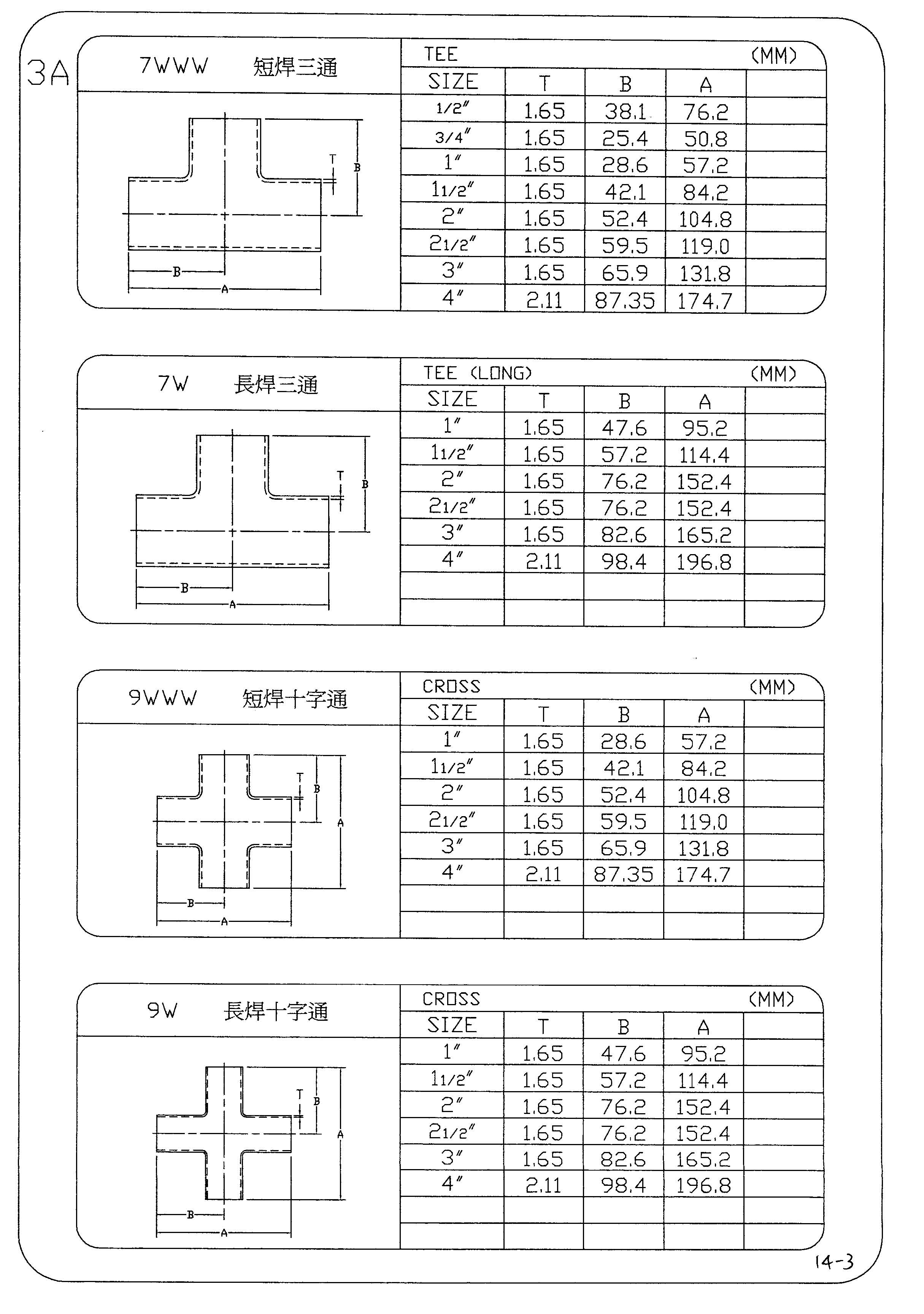

● 3A-7WWW EQUAL TEE Weld Short

● 3A-7W EQUAL TEE Weld Long

● 3A-9WWW CROSS Weld Short

● 3A-9W CROSS Weld Long

● 3A-L317 CONCENTRIC REDUCER Weld

● 3A-L327 ECCENTRIC REDUCER Weld

● 3A-7WMS PULLED TEE Weld Equal

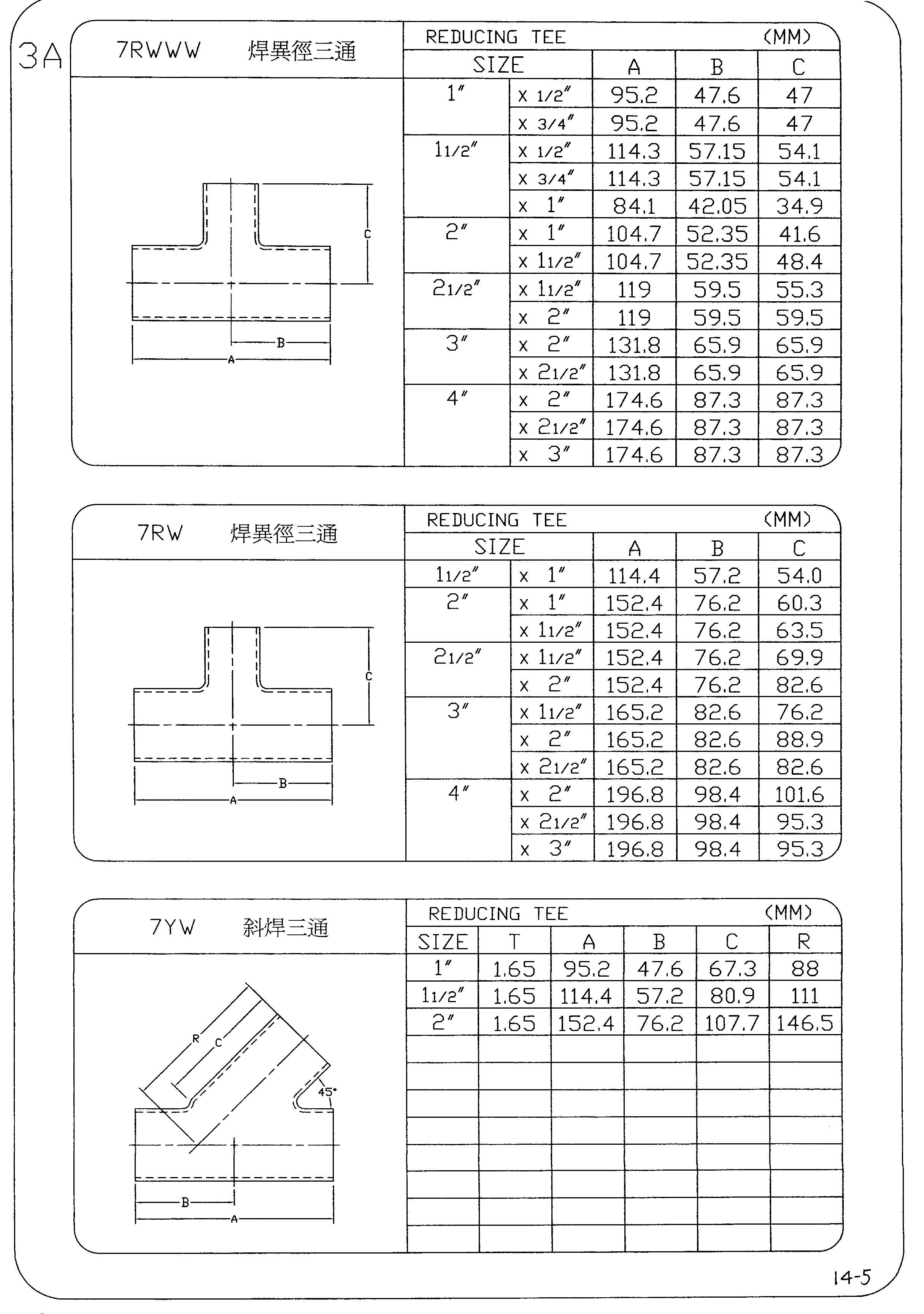

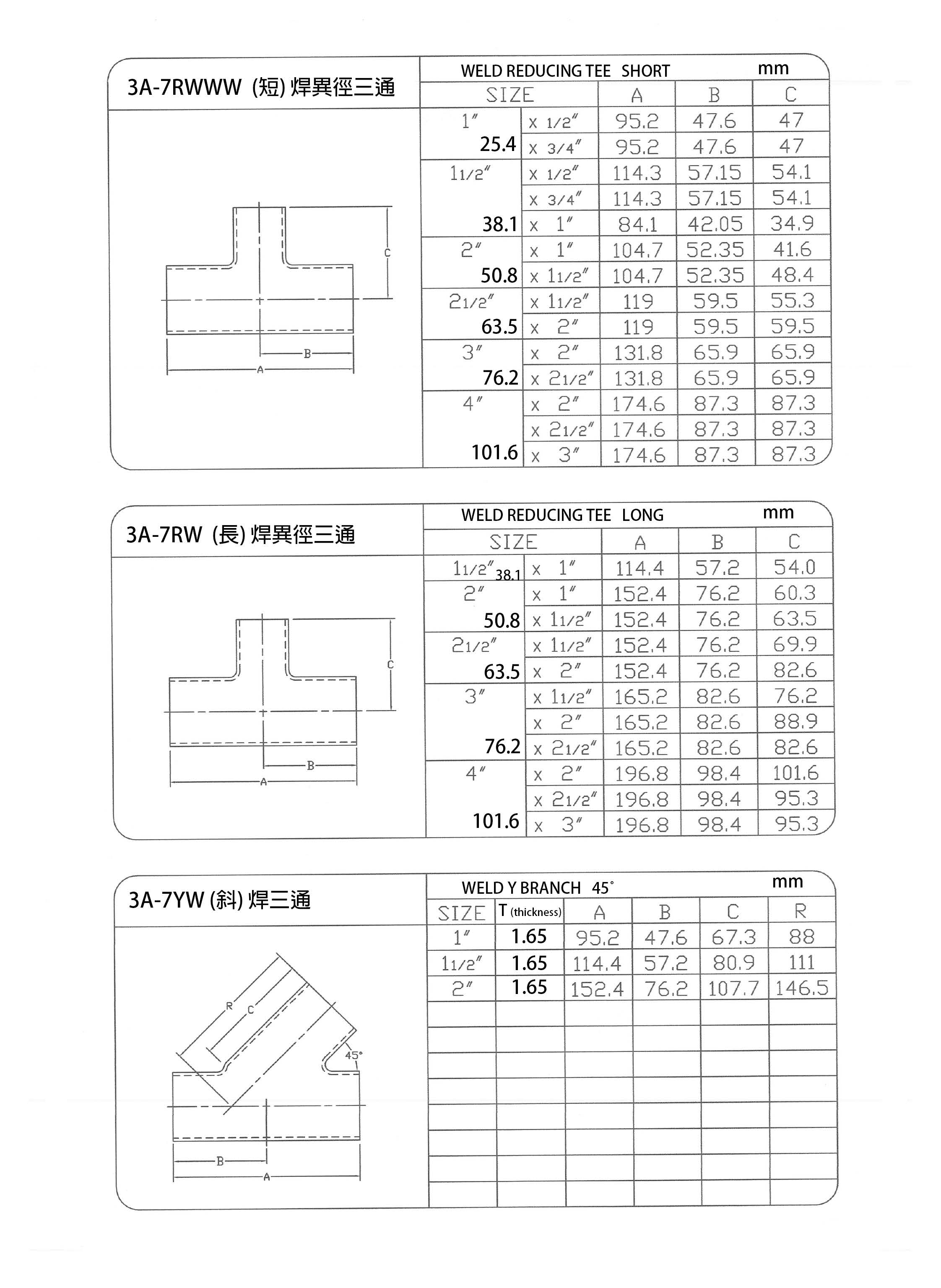

● 3A-7RWWW REDUCING TEE Weld

● 3A-7RW REDUCING TEE Weld Long

● 3A-7YW LATERAL 45° Weld

● 3A-2CMP 90° ELBOW Tri-Clamp Ferrule Ends

● 3A-2KMP 45° ELBOW Tri-Clamp Ferrule Ends

● 3A-7MP EQUAL TEE Tri-Clamp Ferrule Ends

● 3A-7RMP REDUCING TEE Tri-Clamp Ferrule Ends

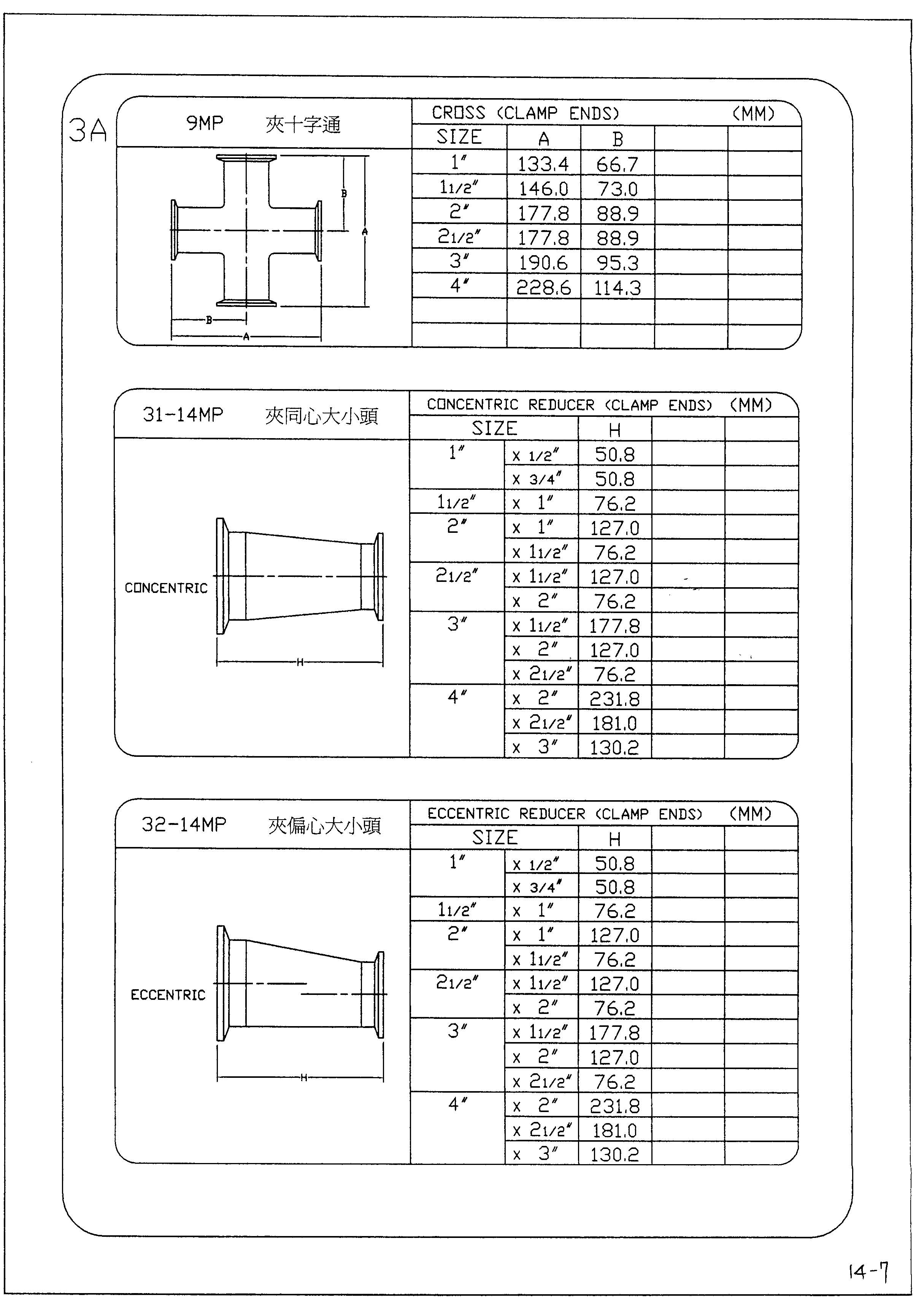

● 3A-9MP CROSS Tri-Clamp Ferrule Ends

● 3A-31-14MP CONCENTRIC REDUCER Tri-Clamp Ferrule Ends

● 3A-32-14MP ECCENTRIC REDUCER Tri-Clamp Ferrule Ends

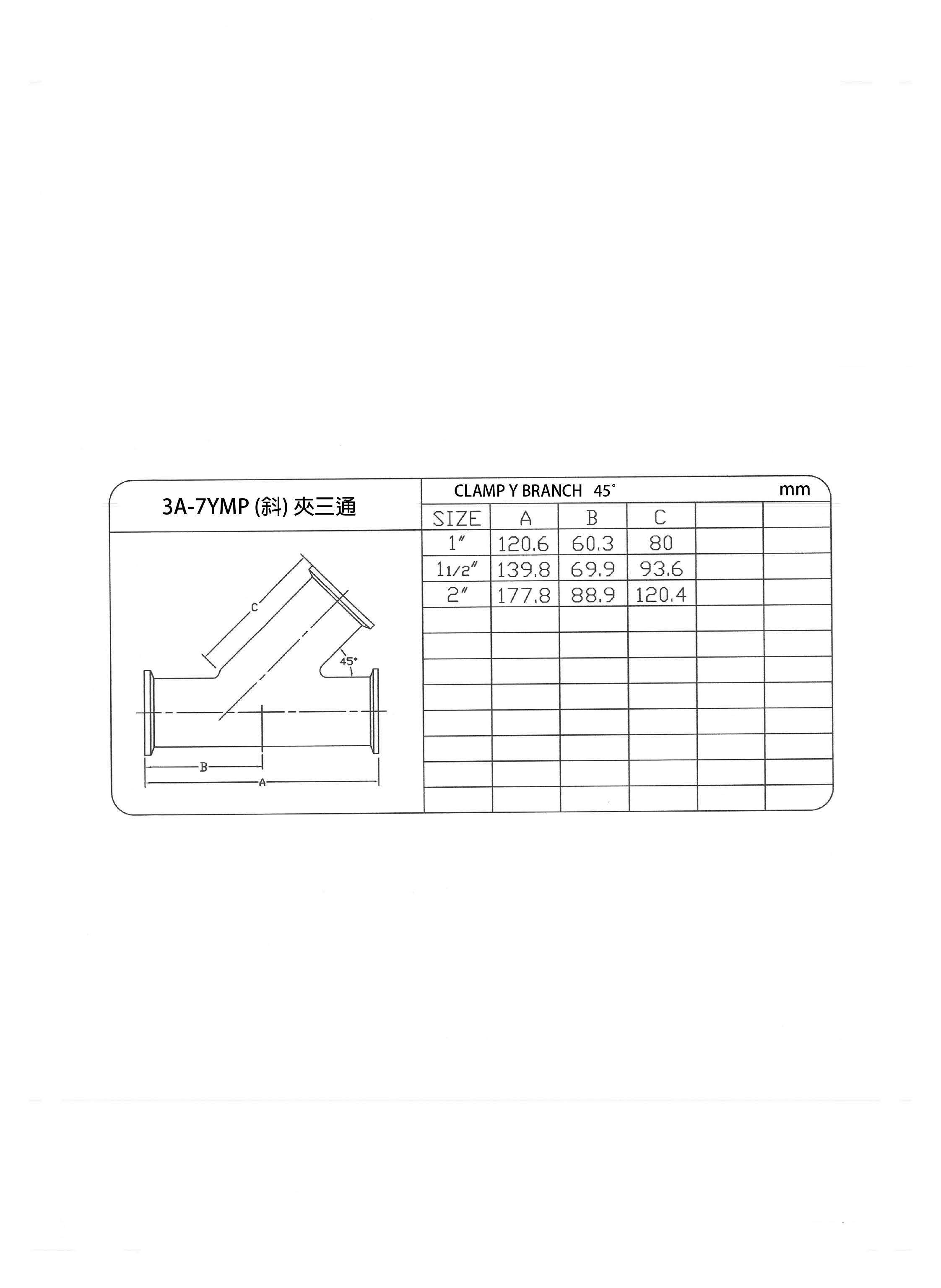

● 3A-7YMP LATERAL 45° Tri-Clamp Ferrule Ends

● 3A40A Ferrule Gasket without Lip

● 3A40B Ferrule Gasket with Lip

 (IDF)

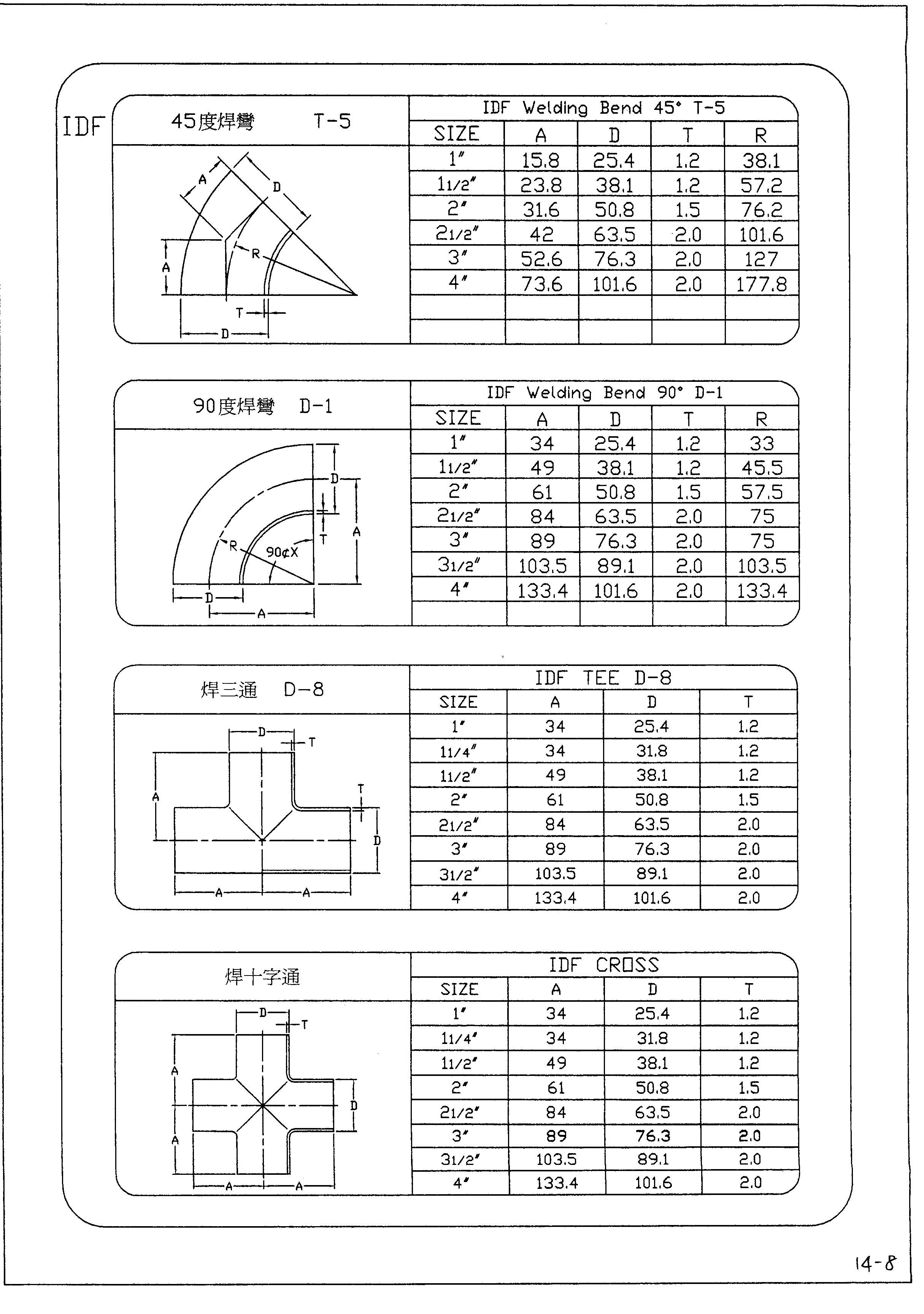

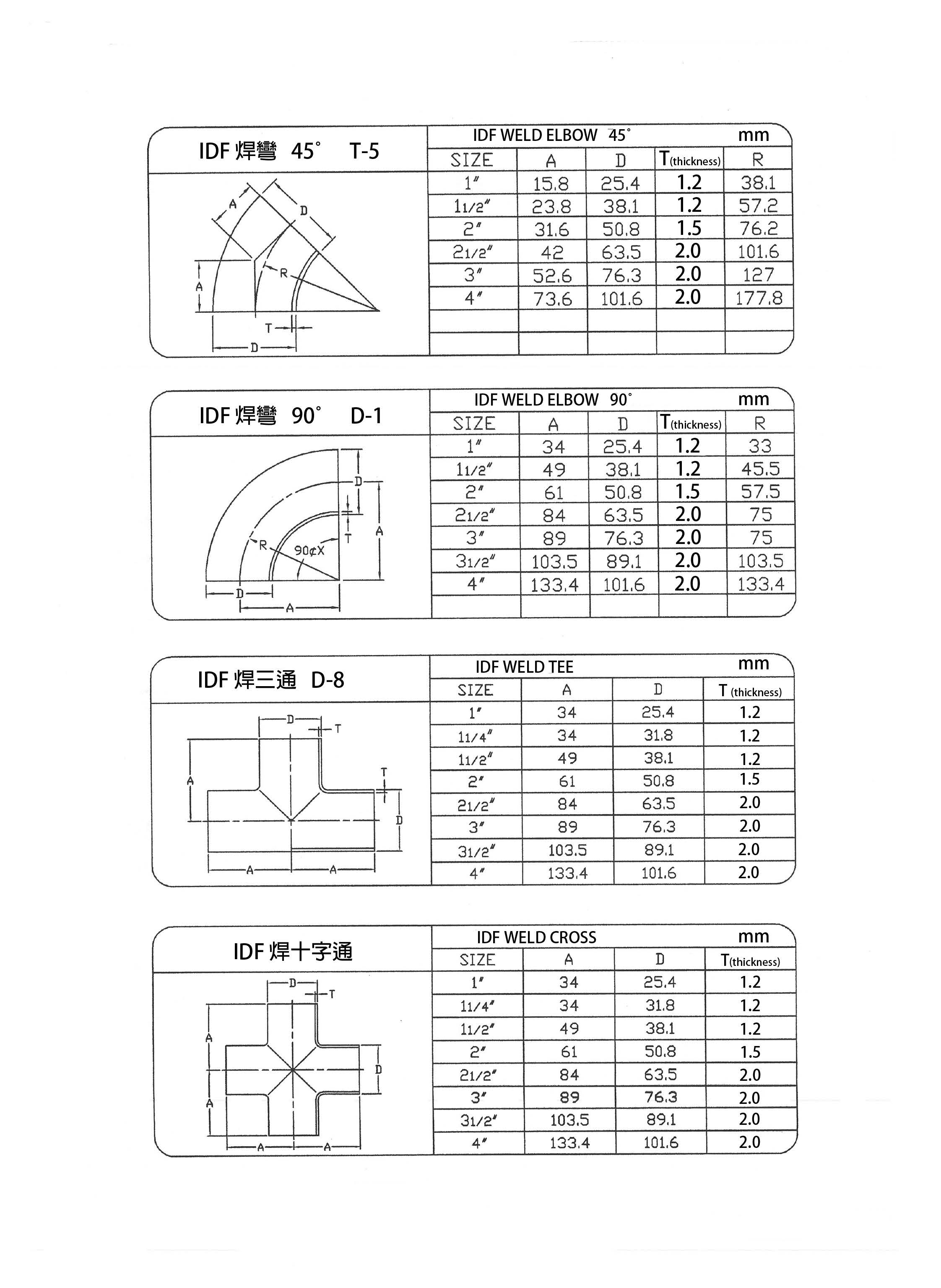

● T-5 IDF 45° ELBOW Weld

● D-1 IDF 90° ELBOW Weld

● D-8 IDF TEE Weld

● IDF CROSS Weld

● T-13 IDF CONCENTRIC REDUCER Weld

● D-8(R) IDF REDUCING TEE Weld

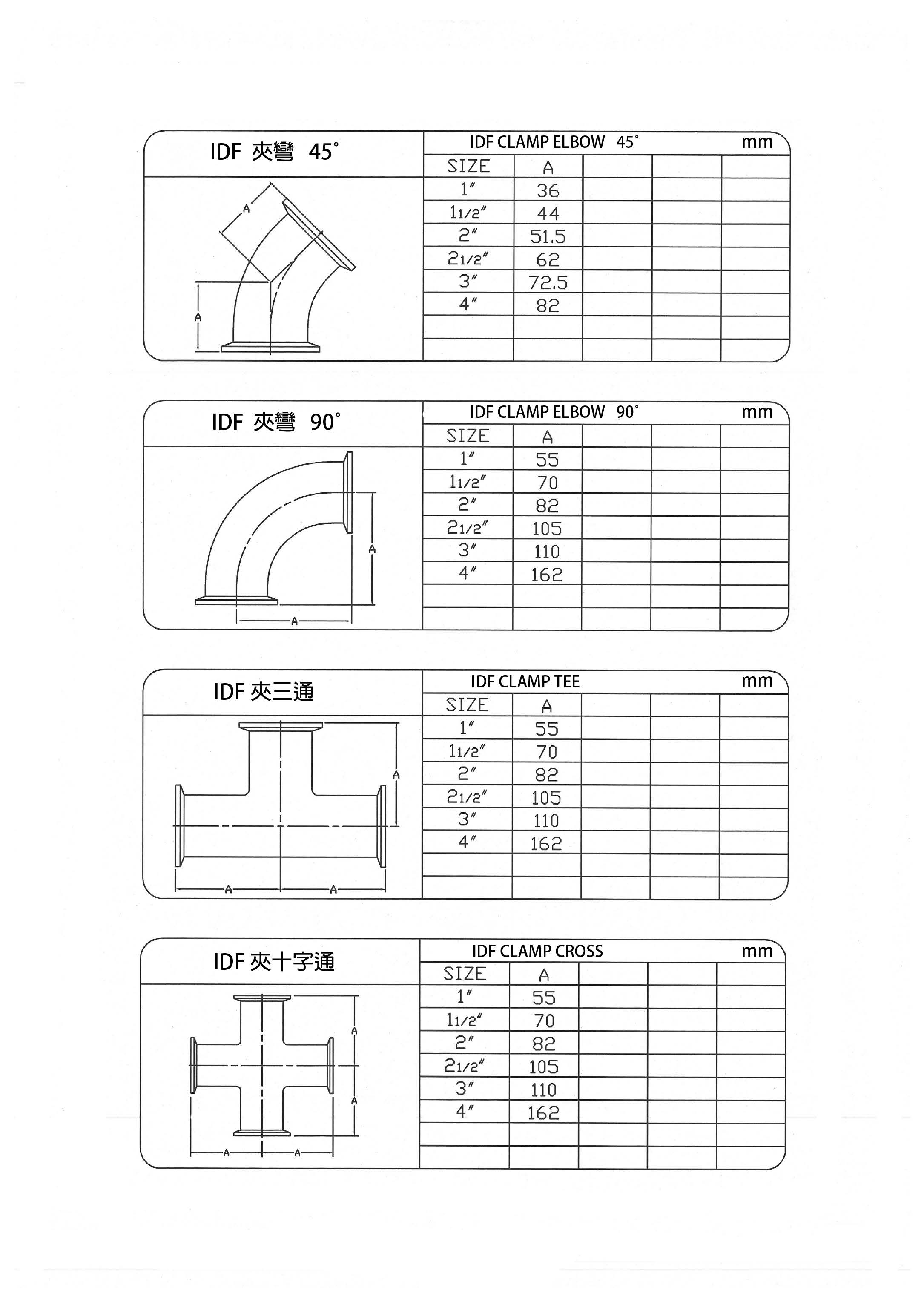

● IDF 45° ELBOW Tri-Clamp Ferrule Ends

● IDF 90° ELBOW Tri-Clamp Ferrule Ends

● IDF EQUAL TEE Tri-Clamp Ferrule Ends

● IDF CROSS Tri-Clamp Ferrule Ends

● IDF CONCENTRIC REDUCER Tri-Clamp Ferrule Ends

● IDF 45° ELBOW (Tri-Clamp Ferrule X Weld)

● IDF 90° ELBOW (Tri-Clamp Ferrule X Weld)

● IDF REDUCING TEE Tri-Clamp Ferrule Ends

" We understand the challenges of on-site piping engineering and believe that all pipes, elbows, tees, crosses, and reducers should be connected efficiently and seamlessly.

Therefore, our company is committed to producing high-quality fittings — including ELBOWs, TEEs, CROSSes, and REDUCERs — characterized by precise angles, strict tolerances, uniform wall thickness, ease of welding, and long-lasting durability. "

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, Bevel Seat, IDF, RJT/BSM/CIP Flat Face, DIN 11851, SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大)
 Click the DIMENSION DRAWINGS below to Enlarge

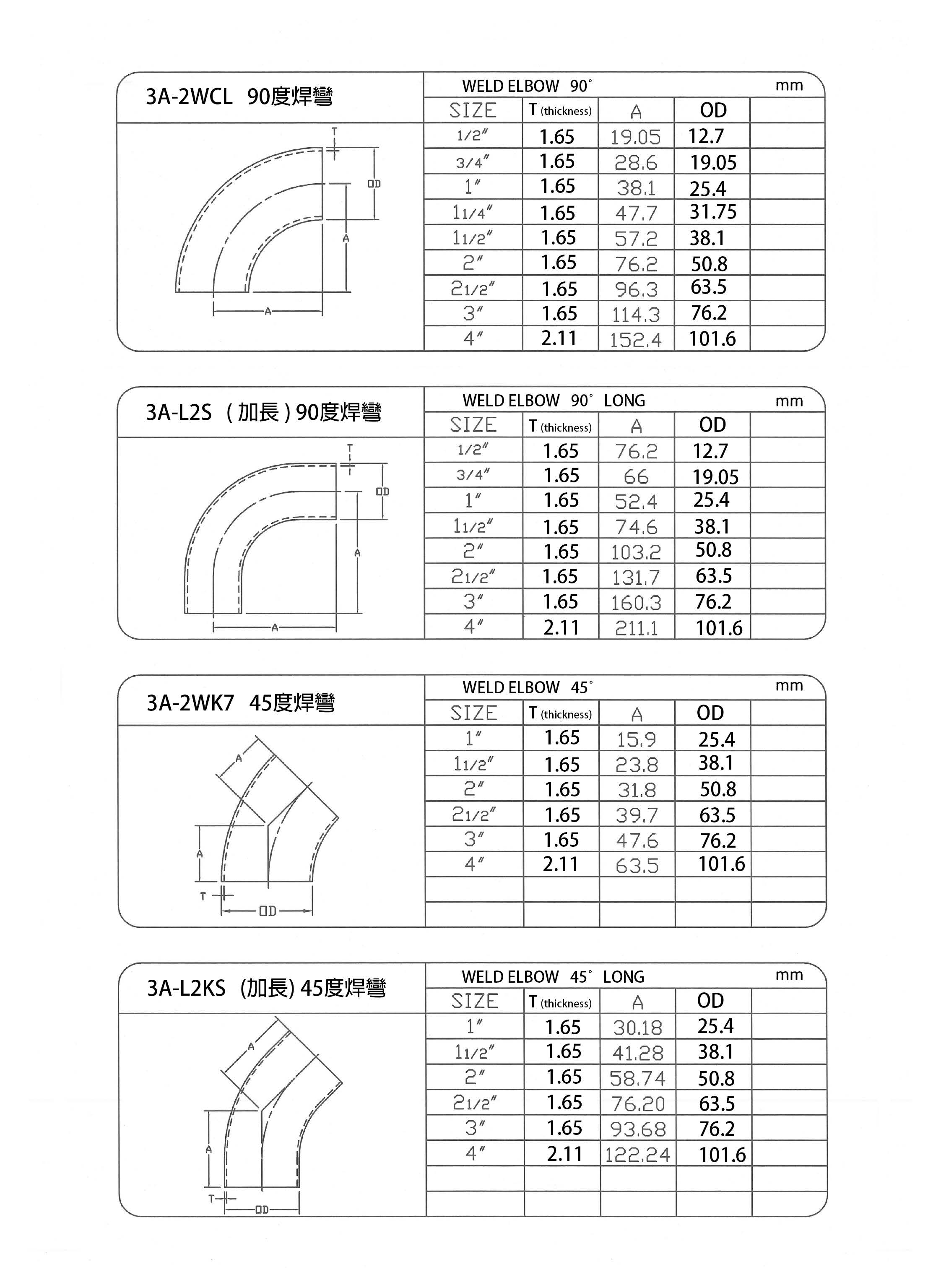

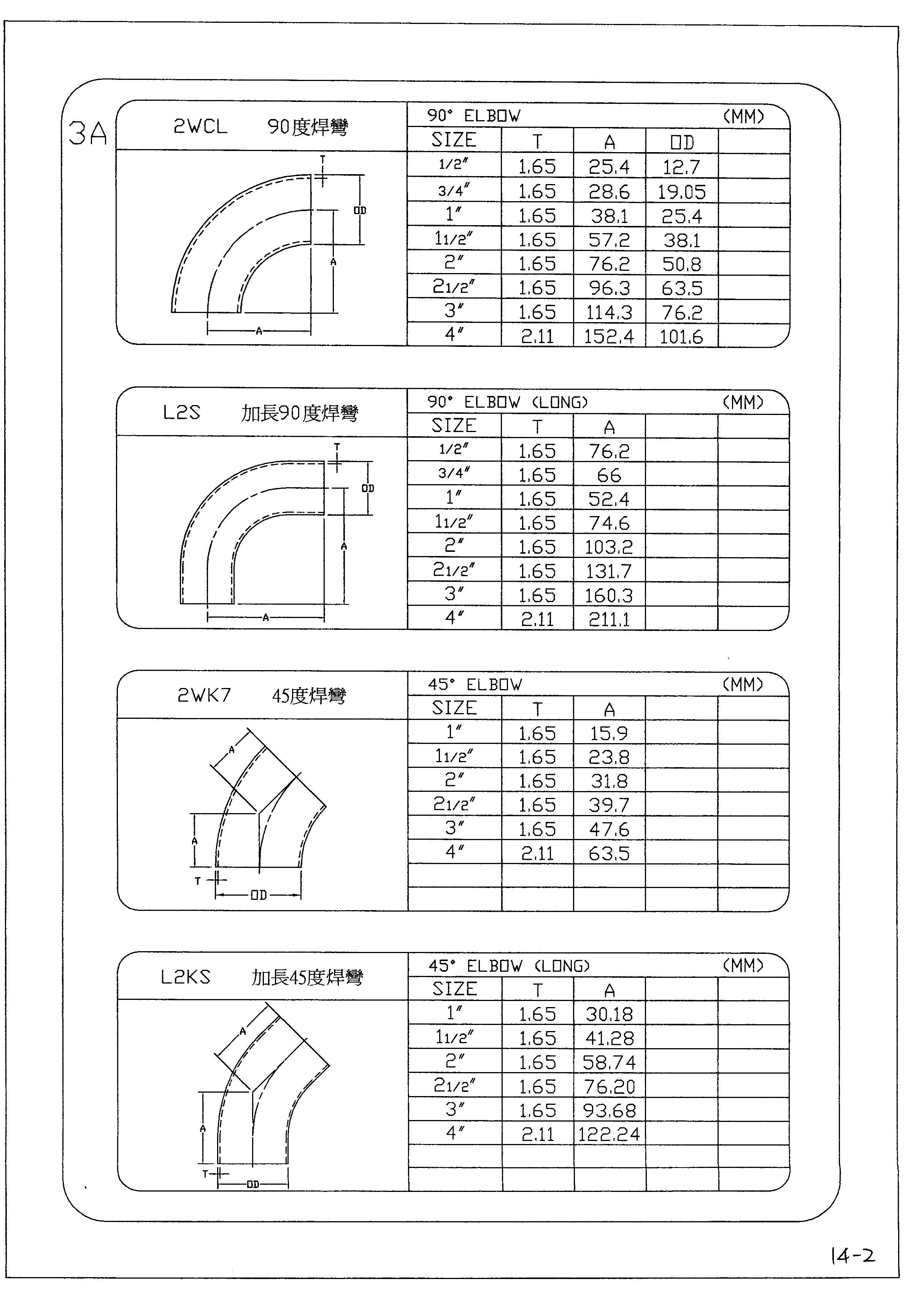

(3A)    3A-2WCL 90° ELBOW Weld   3A-L2S 90° ELBOW Weld Long Radius   3A-2WK7 45° ELBOW Weld   3A-L2KS 45° ELBOW Weld Long Radius   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A)    3A-7WWW EQUAL TEE Weld Short   3A-7W EQUAL TEE Weld Long   3A-9WWW CROSS Weld Short   3A-9W CROSS Weld Long   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

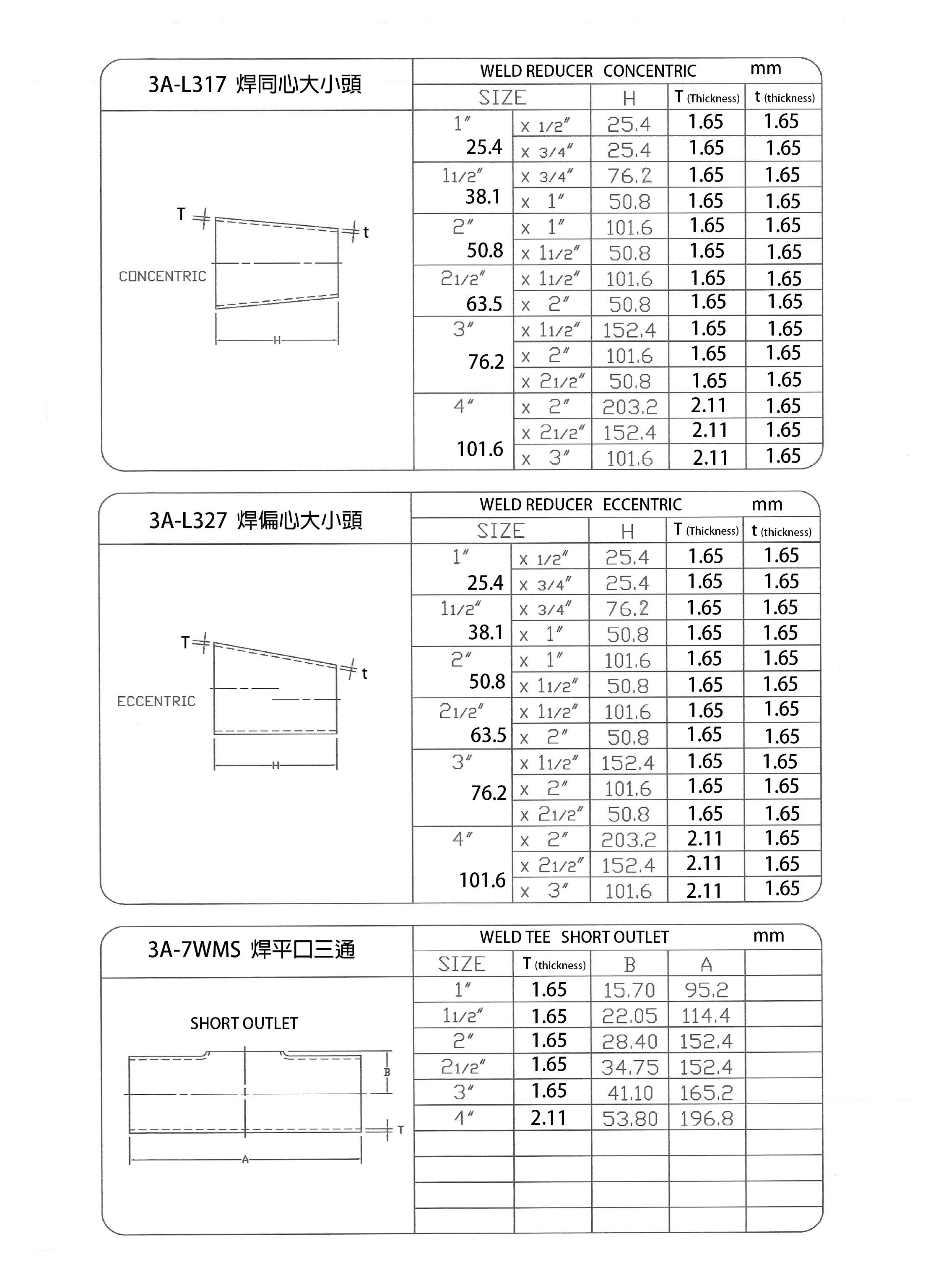

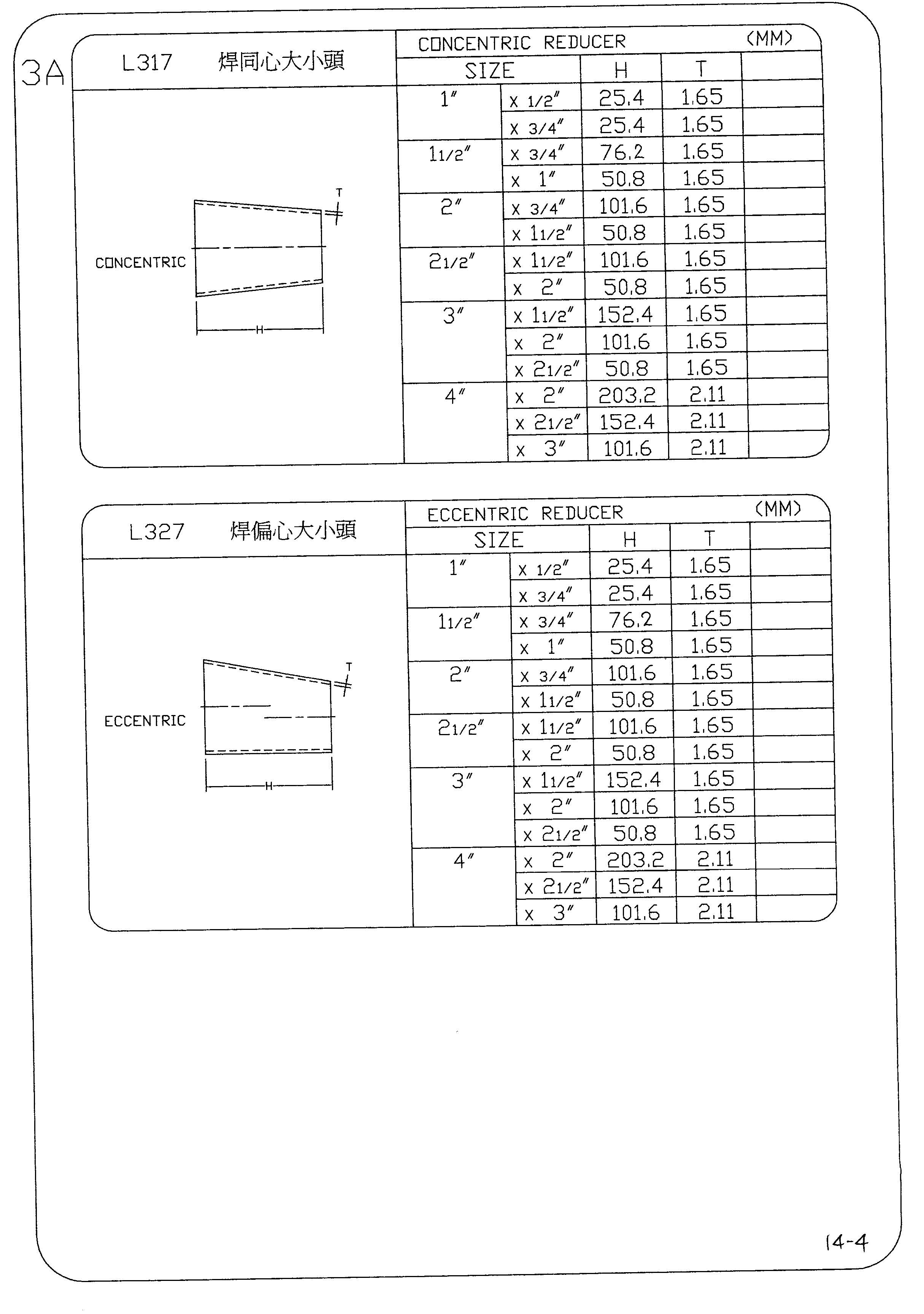

(3A)    3A-L317 CONCENTRIC REDUCER Weld   3A-L327 ECCENTRIC REDUCER Weld   3A-7WMS PULLED TEE Weld Equal   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A)    3A-7RWWW REDUCING TEE Weld   3A-7RW REDUCING TEE Weld Long   3A-7YW LATERAL 45° Weld   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

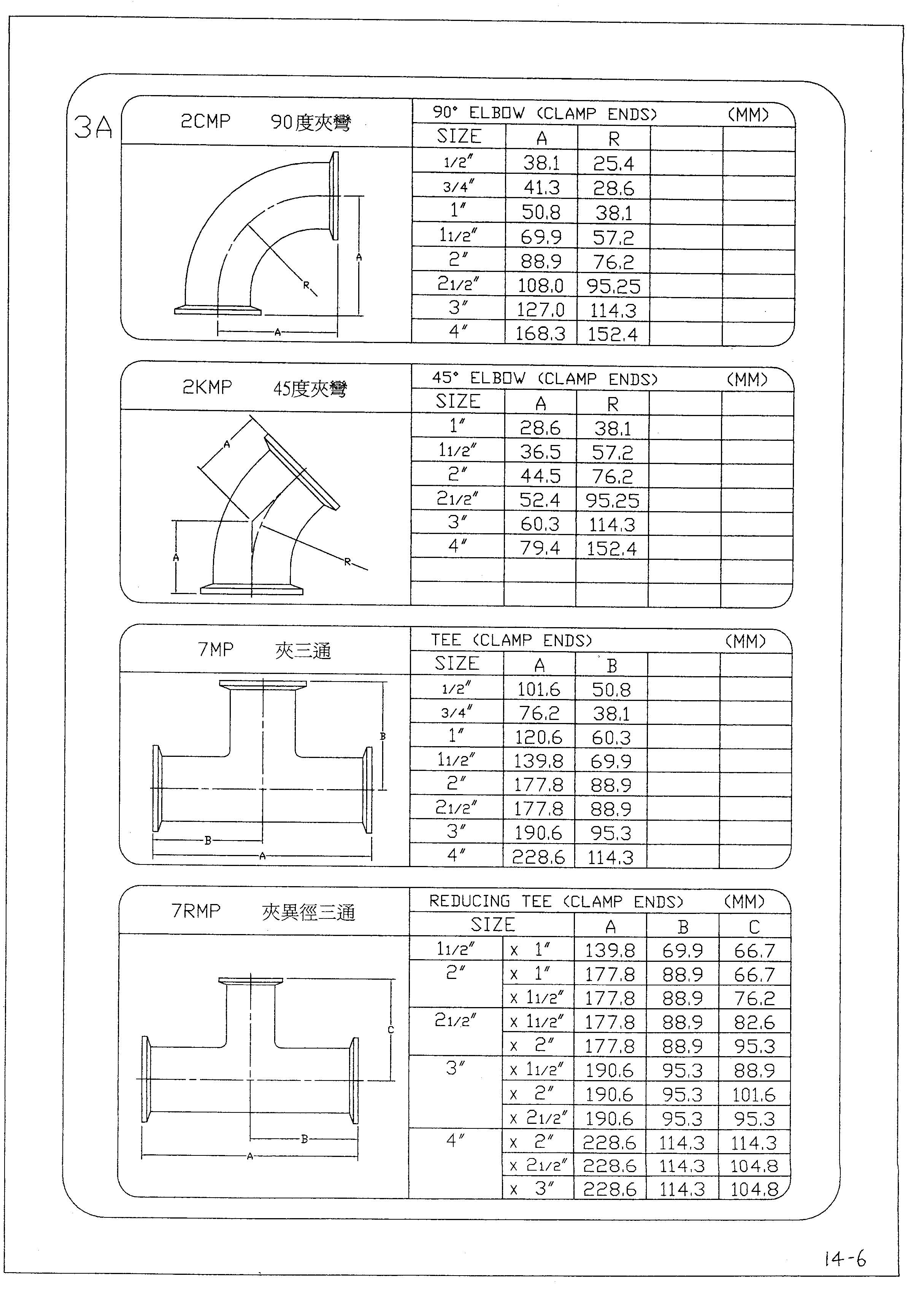

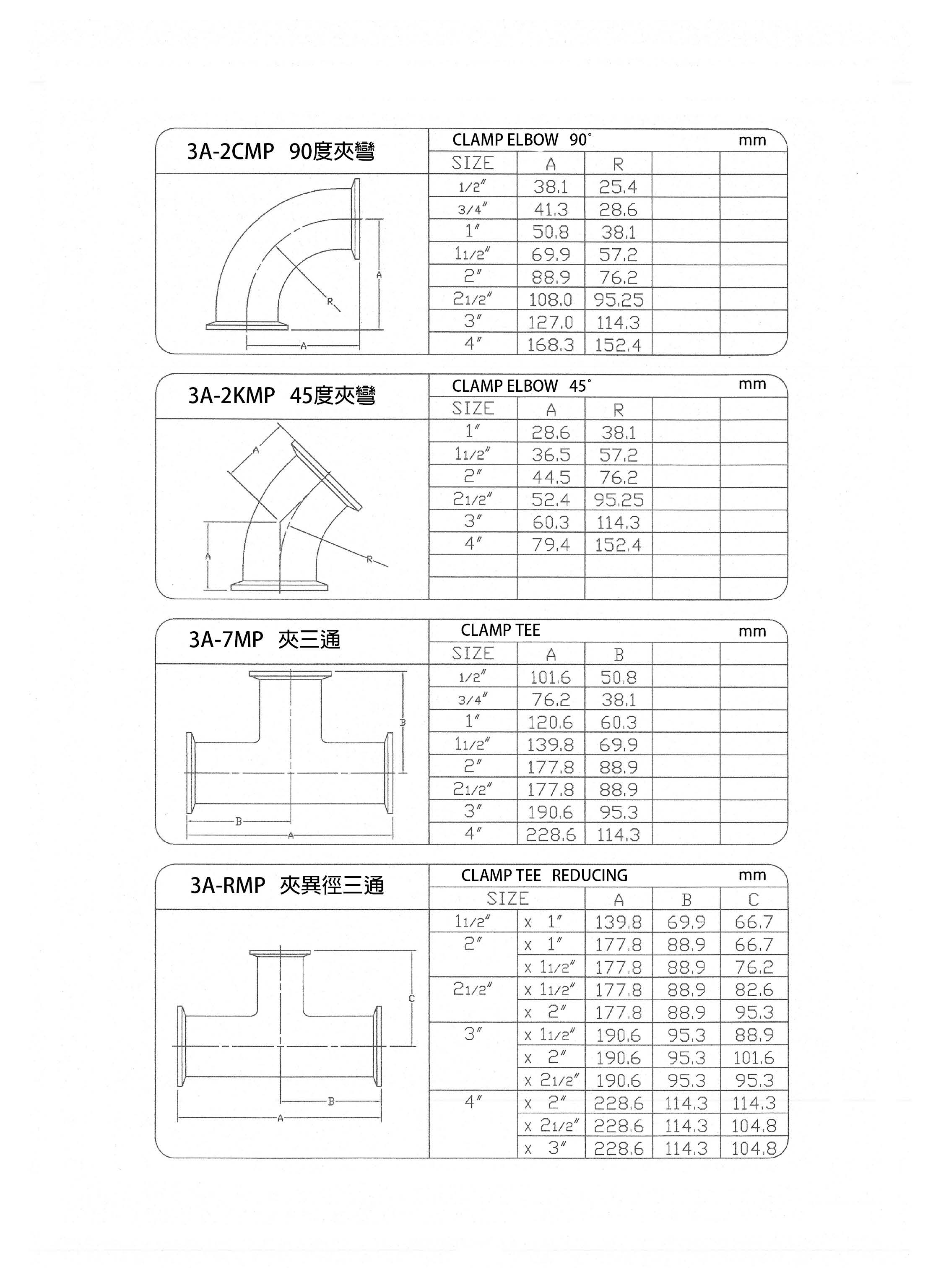

(3A)    3A-2CMP 90° ELBOW Tri-Clamp Ferrule Ends   3A-2KMP 45° ELBOW Tri-Clamp Ferrule Ends   3A-7MP EQUAL TEE Tri-Clamp Ferrule Ends   3A-7RMP REDUCING TEE Tri-Clamp Ferrule Ends   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(3A)  3A-9MP CROSS Tri-Clamp Ferrule Ends   3A-31-14MP CONCENTRIC REDUCER Tri-Clamp Ferrule Ends   3A-32-14MP ECCENTRIC REDUCER Tri-Clamp Ferrule Ends   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm

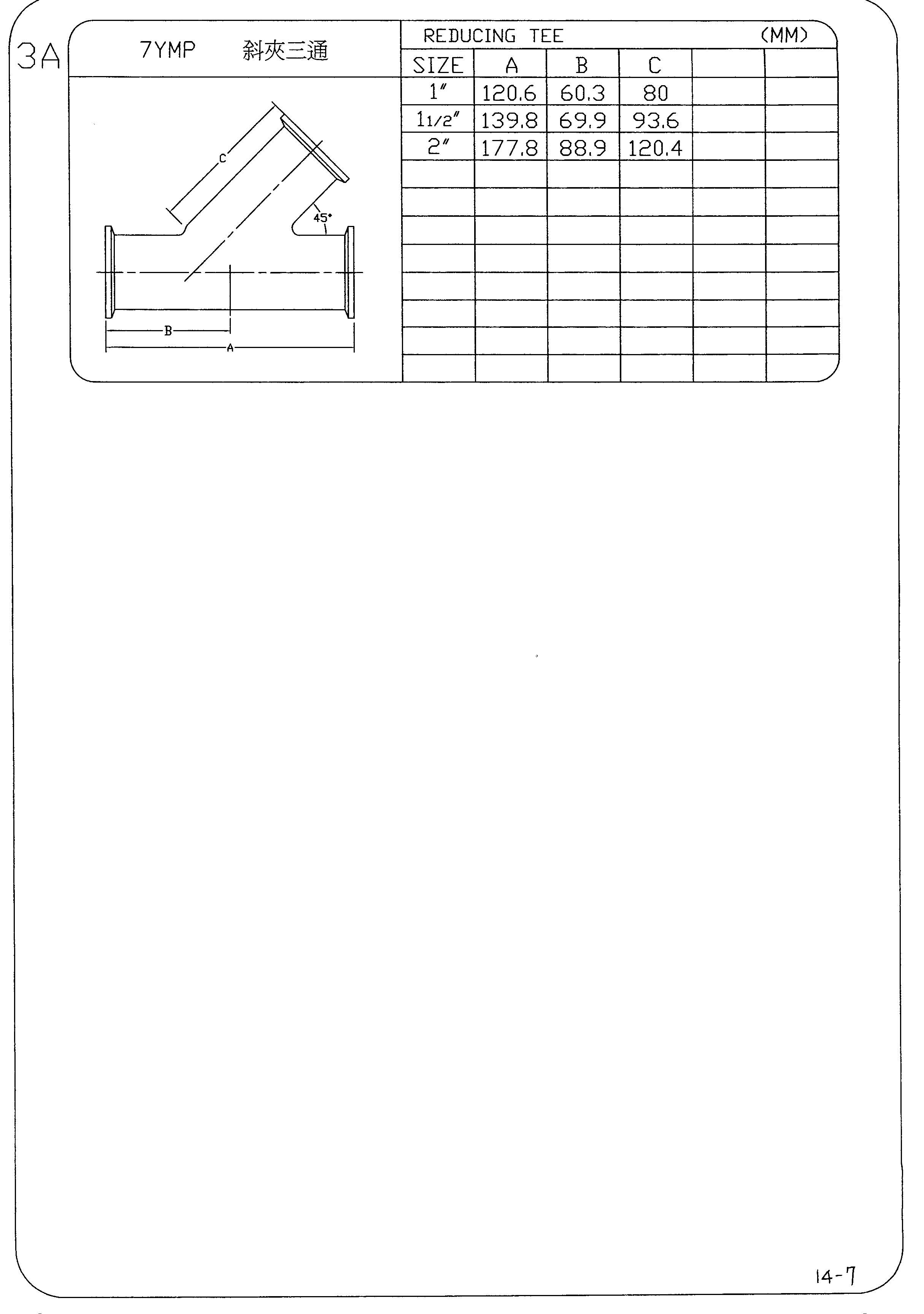

(3A)    3A-7YMP LATERAL 45° Tri-Clamp Ferrule Ends   1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 以上規格厚度1.65mm   4" 厚度2.1mm 6" 8" 厚度2.8mm 10" 12" 厚度3.47mm	(IDF)  T-5 45° ELBOW Weld   D-1 90° ELBOW Weld   D-8 TEE Weld   IDF Weld Cross   1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

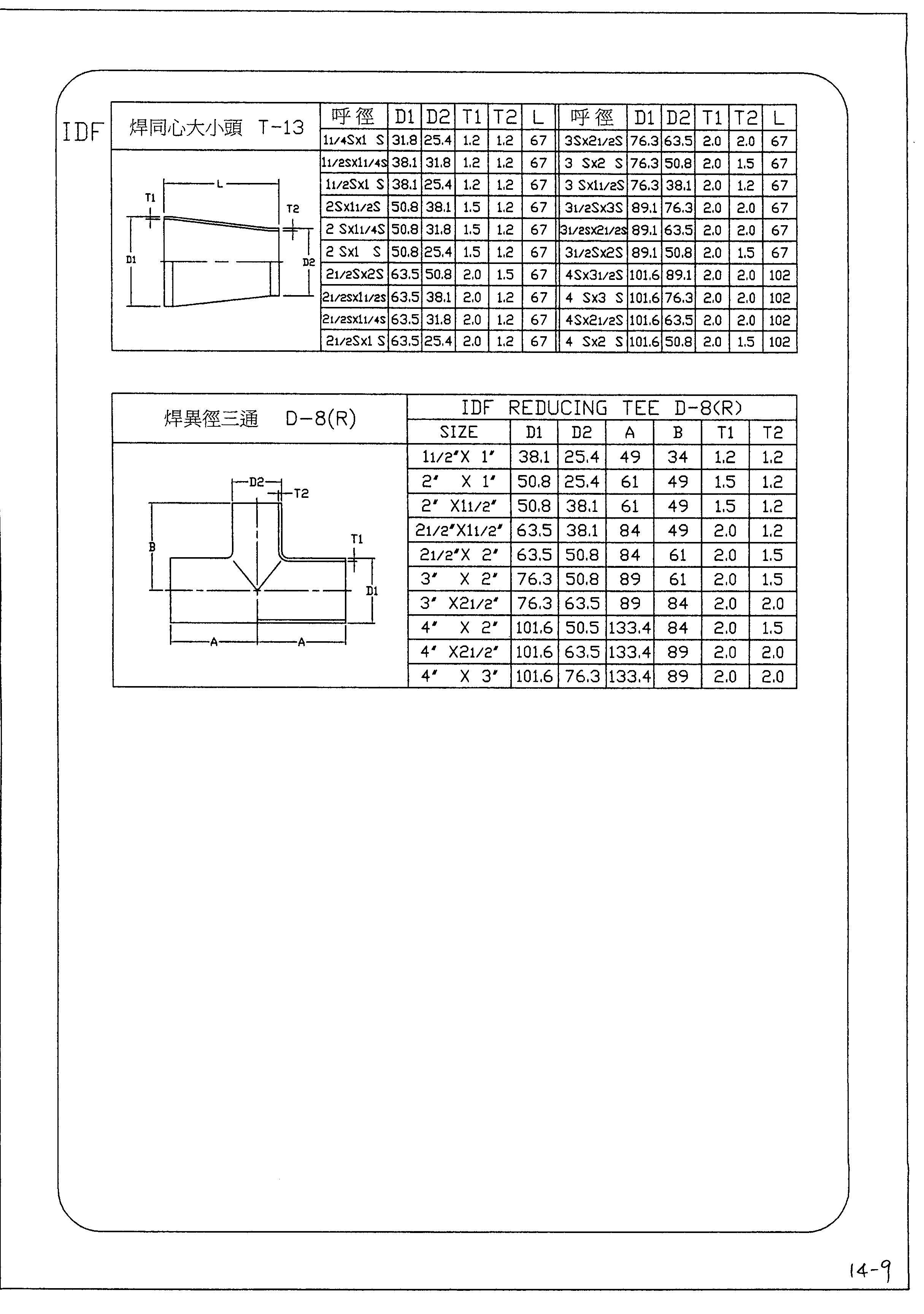

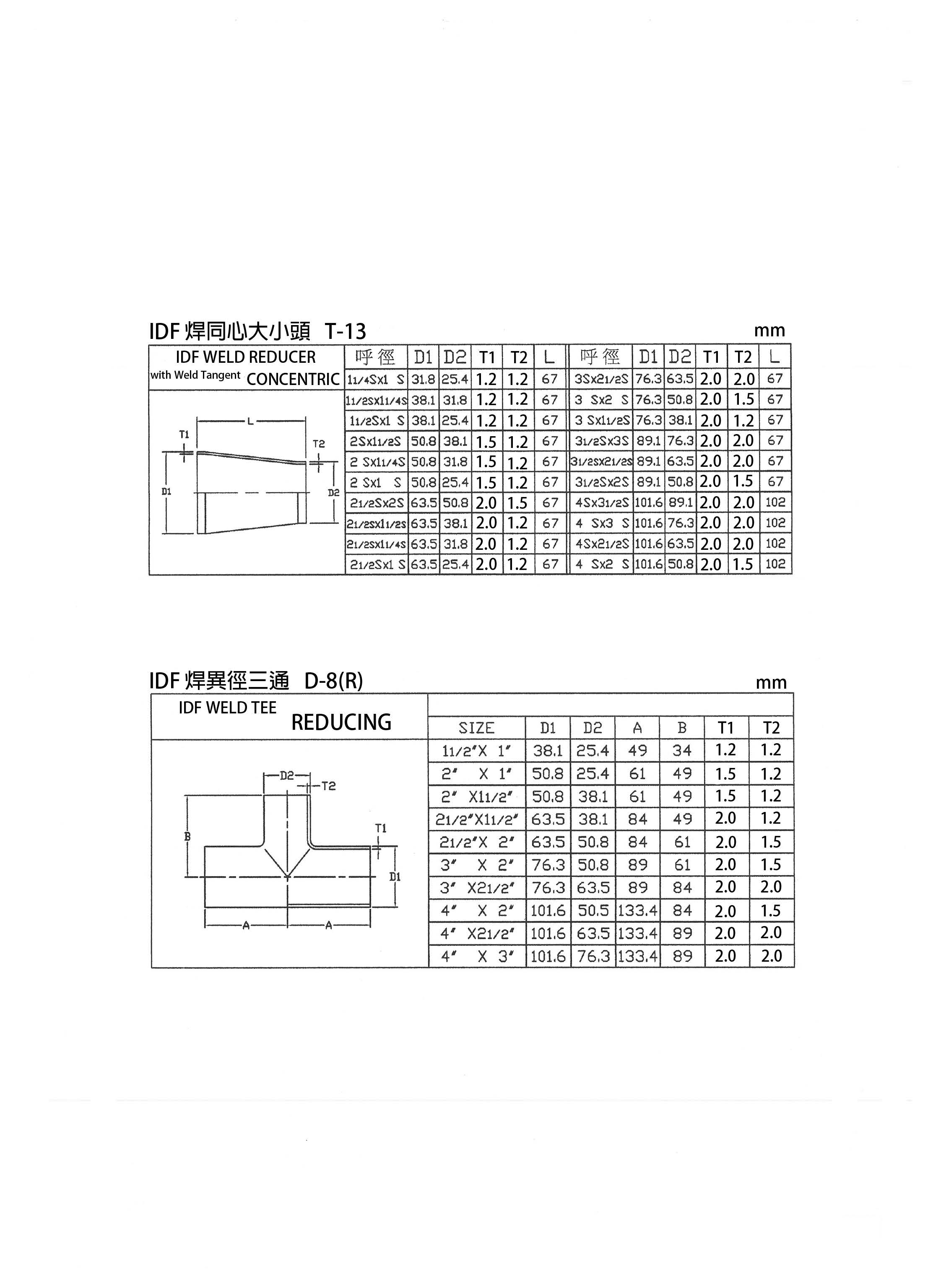

(IDF)  T-13 CONCENTRIC REDUCER Weld   D-8(R) REDUCING TEE Weld   1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm	(IDF)  IDF 45° Elbow Clamp Ends   IDF 90° Elbow Clamp Ends   IDF Tee Clamp Ends   IDF Cross Clamp Ends    1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

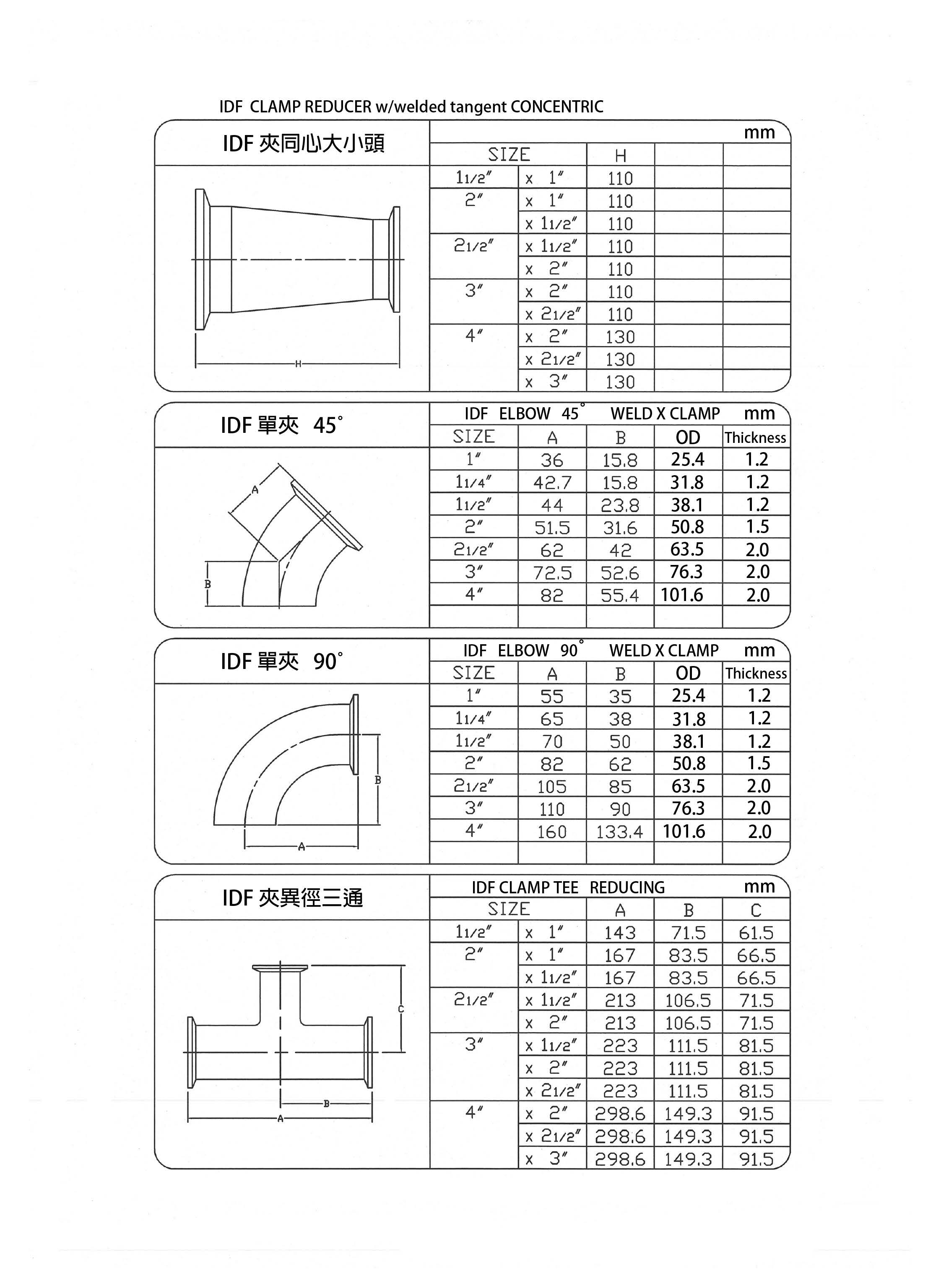

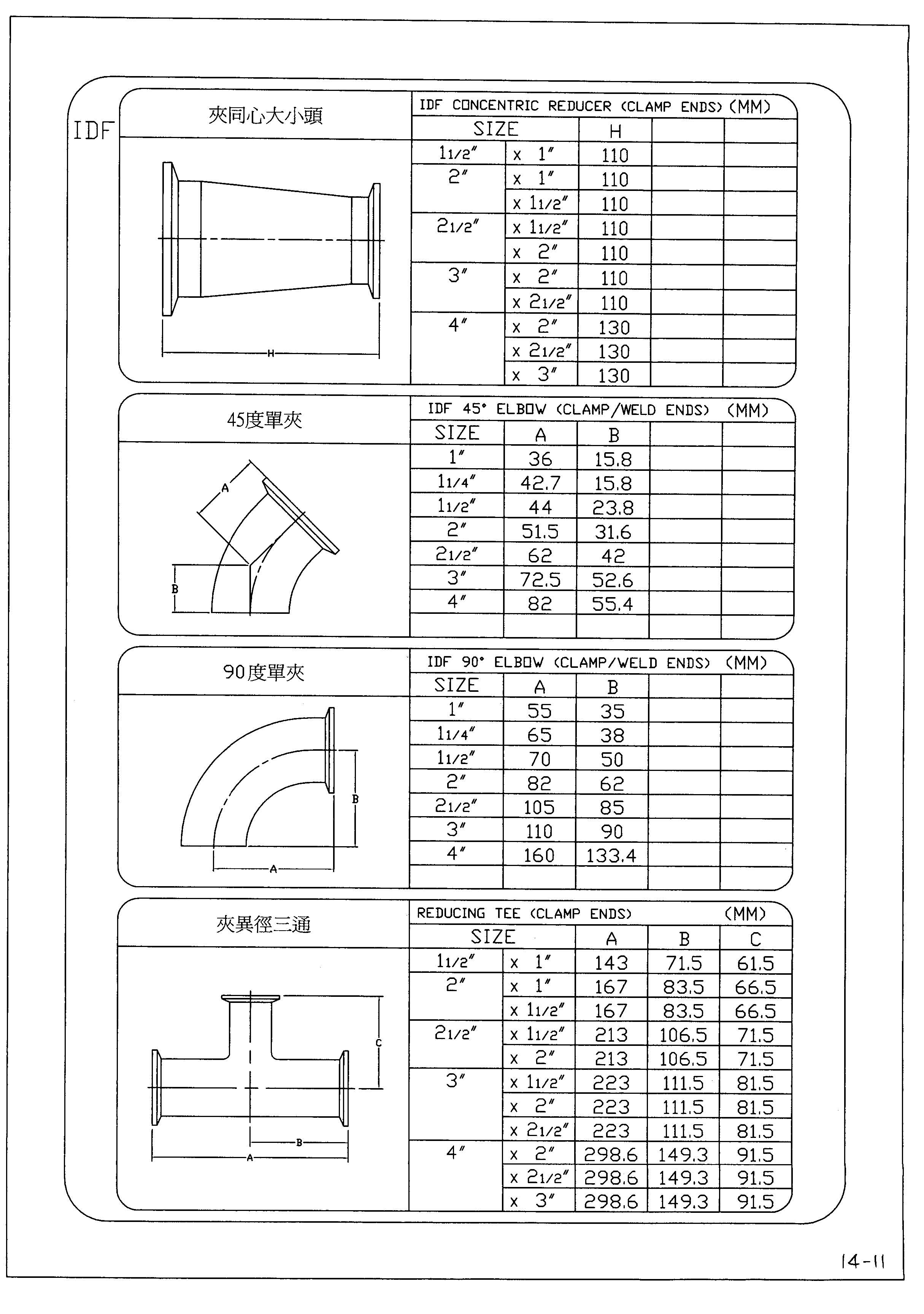

(IDF)  IDF Concentric Reducer Clamp Ends   IDF 45° Elbow Clamp X Weld   IDF 90° Elbow Clamp X Weld   IDF Reducing Tee Clamp Ends   1" 1.5" 厚度1.2mm 2" 厚度1.5mm 2.5" 3" 3.5" 4" 厚度2.0mm 4.5" 厚度3.0mm

 3-A BEVEL SEAT UNION FITTINGS

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● BLANK CAP

● 3A-14A  Long Weld Liner Plain

● 3A-15A  Long Weld Male Threaded

● 3A-14PRF  Short Weld Liner Plain

● 3A-15TRF  Short Weld Male

● 3A-14R  Recessless Liner Plain

● 3A-15R  Recessless Male Threaded

● 3A-13H  Hex Nut

● 3A-16A  Blank Cap

The BEVEL SEAT UNION is a precision-engineered and machined piping connection, consisting of a plain bevel ferrule, a threaded bevel ferrule, and a threaded hex nut. This union design eliminates the need for gaskets, making it ideal for COP (Clean-Out-of-Place) applications and capable of withstanding daily disassembly and reassembly.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

(3-A規格)    3A-14A 焊無牙接頭(長) Long Weld Liner Plain (3A Bevel Seat)   3A-15A 焊外牙接頭(長) Long Weld Male Threaded (3A Bevel Seat)   3A-14PRF 焊無牙接頭(短) Short Weld Liner Plain (3A Bevel Seat)   3A-15TRF 焊外牙接頭(短) Short Weld Male Threaded (3A Bevel Seat)	(3-A規格)     3A-13H 六角螺母(母牙/內牙) Hex Nut (3A Bevel Seat)   3A-14R 擴管無牙接頭 Recessless Liner Plain (3A Bevel Seat)   3A-15R 擴管外牙接頭 Recessless Male Threaded (3A Bevel Seat)     3A-16A Bevel Seat盲蓋  Blank Cap (3A Bevel Seat)

 IDF UNION FITTINGS

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● BLANK LINER

● SEAL / GASKET

● IDF14  Weld Liner

● IDF15  Weld Male

● IDF14R  Liner for Expanding / Roll-On Expanding Liner

● IDF15R  Male for Expanding / Roll-On Expanding Male

● IDF13H  Hex Nut

● IDF16A  Blank Liner

● IDF40  IDF Gasket

The IDF UNION is a piping connection specifically designed for sanitary food applications. This assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a threaded hex nut. It originates from the standards set by the International Dairy Federation (IDF), an organization focused on establishing production and hygiene standards for the dairy industry.

The IDF Union features the following characteristics:

🟦 Sanitary Design :

Features a smooth, clean bore that minimizes the buildup of bacteria, dirt, and other contaminants, ensuring food safety and hygiene.

🟦 Superior Sealing Performance :

Utilizes a combination of a seal ring, threaded ferrule, and nut to achieve a reliable seal, preventing leaks and contamination.

🟦 Easy Disassembly :

Designed for quick teardown, facilitating easy cleaning, maintenance, and replacement.

🟦 CIP Compatible :

Suitable for Clean-In-Place (CIP) systems.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

IDF14 焊無牙接頭 Weld Liner (IDF)   IDF15 焊外牙接頭 Weld Male (IDF)   IDF14R 擴管無牙接頭 Expanding Liner (IDF)     IDF15R 擴管外牙接頭 Expanding Male (IDF)	IDF16A IDF盲蓋 Blank Liner (IDF)     IDF13H 六角螺母(母牙/內牙) Hex Nut (IDF)     IDF40 IDF H型墊片 IDF Gasket

 RJT/BSM/CIP Flat Face UNION FITTINGS

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● ROUND SLOTTED NUT

● BLANK HEX NUT

● BLANK CAP

● SEAL / GASKET

● RJT14K  BSM Weld Liner (AUS)

● RJT14Z  RJT Weld Liner (NZ)

● RJT14S  Weld Liner short

● RJT15  Weld Male

● CIP14K  Weld Liner CIP FLAT FACE

● CIP15  Weld Male CIP FLAT FACE

● RJT14R  Liner for expanding

● RJT15R  Threaded Male for expanding

● BS13H  BSM Hex Nut (for RJT/BSM/CIP FLAT FACE)

● RJT13R  RJT Round Slotted Nut (for RJT/BSM/CIP FLAT FACE)

● RJT13AH  Blank Hex Nut (for RJT/BSM/CIP FLAT FACE)

● RJT16A  BSM Blank Cap (can be used in Hex Nut or Slotted Nut)

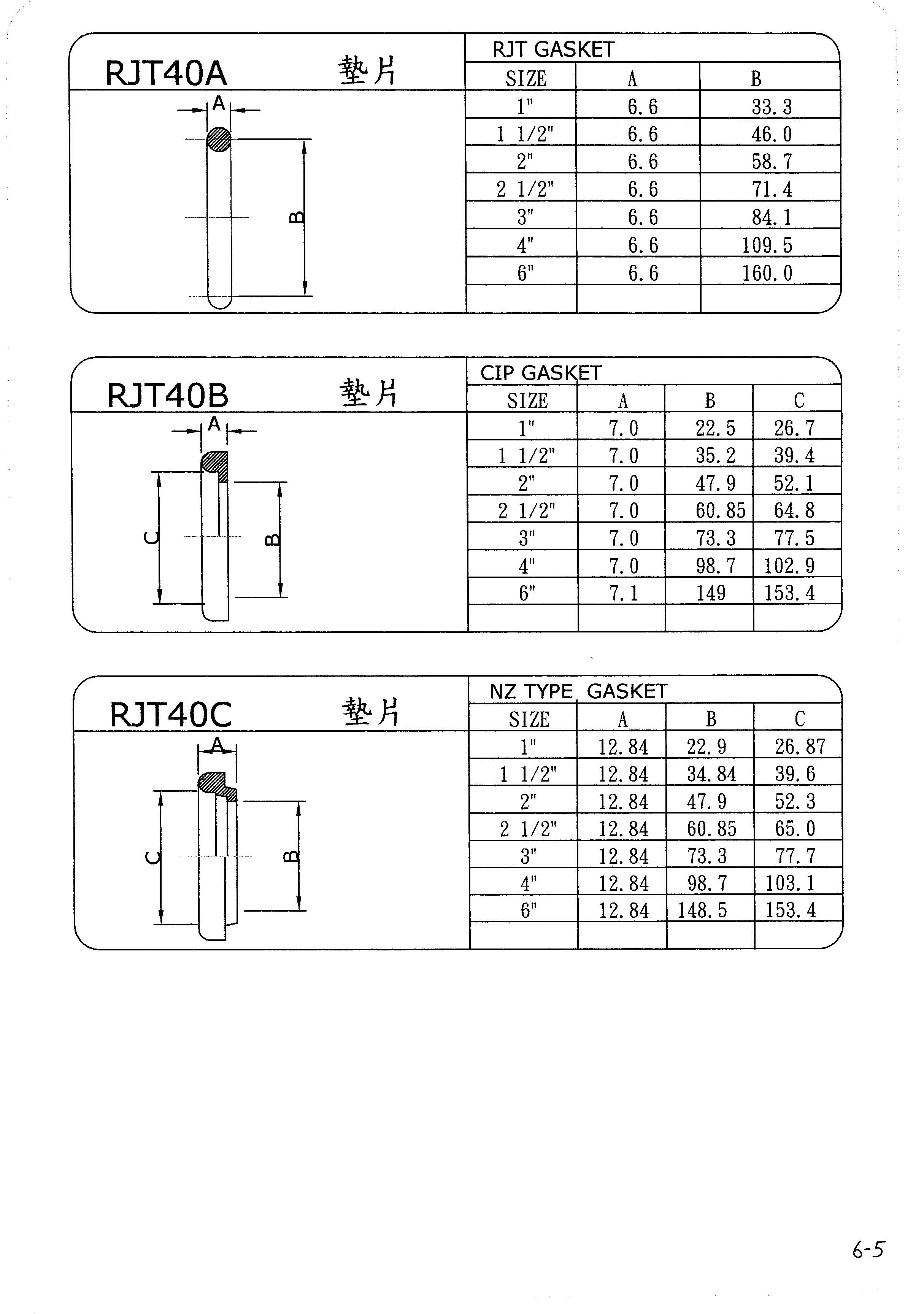

● RJT40A  BSM GASKET (for AUS & UK)

● RJT40B  GASKET CIP FLAT FACE

● RJT40C  RJT STEPPED GASKET (for NZ)

The RJT/BSM UNION (RJT : Ring Joint Type; BSM : British Standard Milk) was originally designed as a piping connection to meet dairy processing and sanitary standards. The assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a hex nut. Today, it is widely utilized in the milk, beverage, and pharmaceutical industries, and is commonly found in dairy, brewery, and food processing applications across the UK, Australia, and New Zealand.

The RJT/BSM Union features the following characteristics:

🟦 Sanitary Design :

The smooth internal bore minimizes the buildup of bacteria, sediment, and other contaminants, meeting strict food safety and hygiene requirements.

🟦 Superior Sealing Performance :

Achieves a reliable seal through the combination of a seal ring, threaded ferrule, and nut, effectively preventing leaks and contamination.

🟦 Easy Disassembly :

Designed for quick teardown to facilitate efficient cleaning, maintenance, and replacement.

🟦 CIP Compatible :

Suitable for Clean-In-Place (CIP) systems (Note: specifically for RJT unions and CIP Flat Face unions).


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

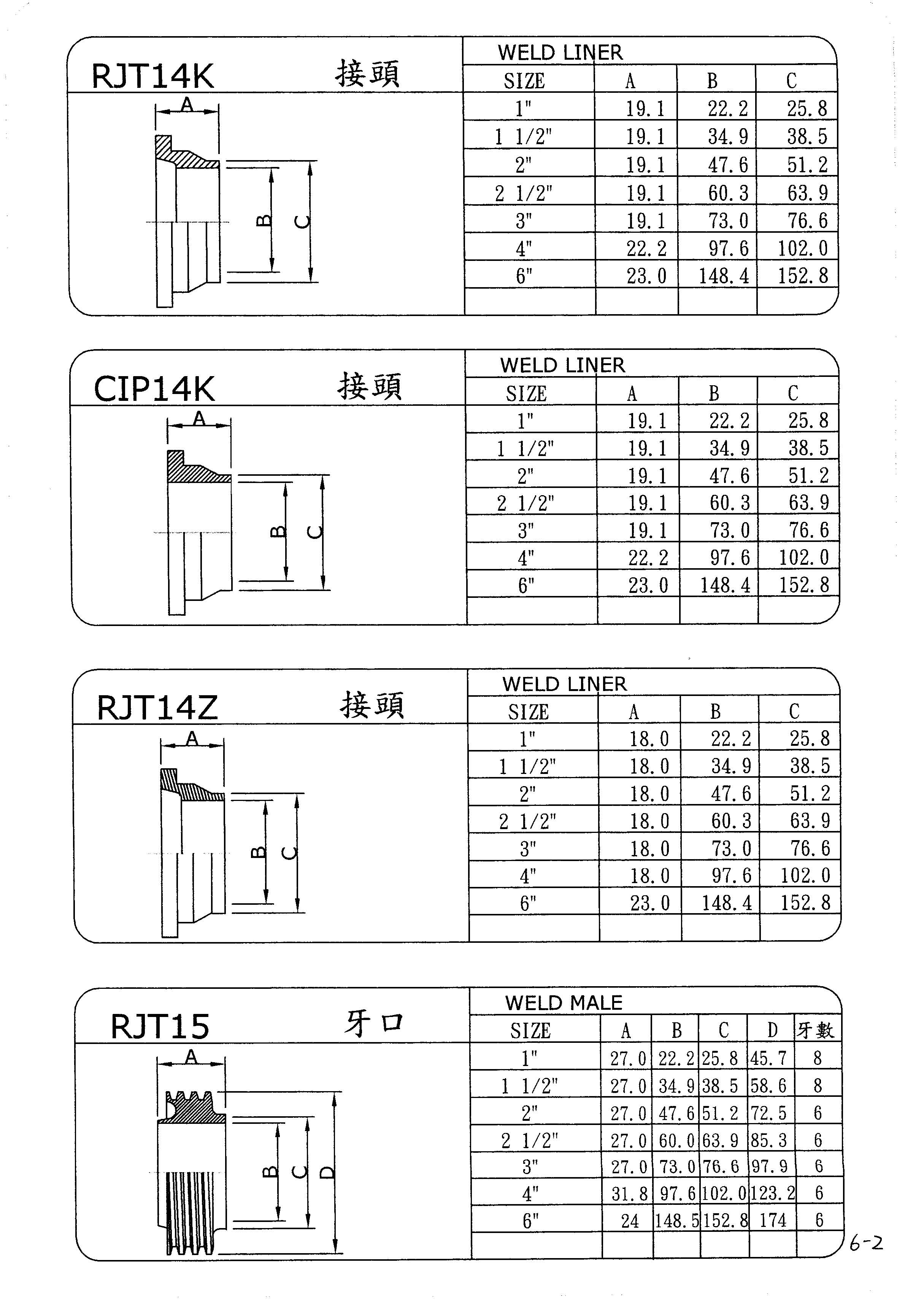

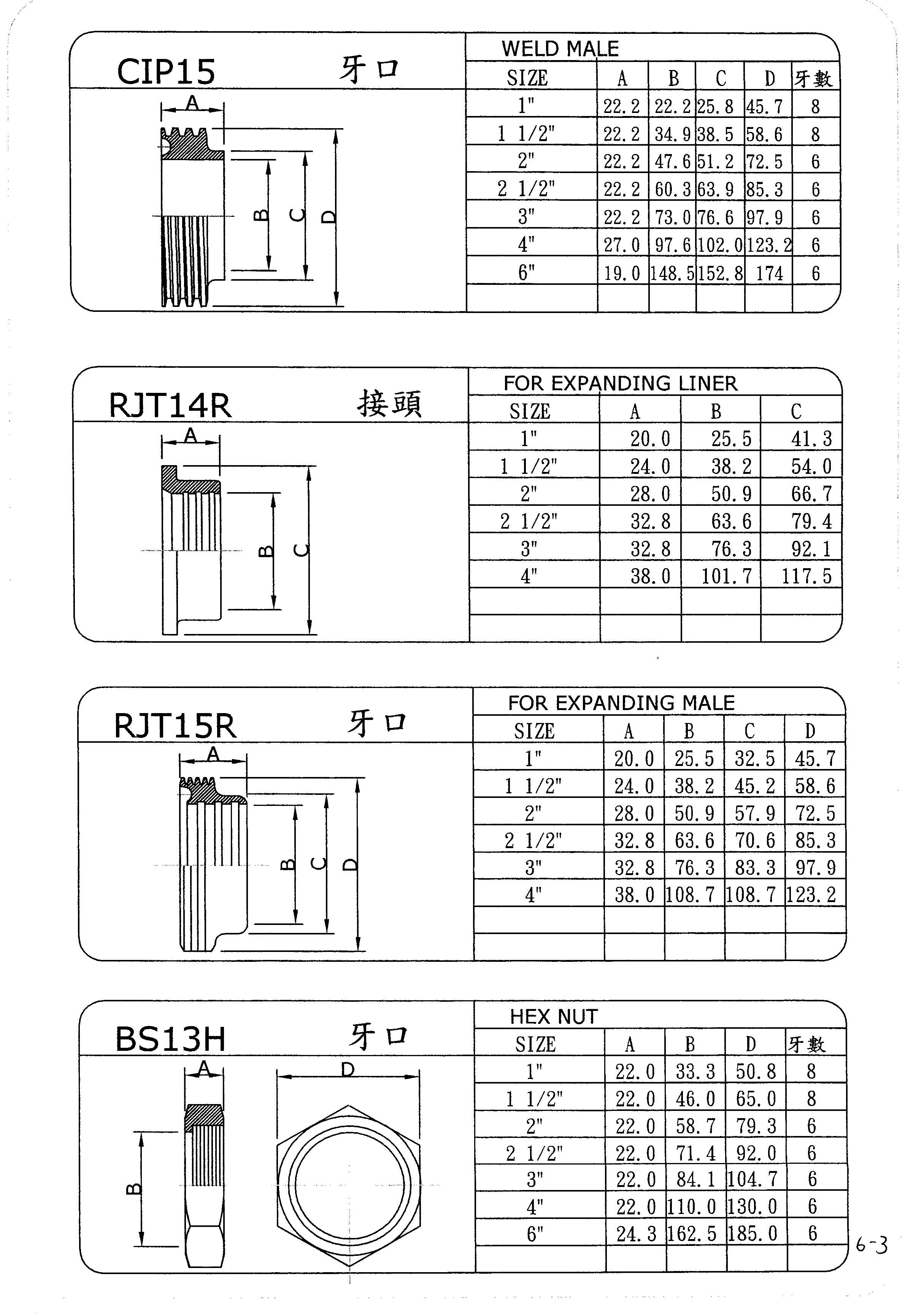

RJT14K  焊無牙接頭 BSM Weld Liner (AUS)   CIP14K 焊無牙接頭  Weld Liner   (CIP FLAT FACE)    RJT14Z 焊無牙接頭  RJT Weld Liner   (NZ)    RJT15 焊外牙接頭  Weld Male  (for RJT14Z or RJT14K)	CIP15 CIP外牙接頭  Weld Male   (CIP FLAT FACE)    RJT14R 擴管無牙接頭 Expanding Liner   RJT15R 擴管外牙接頭 Expanding Male Threaded   BS13H BSM六角螺母 (母牙/內牙) BSM Hex Nut (for RJT/BSM/CIPFF)

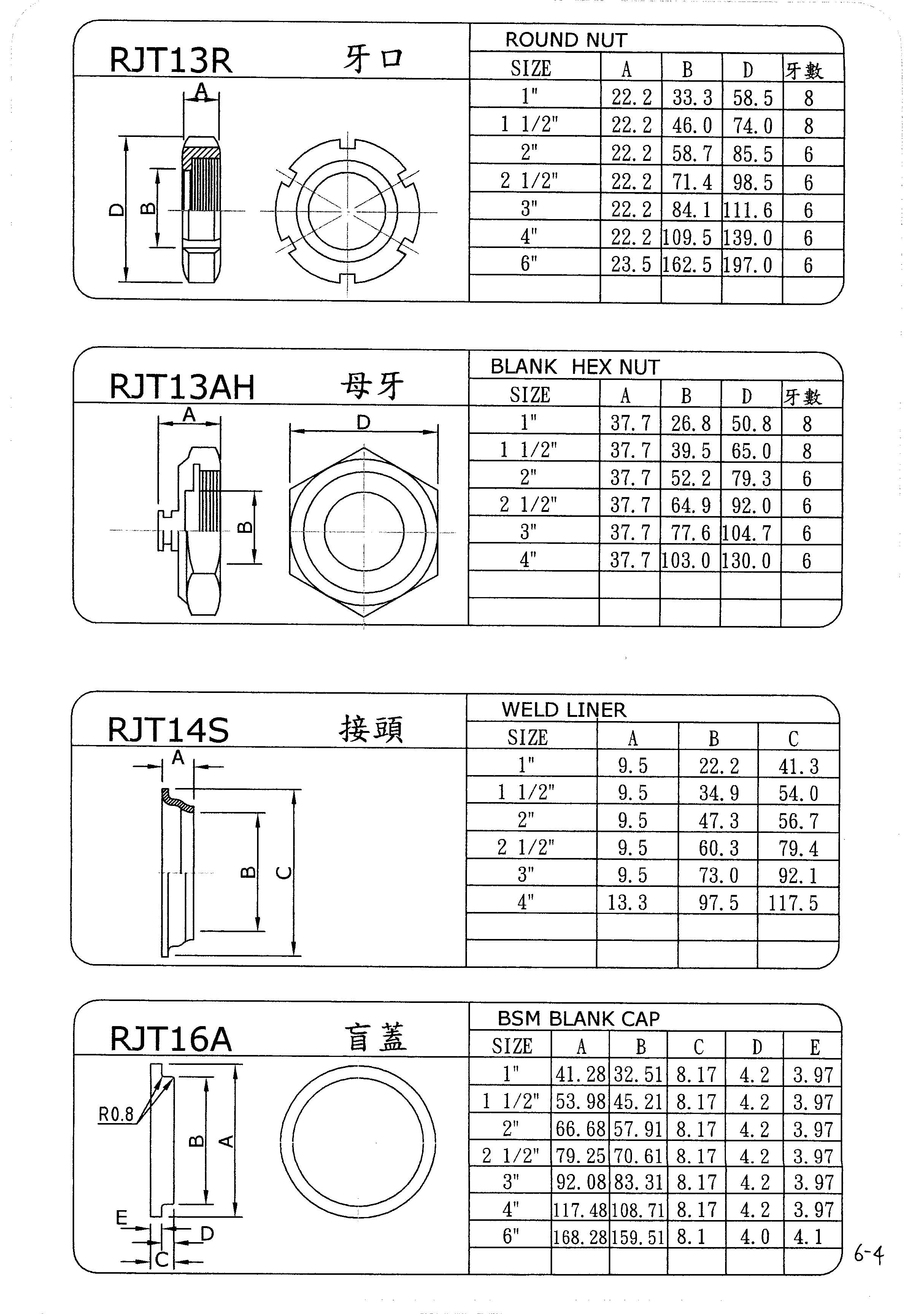

RJT13R 圓螺母(母牙/內牙) RJT Slotted Nut (for RJT/BSM/CIPFF)   RJT13AH 六角盲螺帽 (母牙/內牙) Blank Hex Nut (for RJT/BSM/CIPFF)   RJT14S 焊無牙短接頭 Weld Liner Short   RJT16A BSM盲蓋 BSM Blank Cap (for Hex or Slotted Nut)	RJT40A BSM墊片 BSM Gasket (AUS)   RJT40B CIP墊片  Gasket   CIP FLAT FACE    RJT40C NZ STEP SEAL墊片  RJT Stepped Gasket   (NZ)

*** RJT/BSM/CIP FLAT FACE UNION set

1. RJT14K  +  RJT15  +  RJT40A (BSM Gasket)  +  BS13H  or  RJT13R

2. CIP14K  +  CIP15  +  RJT40B (Flat Face CIP Gasket)  +  BS13H  or  RJT13R

3. RJT14Z  +  RJT15  +  RJT40C (NZ Type Stepped Seal)  +  BS13H  or  RJT13R

*** ONLY   Item 2  &  Item 3   for CIP (Clean-In-Place)

 DIN UNION FITTINGS (DIN 11851)

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● ROUND SLOTTED NUT

● ROUND BLANK NUT

● BLANK LINER

● SEAL / GASKET

● DIN14  DIN Weld Liner

● DIN15  DIN Weld Male

● DIN13R  DIN Round Slotted Nut

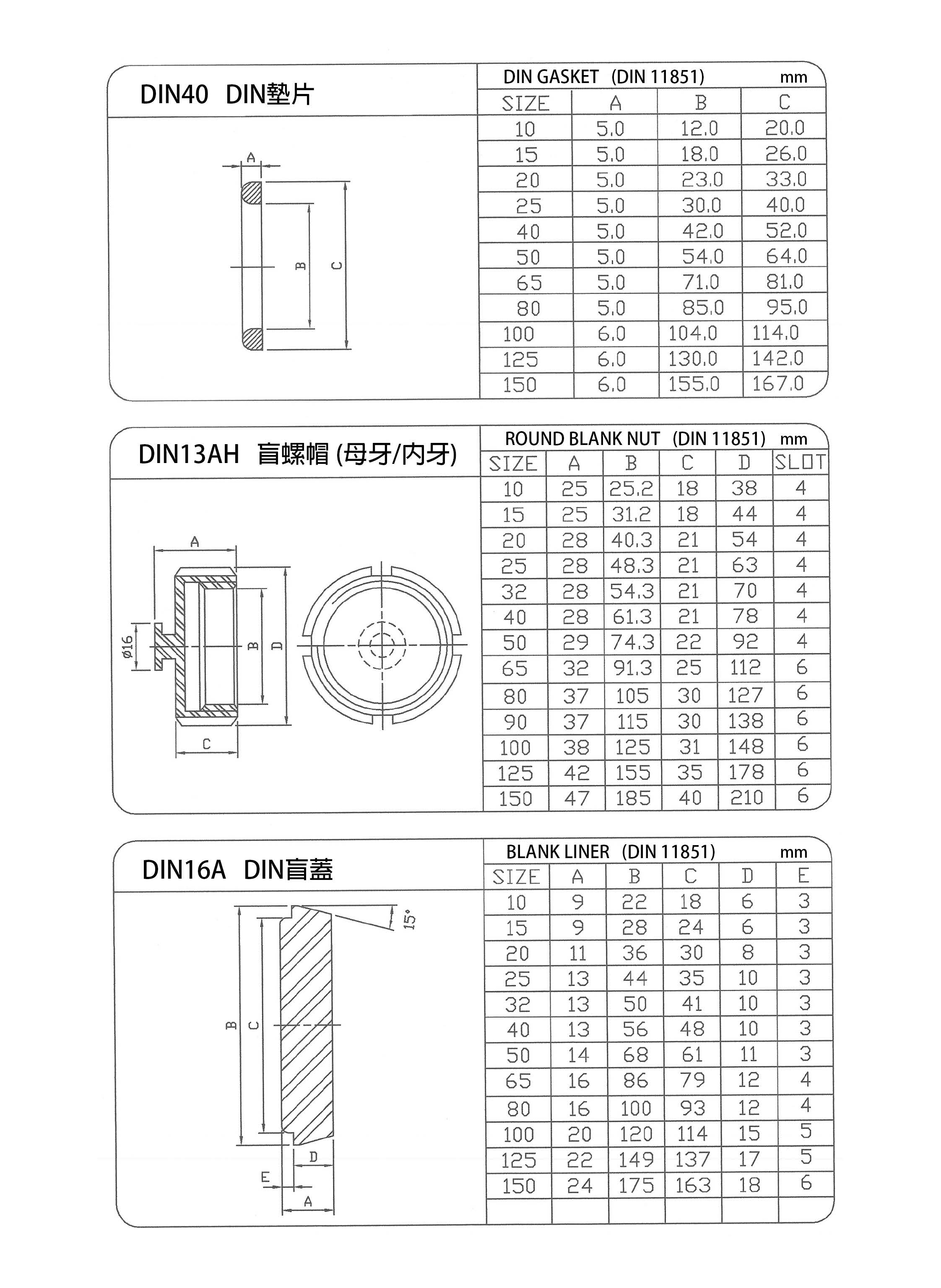

● DIN40  DIN GASKET

● DIN13AH  DIN Round Blank Nut

● DIN16A  DIN Blank Liner

● DIN14EB  DIN IMPERIAL Weld Liner  (DIN 11851 X  3A Tube Weld)

● DIN15EB  DIN IMPERIAL Threaded Weld Male  (DIN 11851 X  3A Tube Weld)

● DIN14R  Liner for expanding

● DIN15R  Threaded Male for expanding

The DIN UNION is a piping connection established by the German Institute for Standardization (Deutsches Institut für Normung). The assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a threaded hex nut. Originally designed to meet dairy processing and sanitary standards, it is now widely utilized across various food processing equipment.

The DIN Union features the following characteristics:

🟦 Sanitary Design :

The smooth internal bore minimizes the buildup of bacteria, dirt, and other contaminants, meeting strict food safety and hygiene requirements.

🟦 Superior Sealing Performance :

Achieves a reliable seal through the combination of a seal ring, threaded ferrule, and nut, effectively preventing leaks and contamination.

🟦 Easy Disassembly :

Designed for quick teardown to facilitate efficient cleaning, maintenance, and replacement.

🟦 CIP Compatible :

Suitable for Clean-In-Place (CIP) systems.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

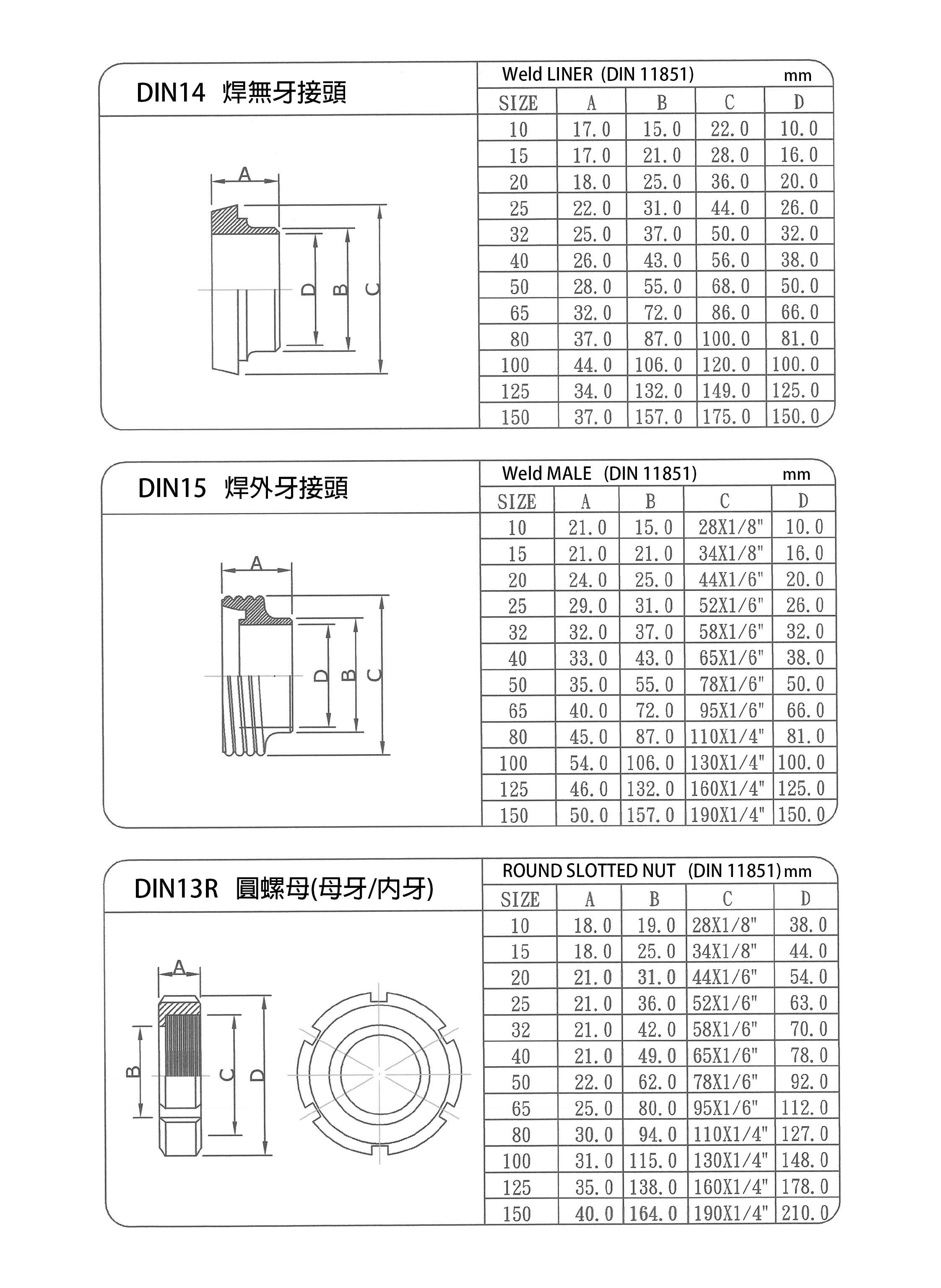

DIN14 焊無牙接頭 Weld Liner (DIN 11851)   DIN15 焊外牙接頭 Weld Male (DIN 11851)   DIN13R 圓螺母(母牙/內牙) Round Slotted Nut (DIN 11851)	DIN40 DIN墊片 DIN Gasket (DIN 11851)   DIN13AH 盲螺帽 (母牙/內牙) Round Blank Nut (DIN 11851)   DIN16A DIN盲蓋 Blank Liner (DIN 11851)
DIN14EB  英制  DIN無牙接頭 (DIN 11851) X 3A焊接端 Imperial Weld Liner (DIN 11851) X 3A Tube Weld   DIN15EB  英制  DIN外牙接頭 (DIN 11851) X 3A焊接端 Imperial Weld Male (DIN 11851) X 3A Tube Weld   DIN14R 擴管無牙接頭 Expanding Liner (DIN 11851)   DIN15R 擴管外牙接頭 Expanding Male (DIN 11851)

 SMS UNION FITTINGS (SMS 1145)

● WELD MALE

● WELD LINER

● ROUND SLOTTED NUT

● ROUND BLANK NUT

● BLANK LINER

● SEAL / GASKET

● SMS14  Weld Liner

● SMS15  Weld Male Threaded

● SMS13R  Round Slotted Nut

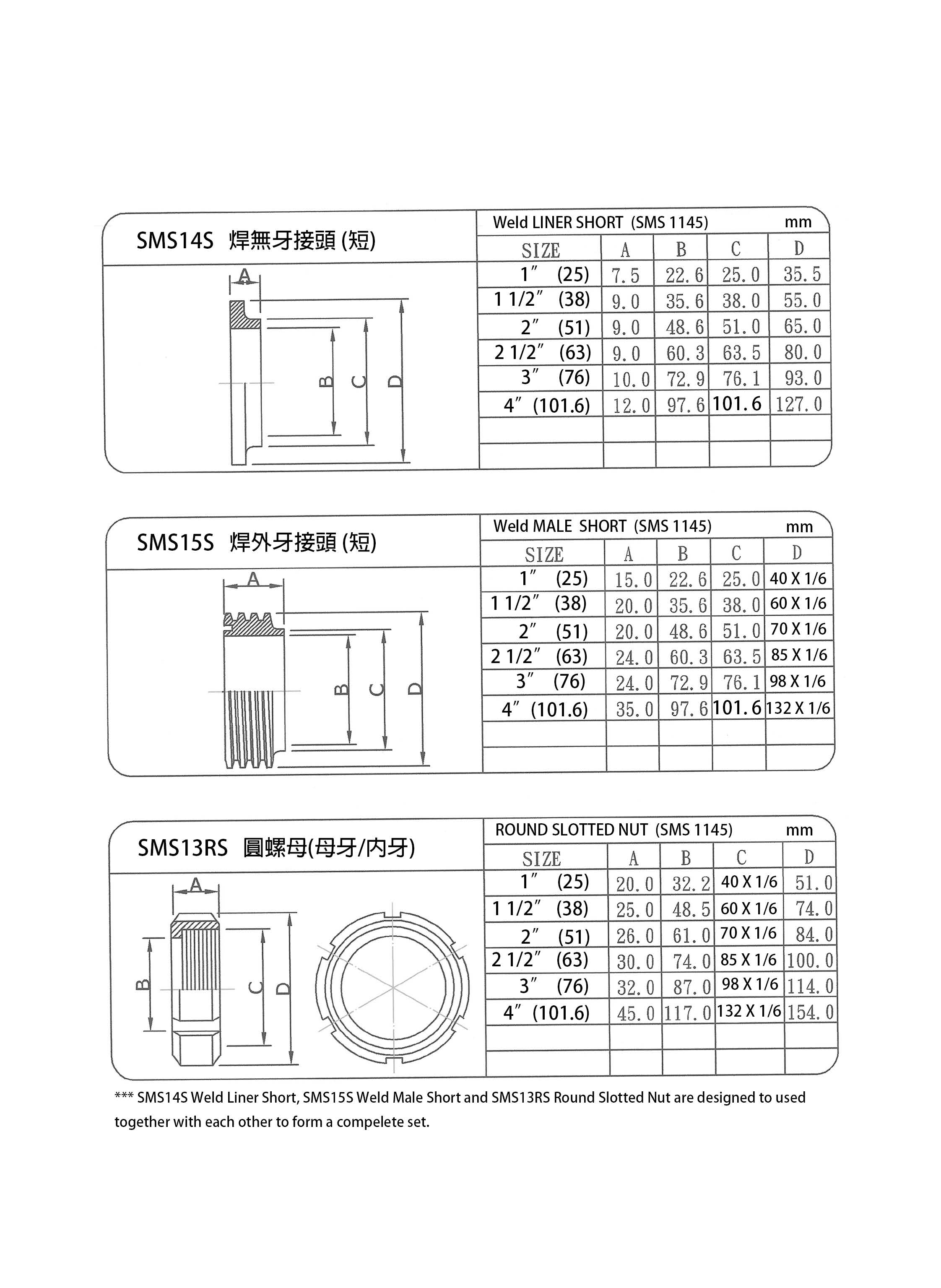

● SMS14S  Weld Liner Short

● SMS15S  Weld Male Short Threaded

● SMS13RS  Round Slotted Nut

● SMS13AH  Round Blank Nut

● SMS16A  SMS Blank Liner

● SMS40  SMS Gasket

The SMS UNION is a sanitary piping connection based on the Swedish Manufacturing Standard (SMS). The assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a threaded hex nut. It is extensively used in processing equipment for the food, beverage, and pharmaceutical industries, and is commonly found in dairy, brewery, and other food-related processing lines throughout Europe.

The SMS Union features the following characteristics:

🟦 Sanitary Design :

The smooth internal bore minimizes the buildup of bacteria, dirt, and other contaminants, meeting strict food safety and hygiene requirements.

🟦 Superior Sealing Performance :

Achieves a reliable seal through the combination of a seal ring, threaded ferrule, and nut, effectively preventing leaks and contamination.

🟦 Easy Disassembly :

Designed for quick teardown to facilitate efficient cleaning, maintenance, and replacement.

🟦 CIP Compatible :

Suitable for Clean-In-Place (CIP) systems.

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

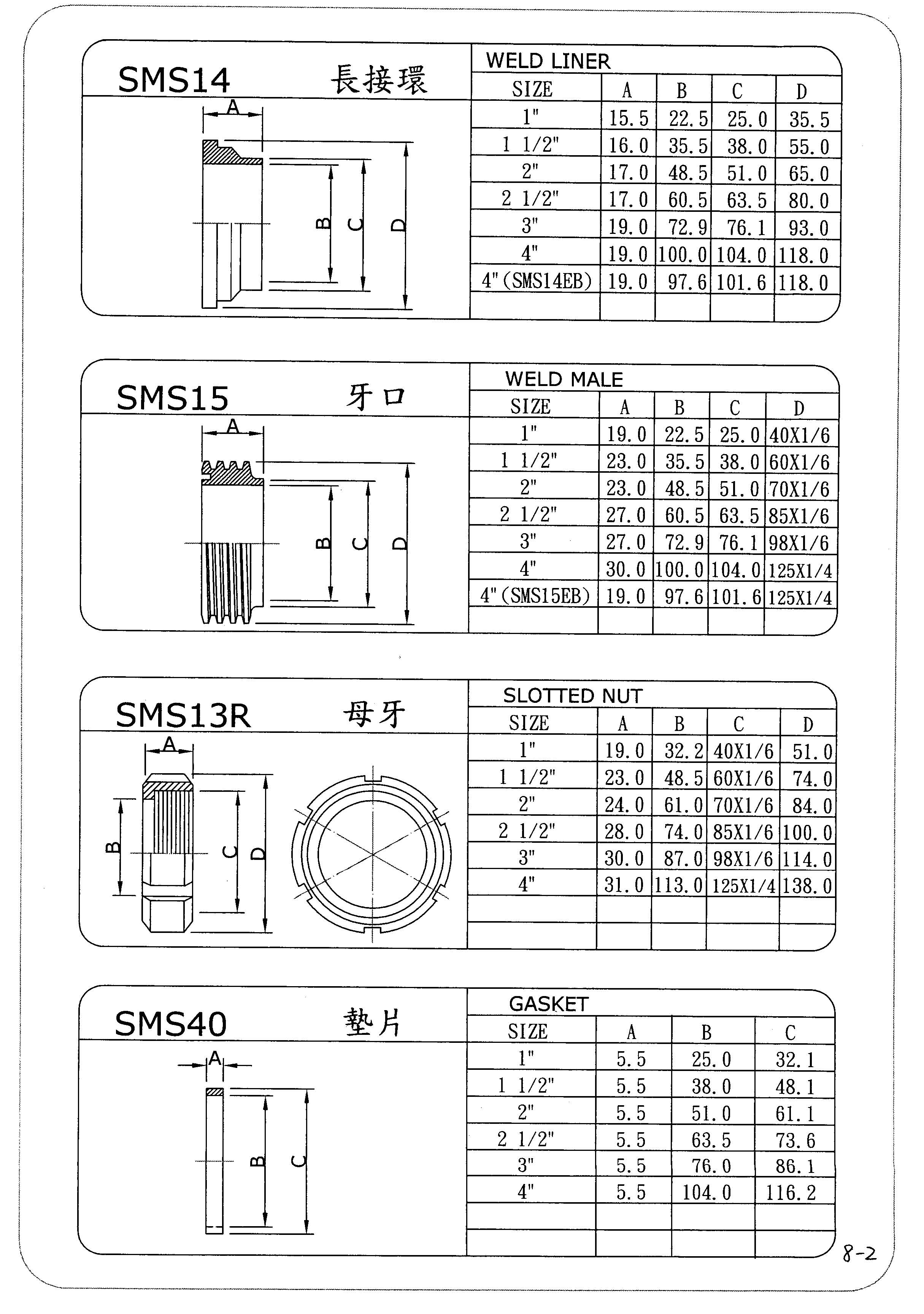

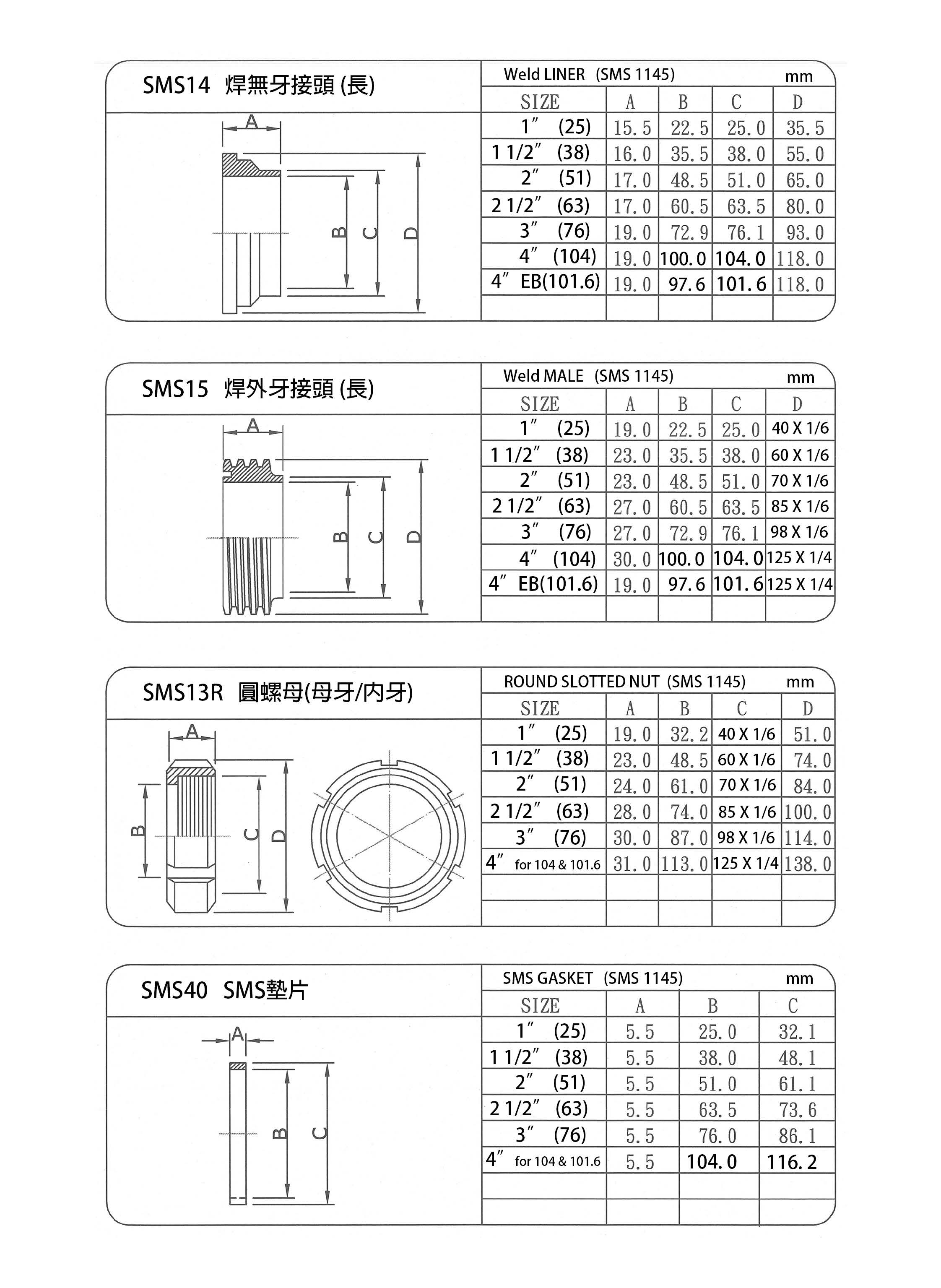

SMS14 焊無牙接頭(長) Weld Liner (SMS 1145)   SMS15 焊外牙接頭(長) Weld Male Threaded (SMS 1145)    SMS13R 圓螺母(母牙/內牙) Round Slotted Nut (SMS 1145)   SMS40 SMS墊片 SMS Gasket (SMS 1145)	SMS14S 焊無牙接頭(短) Weld Liner Short (SMS 1145)   SMS15S 焊外牙接頭(短) Weld Male Short Threaded (SMS 1145)   SMS13RS 圓螺母(母牙/內牙) Round Slotted Nut (SMS 1145)

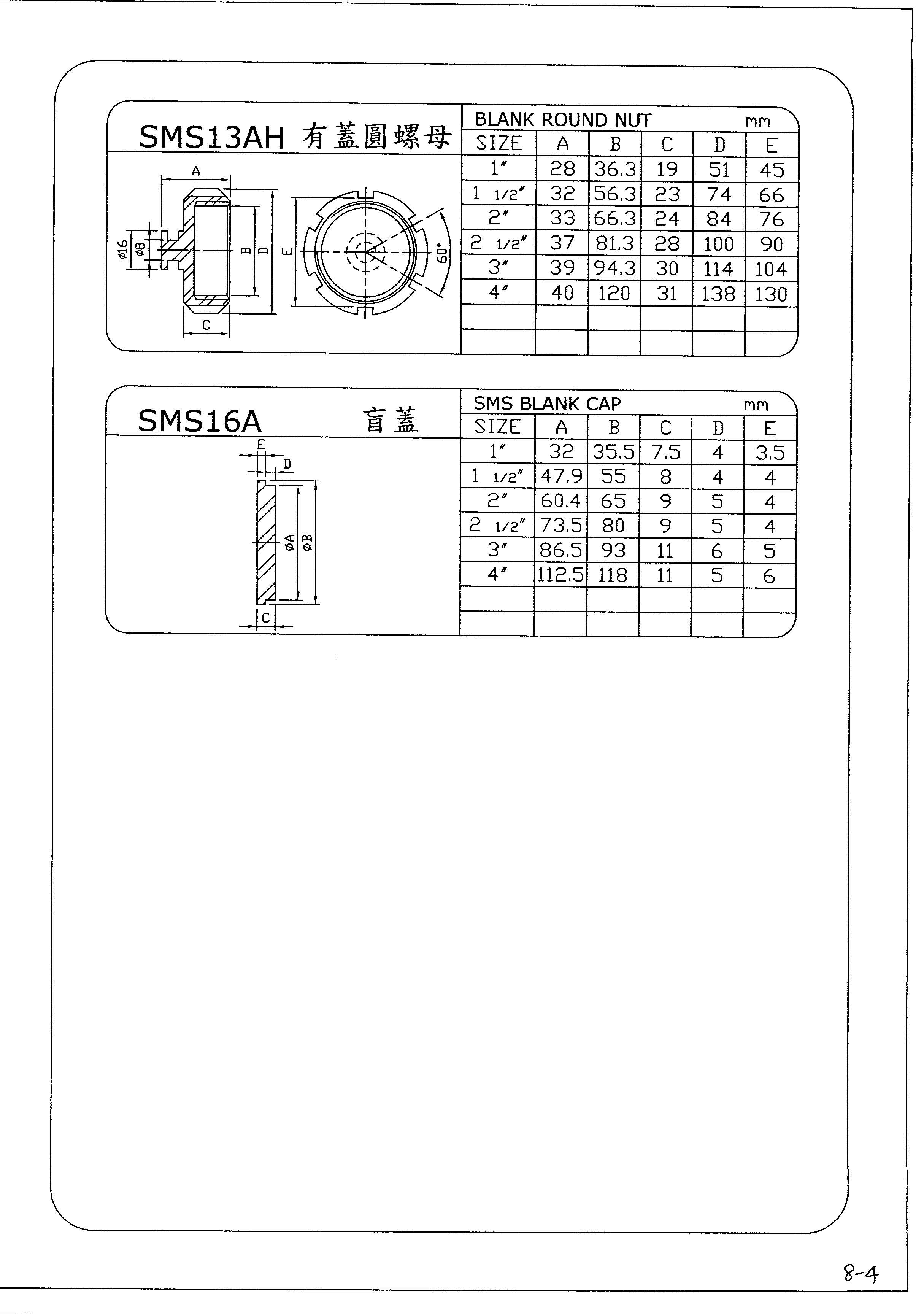

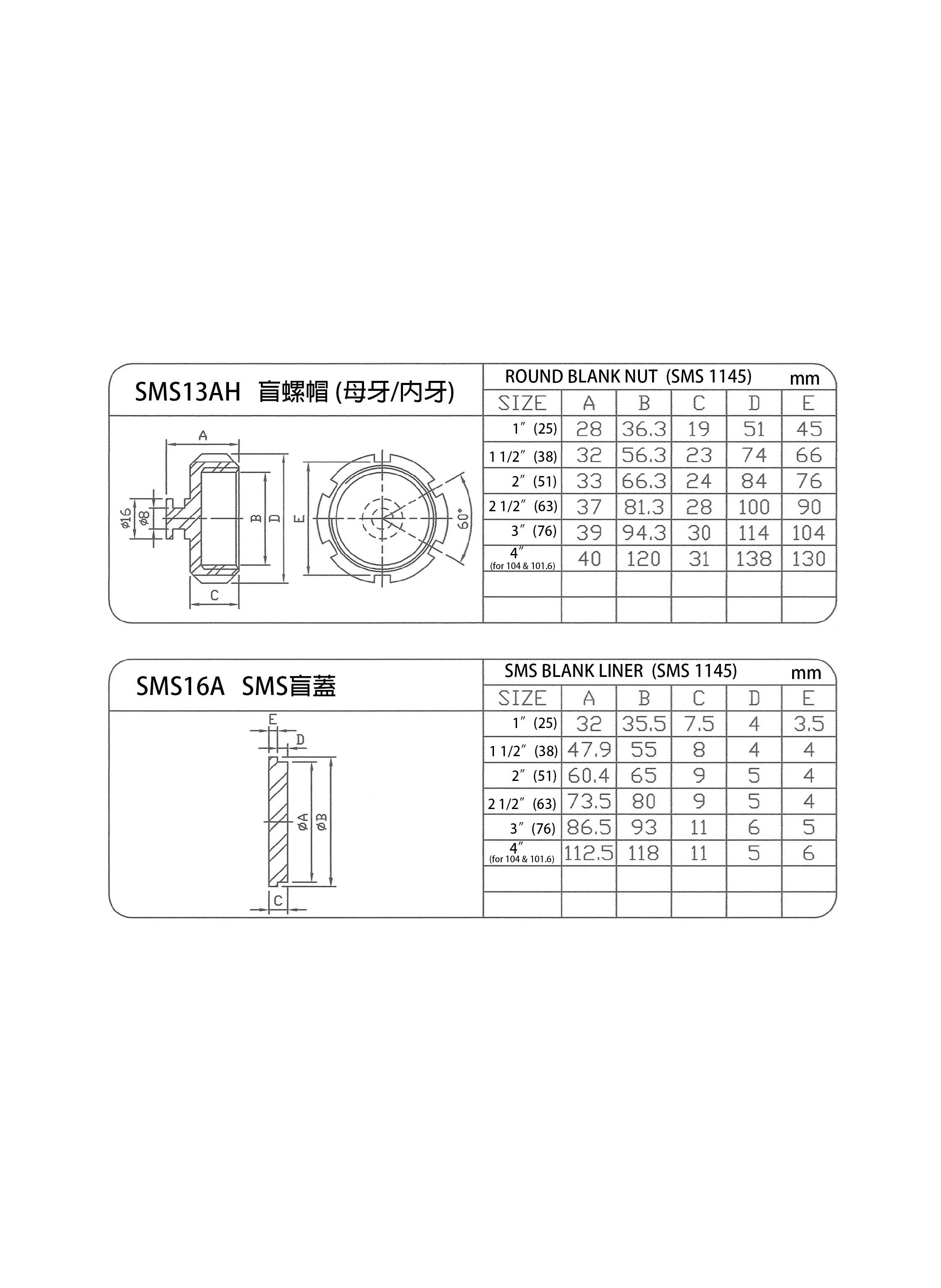

SMS13AH 盲螺帽(母牙/內牙) Round Blank Nut (SMS 1145)   SMS16A SMS盲蓋 SMS Blank Liner (SMS 1145)

( for 3-A TRI-CLAMP Fitting Assemblies )

● HEAVY DUTY CLAMP

● HIGH PRESSURE CLAMP

● LIGHT WEIGHT CLAMP

 (3-A Tri-Clamp)

●  13LAH   HEAVY DUTY CLAMP   SINGLE PIN (Wingnut Tightened)

●  13MHHM   HEAVY DUTY CLAMP   DOUBLE PIN (Wingnut Tightened)

●  13MHHS   3-SEGMENT CLAMP   (Wingnut Tightened)

●  13MHP   HIGH PRESSURE BOLTED CLAMP

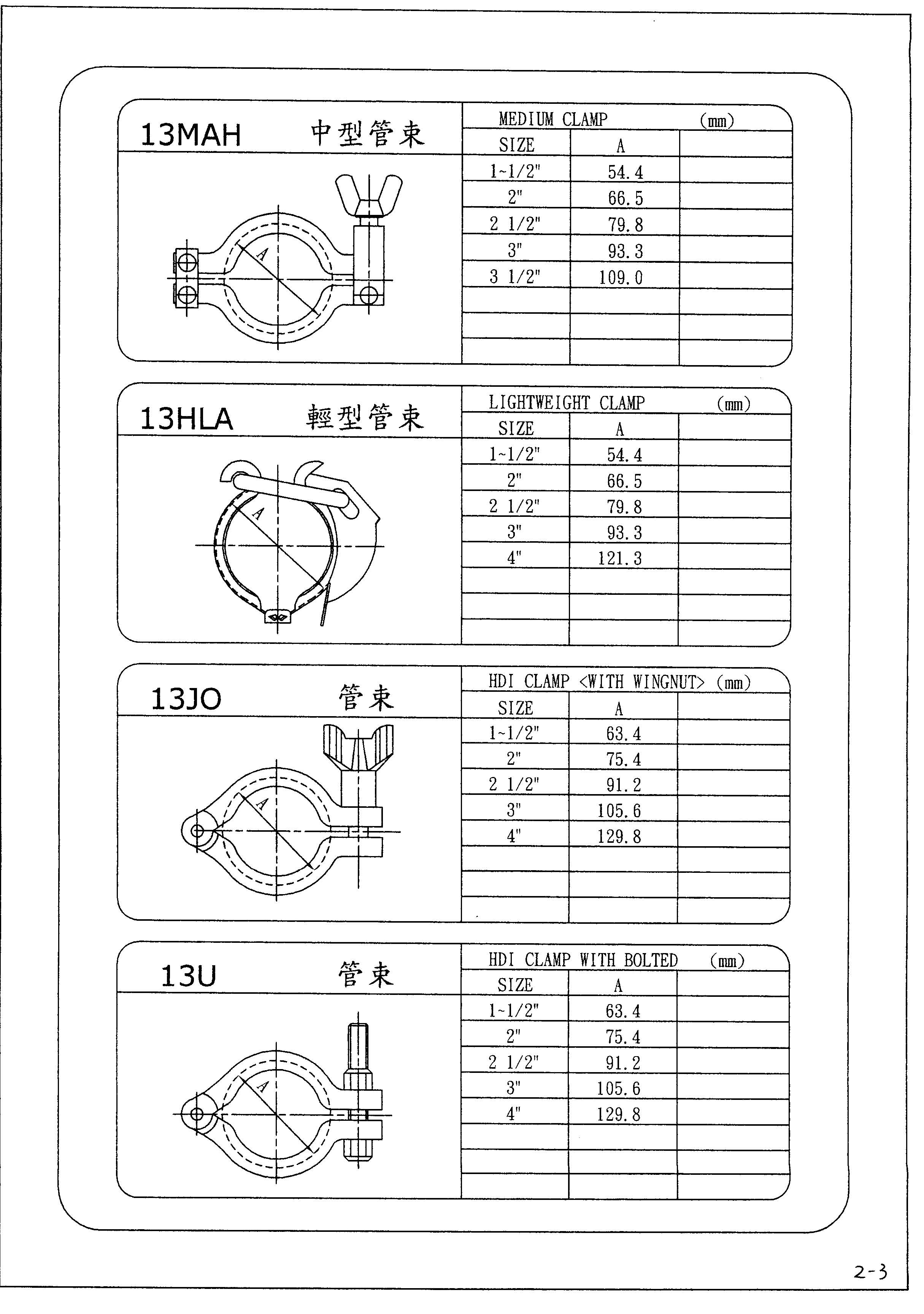

●  13MAH   QUICK -RELEASE CLAMP   (DOUBLE PIN, Wingnut Tightened)

●  13HLA   LIGHT DUTY TOGGLE CLAMP

●  13JO   HEAVY DUTY CLAMP   (Single Pin, Wingnut Tightened)

●  13U  HEAVY DUTY CLAMP  (Single Pin, Bolt Tightened)

 (I-Line)

●  13IS   I-Line / Q-Line Clamp   (Single Pin, Wingnut Tightened)

●  13I   I-Line Clamp   (Single Pin, Bolt Tightened)

 (Q-Line)

●  13QT   Q-Line Light Weight Clamp

The TRI-CLAMP, I-LINE, and Q-LINE fitting assemblies consist of 2 matching Ferrules, 1 Gasket, and 1 Clamp. Designed specifically for COP ( Clean-Out-of-Place ) and CIP ( Clean-In-Place ) applications, these fittings utilize a Wing Nut for tightening and loosening, allowing pipeline equipment, on-site construction, and production line personnel to Easily and Quickly Assemble, Disassemble, Clean, and Replace Components. Once assembled, the joints are seamless and leak-proof. Due to their compact design, piping configurations can be more tightly integrated, leading to more efficient use of production space.

The I-Line fitting design consists of interlocking flat ferrules, a flat gasket, and a clamp. This interlocking metal-to-metal design eliminates over-compression of the clamp and prevents the gasket from being extruded into product-contact areas.

Tri-Clamp clamps offer flexibility with options for Single-Pin, Double-Pin, or Three-Segment designs to meet specific installation requirements.

For applications requiring higher line pressures, Bolted High-Pressure Clamps are also available as an alternative.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:

📌 Safety and Hygiene :

The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.

📌 Material Selection :

Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.

📌 Sealing Performance :

To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.

📌 Ease of Disassembly and Installation :

Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.

📌 Reliability and Durability :

Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

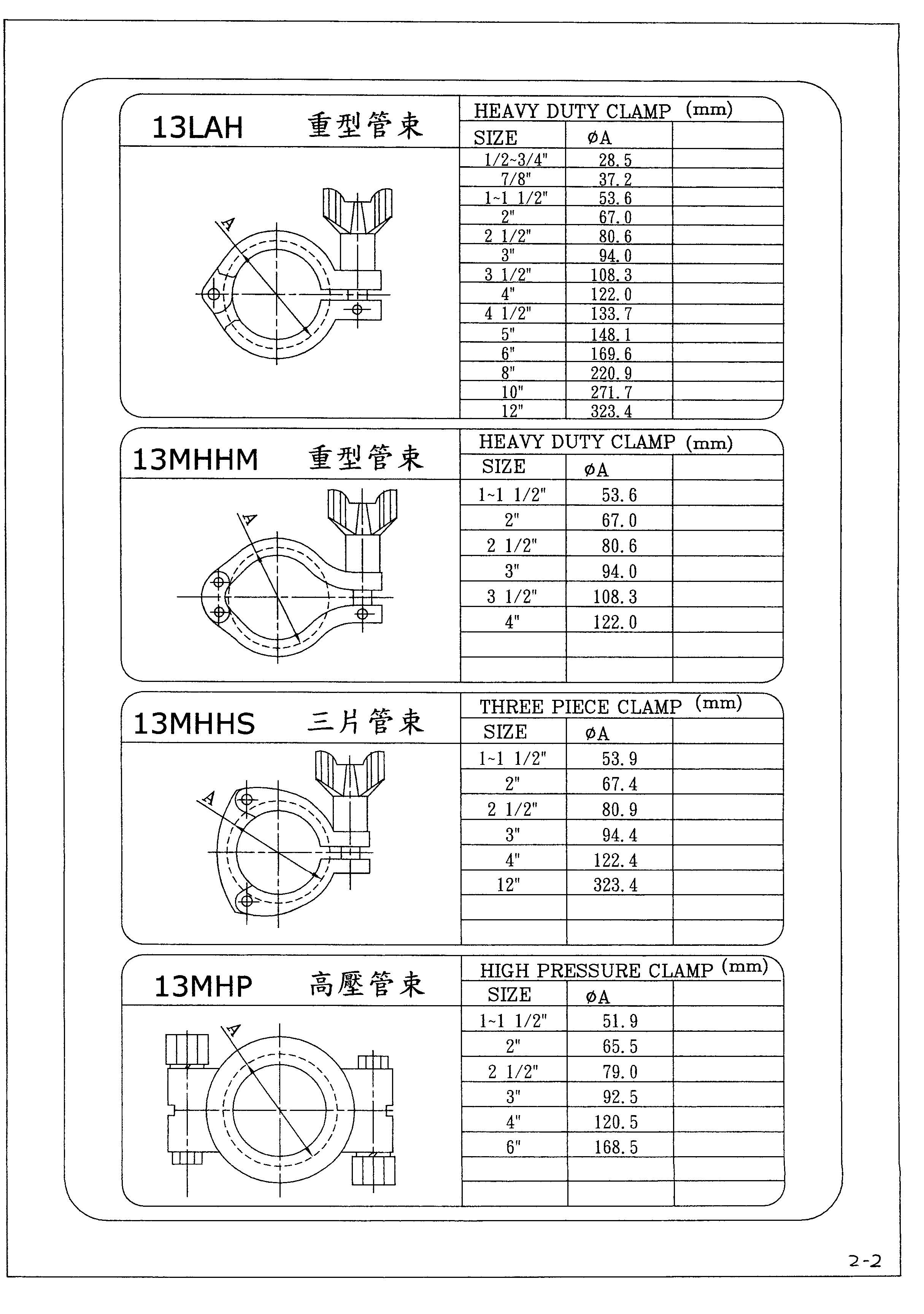

(3-A Tri-Clamp)    13LAH   HEAVY DUTY CLAMP   SINGLE PIN   (Wingnut Tightened)     13MHHM   HEAVY DUTY CLAMP   DOUBLE PIN   (Wingnut Tightened)     13MHHS   3-SEGMENT CLAMP   (Wingnut Tightened)     13MHP   HIGH PRESSURE   BOLTED CLAMP	(3-A Tri-Clamp)    13MAH   QUICK -RELEASE CLAMP   Double Pin   (Wingnut Tightened)     13HLA  LIGHT DUTY TOGGLE CLAMP    13JO   HEAVY DUTY CLAMP   Single Pin   (Wingnut Tightened)     13U   HEAVY DUTY CLAMP   Single Pin   (Bolt Tightened)

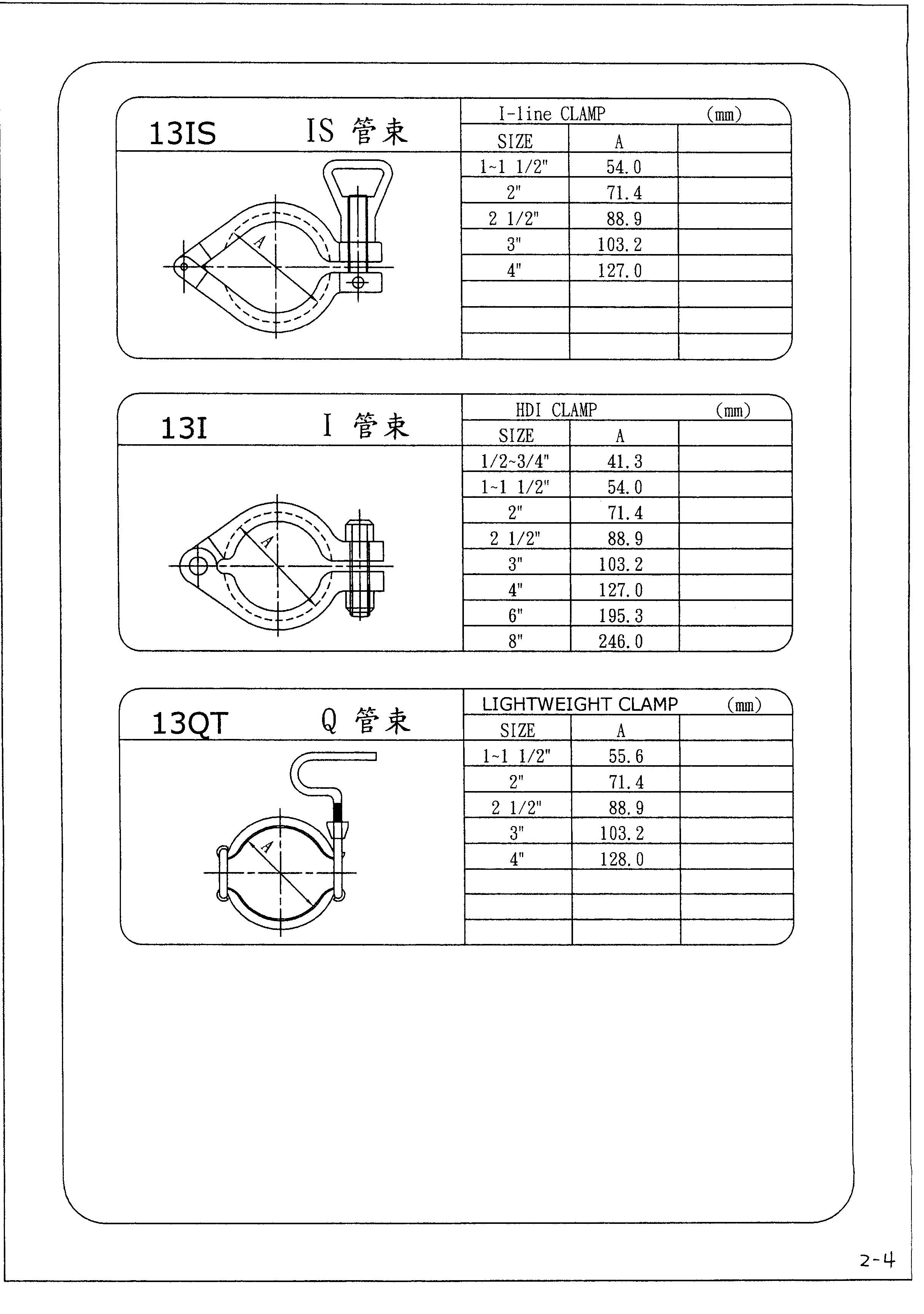

(I-Line)    13IS   I-Line / Q-Line Clamp   (Single Pin,  Wingnut Tightened)     13I   I-Line Clamp   (Single Pin,   Bolt Tightened)    (Q-Line)    13QT   Q-Line Light Weight Clamp

( SUPPORTS & HANGERS for PIPING SYSTEM )

● TUBE SUPPORT / PIPE SUPPORT

● TUBE HANGER / PIPE HANGER

● B24W  Hex Tube Hanger  Rubber Grommets

● C24T  Hex Tuber Hanger   3/8 NPT Coupling  Rubber Grommets

● A24FCF  Hinged Tube Hanger   3/8 NPT Coupling  Rubber Grommets

● 26CB  Take Down Style Hanger  Rubber Sleeve

● LB24W  Saddle Pipe Clamp  Boss (bolt M6X12L)

● LC24T  Saddle Pipe Clamp  Boss (bolt M6X12L)  3/8 NPT Coupling

👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

B24W Hex Tube Hanger with Rubber Grommets  無接管 六角型固定管夾  (帶有橡膠緩衝墊)   B24W Hex Tube Hanger with Rubber Grommets  無接管 六角型固定管夾  (帶有橡膠緩衝墊)   C24T Hex Tube Hanger with 3/8 NPT Coupling & Rubber Grommets  3/8 NPT內牙接管  六角型固定管夾  (帶有橡膠緩衝墊)   C24T Hex Tube Hanger with 3/8 NPT Coupling & Rubber Grommets  3/8 NPT內牙接管  六角型固定管夾  (帶有橡膠緩衝墊)	A24FCF Hinged Tube Hanger with 3/8 NPT Coupling & Rubber Grommets   快拆吊夾  3/8 NPT內牙接管 (帶有橡膠緩衝墊)   26CB Take Down Style Hanger with Rubber Sleeve   卸式吊夾  (帶有橡膠緩衝套)   LB24W Saddle Pipe Clamp with Boss  無接管 鞍式固定管夾  (M6X12L螺栓固定)
LC24T Saddle Pipe Clamp with Boss with 3/8 NPT Coupling 3/8 NPT內牙接管  鞍式固定管夾  (M6X12L螺栓固定)   13MAT Wing Nut Tighten Clamping Tube Hanger with 1/2 PT Coupling  翼形螺母  快拆管架  (帶有1/2 PT內牙接管, 平面型)

In pipeline systems on production lines, BUTTERFLY VALVES are installed to regulate flow and control fluid movement through the opening and closing of the valve.

Due to their low pressure drop, butterfly valves are commonly used in applications where reducing system resistance and energy consumption is important.

The characteristics of butterfly valves are as follows:

🟦 Quick operation:

Butterfly valves typically offer rapid opening and closing, making them highly suitable for applications that require fast switching of fluid flow.

🟦 High flow capacity:

Butterfly valves generally have large diameters and strong flow-handling capabilities, allowing them to accommodate high-flow applications.

🟦 Lightweight structure:

Compared to other types of valves, butterfly valves have a simpler and lighter structure. This makes installation and maintenance easier, and they are especially suitable for applications requiring frequent operation.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

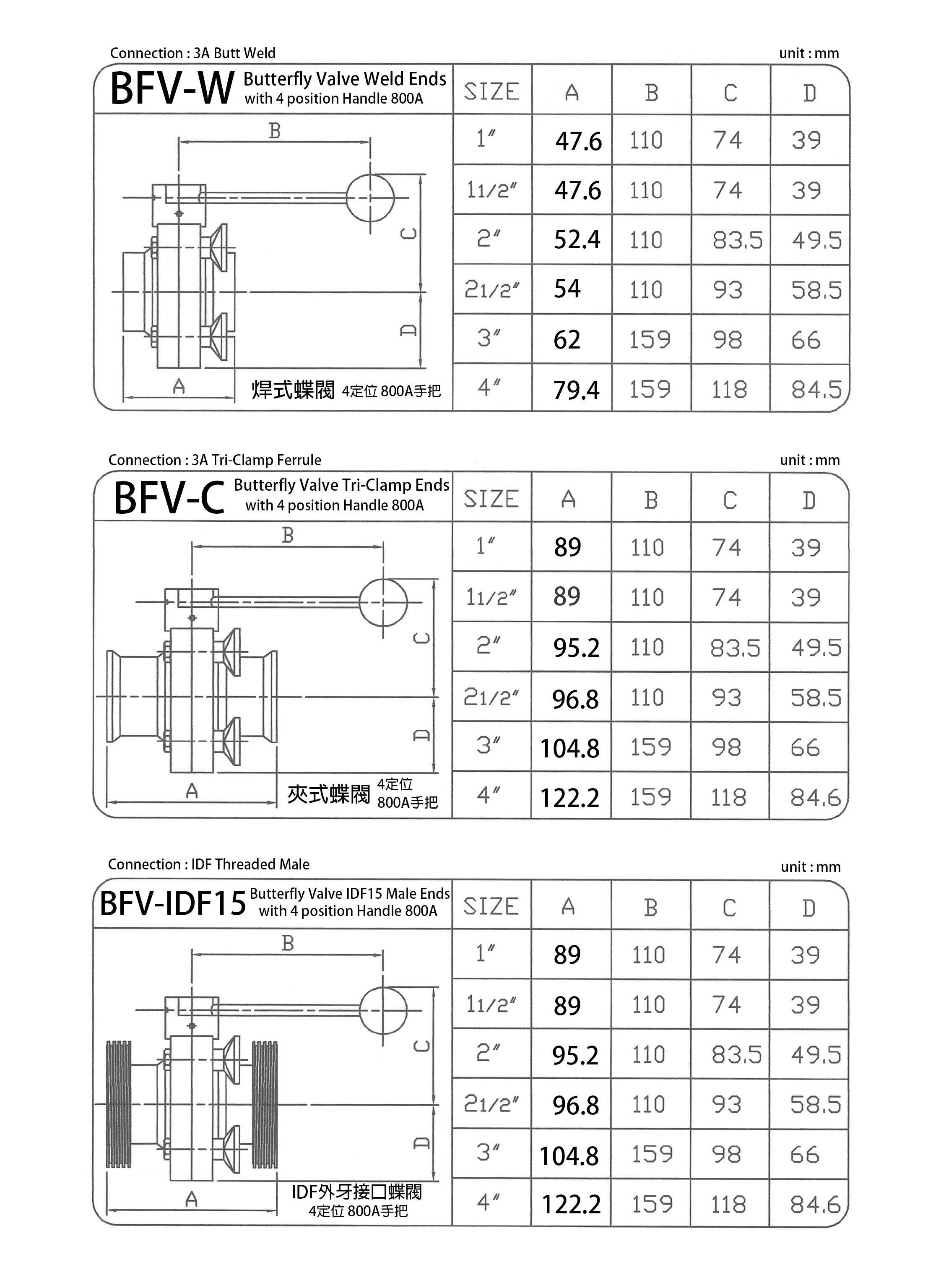

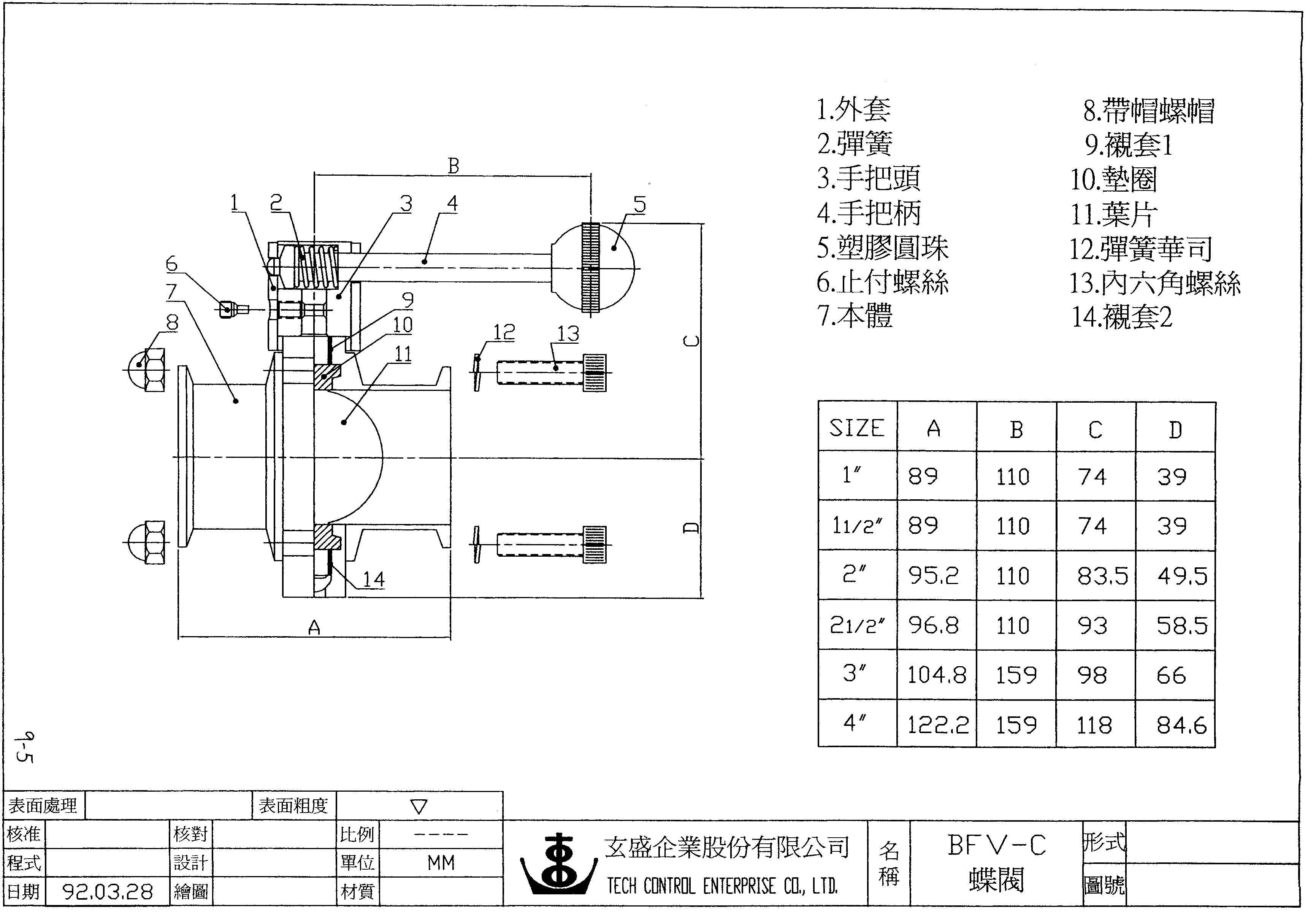

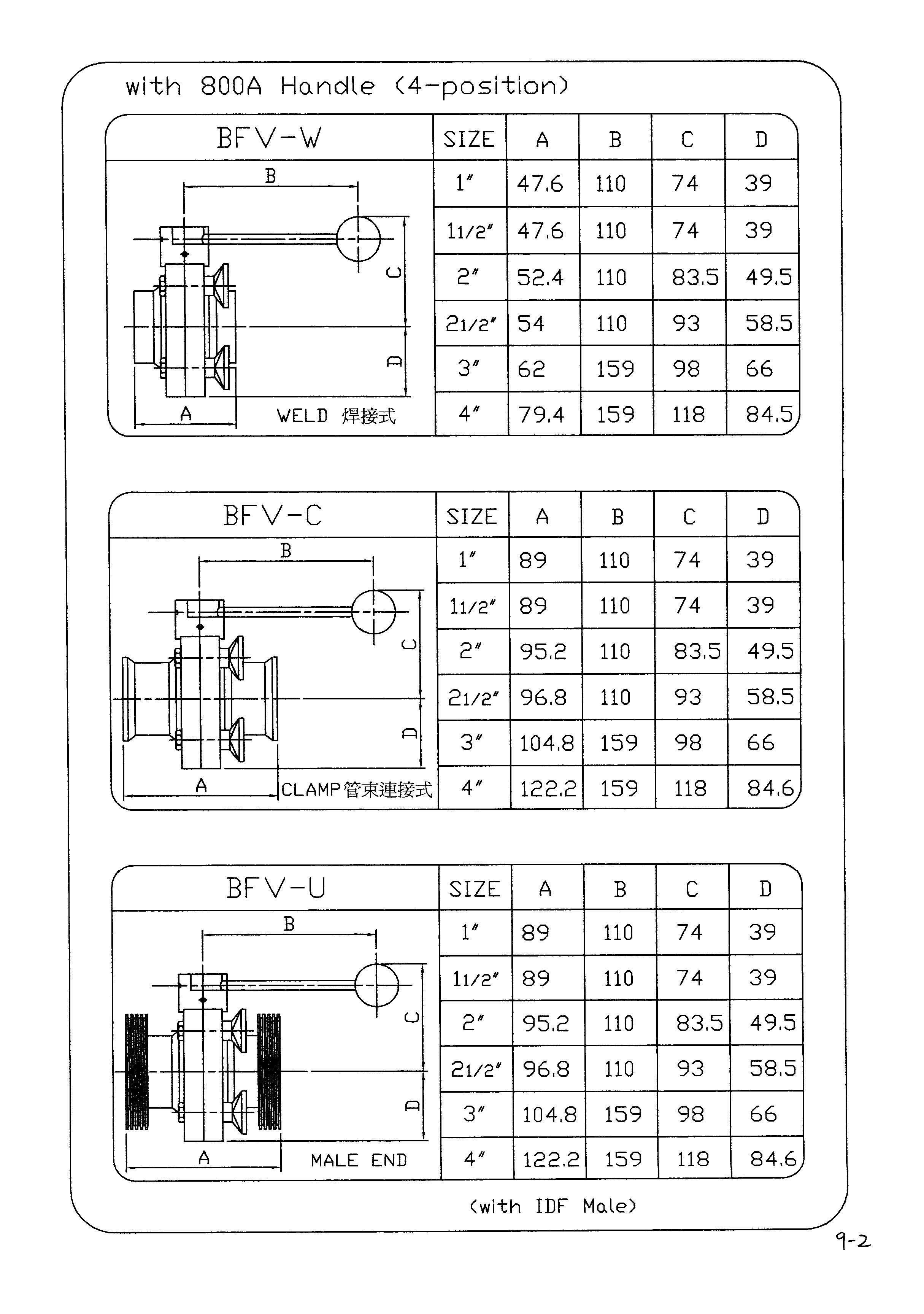

BFV-W  焊式 手動蝶閥 800A手把(4定位) Manual Butterfly Valve with Weld Ends 800A Pull Style Handle (4 Positions)     BFV-C  夾式 手動蝶閥 800A手把(4定位) Manual Butterfly Valve with Clamp Ends 800A Pull Style Handle (4 Positions)     BFV-IDF15  IDF外牙接口  手動蝶閥 800A手把(4定位) Manual Butterfly Valve with IDF Male Ends 800A Pull Style Handle (4 Positions)	BFV-W  焊式 手動蝶閥 800B手把(12定位) Manual Butterfly Valve with Weld Ends 800B Gripper Handle (12 Positions)     BFV-C  夾式 手動蝶閥 800B手把(12定位) Manual Butterfly Valve with Clamp Ends 800B Gripper Handle (12 Positions)     BFV-IDF15  IDF外牙接口  手動蝶閥 800B手把(12定位) Manual Butterfly Valve with IDF Male Ends 800B Gripper Handle (12 Positions)

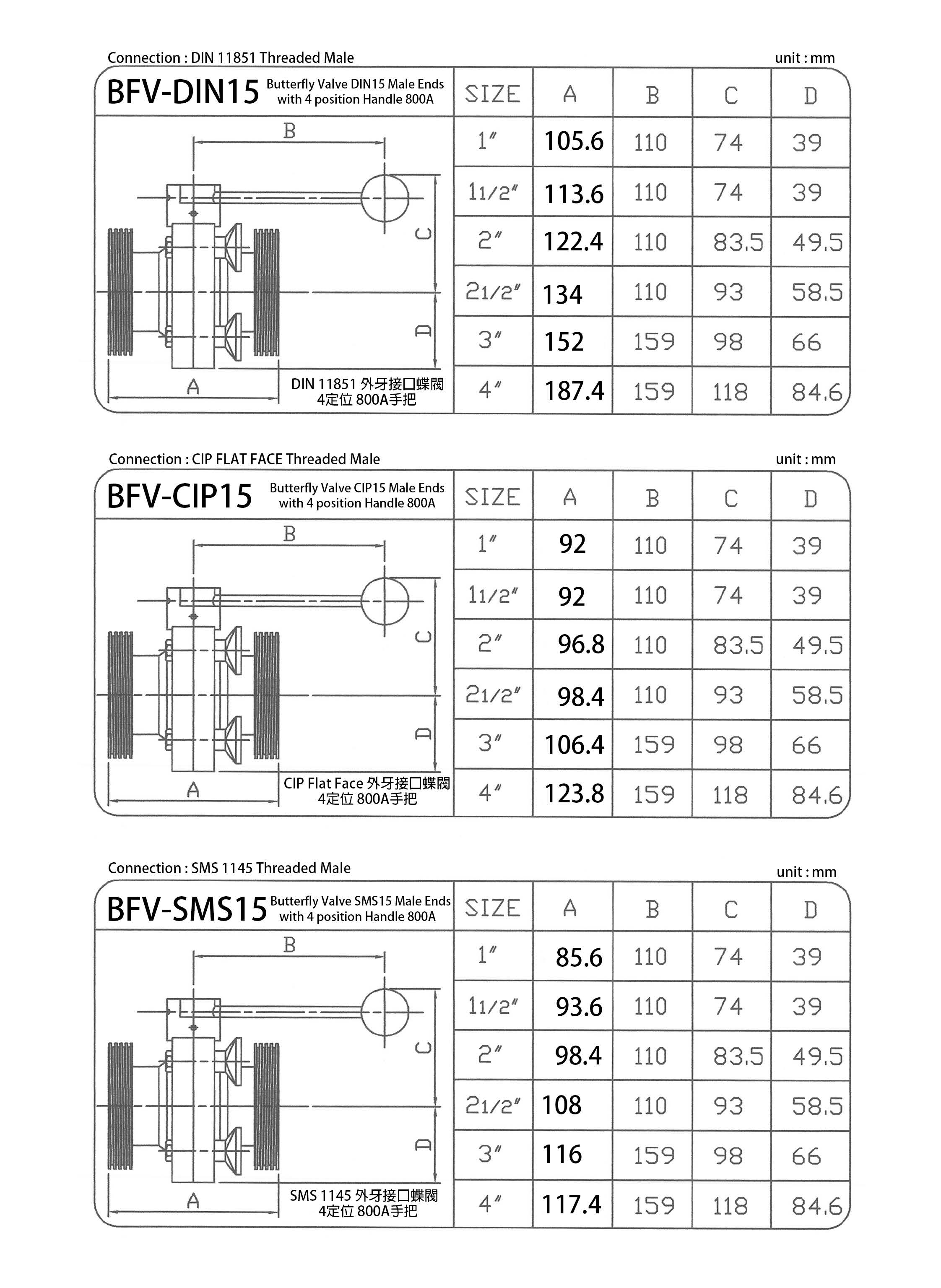

BFV-DIN15  焊式 手動蝶閥 800A手把(4定位) Manual Butterfly Valve with DIN 11851 Male Ends 800A Pull Style Handle (4 Positions)     BFV-CIP15  夾式 手動蝶閥 800A手把(4定位) Manual Butterfly Valve with CIP FLAT FACE Male Ends 800A Pull Style Handle (4 Positions)     BFV-SMS15  IDF外牙接口  手動蝶閥 800A手把(4定位) Manual Butterfly Valve with SMS 1145 Male Ends 800A Pull Style Handle (4 Positions)	BFV-DIN15  焊式 手動蝶閥 800B手把(12定位) Manual Butterfly Valve with DIN 11851 Ends 800B Gripper Handle (12 Positions)     BFV-CIP15  夾式 手動蝶閥 800B手把(12定位) Manual Butterfly Valve with CIP FLAT FACE Male Ends 800B Gripper Handle (12 Positions)     BFV-SMS15  IDF外牙接口  手動蝶閥 800B手把(12定位) Manual Butterfly Valve with SMS 1145 Male Ends 800B Gripper Handle (12 Positions)

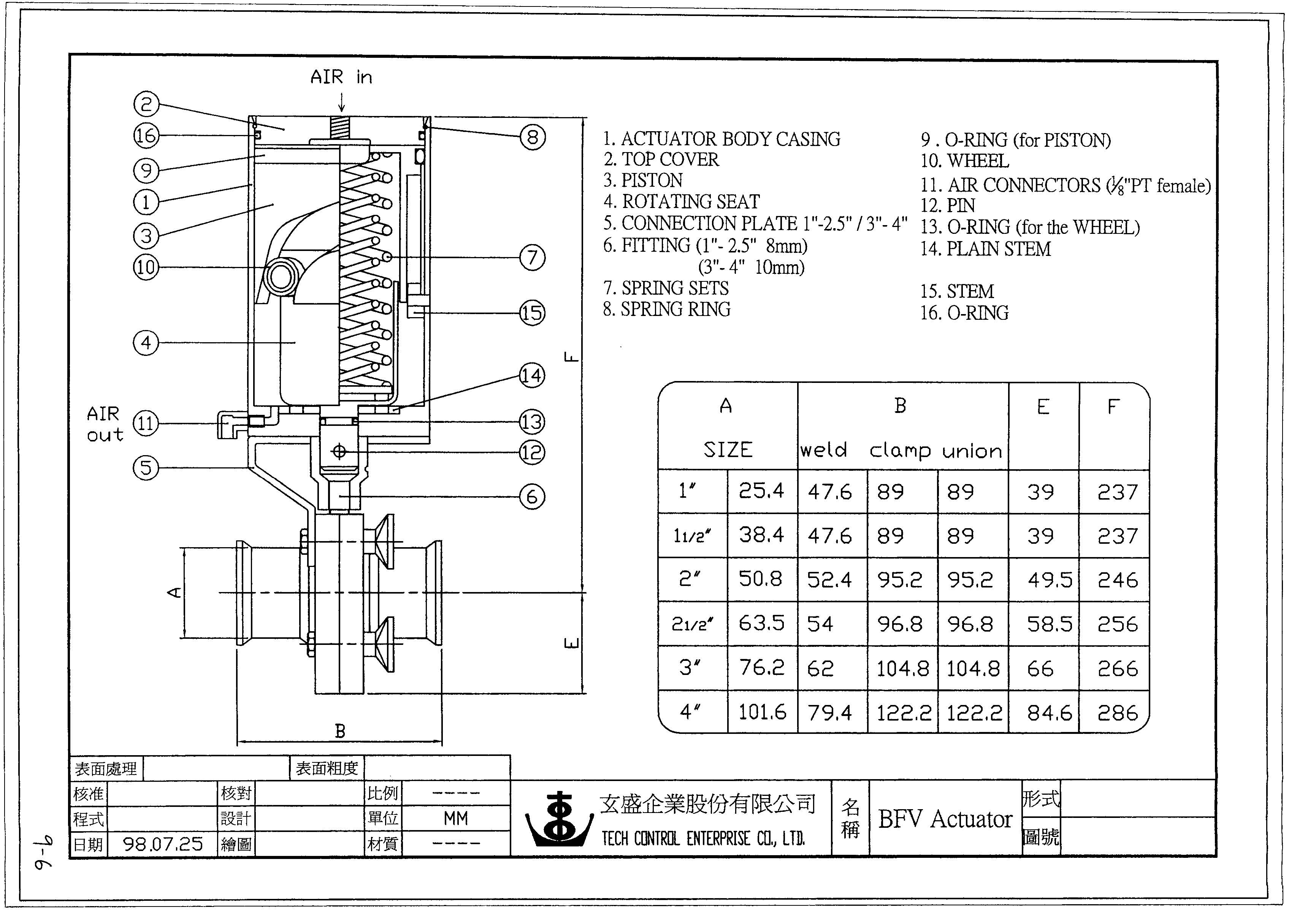

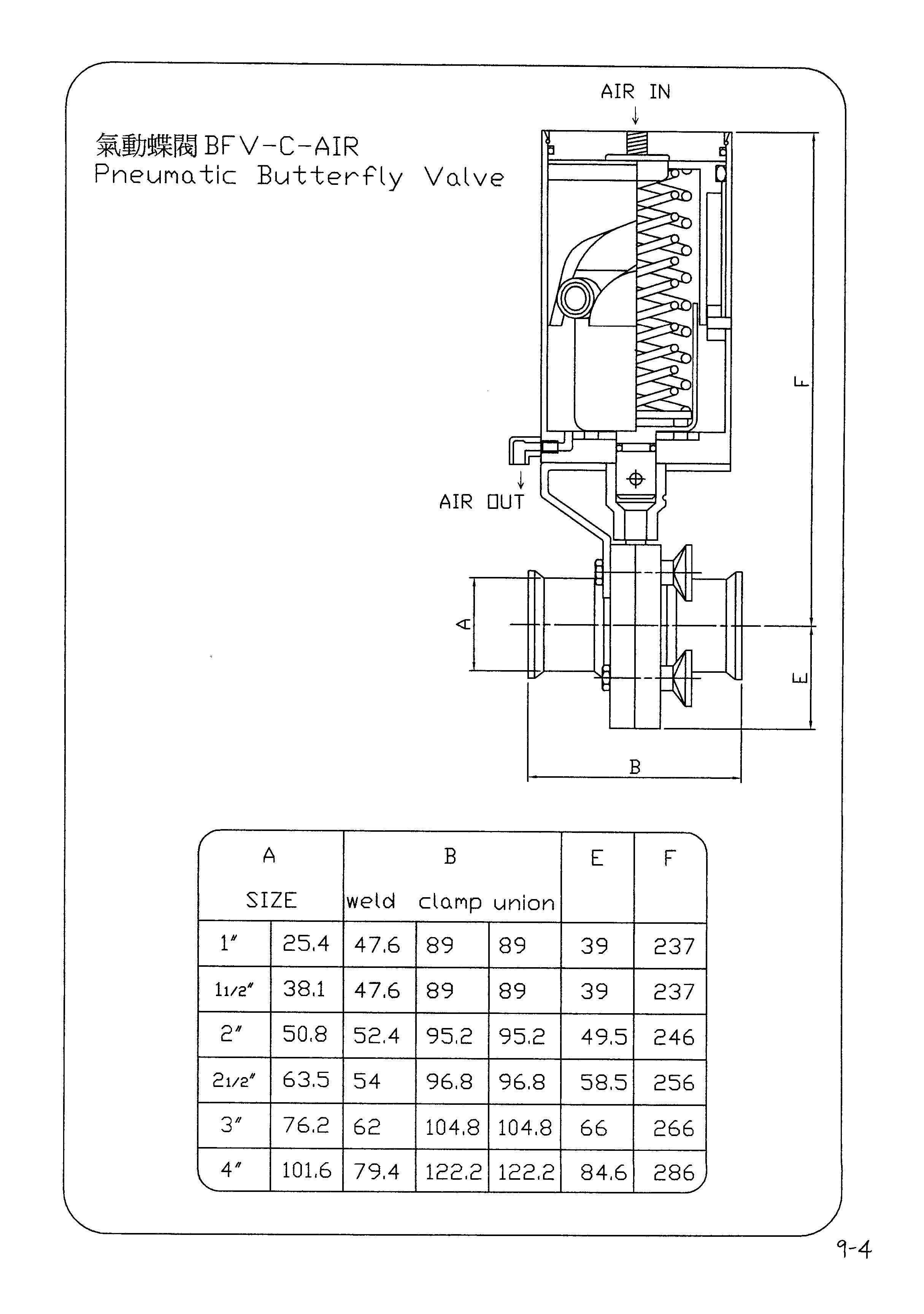

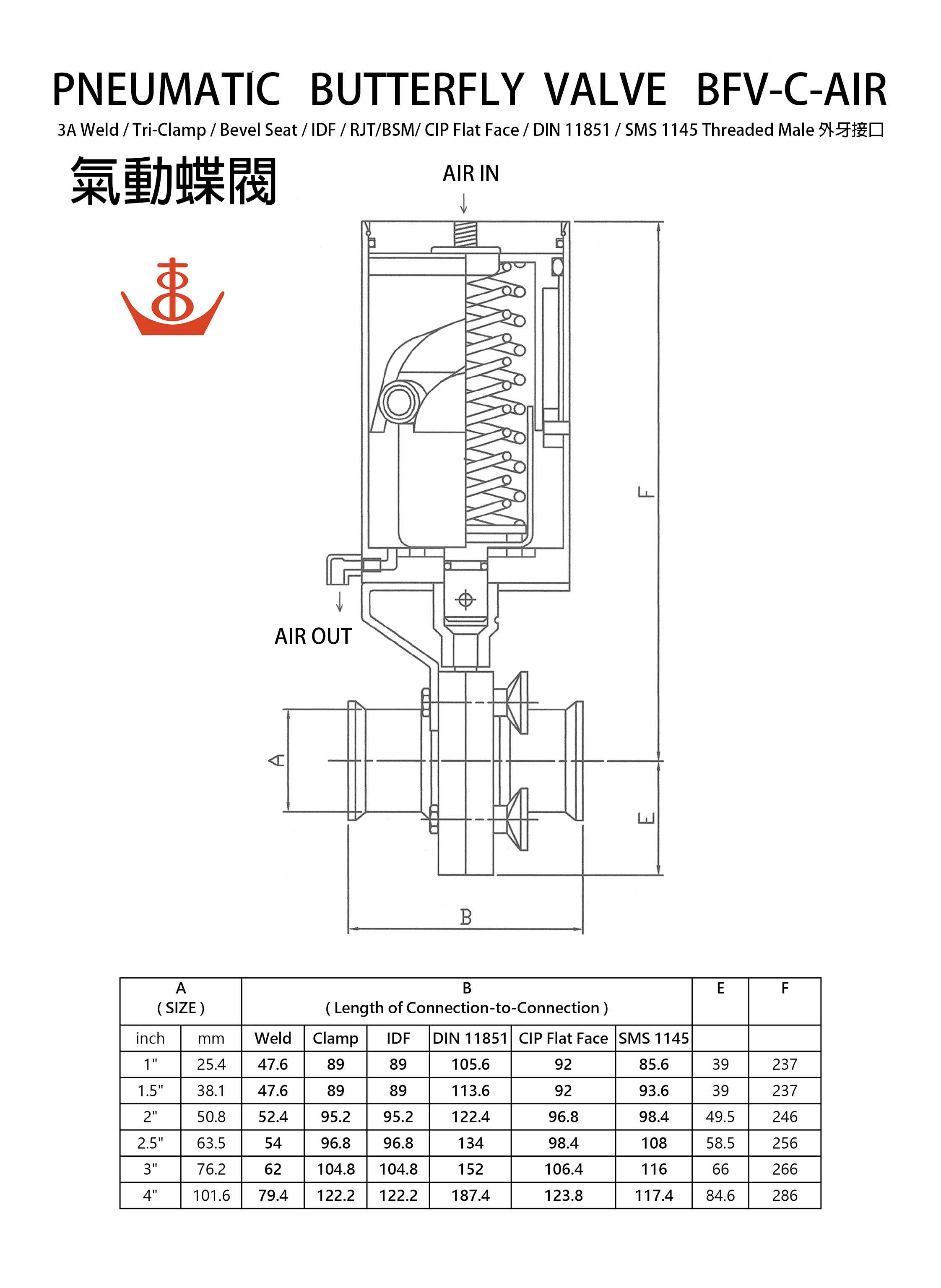

BFV-C-AIR 氣動蝶閥  焊式 / 夾式 / IDF /  RJT / BSM /  CIP FLAT FACE /  DIN 11851 / SMS 1145   外牙接口    Pneumatic Butterfly Valve with Weld / Clamp / Threaded Male Ends IDF / RJT / BSM / CIP FLAT FACE /  DIN 11851 / SMS 1145	Parts List of Manual Butterfly Valve      手動蝶閥   零件組合圖

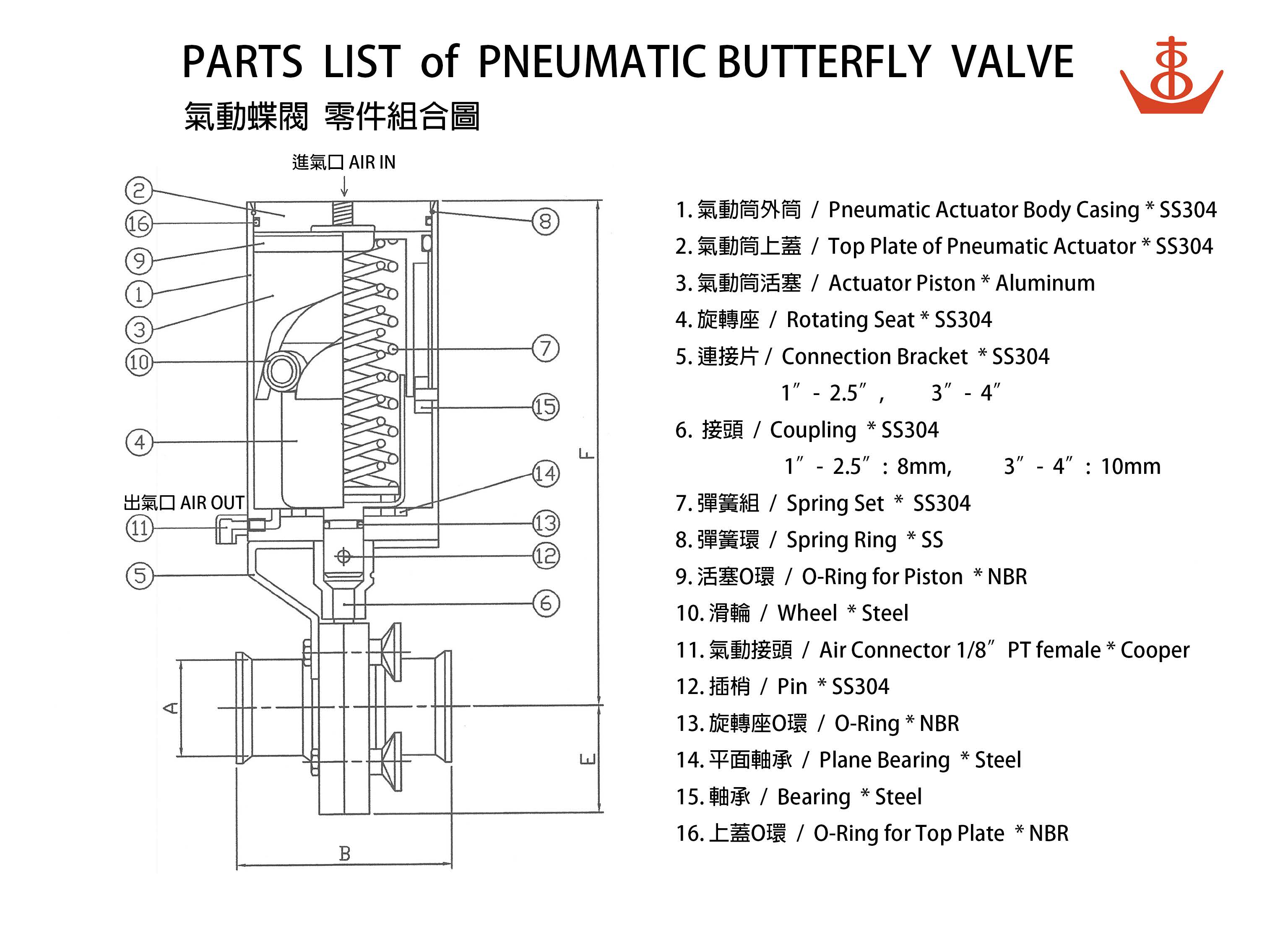

Parts List of Pneumatic Butterfly Valve     氣動蝶閥   零件組合圖

PLUG VALVES offer the advantage of minimal pressure loss.

The specialized tapered core design eliminates internal grooves where contamination could occur, reducing wedging and wear while ensuring easy cleaning.

Manufactured by TECH CONTROL ENTERPRISE CO., LTD., our stainless steel Food-Grade Sanitary Plug Valves are widely utilized in the Beverage, Chemical, and Dairy Processing industries. They are ideal for low-pressure applications ( recommended below 50 PSI ).

The characteristics of plug valves are as follows:

🟦 Low Pressure Drop :

Plug valves provide exceptionally low pressure loss.

🟦 Hygienic Design :

The tapered core design eliminates dead spaces/grooves to prevent contamination, minimize friction/wear, and simplify the cleaning process.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

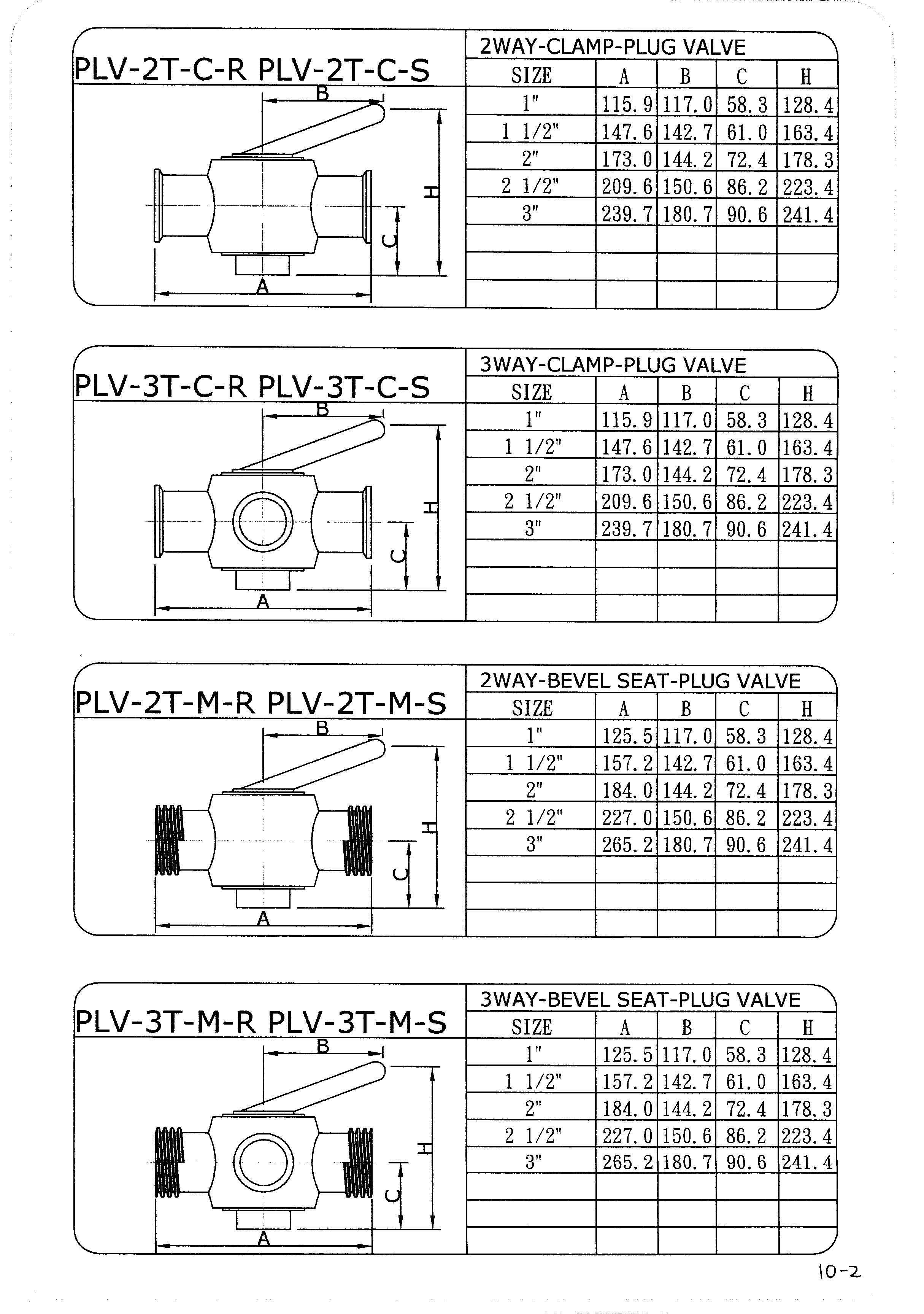

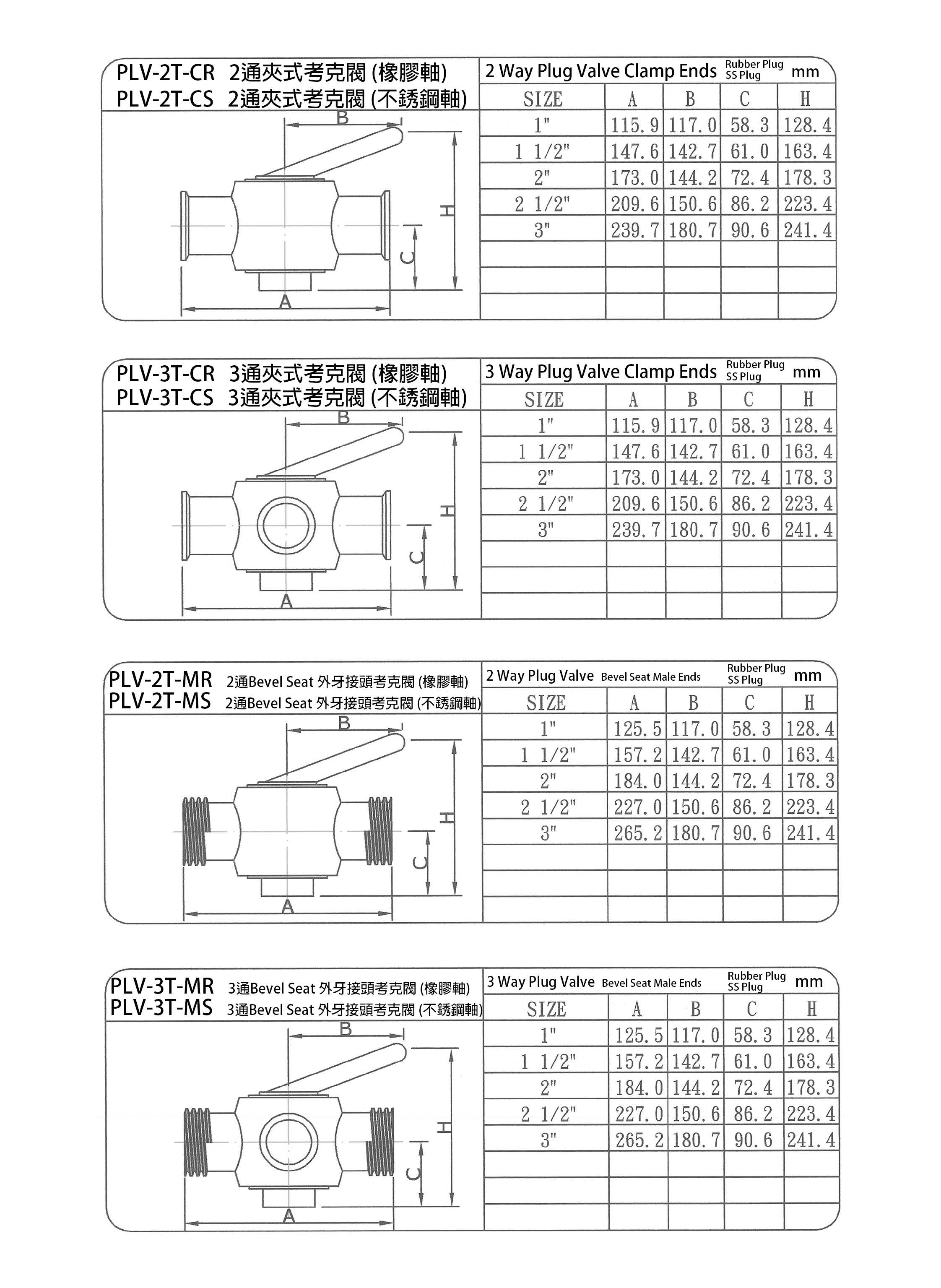

PLV-2T-C-R  夾式 2通考克閥 橡膠軸  PLV-2T-C-S  夾式 2通考克閥 不銹鋼軸  2 Way Plug Valve with Clamps Ends SS Plug or Rubber Plug     PLV-3T-C-R  夾式 3通考克閥 橡膠軸  PLV-3T-C-S  夾式 3通考克閥 不銹鋼軸  3 Way Plug Valve with Clamps Ends SS Plug or Rubber Plug     PLV-2T-M-R  Bevel Seal 外牙接口  2通考克閥 橡膠軸  PLV-2T-M-S  Bevel Seal 外牙接口  2通考克閥 不銹鋼軸  2 Way Plug Valve with Bevel Seat Male Ends SS Plug or Rubber Plug     PLV-3T-M-R  Bevel Seal 外牙接口  3通考克閥 橡膠軸  PLV-3T-M-S  Bevel Seal 外牙接口  3通考克閥 不銹鋼軸  3 Way Plug Valve with Bevel Seat Male Ends SS Plug or Rubber Plug	PLV-2T-W-R  焊式 2通考克閥 橡膠軸  PLV-2T-W-S  焊式 2通考克閥 不銹鋼軸  2 Way Plug Valve with Weld Ends SS Plug or Rubber Plug       PLV-3T-W-R  焊式 3通考克閥 橡膠軸  PLV-3T-W-S  焊式 3通考克閥 不銹鋼軸  3 Way Plug Valve with Weld Ends SS Plug or Rubber Plug      PLV-2T-W-R  短焊接口 2通考克閥  橡膠軸  PLV-2T-W-S  短焊接口 2通考克閥  不銹鋼軸  2 Way Plug Valve with Weld Ends SHORT for welding on male ends SS Plug or Rubber Plug     PLV-3T-W-R  短焊接口 3通考克閥  橡膠軸  PLV-3T-W-S  短焊接口 3通考克閥  不銹鋼軸  3 Way Plug Valve with Weld Ends SHORT for welding on male ends SS Plug or Rubber Plug

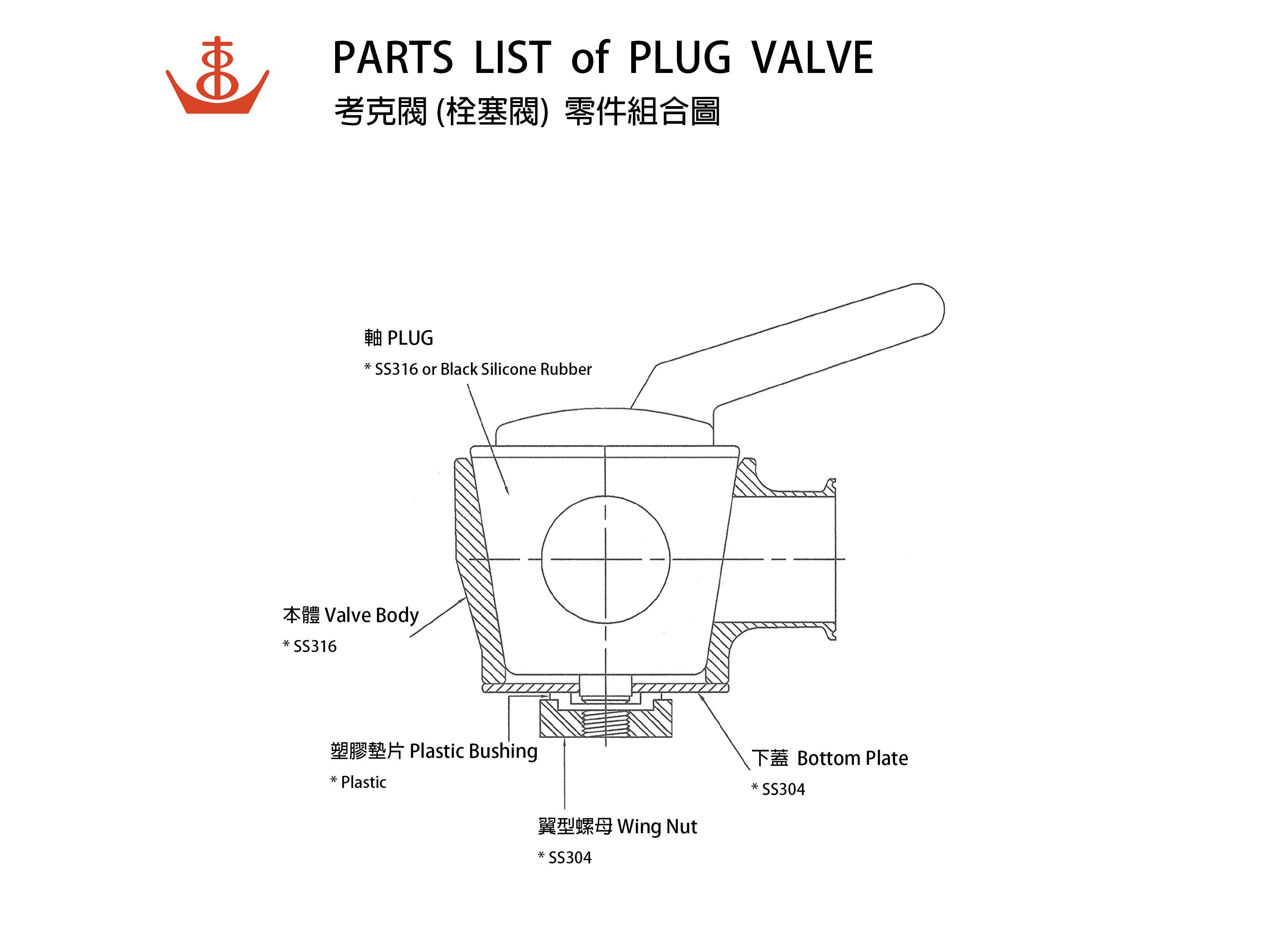

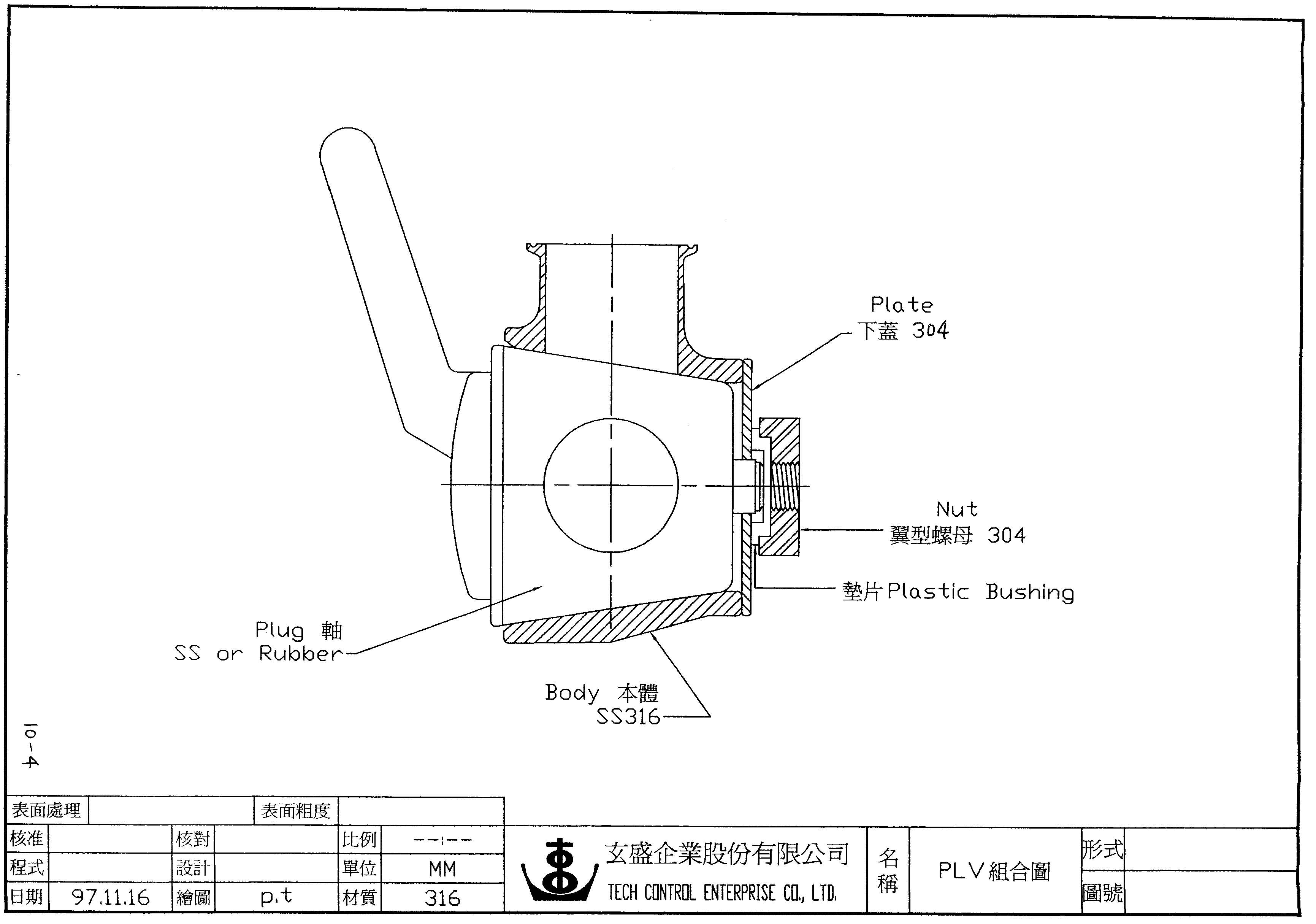

ASSEBBLY DIAGRAM of Plug Valve  考克閥 零件組合圖

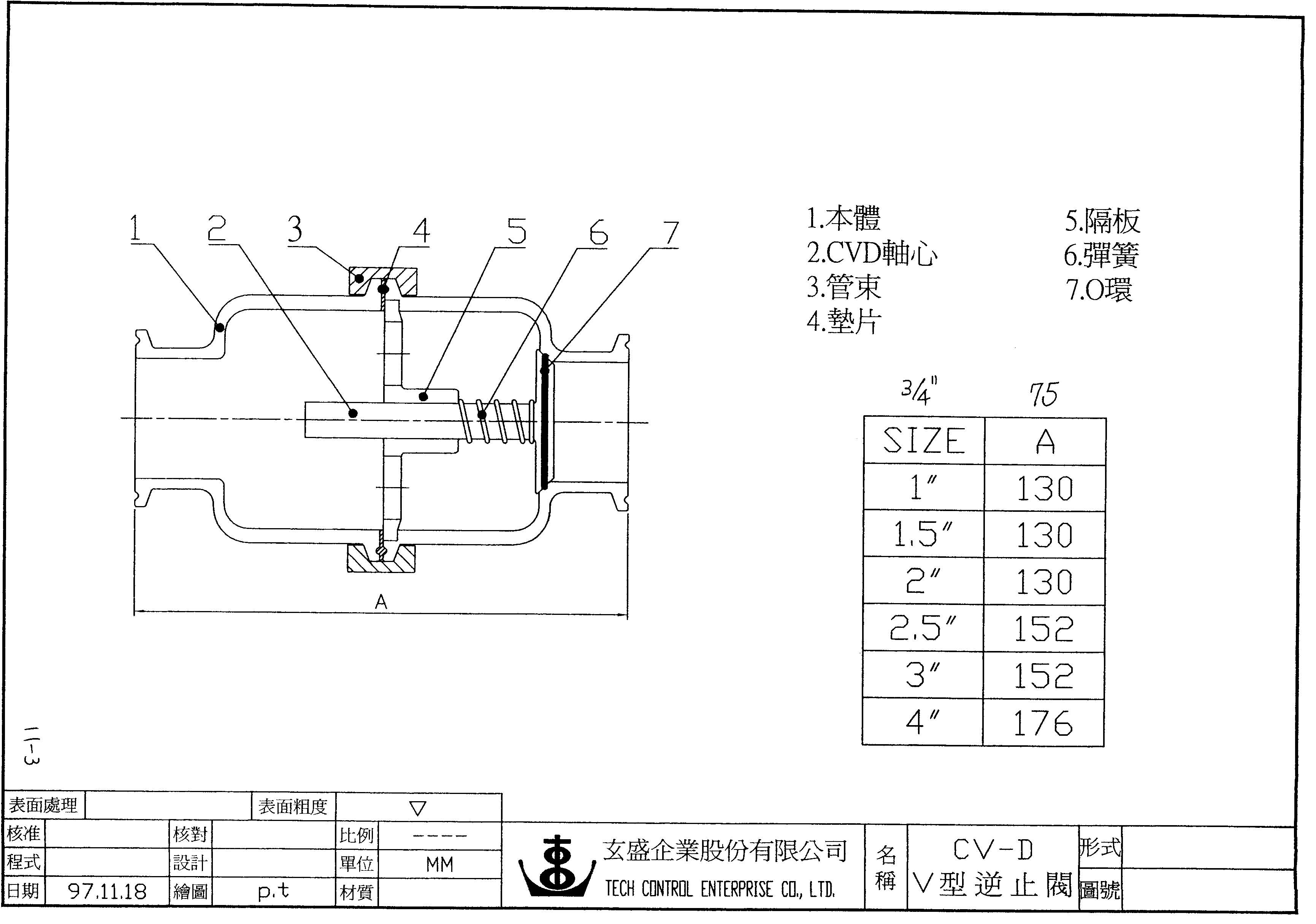

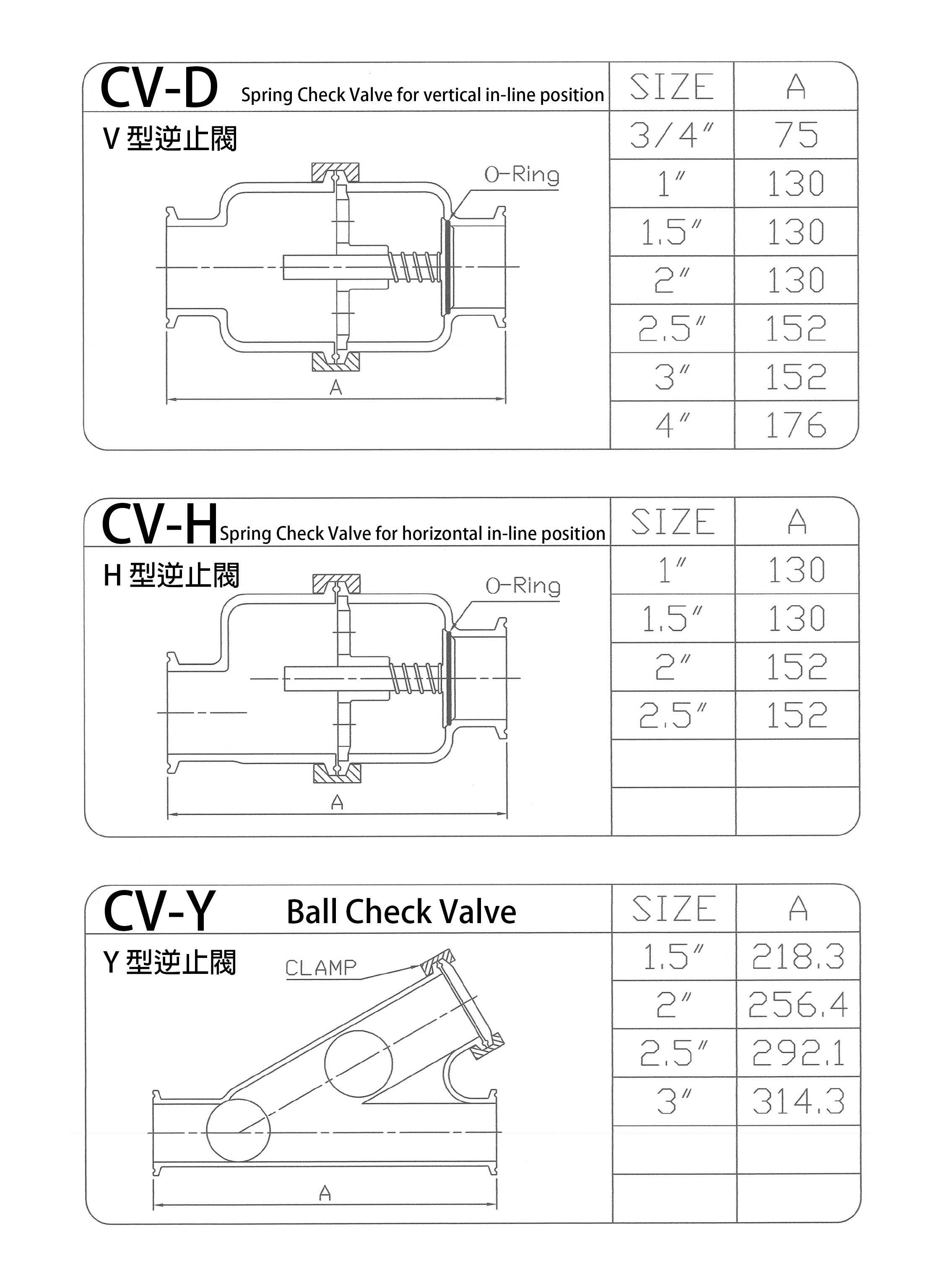

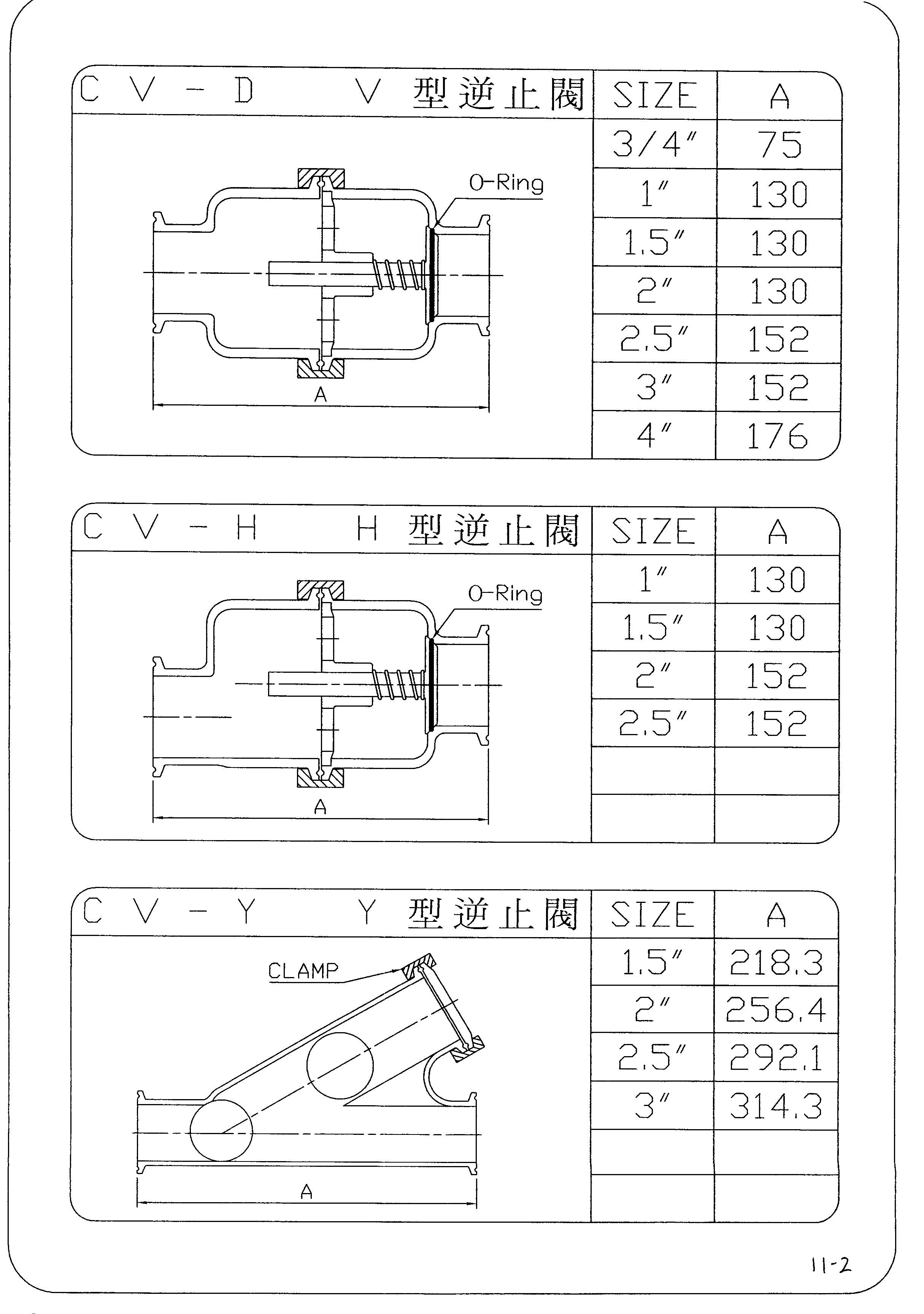

The primary function of a CHECK VALVE is to prevent the backflow of media within a pipeline. In production line piping systems, maintaining a specific flow direction is essential; check valves ensure that fluid flows only in the designated direction, preventing reverse flow from damaging the process or causing contamination.

Furthermore, check valves are used to prevent fluid from back-streaming into other equipment or pipes, thereby protecting adjacent components from unnecessary damage. This is particularly critical for fragile equipment or devices sensitive to specific fluids.

In addition, check valves help maintain pressure balance within the piping system during pressure fluctuations. They prevent excessively high or low pressure from affecting the system, ensuring that fluids are transported at the appropriate process pressure.

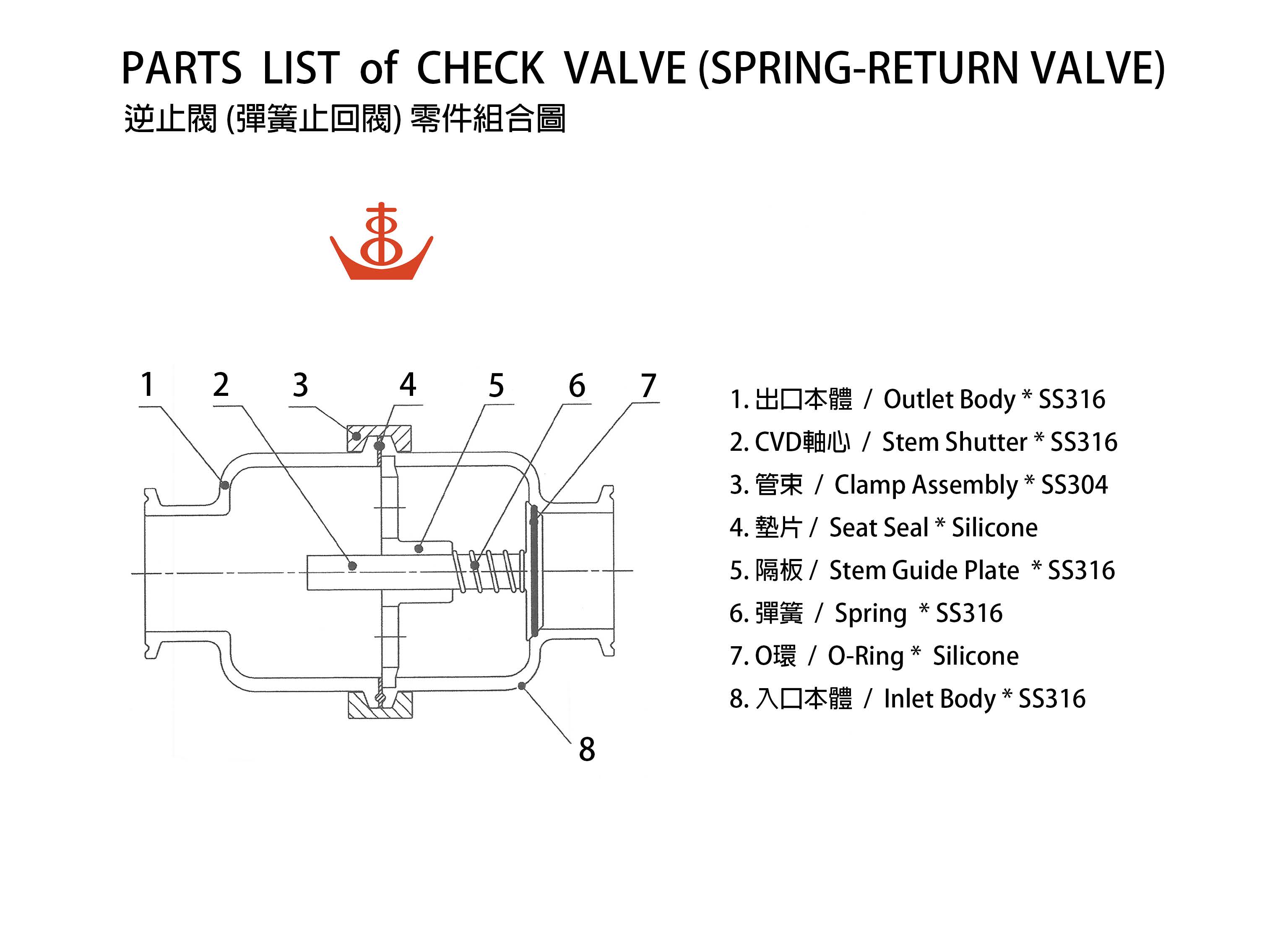

A check valve consists of a two-part valve body, a diaphragm (or baffle), a spring, and a shaft plug with an O-ring at the tip. These components are assembled using Tri-Clamps and gaskets, with the O-ring on the shaft plug providing the seal.

When fluid passes through the valve body in the forward direction, the pressure forces the valve open. Conversely, any fluid attempting to flow in the reverse direction causes the valve to close. The closing of the valve is achieved through a combination of the structure's weight, back pressure, and spring force.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

CV-D  夾式  V型逆止閥 Vertical Disc Check Valve with Clamp Ends     CV-H  夾式  H型逆止閥 Horizontal Disc Check Valve with Clamp Ends H型逆止閥 夾式接口     CV-Y  夾式  Y型逆止閥 Ball Check Valve with Clamp Ends	PARTS LIST of Spring Check Valve     彈簧逆止閥 零件組合圖

In production line piping systems, BALL VALVES are an essential component for controlling fluid flow. Designed for efficiency, they allow for rapid operation between the fully open and fully closed positions while ensuring superior sealing performance.

The robust structural design enables ball valves to excel in high-pressure fluid control. Additionally, the spherical valve geometry facilitates uniform pressure distribution, making them the ideal solution for demanding, high-pressure piping applications.

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.


 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

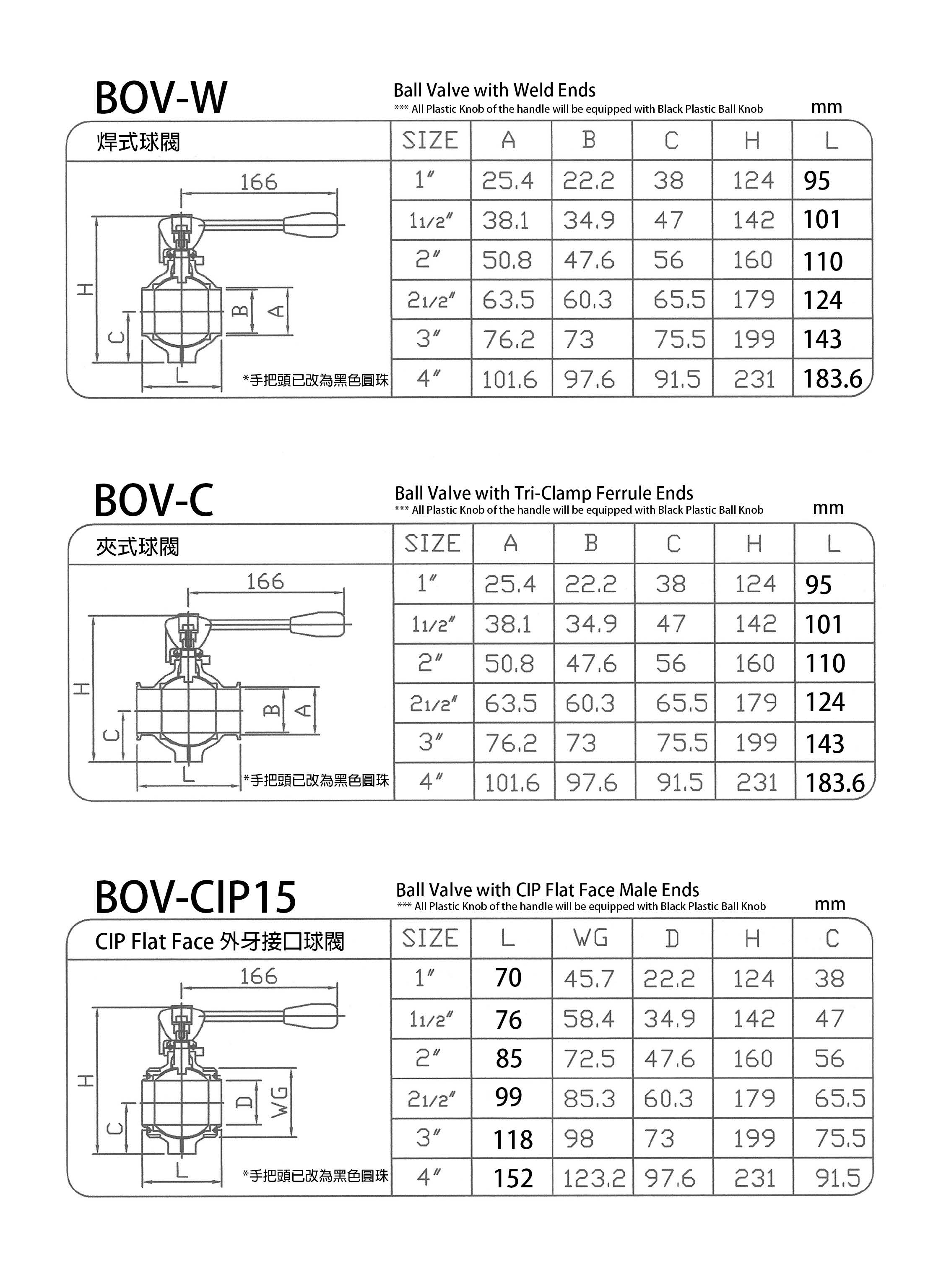

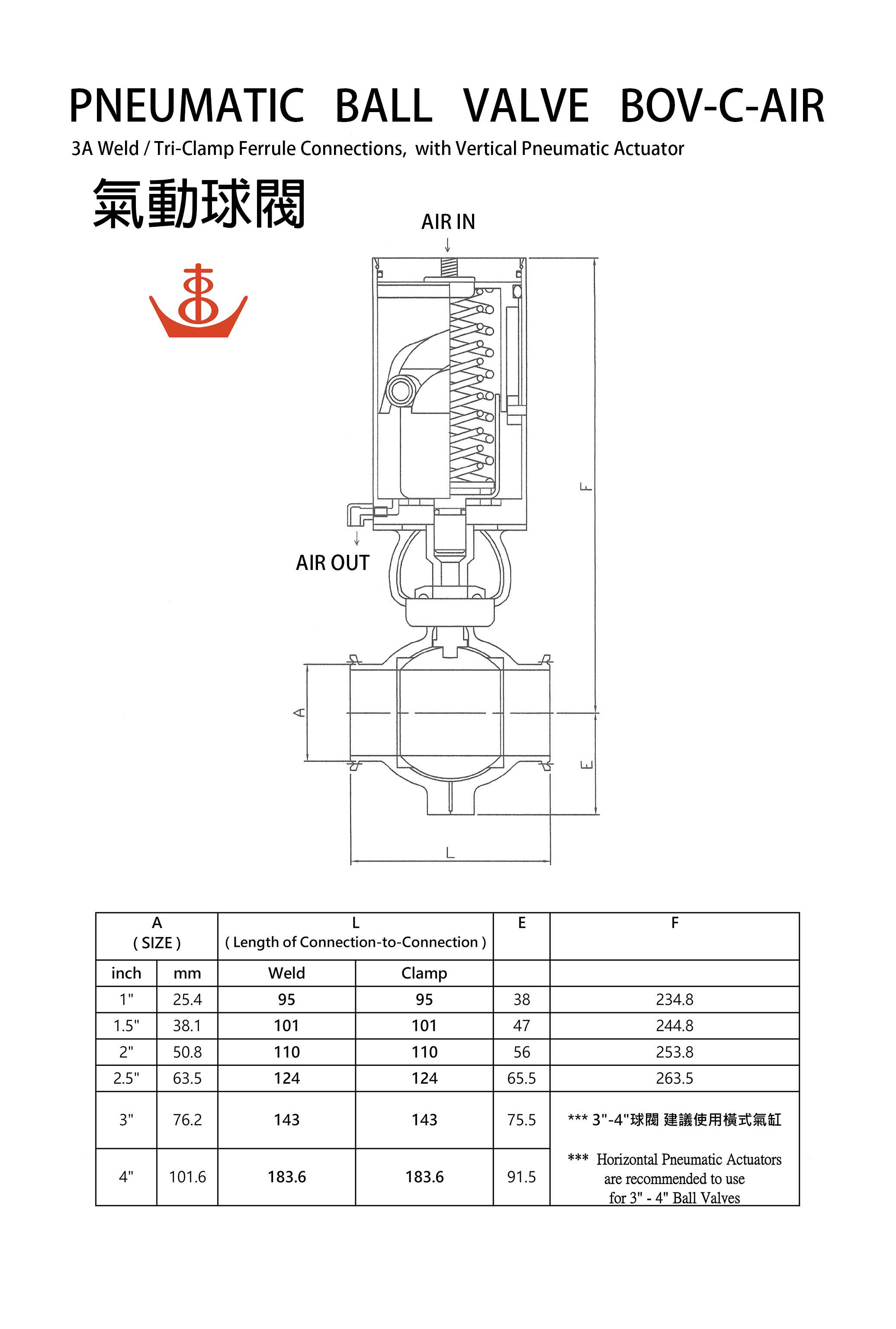

BOV-W  焊式  2通 手動 球閥 2 Way Manual Ball Valve with Weld Ends     BOV-C  夾式  2通 手動 球閥 2 Way Manual Ball Valve with Clamp Ends    BOV-CIP15  CIP Flat Face   外牙接口  2通 手動 球閥 2Way Manual Ball Valve with CIP Flat Face Male Ends	BOV-C-AIR 2通 氣動 球閥  焊式 / 夾式 / IDF /  RJT / BSM /  CIP FLAT FACE /  DIN 11851 / SMS  1145   外牙接口   2 Way Pneumatic Ball Valve with  Weld / Clamp / Threaded Male Ends IDF / RJT / BSM / CIP FLAT FACE /  DIN 11851 / SMS 1145

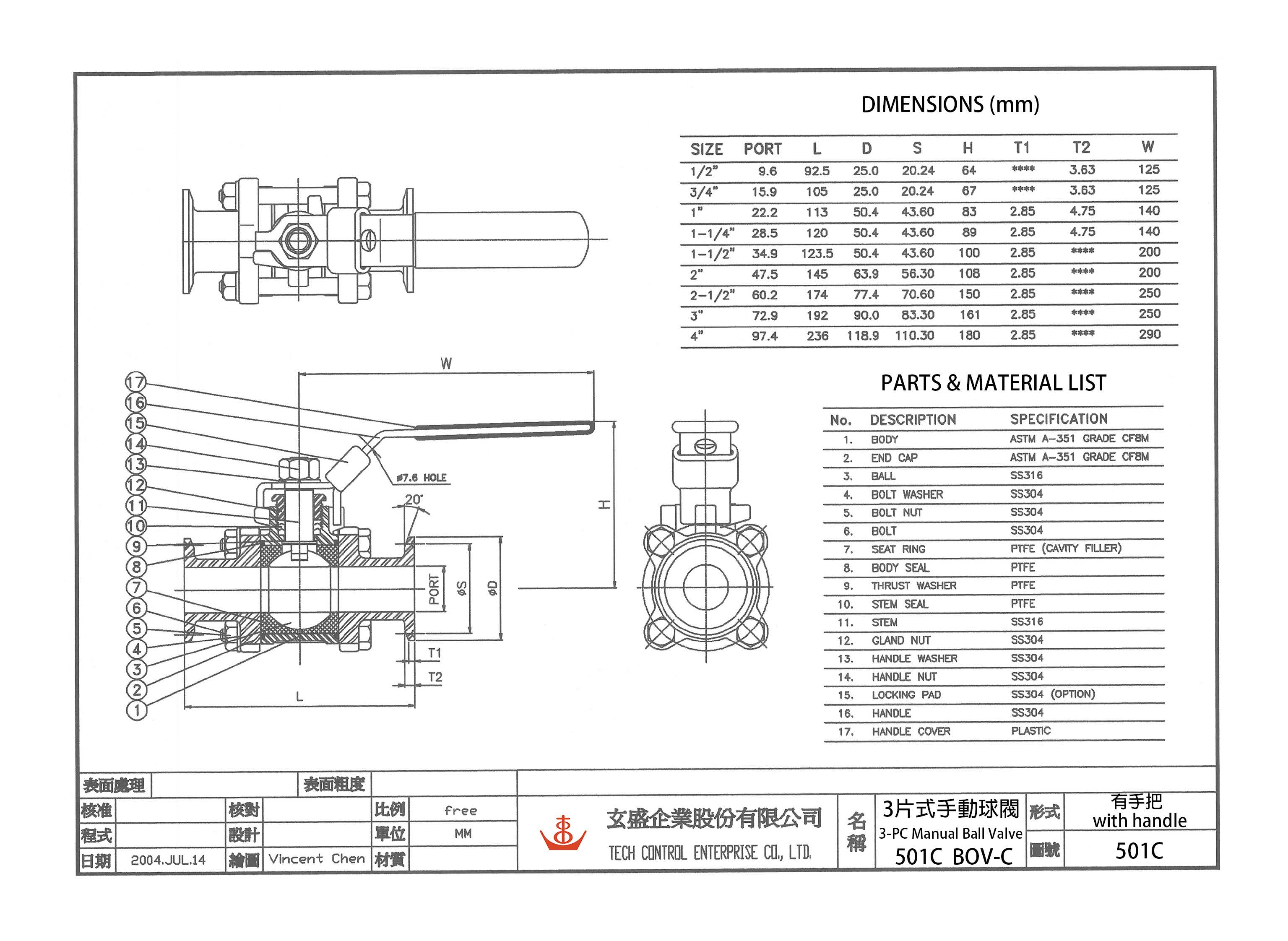

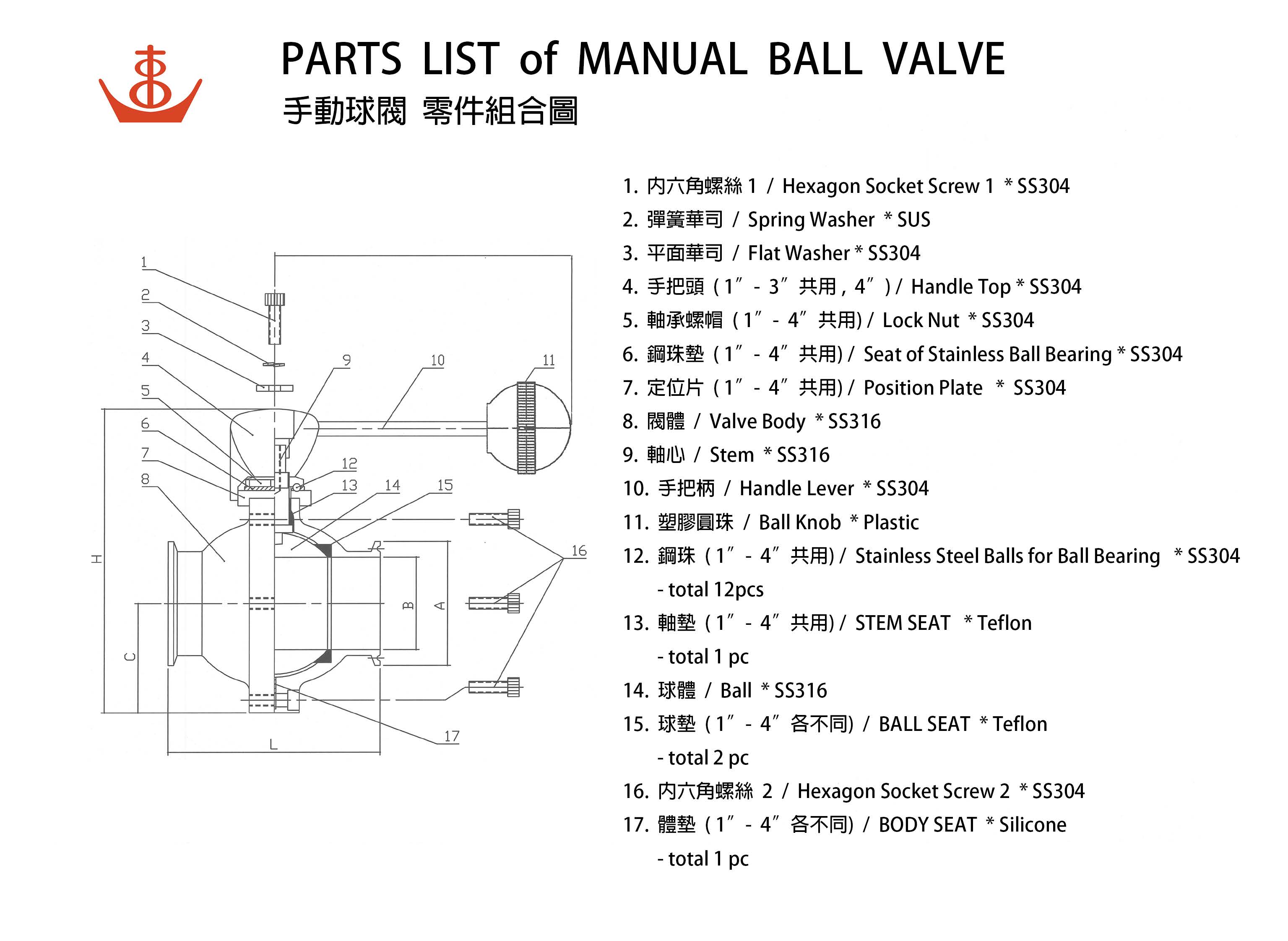

Parts List of 2 Way Manual Ball Valve      2通 手動 球閥   尺寸暨零件組合圖	Dimension & Parts List of 3 Piece & Cavity Filled 2 Way Manual Ball Valve 501C with Clamp Ends    3片式 & 全包式   夾式  2通 手動 球閥  501C  尺寸暨零件組合圖

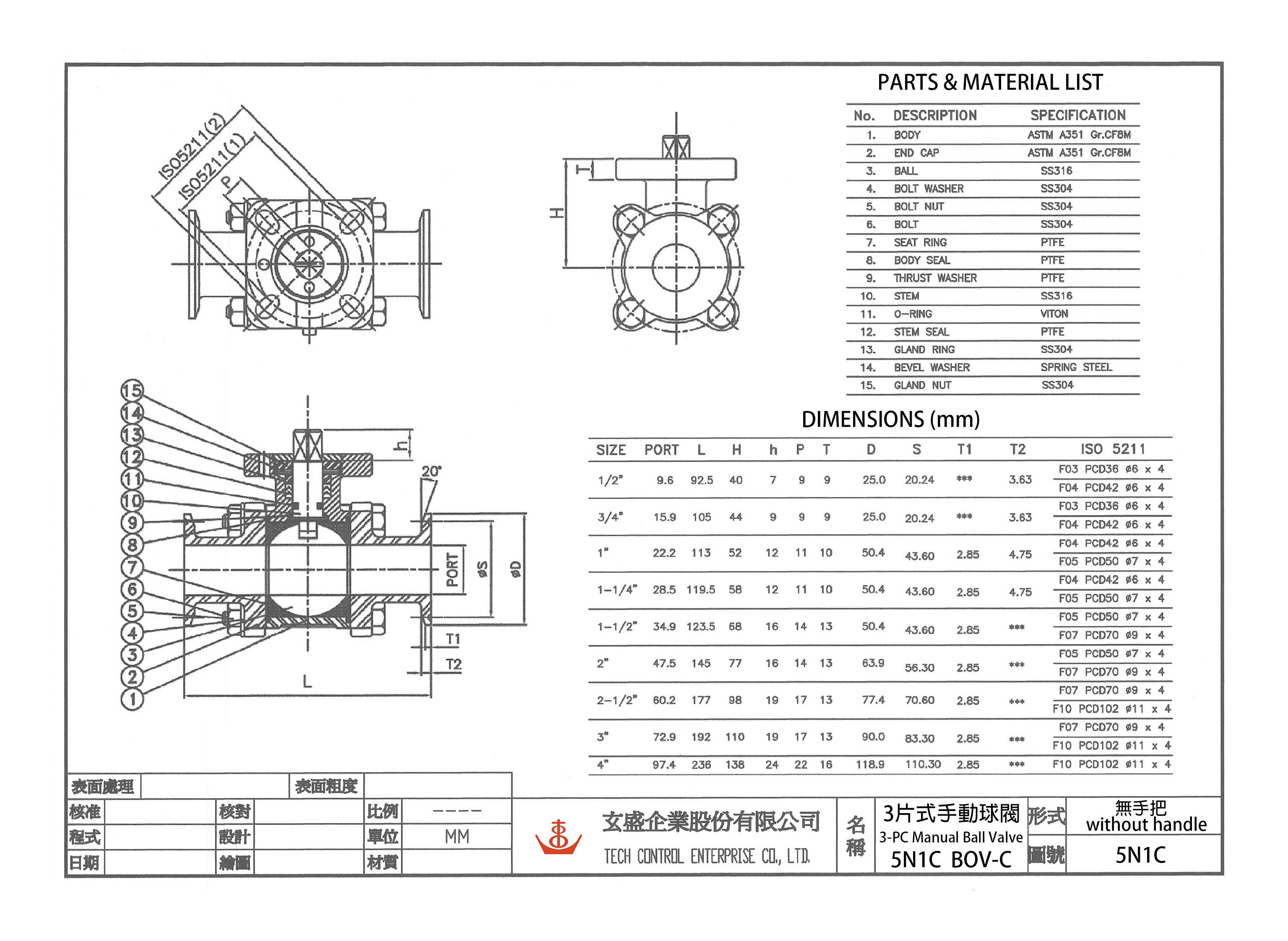

Dimension & Parts List of 3 Piece & Cavity Filled 2 Way Manual Ball Valve 5N1C (without handle) with Clamp Ends   無手把  3片式 & 全包式   夾式  2通 手動 球閥  5N1C  尺寸暨零件組合圖
​
Cavity Filled  3-Way BOV-C  全包式   夾式  3通 手動 球閥    Cavity Filled 3-Way Manual Ball Valve with Clamp Ends  1/2" - 2"	Cavity Filled 3-Way BOV-C  全包式   夾式  3通 手動 球閥    Cavity Filled 3-Way Manual Ball Valve with Clamp Ends  2 1/2" - 4"
Cavity Filled 3-Way BOV-W  全包式   焊式  3通 手動 球閥    Cavity Filled 3-Way Manual Ball Valve with Weld Ends  1/2" - 2"	Cavity Filled 3-Way BOV-W  全包式   焊式  3通 手動 球閥    Cavity Filled 3-Way Manual Ball Valve with Weld Ends  2 1/2" - 4"
FLOW PATTERN  of 3-Way Ball Valve  3通 手動 球閥   流向示意圖

●  2-Port  AV-L  Shut Off Valve

●  3-Port  AV-T  Shut Off Valve

●  3-Port  AV-F  Divert Valve

●  4-Port  AV-E  Divert Valve

The name "SEAT VALVE" originates from its structural design and operating principle. This valve features a central stem integrated with a seat seal (plug tip) to ensure tight shut-off, utilizing the linear movement of the stem to open or close the fluid flow path.

Seat Valves are ideal for large-volume liquid handling applications. Thanks to their flexible modular body design, they can be adapted to various production line needs. For instance, the valve bodies can be configured as a SHUT OFF VALVE with two or three ports, or as a DIVERT VALVE with three to five ports. They are widely used in processes such as dairy processing, cream, beverages, fruit juice, and pharmaceuticals.

 Note : These Seat Valves are not suitable for fluids containing large suspended solids !!!

In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, sanitary valves should meet the following requirements to ensure hygiene and safety during production:

📌 Material Selection must comply with relevant industry regulations and standards. Common materials include food-grade stainless steel, special alloys, or high-quality polymers, all of which offer excellent corrosion resistance and high-temperature performance.

📌 Surface Finishing should be properly treated to provide a highly smooth, seamless, and easy-to-clean surface, minimizing the risk of microbial growth.

📌 Valve Design should be simple, with no dead zones or crevices, to prevent the accumulation of bacteria or contaminants and to facilitate cleaning and sterilization.

📌 Sealing Performance should be excellent to prevent leakage or cross-contamination.

📌 Ease of Disassembly and Assembly :

Sanitary valves should be designed for easy dismantling and reassembly to support effective cleaning and sterilization, ensuring hygienic conditions during production.

📌 Quick Connection and Disconnection :

Since valves may need to be frequently replaced or cleaned, they should allow fast connection to and removal from pipelines, saving maintenance time and improving production efficiency.

📌 Compliance with Sanitary Standards :

The design and manufacturing of sanitary valves should meet all relevant hygiene standards.


👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.

👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.

👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.

👉 Each item undergoes 100% inspection before shipment.

👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3-A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.

 (以下產品尺寸圖, 點擊後可放大) !!!
 Click the DIMENSION DRAWINGS below to Enlarge !!!

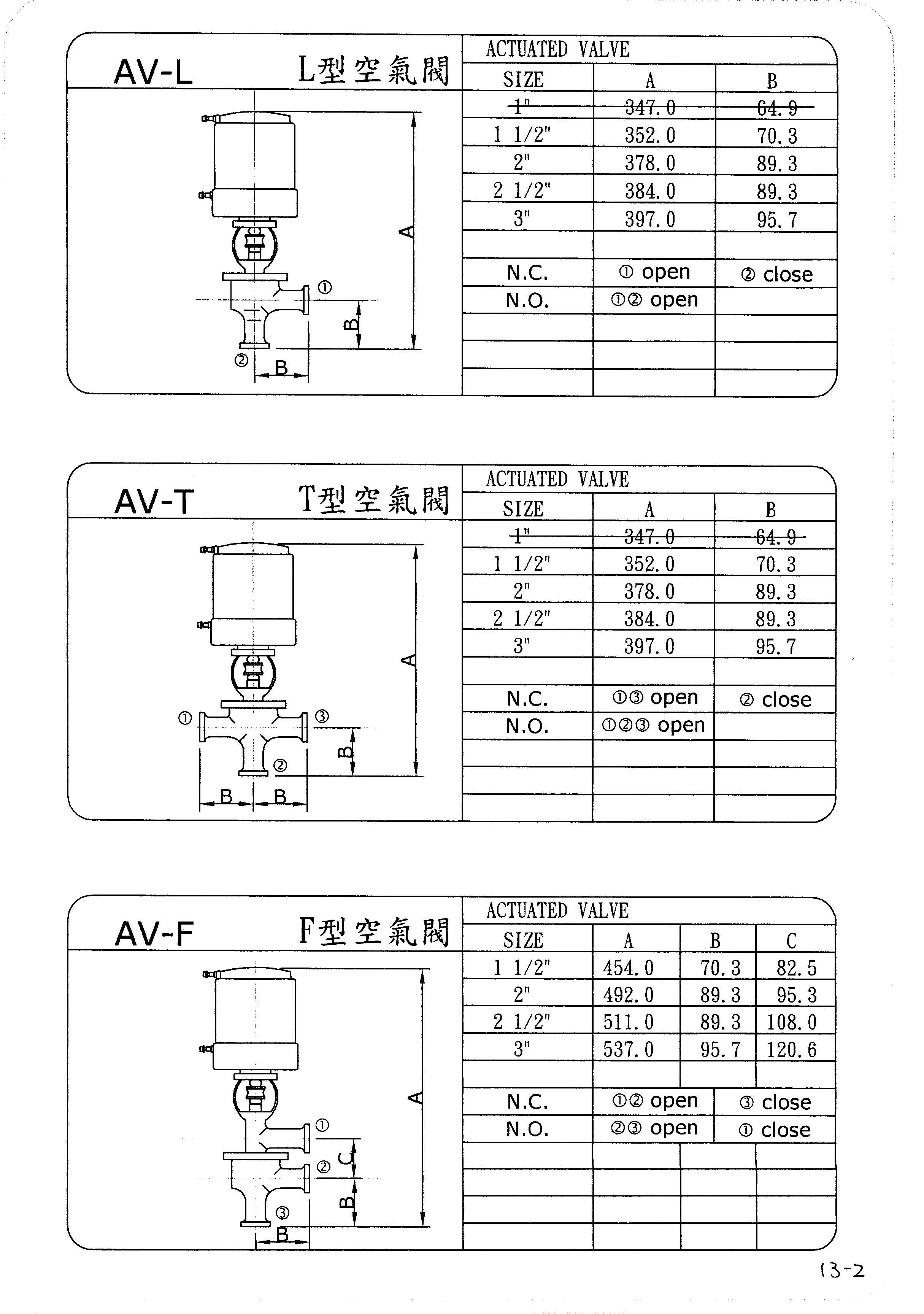

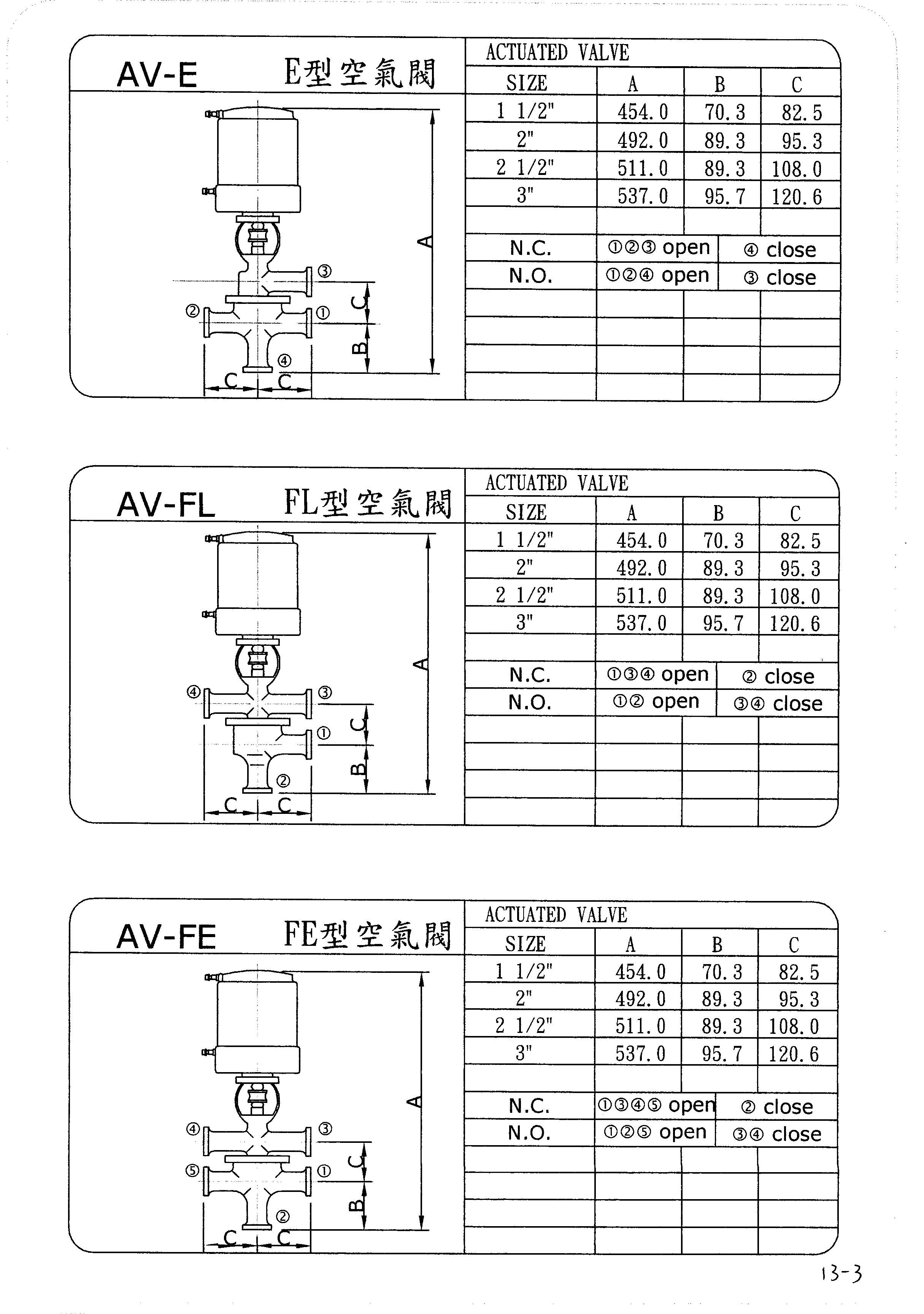

AV-L Pneumatic Shut-Off Valve L Type with Clamp Ends 氣動截止閥 L型 夾式   AV-T Pneumatic Shut-Off Valve T Type with Clamp Ends 氣動截止閥 T型 夾式   AV-F Pneumatic DIVERT Valve F Type with Clamp Ends 氣動換向閥 F型 夾式	AV-E Pneumatic DIVERT Valve E Type with Clamp Ends 氣動換向閥 E型 夾式   AV-FL Pneumatic DIVERT Valve FL Type with Clamp Ends 氣動換向閥 FL型 夾式   AV-FE Pneumatic DIVERT Valve FE Type with Clamp Ends 氣動換向閥 FE型 夾式

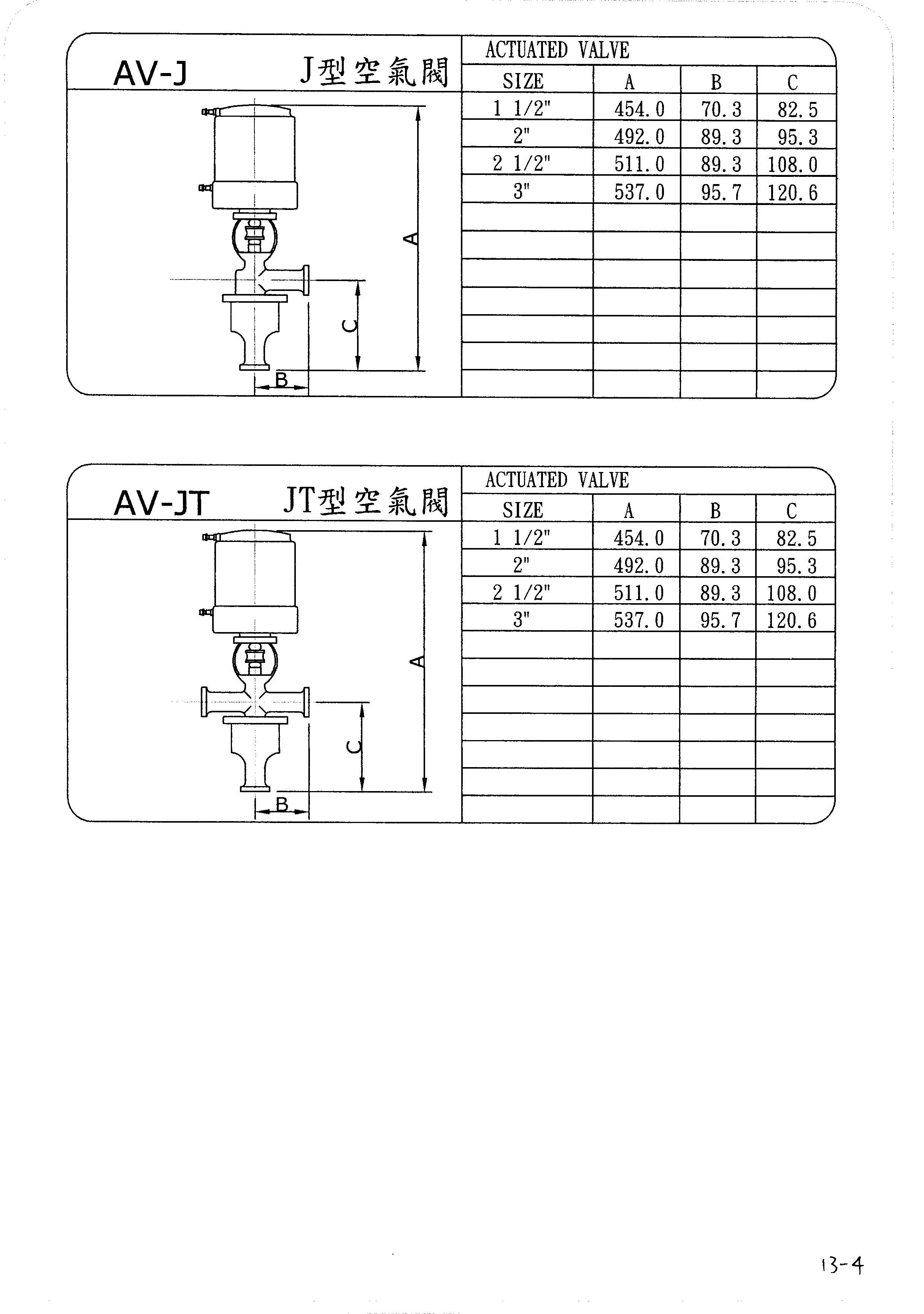

AV-J Pneumatic Shut-Off Valve J Type with Clamp Ends 氣動截止閥 J型 夾式   AV-JT Pneumatic Shut-Off Valve JT Type with Clamp Ends 氣動截止閥 JT型 夾式
Actions of AV-L Pneumatic Shut-Off Valve  L型 氣動截止閥 作動說明	Actions of AV-T Pneumatic Shut-Off Valve  T型 氣動截止閥 作動說明
Actions of AV-F Pneumatic Divert Valve  F型 氣動換向閥 作動說明	Actions of AV-E Pneumatic Divert Valve  E型 氣動換向閥 作動說明

取樣閥 SAMPLING VALVE

Tri-Clamp夾接接口

3/4", 1"

取樣閥 可以應用在食品、飲料、生技和製藥等工廠的製程中以下的各種情況和階段：

1. 原料採樣：用於 採集進入生產線 的 原料樣本，以 確保 原料 符合標準 並且 不含有害物質。

2. 製品檢測：用於 採集在生產過程中 的 中間產品樣本，以 確保 各個階段的產品 符合標準。

3. 最終產品檢測：用於 採集 最終產品的樣本，以 進行最終產品 的 品質檢測和分析，確保產品 符合最終的要求和安全標準。

在食品、飲料、生技和製藥等工廠的製程中，衛生級閥件應該要具備以下的條件，以確保生產過程的衛生和安全性：

1. 材料選擇應符合食品、飲料、生技和製藥行業的相關法規和標準。通常會使用食品衛生級不銹鋼、特殊合金或高品質的聚合物材料，這些材料具有優異的耐腐蝕性和耐高溫性能。

2. 閥的表面應該經過適當的處理，以提供高度平滑、無縫且易於清潔的表面，減少微生物滋生的可能性。

3. 閥的設計應該簡單，無死角或凹槽，以避免滋生細菌或其他污染物，並且容易清潔和消毒。

4. 閥應該具備優異的密封性能，以防止產品外泄或交叉污染。

5. 衛生閥在結構上應該要被設計成易於拆卸和組裝，以便清潔和消毒，確保生產過程中的衛生狀態。

6. 在製程中，可能需要頻繁更換或清洗閥門。因此，衛生閥在結構上應該要被設計成能夠與管道快速連接和斷開，以節省維護時間並提高生產效率。

7. 衛生閥的設計和製造應該符合相關的衛生標準。

玄盛企業股份有限公司生產的所有食品衛生級閥件, 材料皆經過 Olympus Innov-X Delta XRF Metal Analyzer 金屬材質檢驗機 嚴格把關，表面處理 Ra ≤ 0.8μm, 符合 食品衛生級 標準，精密加工，易於焊接、組裝和維護，銳利邊角 經過打磨，組裝 維護 清潔 不傷手，出貨前 100% 檢驗。

(以下產品尺寸圖, 點擊後可放大)

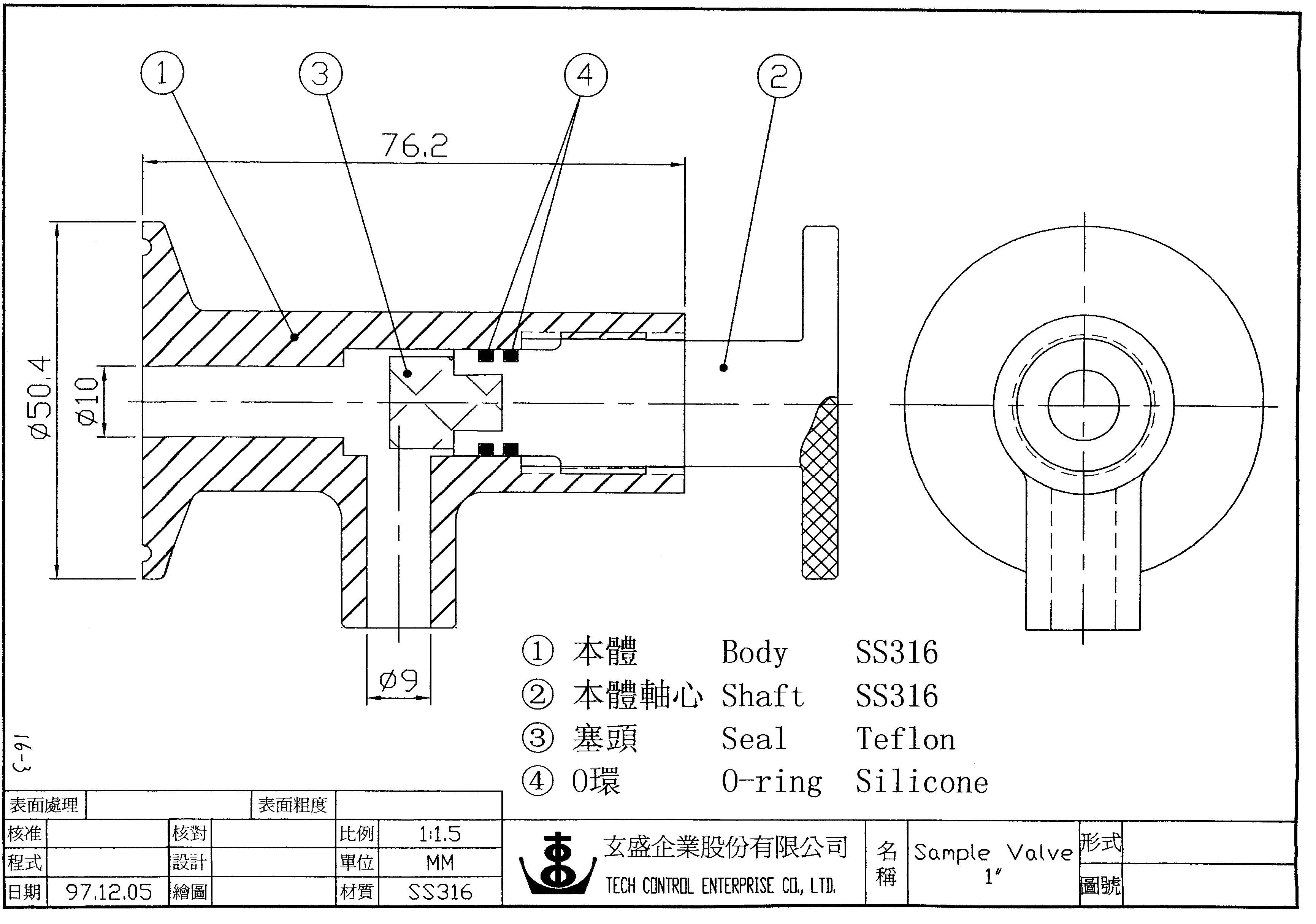

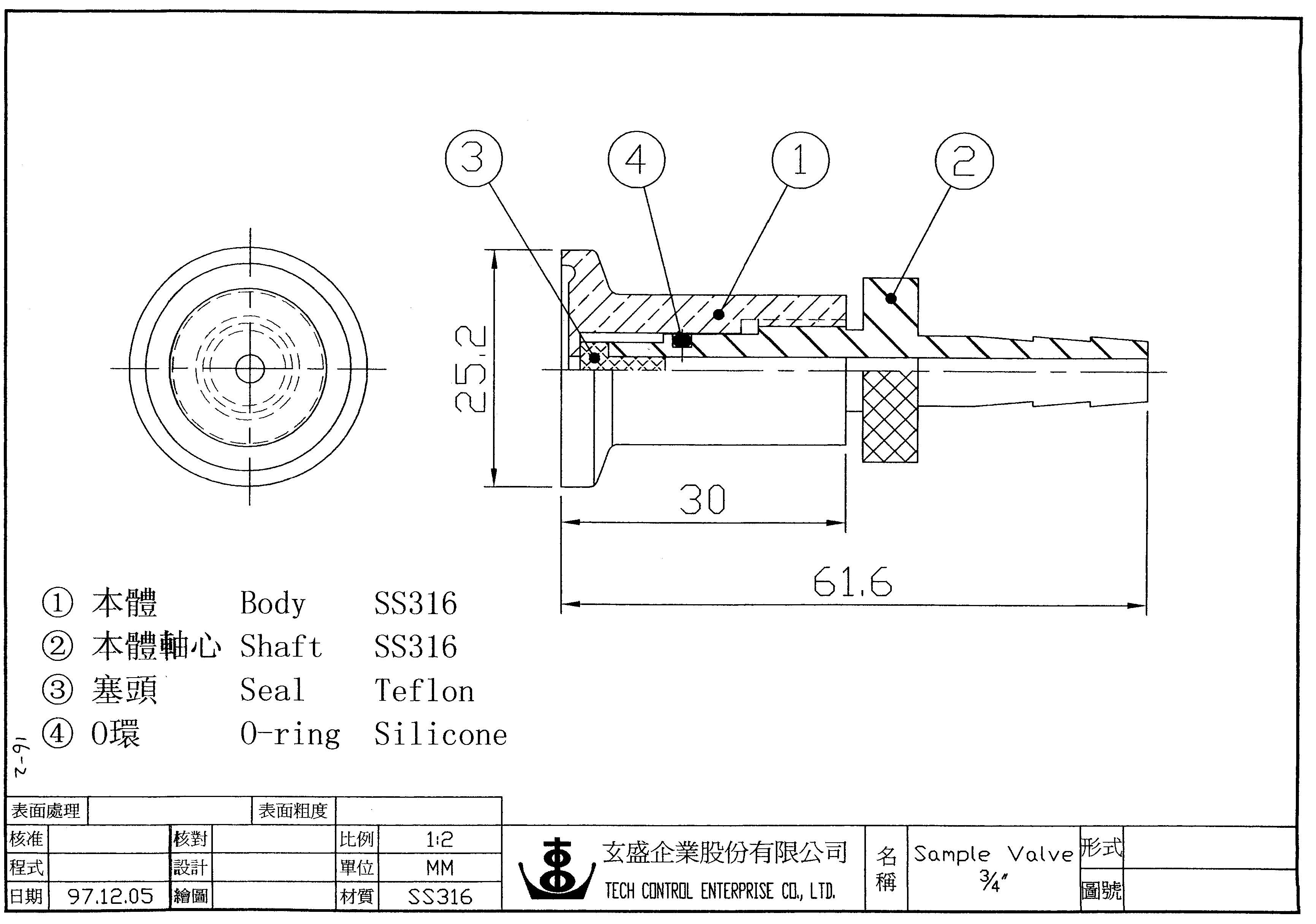

取樣閥 Sampling Valve Size 3/4" and 1.5"x3/4"	取樣閥 Sampling Valve   Size 1"

由此下載本產品最新型錄 !!!

Download LATEST  PRODUCT CATALOG Here !!!

隔膜閥 DIAPHRAGM VALVE

手動隔膜閥 Manual Diaphragm Valve

氣動隔膜閥 Pneumatic Diaphragm Valve
